Connector electrical specifications
connection 1
Connector SMA-Female
| Frequency | DC – 7.125 GHz |
|---|---|
| Impedance (Ohm) | 50 |
| VSWR | 1.3 |
| Max. Input Power (W) | 25 |
2JC237G
Connector

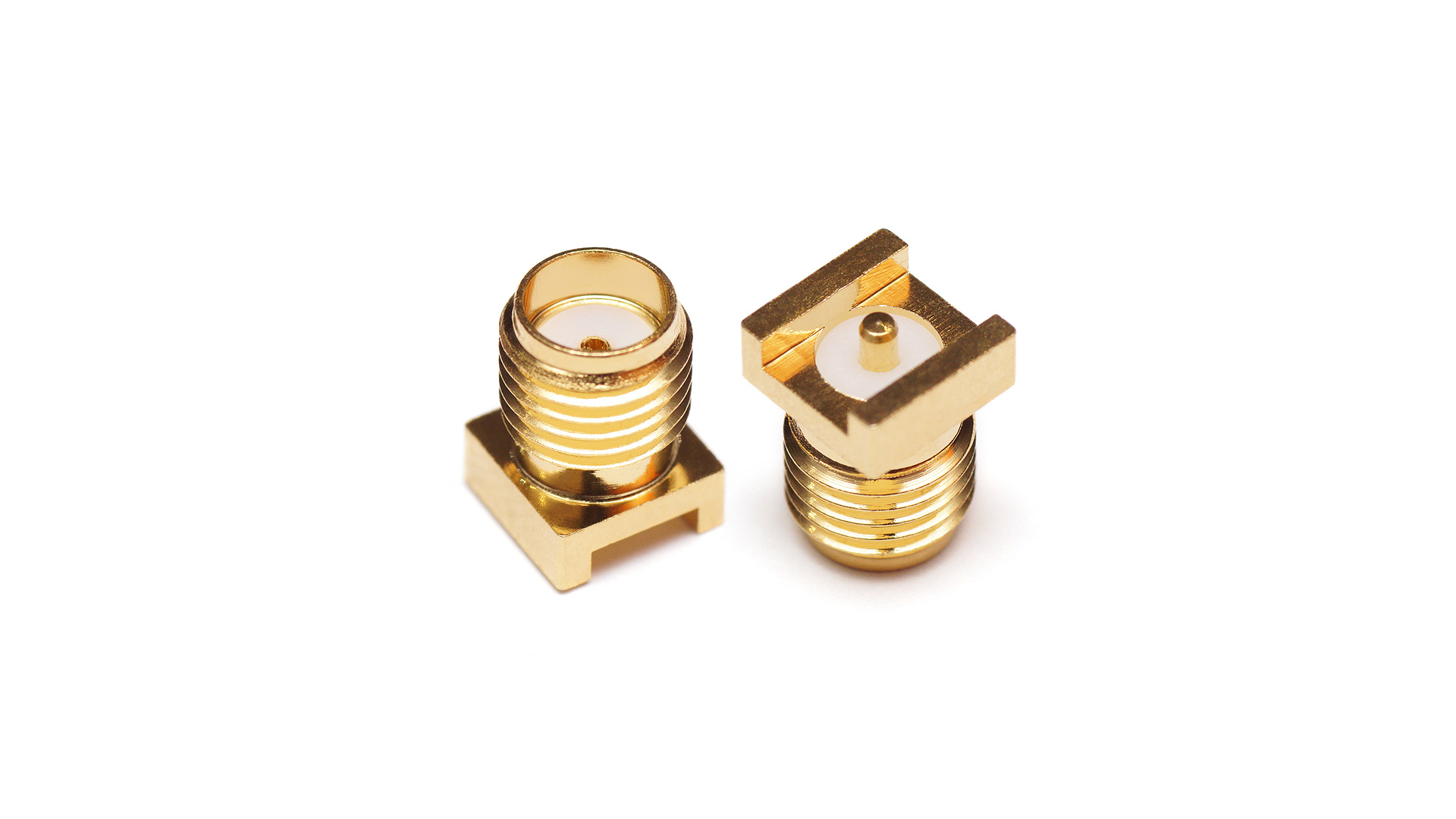

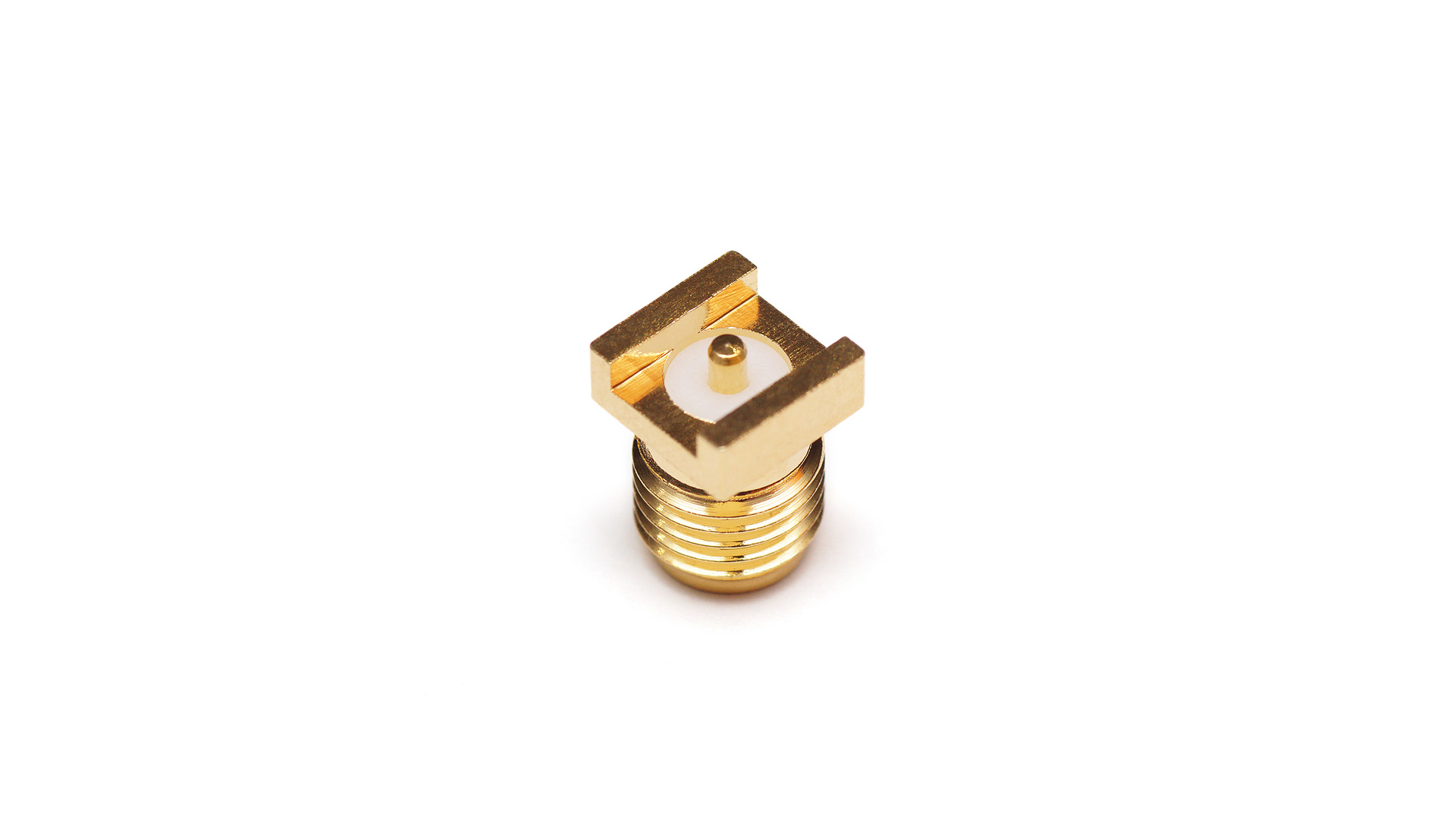

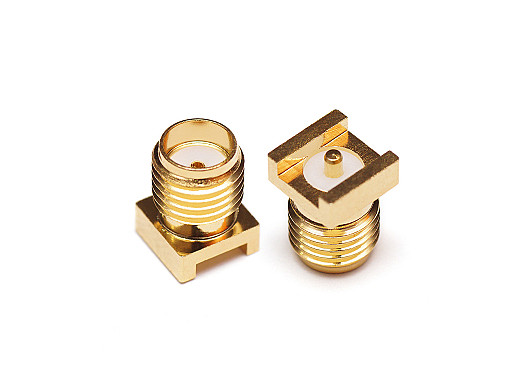

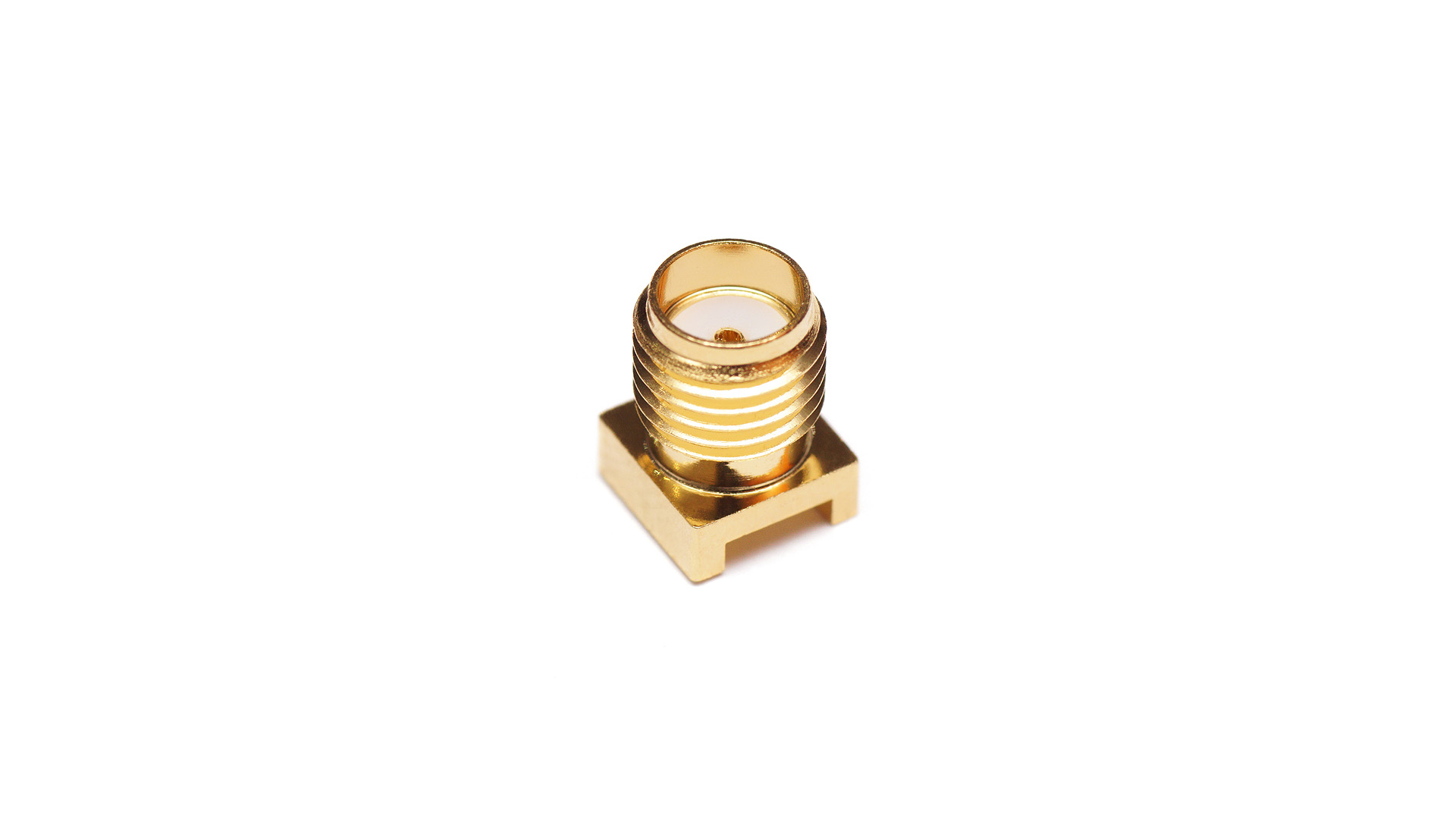

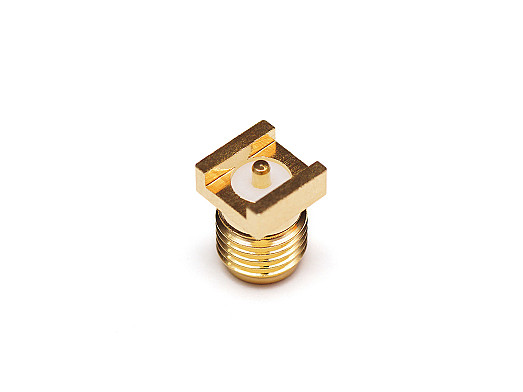

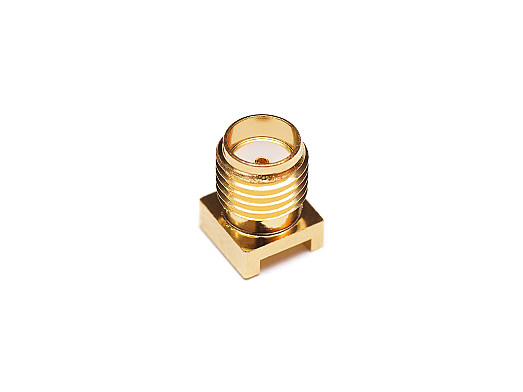

SMA-Female Surface Mount Connector
Connections (1)
| Mounting | Surface Mount Connector |
|---|---|
| Connector type | SMA |
| Connector Gender | Female (Jack) |
| Connector polarity | Standard polarity |
| Dimensions (mm) | 6.35 × 6.35 × 8.9 |
| Body Material | Brass |
| Body Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Insulator Material | Teflon |
| Operating temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Substance Compliance | RoHS |
| Standard colors |
Product added to cart
Products documents
Key Features
SMA-Female
Surface Mount
Standard polarity
Gold Plated
Applications
