Key Features

  • GPS/GLONASS/BeiDou/QZSS/Galileo
  • Pre-Filter
  • 14 dB Gain
  • Low Noise Figure
  • Low Power Consumption
  • 18 × 18 × 6.8 mm

Applications

Antenna and electrical specifications

connection 1

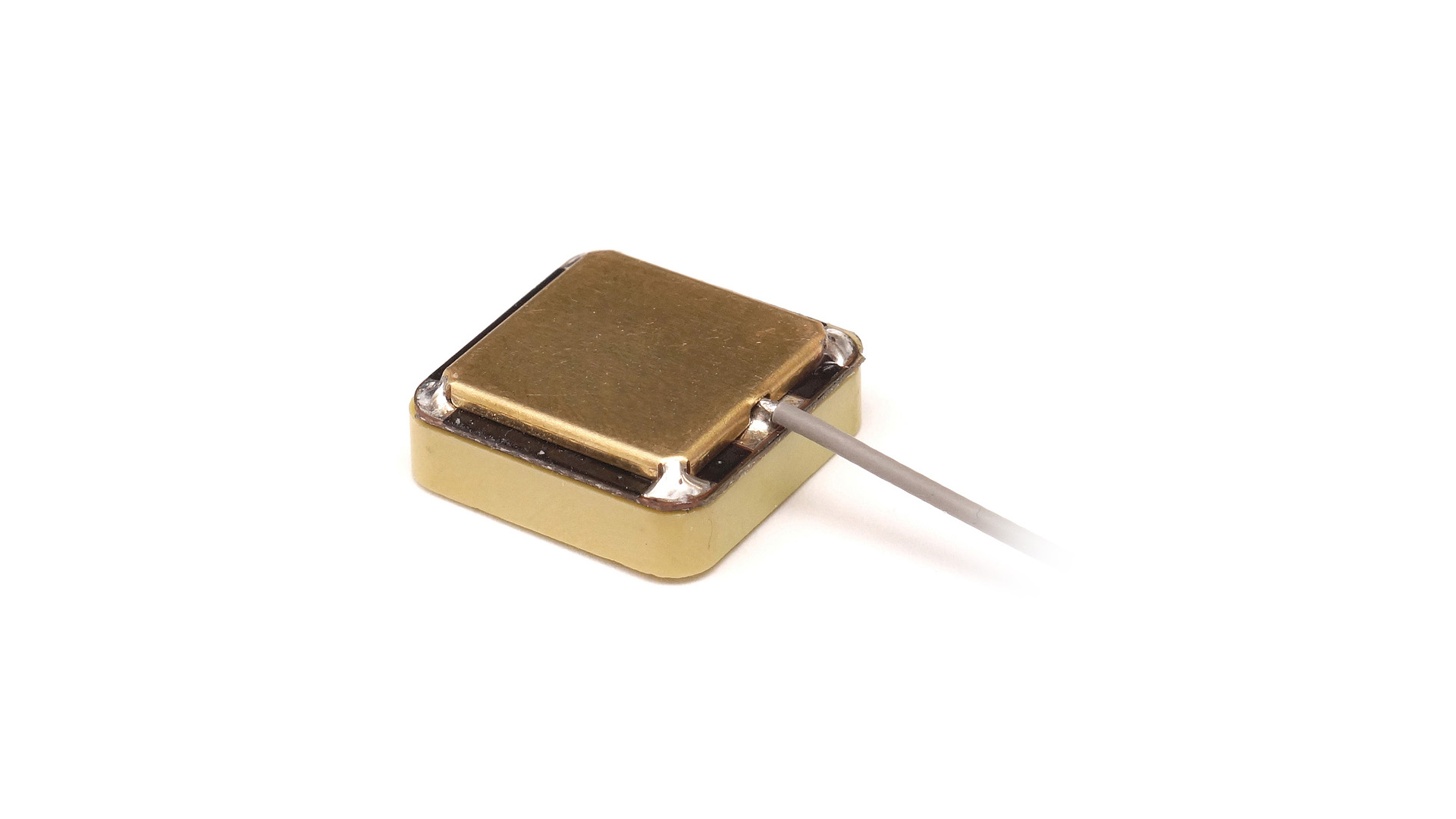

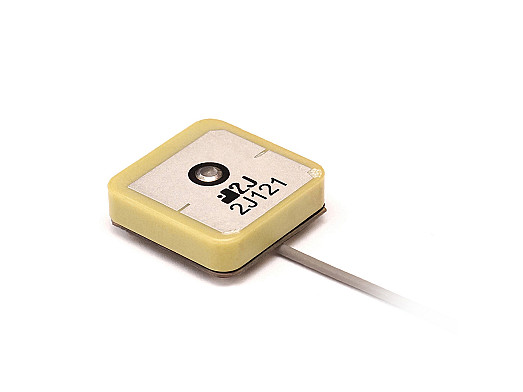

GPS/GLONASS/BeiDou - Ceramic Active Antenna

Standards GPS/GLONASS/BeiDou/QZSS/Galileo
Frequency 1561.098, 1575.42, 1598-1606
Passive Gain (dBi) ~5.2, ~5.4, ~5.4
Impendance (Ohm) 50
Radiation Pattern Hemispherical
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 14 @ 2.7 V
Noise Figure (dB) 1.5 @ 2.7 V
Current Consumption (mA) 4 @ 2.7 V
Power Consumption (mW) 10.8 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 2
