Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.6:1, ~2.1:1, ~2.3:1
Efficiency (%) ~41.6, ~57.6, ~55
Peak Gain (dBi) ~-1.6, ~1.5, ~2.9
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Dipole Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
2.9 dBi 4G LTE Peak Gain
High Performance
Hinged Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna description

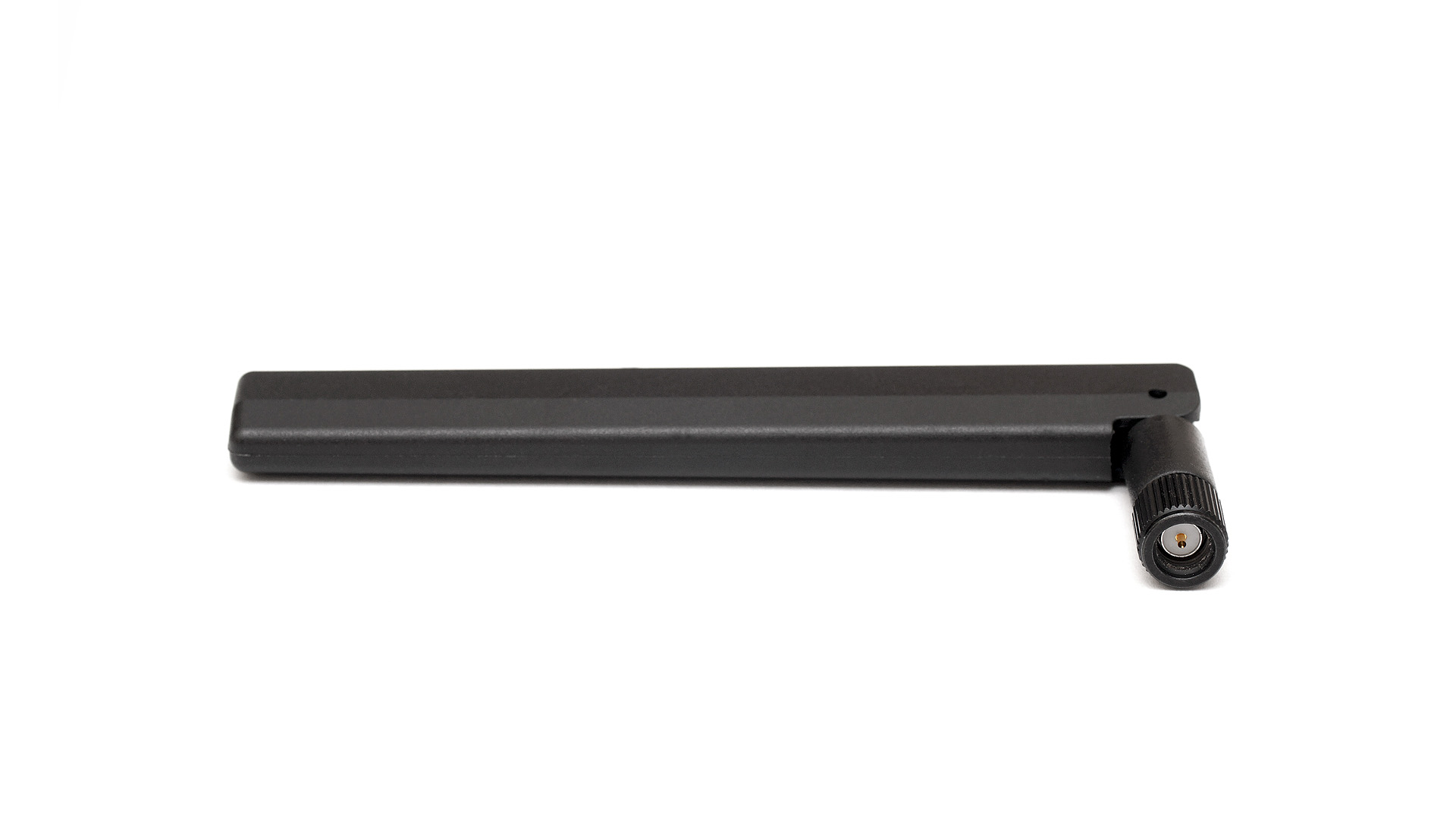

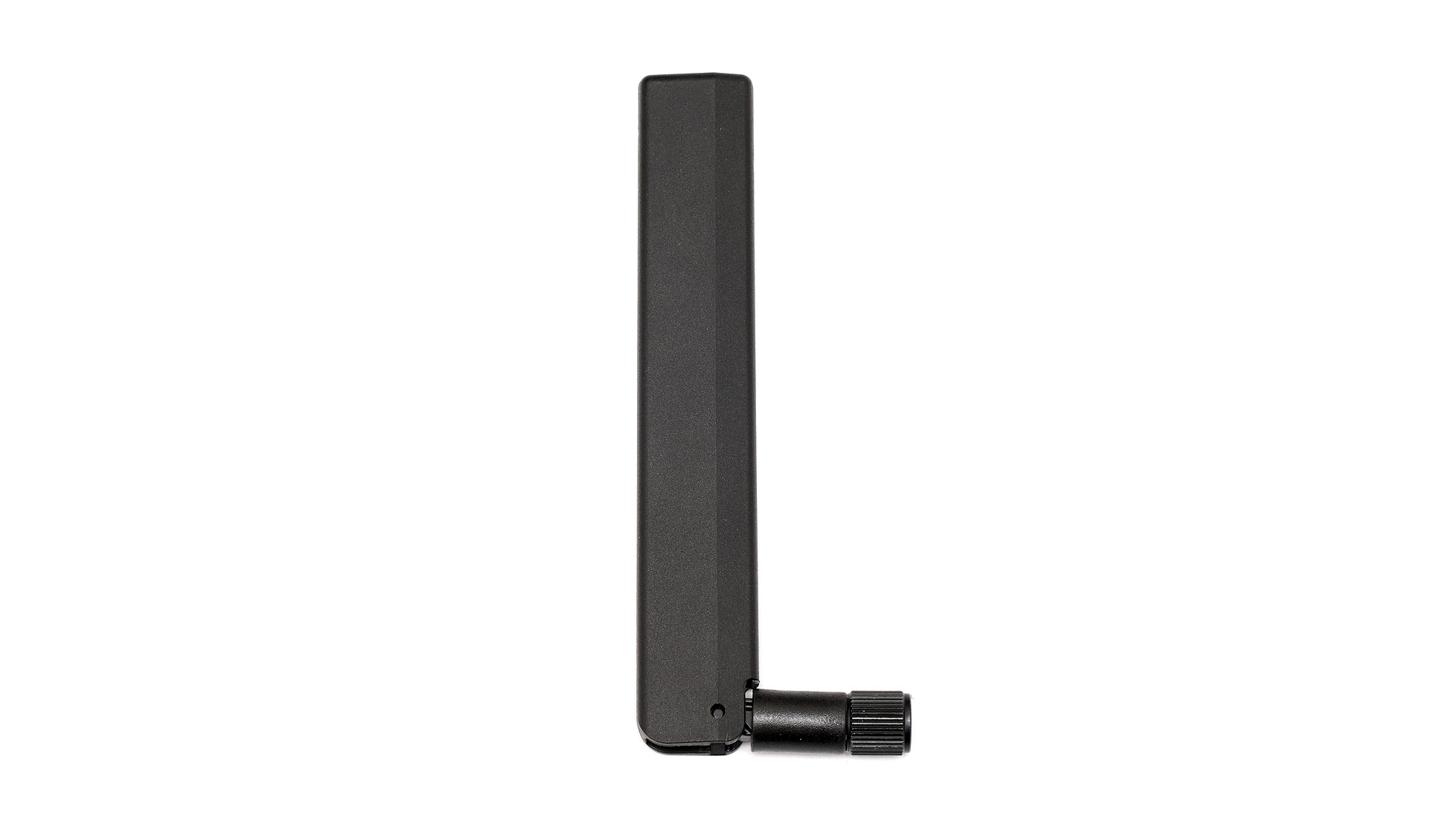

2JW1124 is Ultra wide band High performance connector mount antenna solution for worldwide 4G LTE with 2G, 3G fallback compatibility, covering all cellular bands ranging from 698-960, 1710-2170 and 2500-2700 MHz.

High Performance properties gives the antenna consistent and stable connectivity with high throughput data to access points, routers, small base station, femto cells, repeaters, boosters, fleet management devices and other telematics devices with cellular needs.

This antenna is ideal for major carrier approvals and certification process around the globe. The antenna can freely swivel 360 degrees and features a hinged connector up to 90 degrees, having flexibility in orientation with respect to the device for easier installation or multiple antenna mounting.

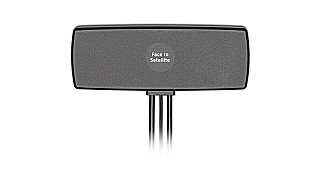

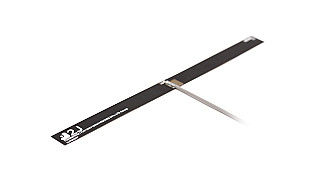

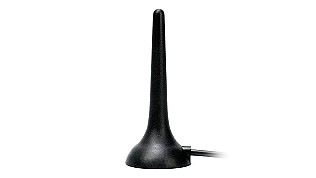

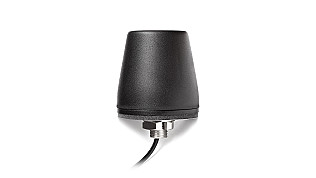

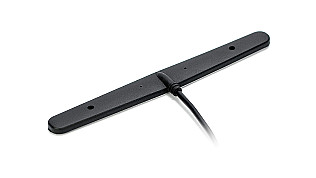

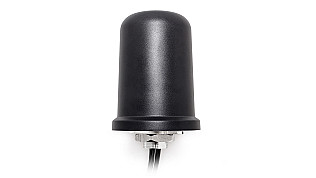

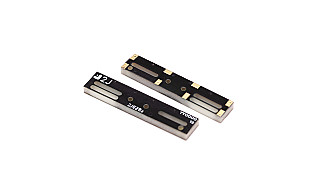

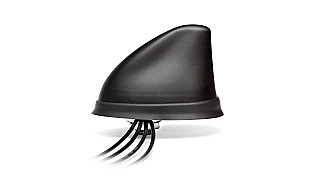

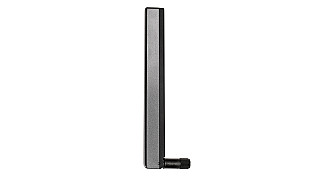

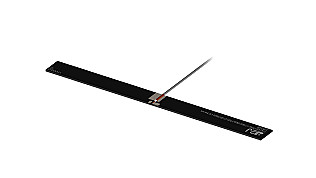

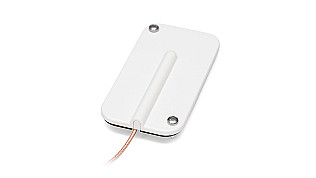

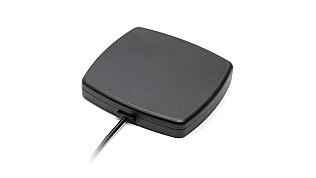

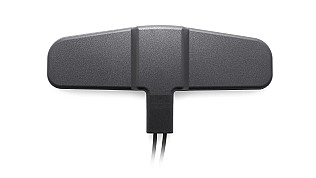

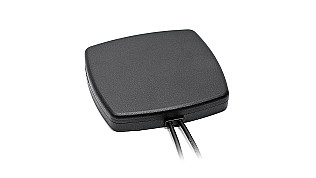

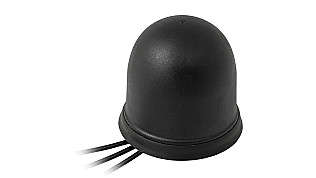

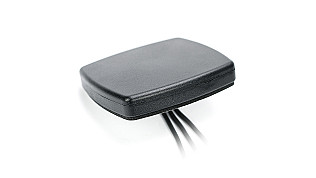

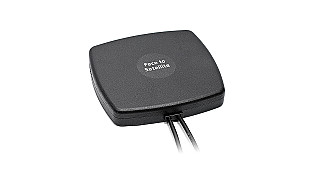

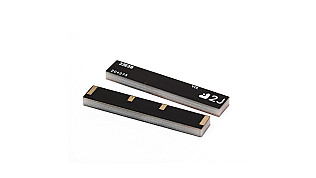

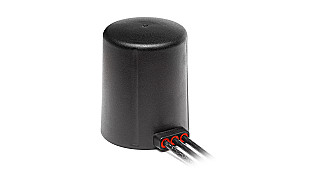

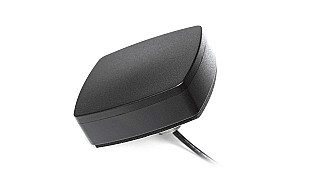

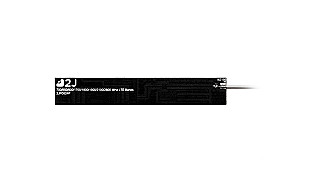

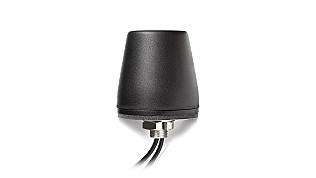

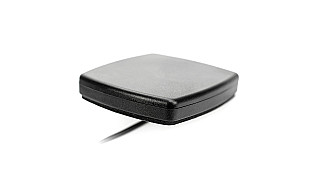

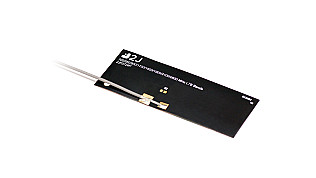

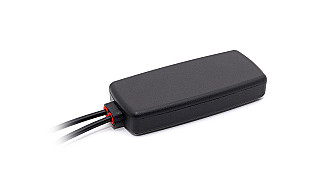

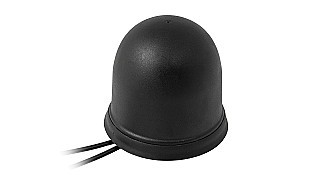

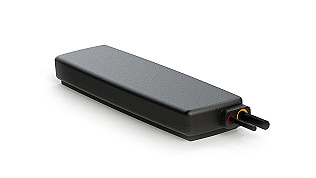

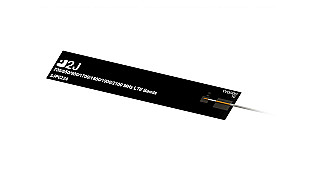

Related antennas

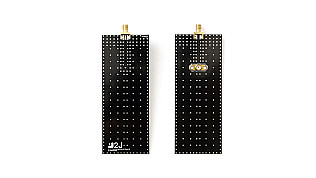

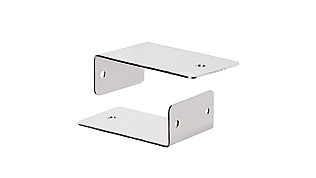

Related mounting brackets
