Antenna and electrical specifications

connection 1

GPS

Standards GPS/QZSS/Galileo
Frequency 1575.42
VSWR ~1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 26-27 @ 3-5 V
Saw Filter Type No Filter
Voltage (V) 2.7 - 5.5
Current (mA) 15 - 25
Power Consumption (mW) 40-138

Key Features

Active GNSS Antenna
Ground Plane Independent
27 dB GNSS Active Gain
Non-Filter GNSS
Voltage Range 2.7 - 5.5 V
Adhesive Mounting sticker included
Customizable Cable and Connector

Applications

Antenna Description

2J4C01P

Tuned With Precision And Superior Global Navigation For Automotive Applications

2J Antennas is offering the GPS, QZSS and Galileo Antenna (2J4C01P) as part of their active GNSS antenna portfolio. This compact antenna is designed and tuned with precision for navigational automotive applications and fleet management that operate within 1575 MHz bands. With easy peel-n-stick adhesive mount combined with a compact size form factor make this antenna a popular choice for temporary or permanent installations.

Suggested applications include:

- Navigation
- Automotive / Transportation
- Fleet Management
- Telematics

This antenna is designed with a high active GNSS gain of 26-27 dB @ 3-5V and will maintain constant M2M signal strength for maximum precision.



Installation / Environmental

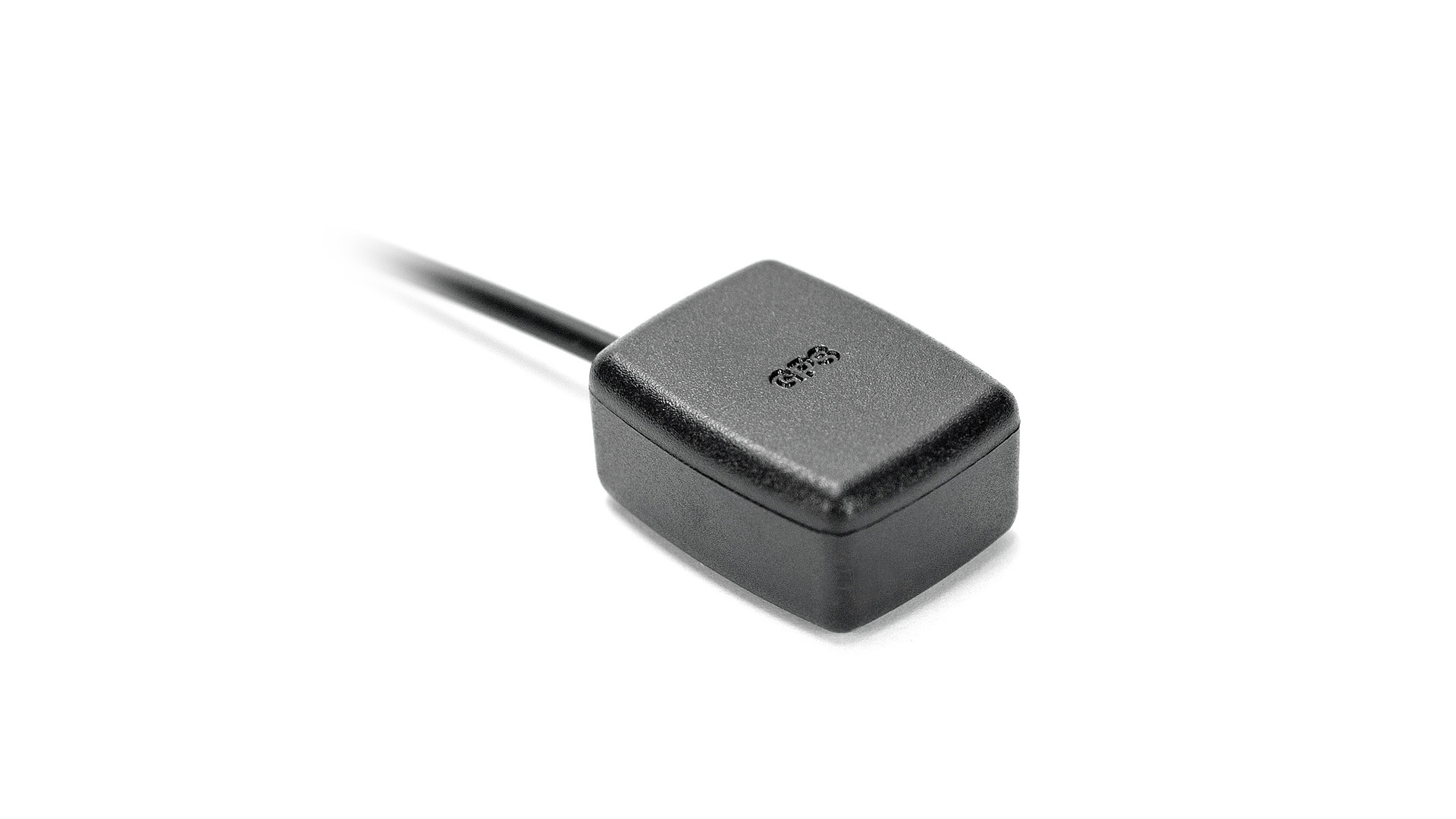

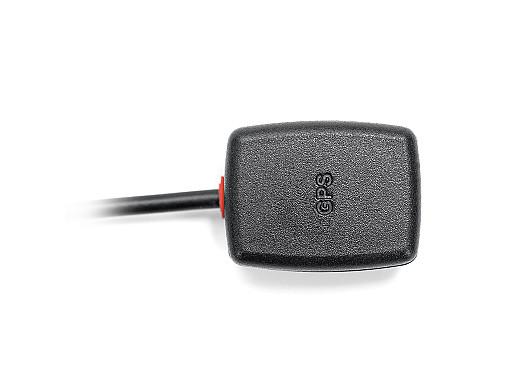

The antenna housing and base are manufactured with high quality ABS material that is designed to operate in temperatures ranging -40C to +85C without any compromise to performance. The small box-shaped antenna housing measures 28 x 21.3 x 13/14 mm and comes with a magnetic mount and an easy peel-n-stick adhesive mount that allows for temporary or long-term installations on metal surfaces such as vehicles, poles, and buildings.

2J4C01P includes a standard SMA-Male connector and a 300 cm long flexible RG174 cable tuned for optimal GNSS performance. We offer a large range of alternative connectors and cables to meet any customization needs. It is important to match the right antenna with the job and our expert engineers are available for installation support, any customization needs and antenna selection support.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
