Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.3, ~-13.0, ~-14.1, ~-11.9
VSWR ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
Efficiency (%) ~66.6, ~62.6, ~40.6, ~32.4
Peak Gain (dBi) ~3.9, ~4.0, ~3.9, ~3.9
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35

Key Features

Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
4.0 dBi 5G NR Peak Gain
High Performance
Antenna Bracket included
Waterproof Antenna
Customizable Cable and Connector

Applications

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

Boost Full Bandwidth Coverage in Remote and Harsh Outdoor Environments

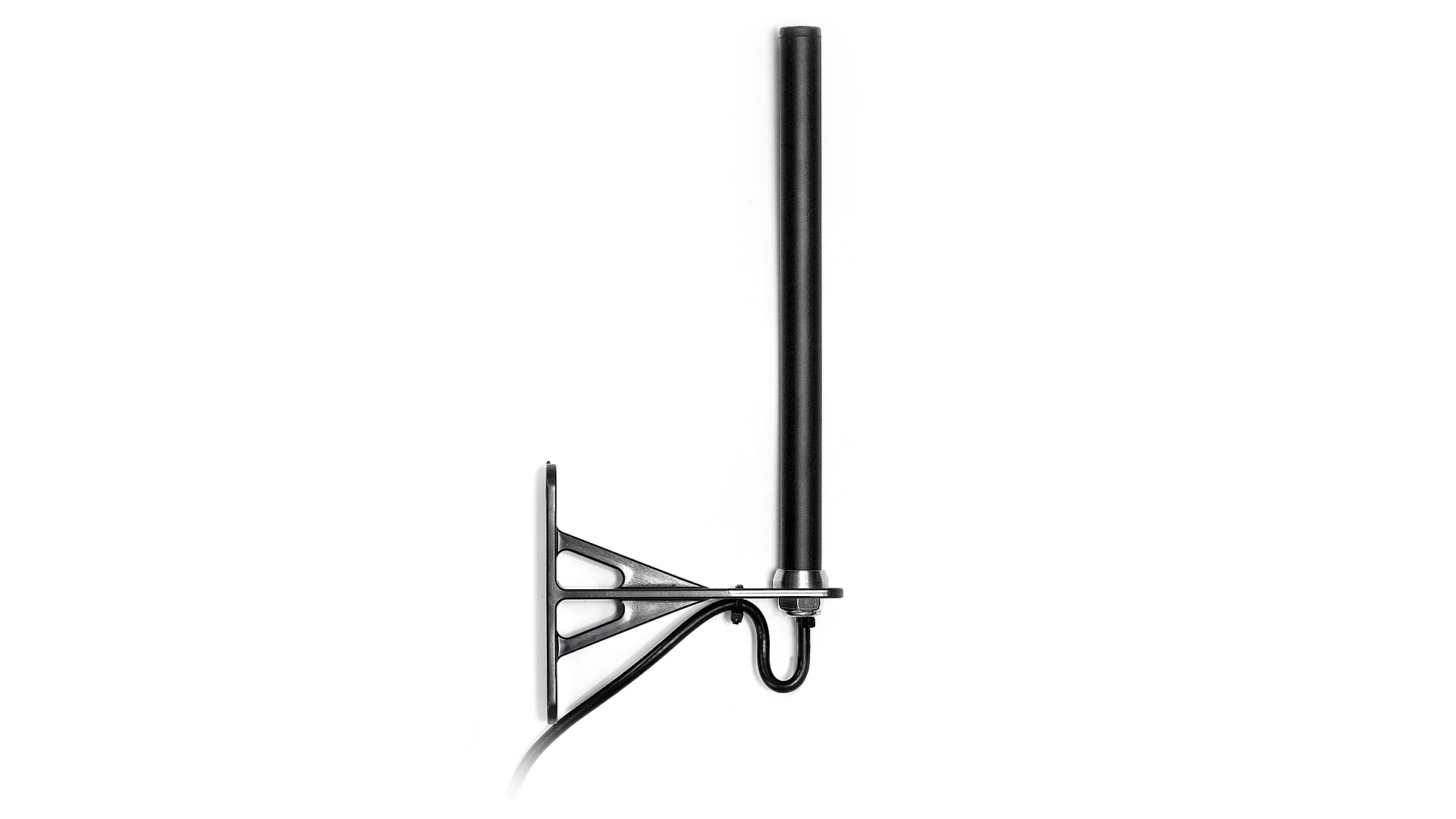

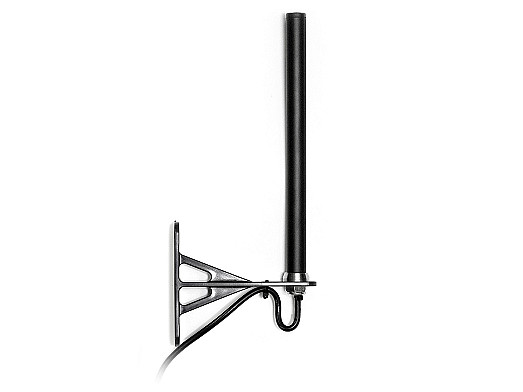

The wideband,  IP67 certified Liberty 2J2183B-B07H is a low profile, outdoor antenna covering worldwide 5GNR/4G LTE sub-6 GHz 617-5925MHz networks. It provides durability, high performance and superior quality in cellular applications where weather conditions are a challenge. Operating within 617-5925 MHz frequency range, the Liberty series is the #1 choice for the next generation of devices by offering backward compatibility with existing technologies reducing overall implementation costs for providers and manufacturers. The 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-NBx, NB-Iot, 3G and 2G compatible antenna is ideal for mobile voice and data applications, terminals, access points, mobile HDTV, routers, IoT and other devices with cellular needs. This antenna is ideal for building management, alarm panels and telecommunication industries and for major carrier approvals and certification processes around the globe. This antenna provides consistent and stable connectivity with high data throughput, making it an ultra reliable solution.

Suggested applications include:

  • Wireless broadband communication
  • Building management
  • Telecommunication
  • Alarm panels
  • 5GNR and LTE applications
  • Mobile devices
  • Data terminals
  • Smart devices
  • First responders and public safety communications
  • Mobile HD TV
  • Smart metering and sensors
  • Commercial, industrial, or home automation
  • Base stations and routers
  • High traffic device connectivity
  • Industrial, commercial and residential IoT
  • Industrial, commercial and residential smart home / office
  • ATM machines
  • Vending machines
  • Electrical metering

This antenna maintains a stable 5GNR peak gain of ~4.0 dBi and maximum efficiency of ~66.6% (above the industry standard).

Installation / Environmental

2J2183B-B07H has a compact and slim stick-shaped design that measures only  272 × 30 × 115 (220 × Ø 16) mm and is protected with an IP67 certified ASA housing that offers excellent durability in temperatures ranging from -40C (-40F) to +85C (+185F). This ground plane independant antenna comes with a plastic bracket, brass antenna base, 300 cm long low loss anti-snag L1195 cable and SMA-Male connector for a secure and durable outdoor installation. The same antenna is also offered with a stainless steel bracket, please see product 2J2183B-B05H. For indoor antenna solutions, please see product 2J2183K-B07H with plastic bracket wall mount. Connectors and cables can be customized to any specific requirements and our highly experienced engineers are available to assist with antenna selections that meet all our customer usage needs. Please contact us for more information.

All our products are designed and manufactured without hazardous materials while maintaining full RoHS compliance.
