2JE07h Antenna

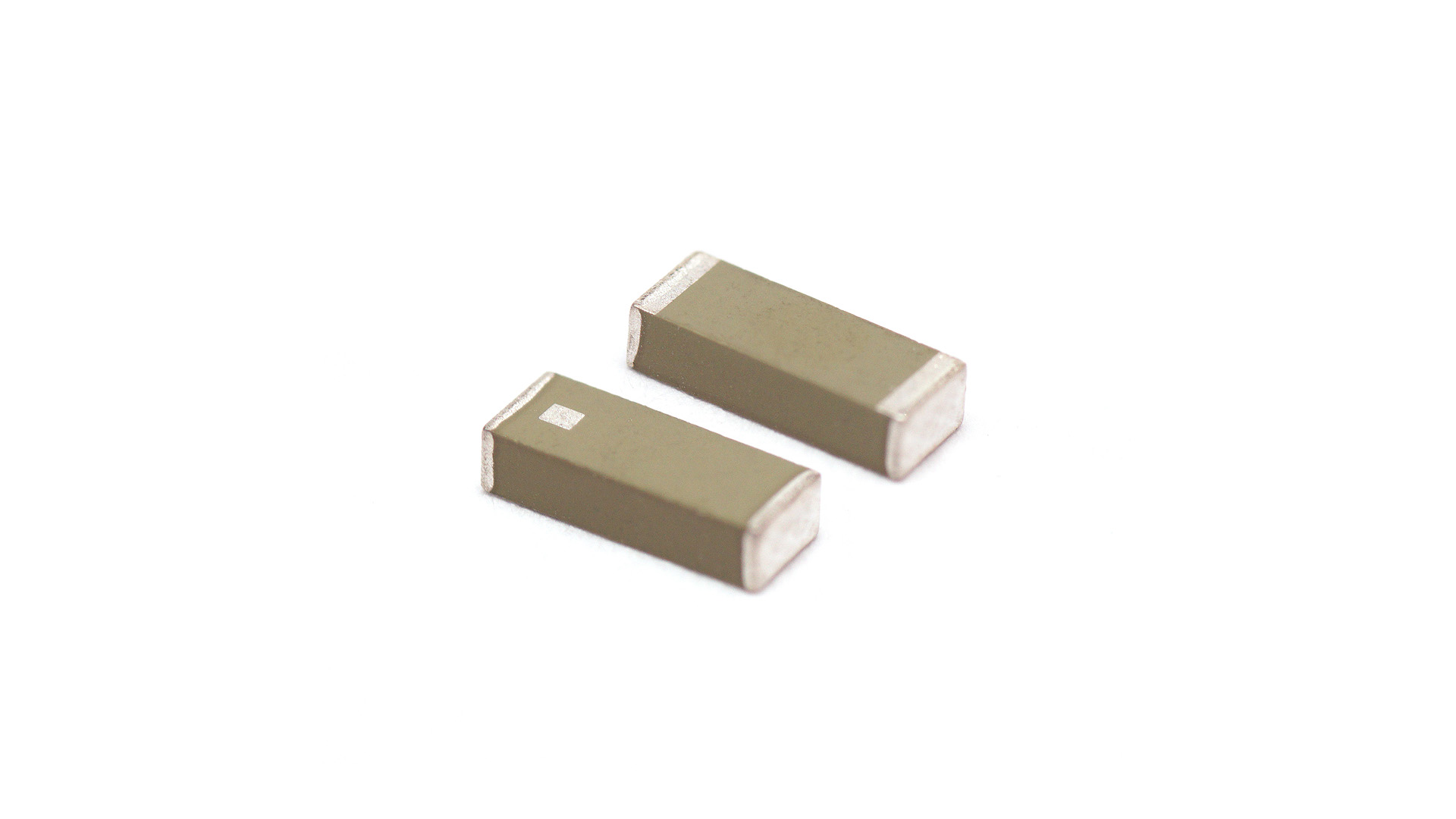

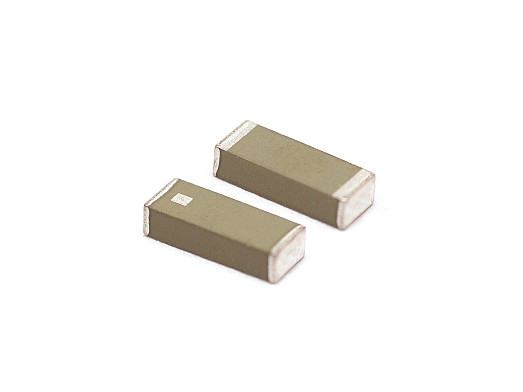

2.4/5.0 GHz ISM Surface Mount Compact Ceramic Antenna

General specification
Frequency
2.4-5.0GHz/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
Mounting Surface Mount Ceramic
Dimensions (mm) 5.3 × 2 × 1.3
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • Surface Mount
  • Easy to Integrate
  • Compact Size
  • Ceramic Material
  • Ground Plane Dependent
  • Antenna and electrical specifications

    connection 1

    2.4/5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490, 4920-5925
    VSWR ~1.4:1, ~1.5:1
    Efficiency (%) ~75.1, ~52.0
    Peak Gain (dBi) ~2.3, ~1.9
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 10

    Antenna description

    2JE07h

    2.4/5.0 GHz ISM Surface Mount Compact Ceramic Antenna

    Connecting universal short and long-range wireless networks without sacrificing power or quality

    The 2.4/5.0 GHz ISM Surface Mount Antenna (2JE07h) offers short and long-range wireless communications for WiFi, BT, ZigBee, ISM, SigFox and LoRa standards. This low power, omni-directional 2.4/5.0 GHz ISM Surface Mount Antenna operates within 2410 MHz - 2490 MHz and 4920 MHz - 5925 MHz frequencies. The 2JE07h is ideal for product to product connection in residential and commercial smart networks including consumer electronics, business wireless networks, smart homes, telecommunications, utility metering and any other wireless dependable equipment.

    Installation / Environmental

    With a minimum integration area of 15.6mm x 14.5mm, the compact size of the 2JE07h allows for easy integration to your wireless network needs. The quality ceramic design offers the 2JE07h durability and withstands extreme temperatures between -40C and +80C. The 2JE07h is ground plane dependent with an efficiency of ~75.1% at 2.4 GHz and ~52% at 5.0 GHz.  Proudly manufactured with RoHS compliance and delivered on tape and reel for efficient automated manufacturing.



    Typical applications

    - Residential/ Commercial Smart Networks
    - Smart Homes
    - Utility
    - Retail Services
    - Business wireless equipment
    - Consumer Electronics
    - Desktops/ Laptops/ Tablets
    - Smartphones
    - Automobiles
    - Smart TVs/ Digital Audio Players and Cameras
    - Drones
    - Printers
