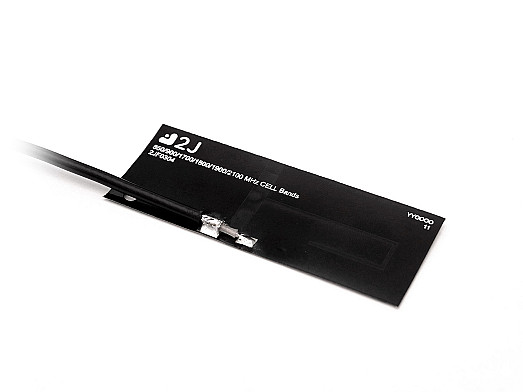

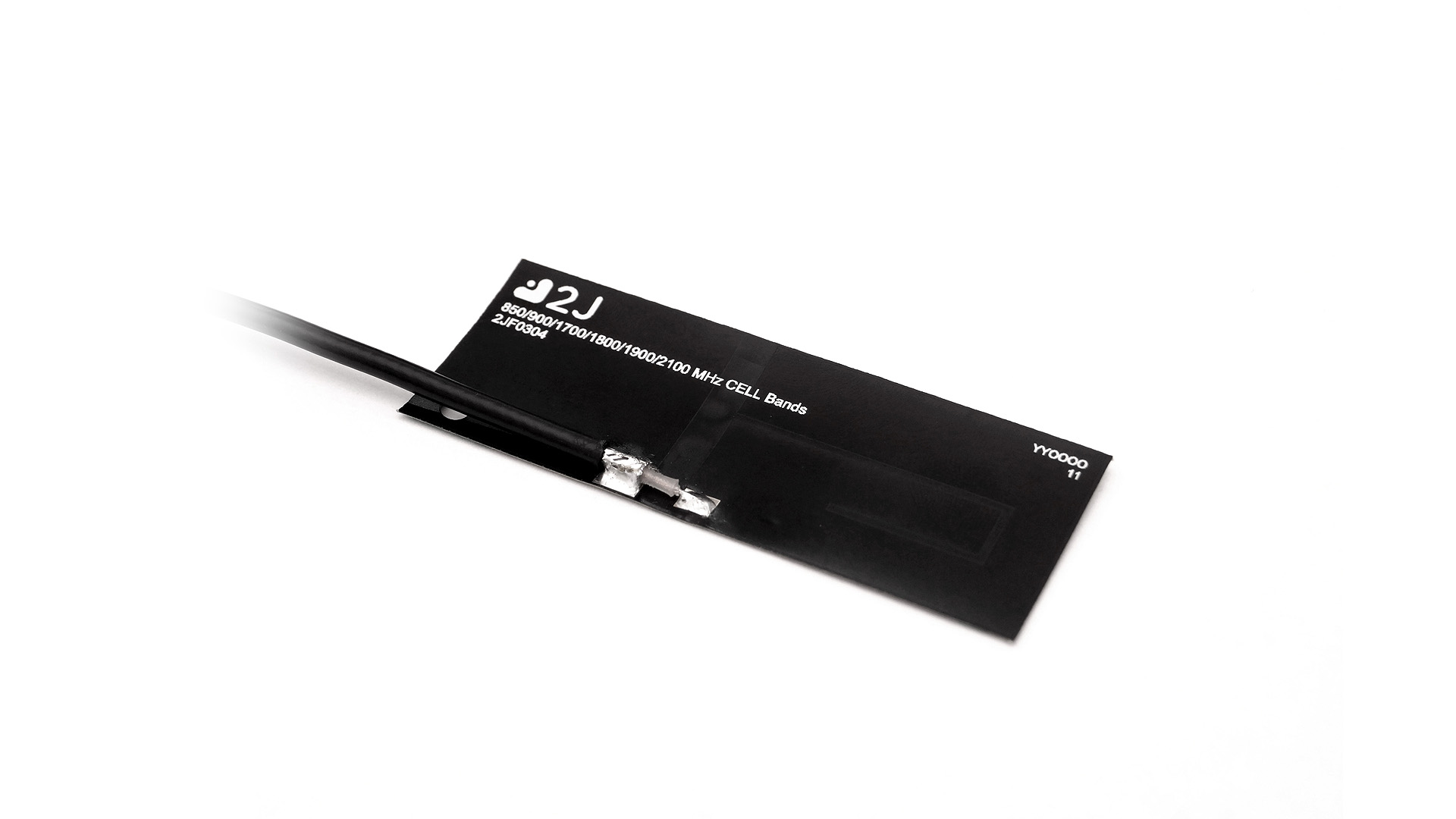

2JF0304P Antenna

CELLULAR 2G and 3G Flexible ultra-thin PCB Adhesive Antenna

General specification
Mounting Adhesive Mount Flexible
Dimensions (mm) 70.4 x 26.4 x 0.1
Operating temperature -40 °C to +85 °C
Note Flexi Embedded Antenna
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Customizable Cable and Connector
  • Self-Adhesive
  • Flexi Embedded Antenna
  • Applications

    Antenna and electrical specifications

    connection 1


    Standards 2G and 3G
    Frequency 824-960, 1710-2170
    VSWR <=2.4:1, <=1.5:1
    Efficiency (%) ~41, ~61
    Peak Gain (dBi) ~1, ~2.1
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
