Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.5:1
Efficiency (%) ~50.7, ~52.6, ~50.6
Peak Gain (dBi) ~1.3, ~4.8, ~5.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.4:1
Efficiency (%) ~50.7, ~52.7, ~58.4
Peak Gain (dBi) ~0.9, ~4.4, ~5.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

2-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
5.5 dBi 4G LTE Peak Gain
High Performance
Heavy Duty antenna
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Combining Design, Performance and Usability for Next Generation IoT and MIMO Devices

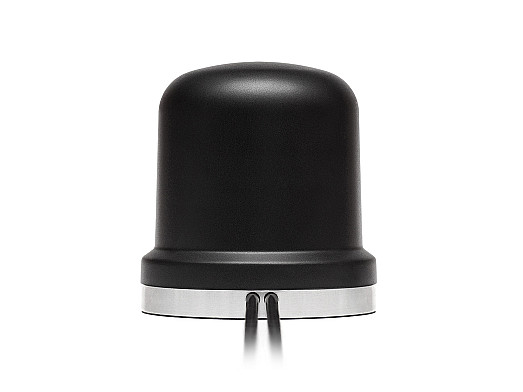

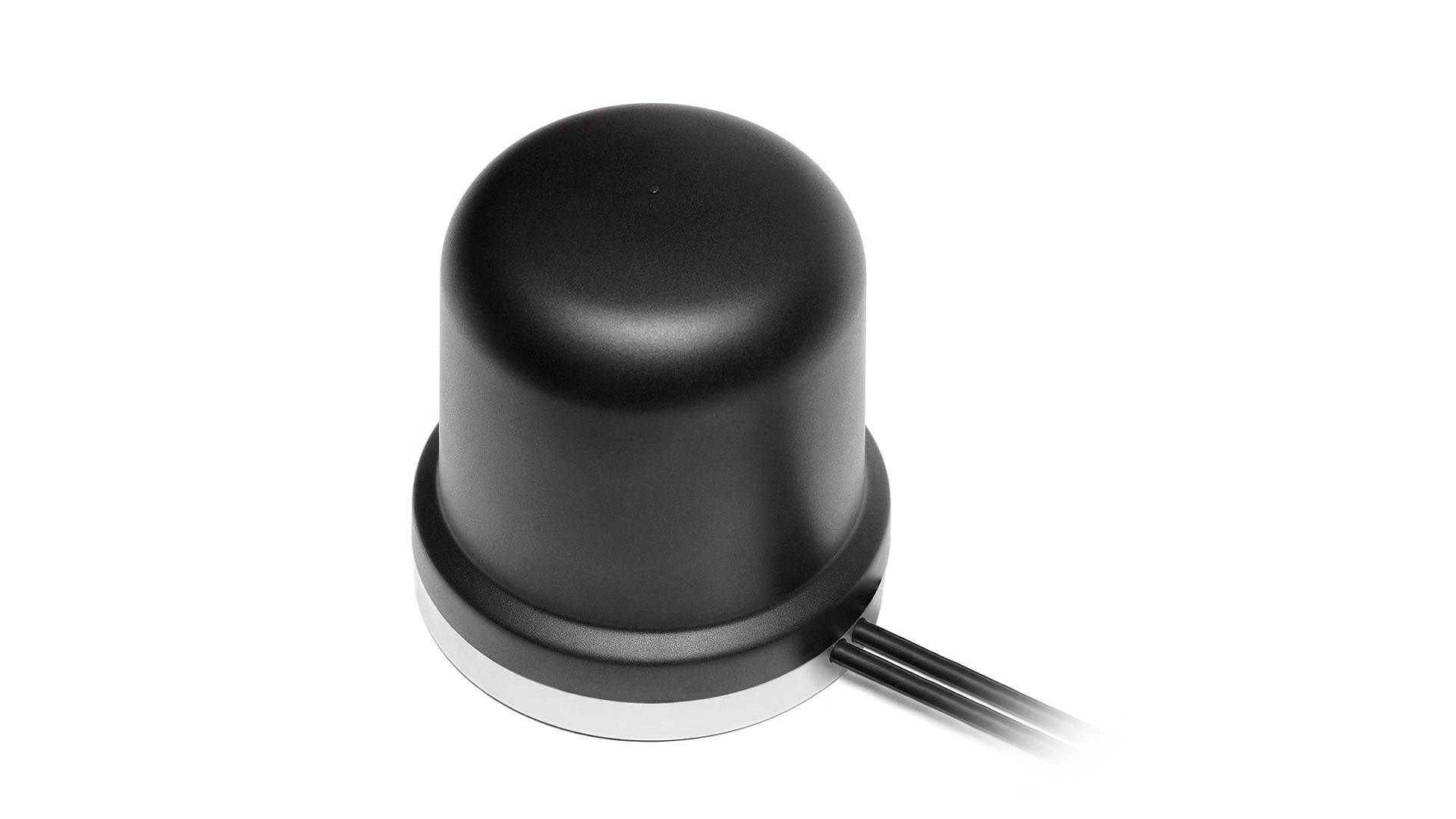

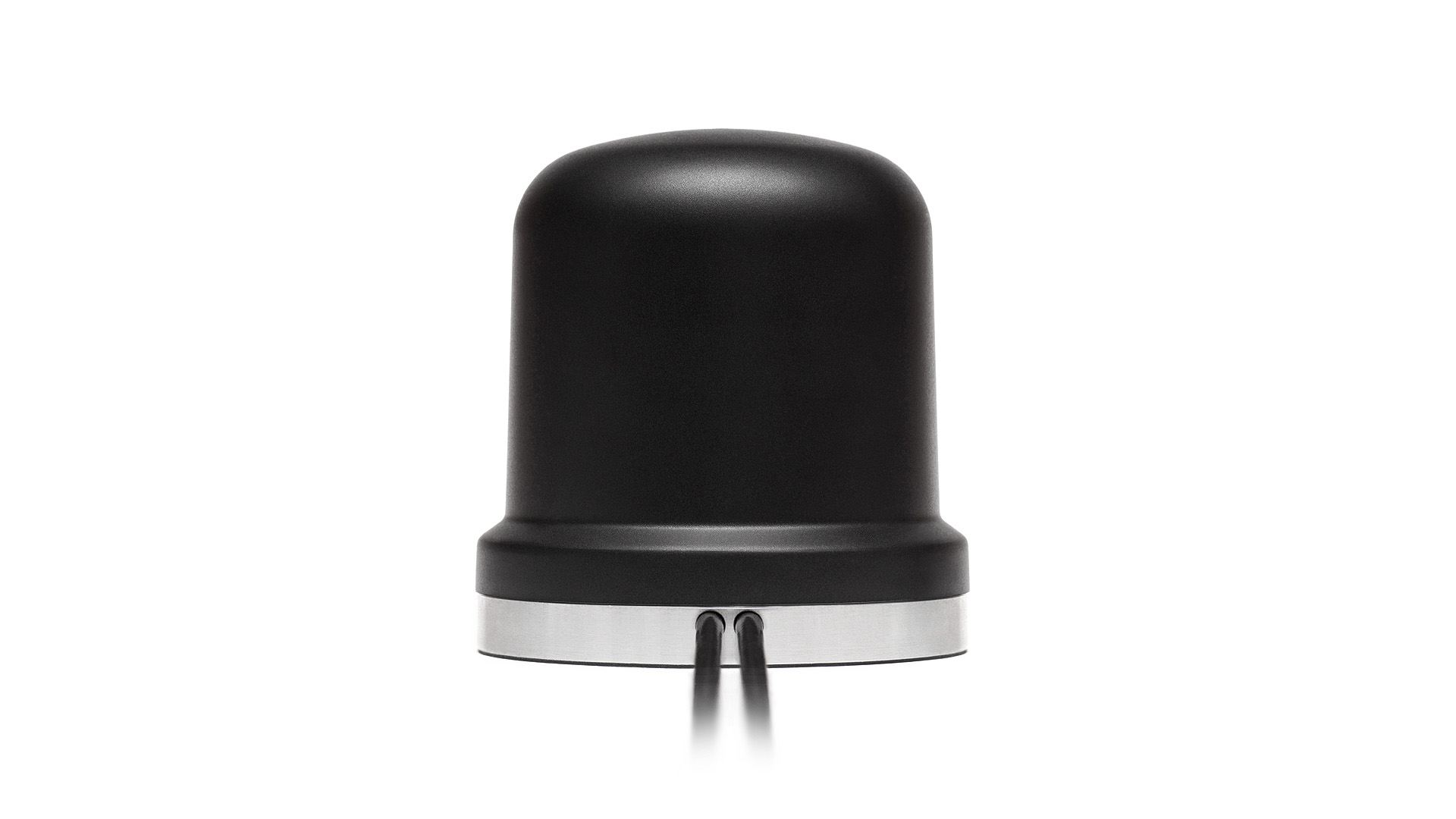

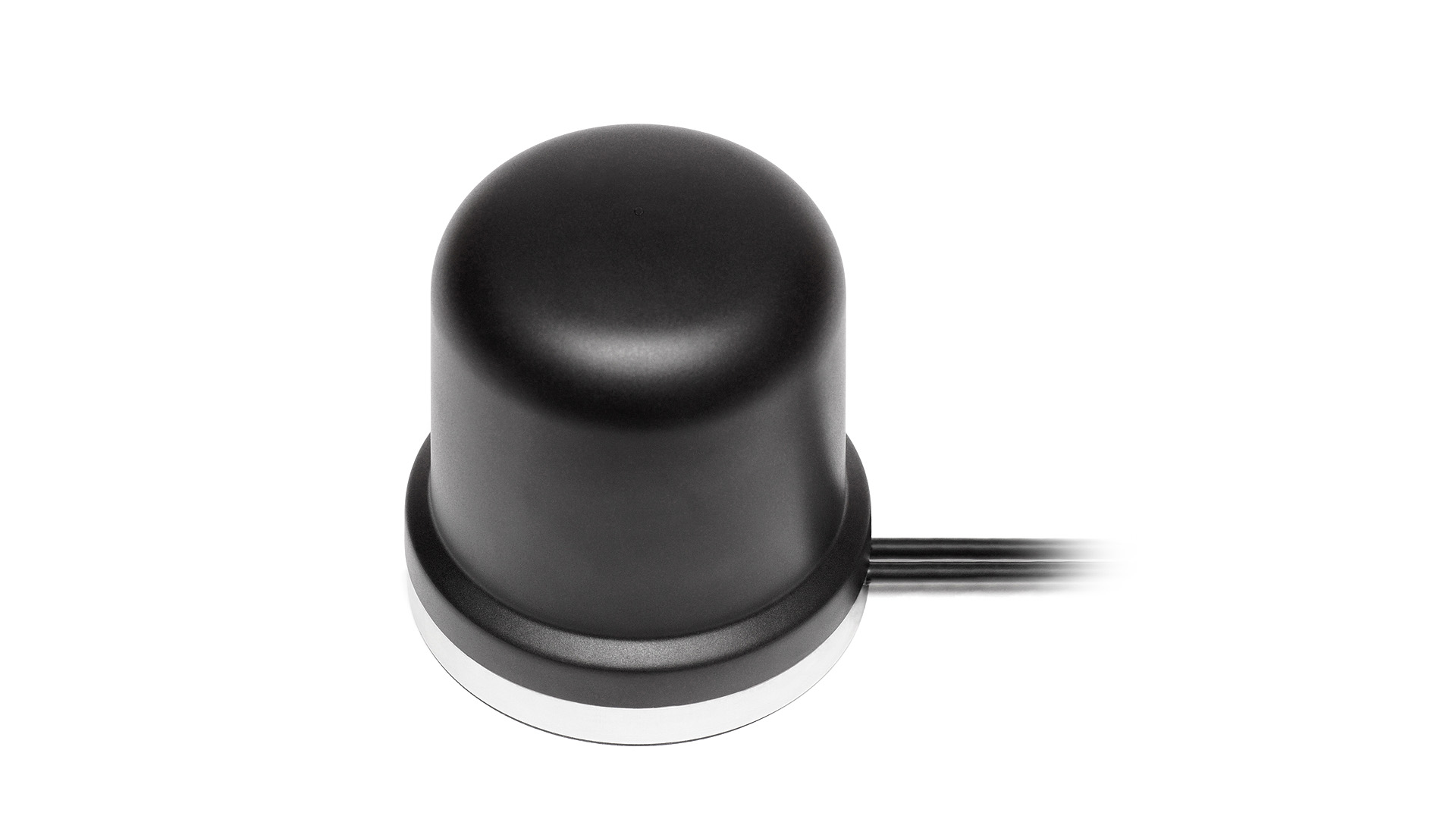

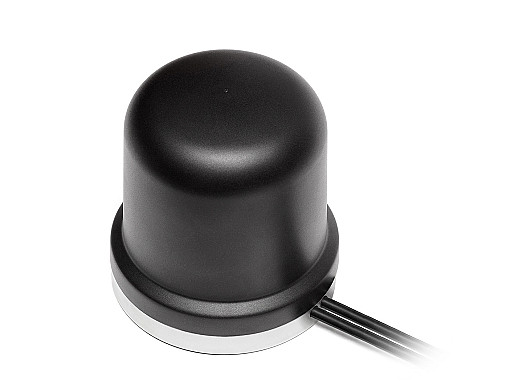

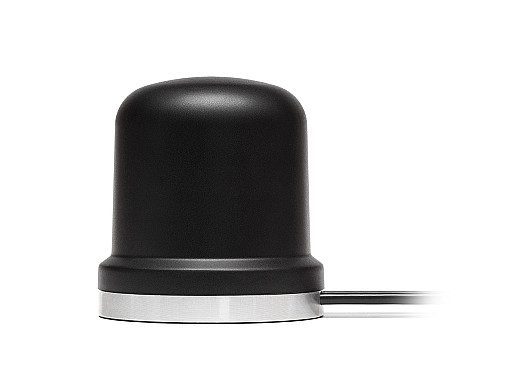

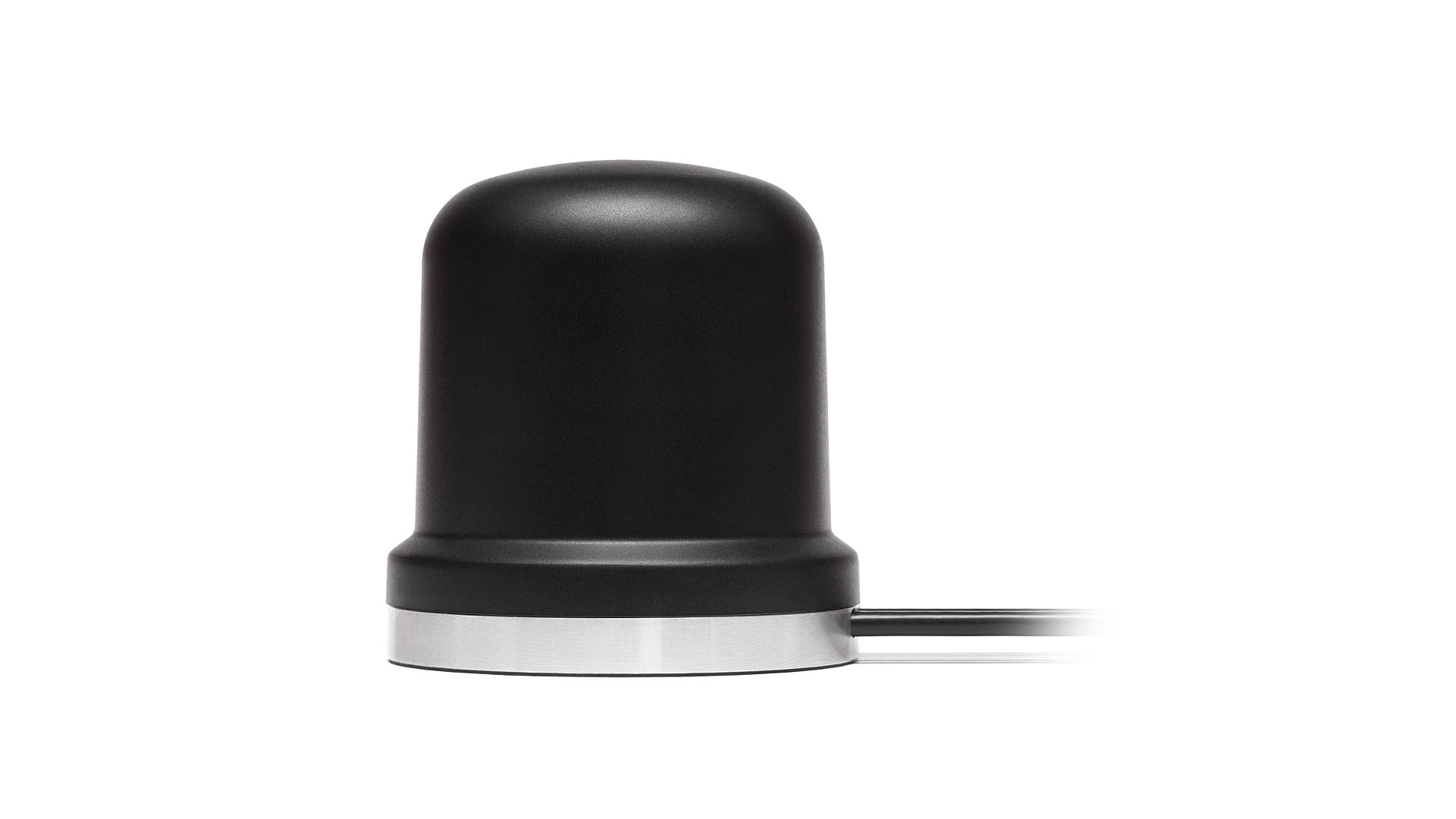

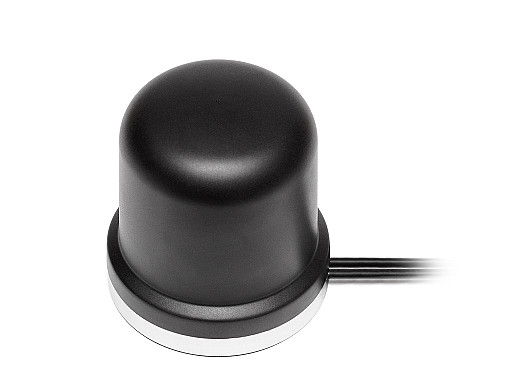

The 2-in-1 High Performance Cellular / LTE Combination Antenna (2J7024Ma) offers dual connection for 4G LTE MIMO, FirstNet, LPWA, NB-IoT, Cat-X-Mx-NBx, 3G and 2G. With a powerful magnetic mount and IP67/IP69/IK09 certification, this heavy-duty antenna is a first-choice solution for outdoor short-term or long-term installations on heavy equipment, vehicles, and metal buildings with no need for grounding.

This antenna is ideal for voice and data terminal applications that operate with 698 MHz to 2700 MHz frequencies.  With high peak gains of up to 5.5 dBi on LTE bands and a 360-degree signal pattern, this compact dome shaped antenna will not disappoint on performance. 4G LTE is designed with backwards compatibility capable of functioning with existing earlier generation networks where LTE is not available.

For detailed antenna specifications, please see our comprehensive data sheet.

Suggested applications include:

- IoT Aggregators
- Data Devices
- Consumer Wearables
- Smart Cities
- Industrial Automation
- Critical Communication
- Data Terminals
- Sensors and Monitors

Installation / Environmental

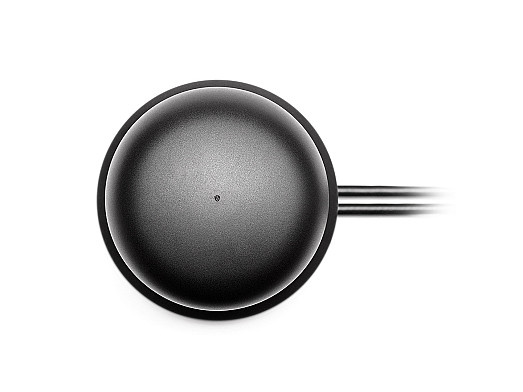

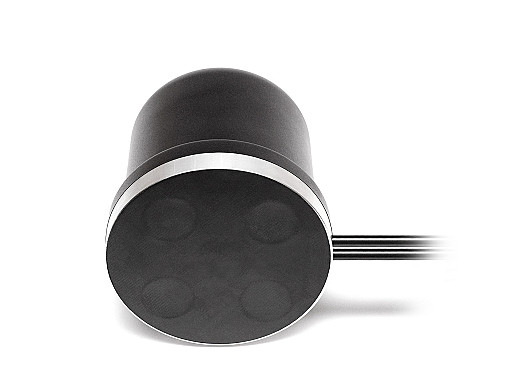

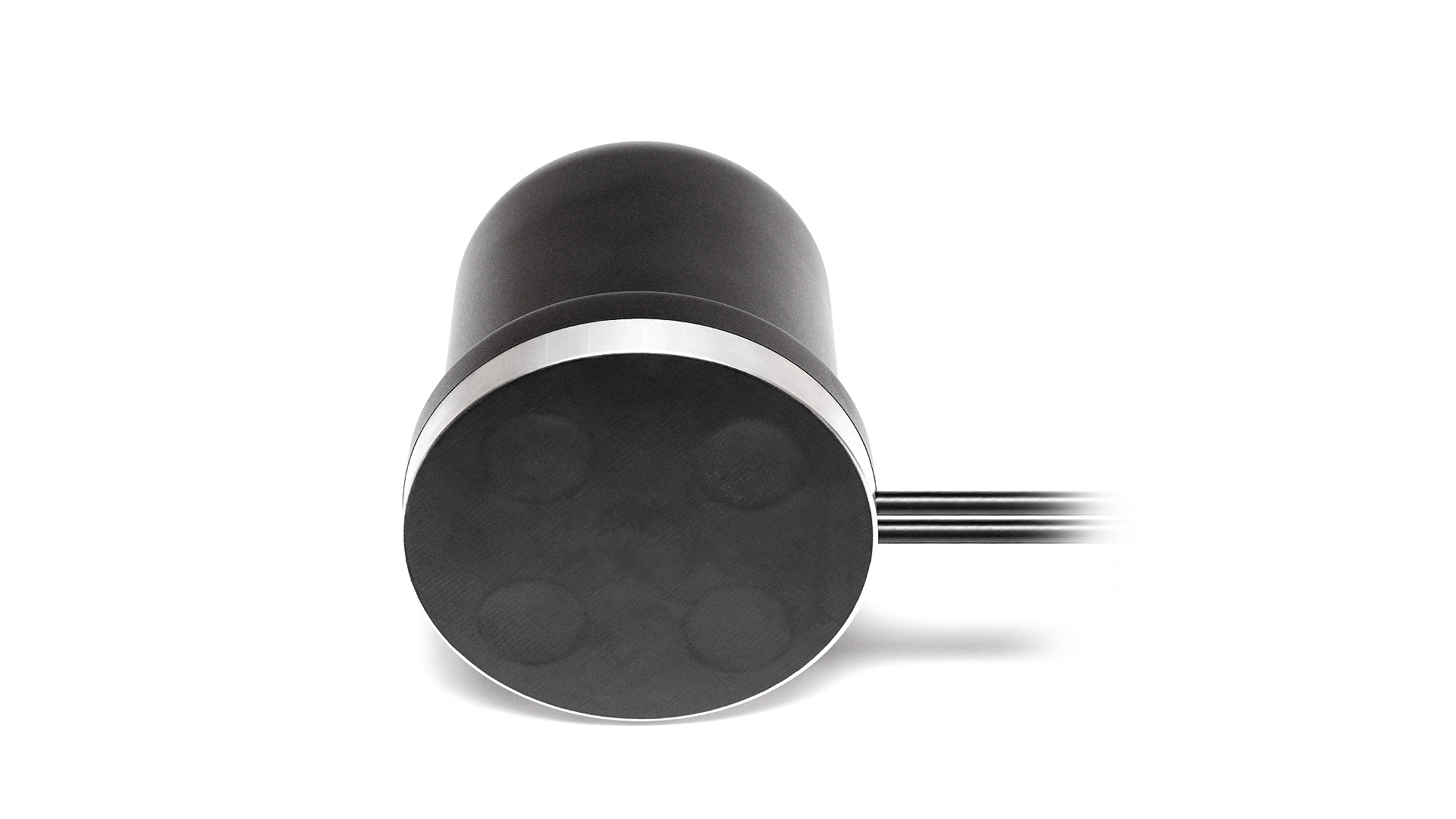

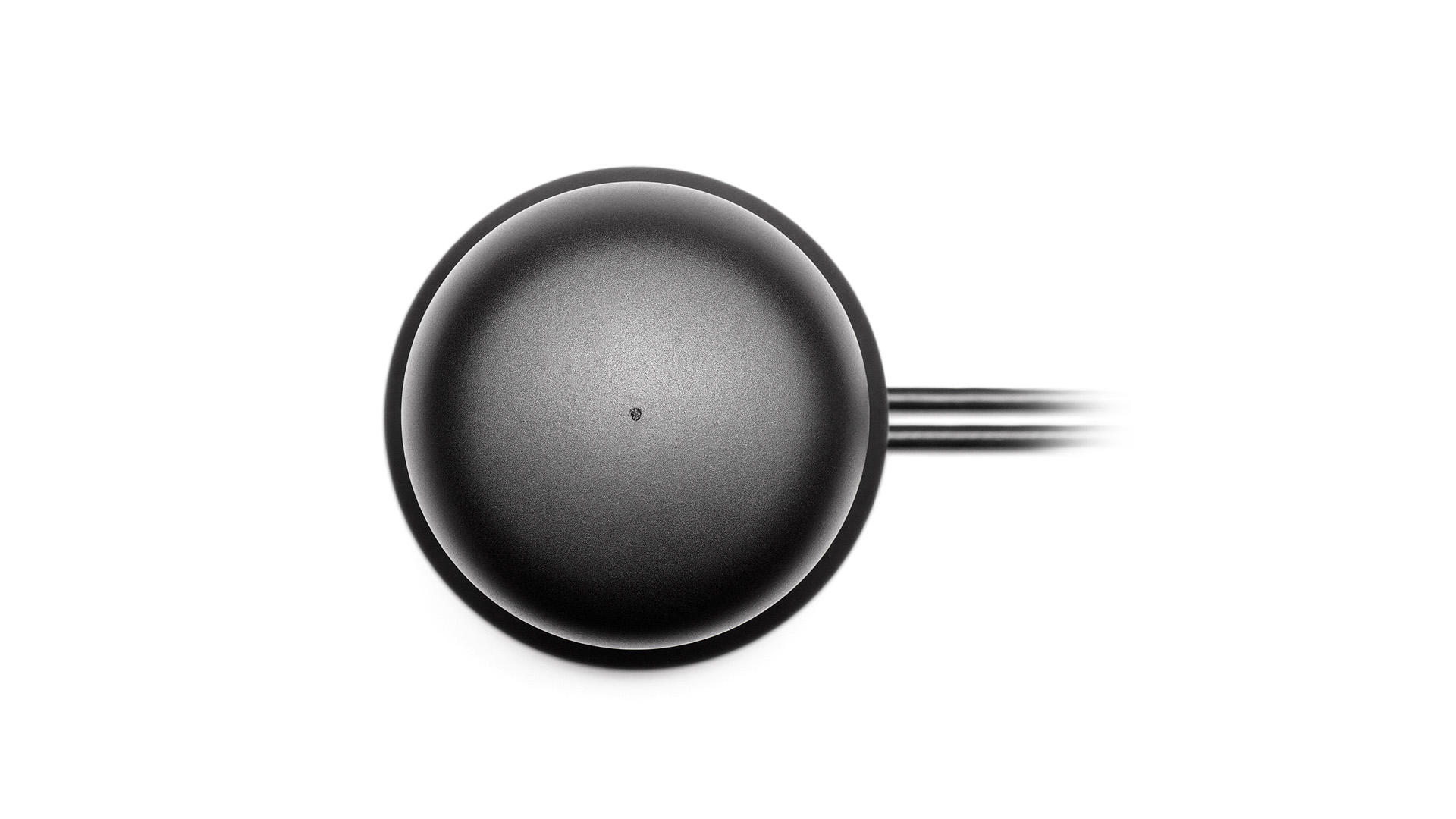

2J7024Ma has compact dimensions of Ø 96 × 102 mm and the dome shaped housing is manufactured with durable ASA material. The aluminum alloy antenna base is lined with a thin layer of rubber giving it full protection on metal surfaces from scratches or damage during installations.  Recommended operation and storage temperatures are -40C to +85C.

This antenna comes with standard SMA-Male connector and has been tuned to 300 cm long LL195 cables for optimal performance. Our 2J Antennas experts are available 24/7 to assist with a wide range of alternative connectors, cables, and antenna selection needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
