Antenna and electrical specifications

connection 1


Standards IRIDIUM
Frequency 1616-1627
VSWR ~1.2:1
Efficiency (%) ~76
Passive Gain (dBiC) ~4.5
Impedance (Ohm) 50
Axial Ratio (dB) 3 max
Radiation Pattern Hemispherical
Polarization RHCP

Key Features

Iridium Certified Antenna
Ground Plane Independent
4.5 dBic IRIDIUM Peak Gain
High Gain
High Efficiency
Low Profile
Adhesive Mounting sticker included
Customizable Cable and Connector

Antenna Description


Designed for Applications that Rely on Quality, Performance and Global Connectivity

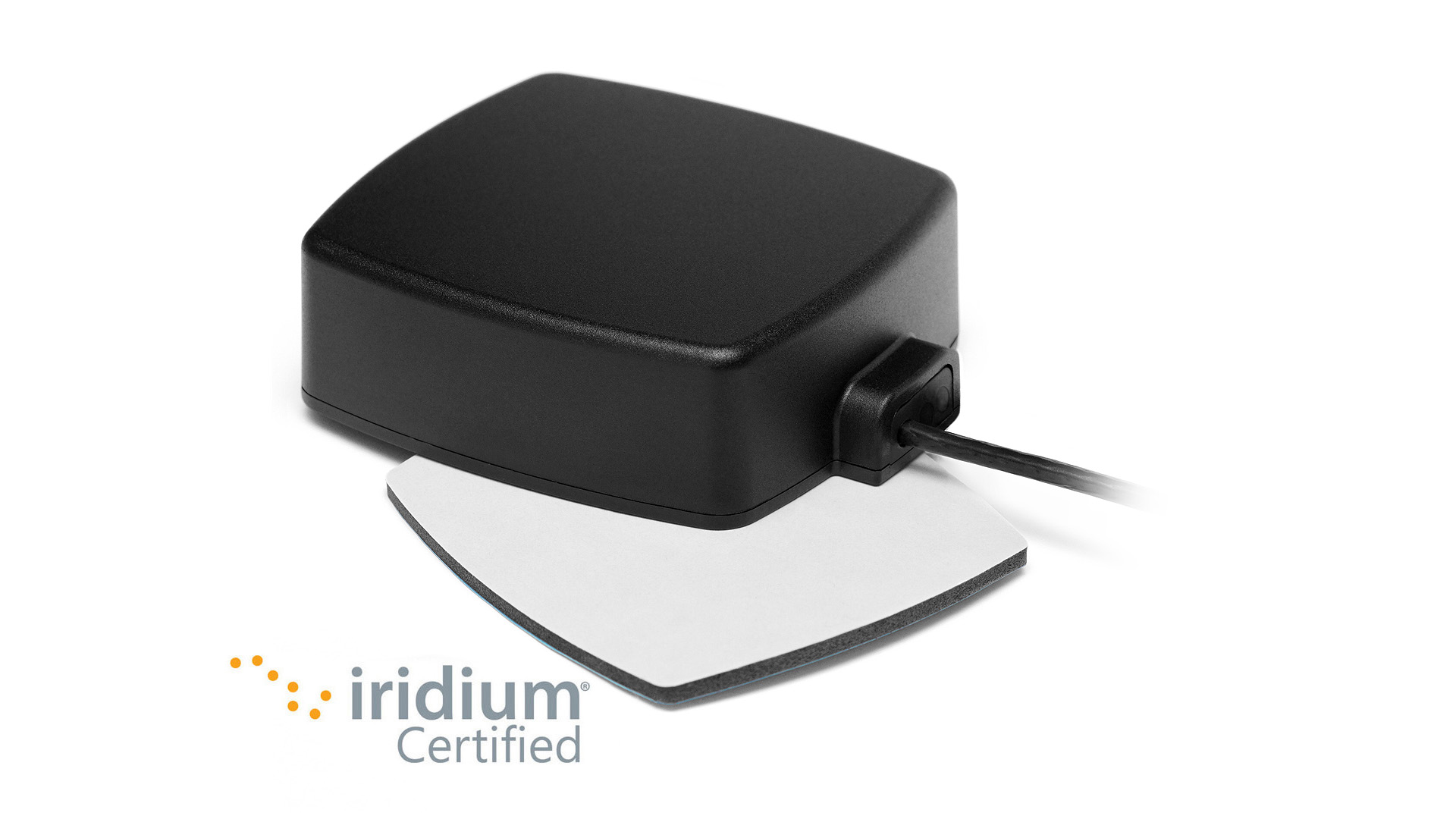

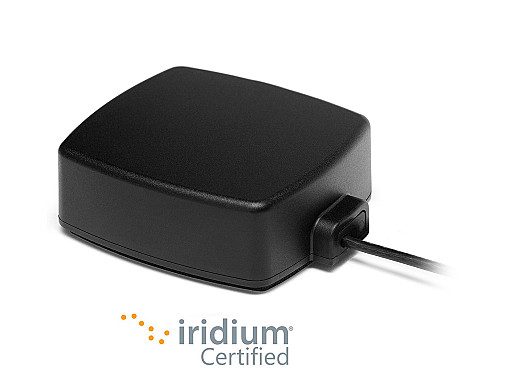

The Iridium Certified Low Profile, High Gain Magnetic Adhesive Mount Antenna (2J6926MP) is part of our “Phoenix Series” and is designed to have full access to the Iridium satellite network (1616 - 1627MHz) with global M2M coverage for voice and data communication. This antenna is ideal for devices such as hand-held satellite phones, standalone transceiver units, monitoring devices in markets like automotive, transportation and any other voice and data communication applications that rely on signal strength, speed, and quality.

Integrating a hemispherical radiation pattern and RHCP, this antenna can achieve full spectrum signal quality with peak gains of ~4.5 dBic while rejecting multi-path interference resulting in optimal antenna performance.

Suggested applications include:

- Commercial / Residential Voice and Data Communications
- Emergency Communications
- Transportation
- Asset Tracking
- Environmental Monitoring
- Fleet Management

Installation / Environmental

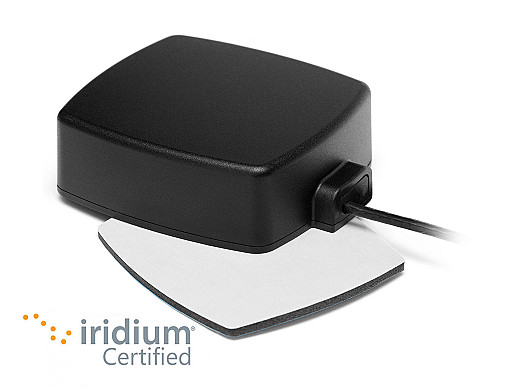

With a convenient peel-n-stick adhesive magnetic mount, this antenna can be simply installed to any metal surface (vehicle or metal building) without the need for additional grounding. The adhesive and magnetic mount is strong enough for long-term installations but also offers an easy option for temporary applications and relocation. We recommend installing this antenna with a clear line of sight and directed to the signal for the most reliable connectivity.

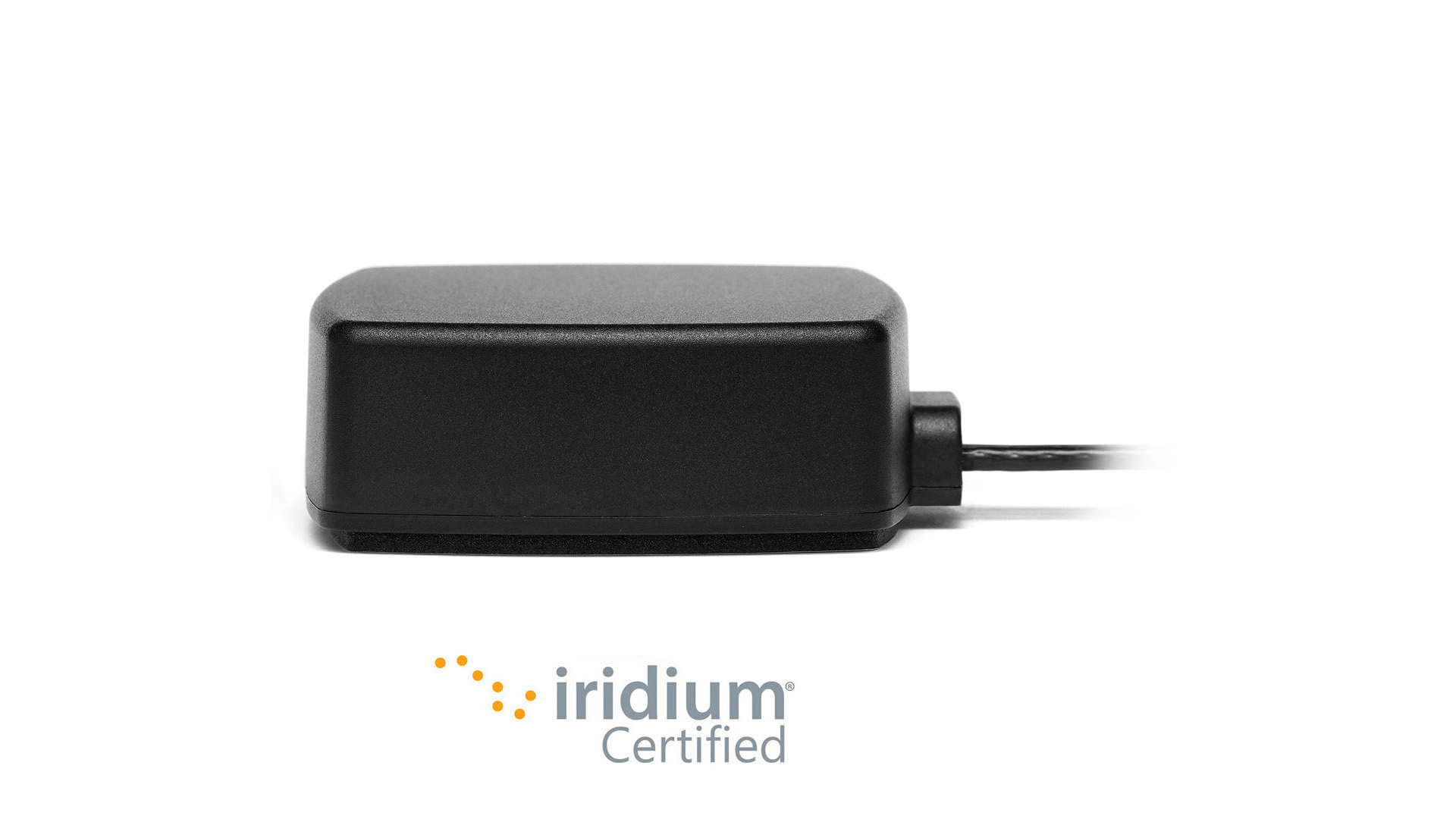

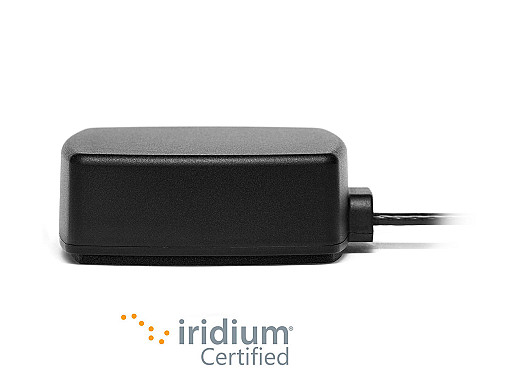

This low-profile antenna has dimensions of 80 x 76 x 27/30 mm and is manufactured with IP67/IP69 certified ABS UV stable material (available in black and white). ABS material provides durability and protection against indoor or outdoor environmental temperatures ranging from -40C to + 85C without compromising antenna performance.

The 2J6926MP comes with standard SMA-Male connector and a 300 cm long D302 cable. We also offer a wide range of alternative connectors and cables for any customization needs. Our team of experts is available to assist our customers with antenna selection and customizations needs.

2J Antennas takes pride in offering the most reliable communication products by testing all our products to assure the highest antenna quality with the best global connectivity. Protecting the environment is important to us and all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
