Key Features

  • Iridium Certified Antenna
  • Compact Marine antenna
  • High Gain
  • High Efficiency
  • Configurable Mount options
  • Ground Plane Independent
  • Customizable Cable and Connector

Antenna and electrical specifications

connection 1

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
VSWR ~1.2:1
Efficiency (%) ~76
Passive Gain (dBiC) ~4.5
Impendance (Ohm) 50
Axial Ratio (dB) 3 max
Radiation Pattern Hemispherical
Polarization RHCP

Antenna Description

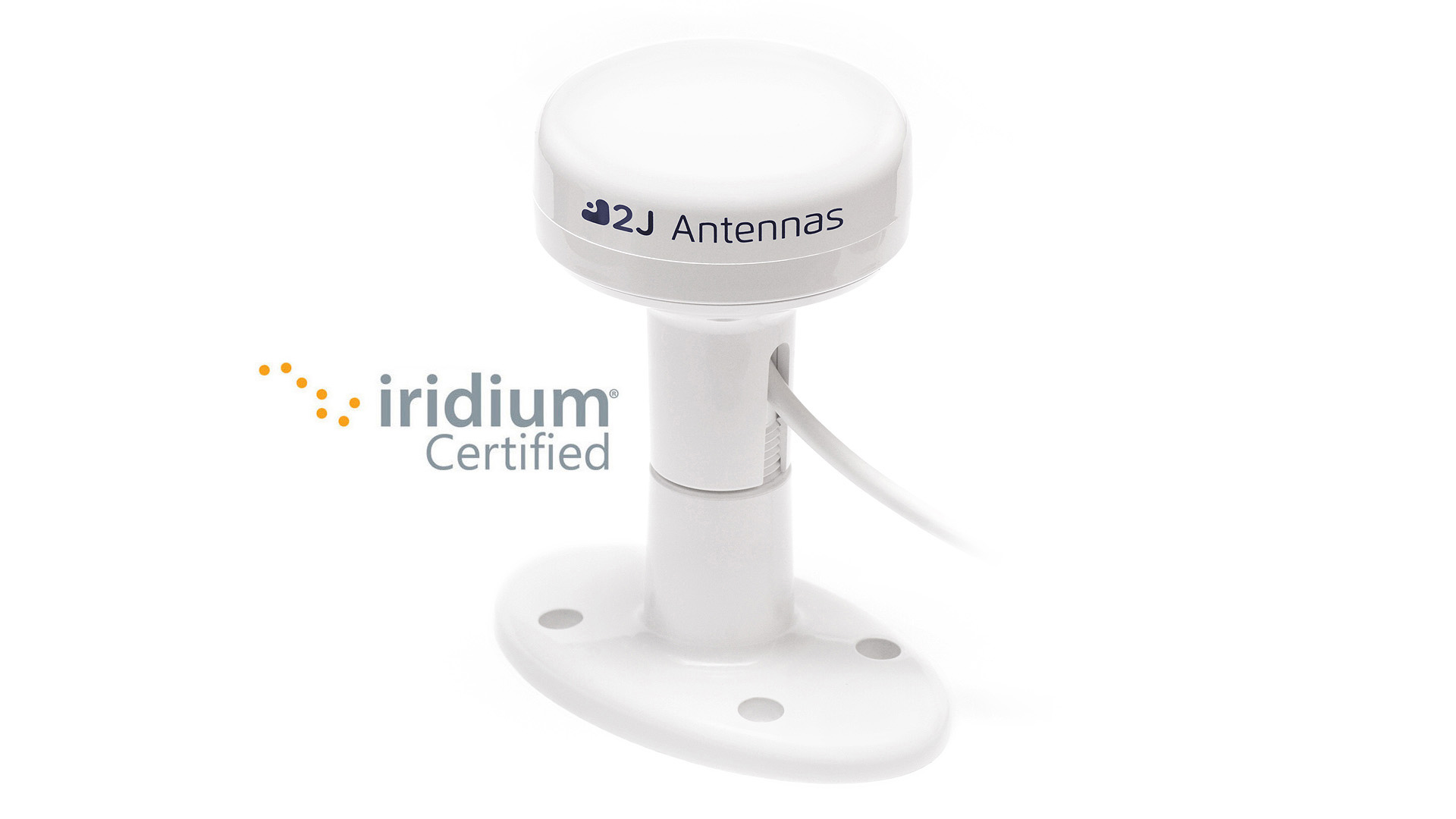

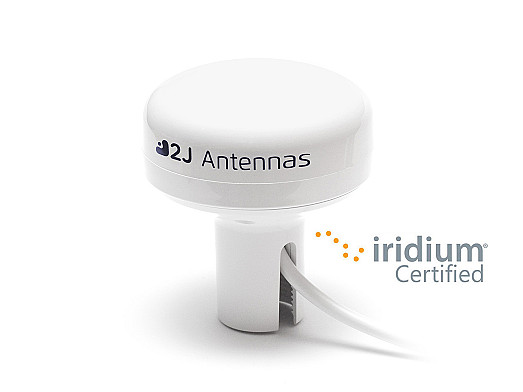

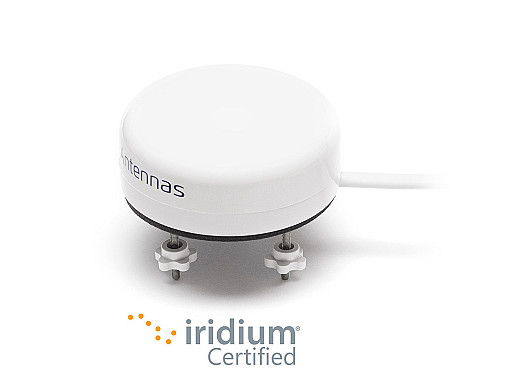

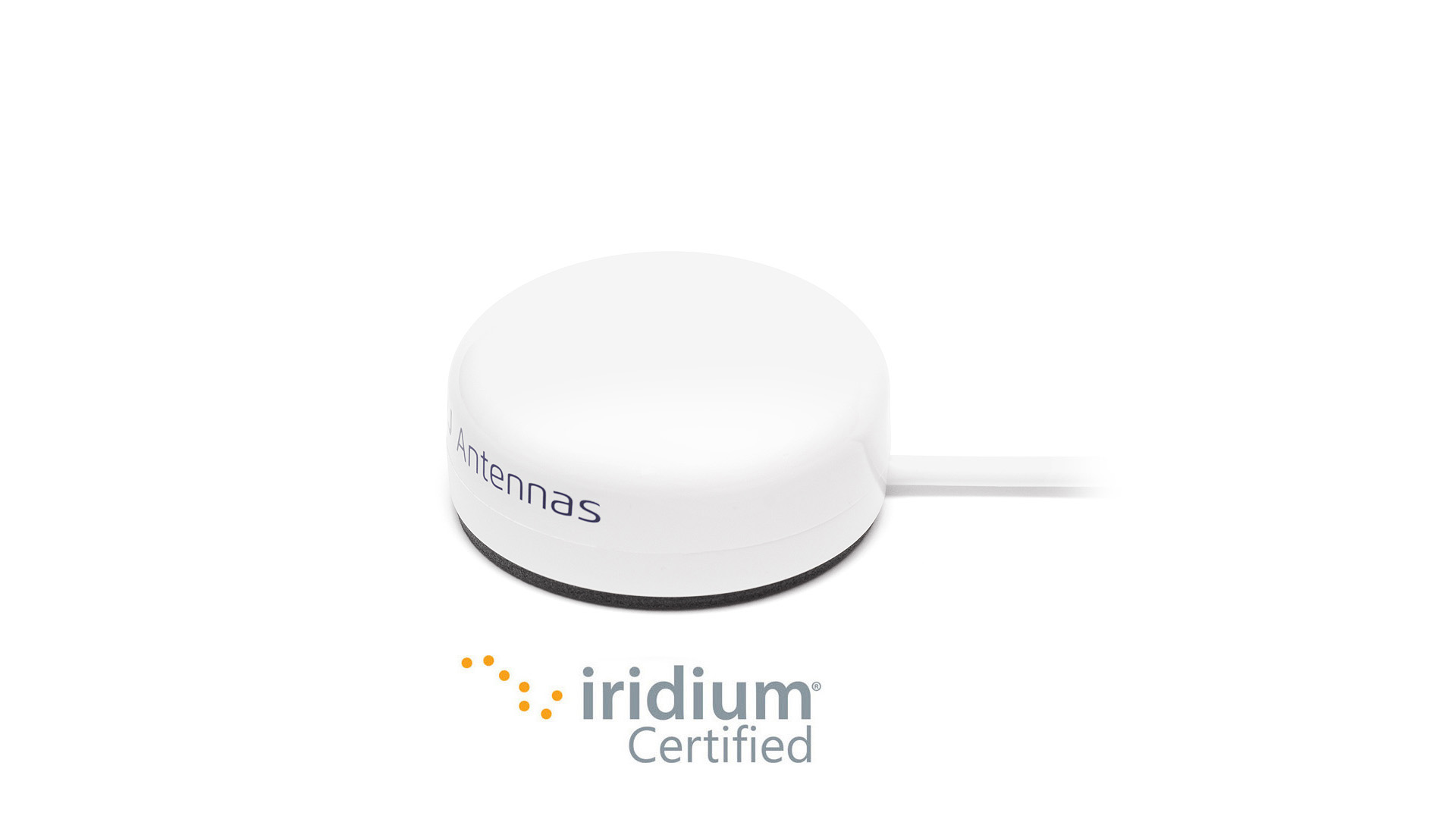

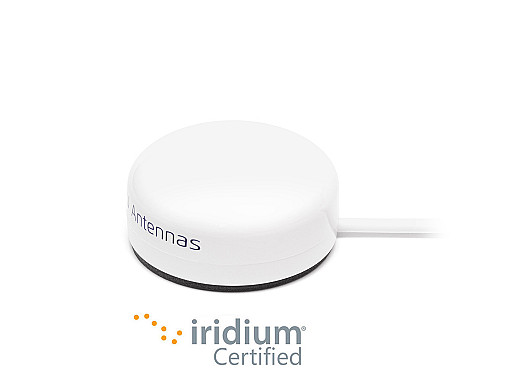

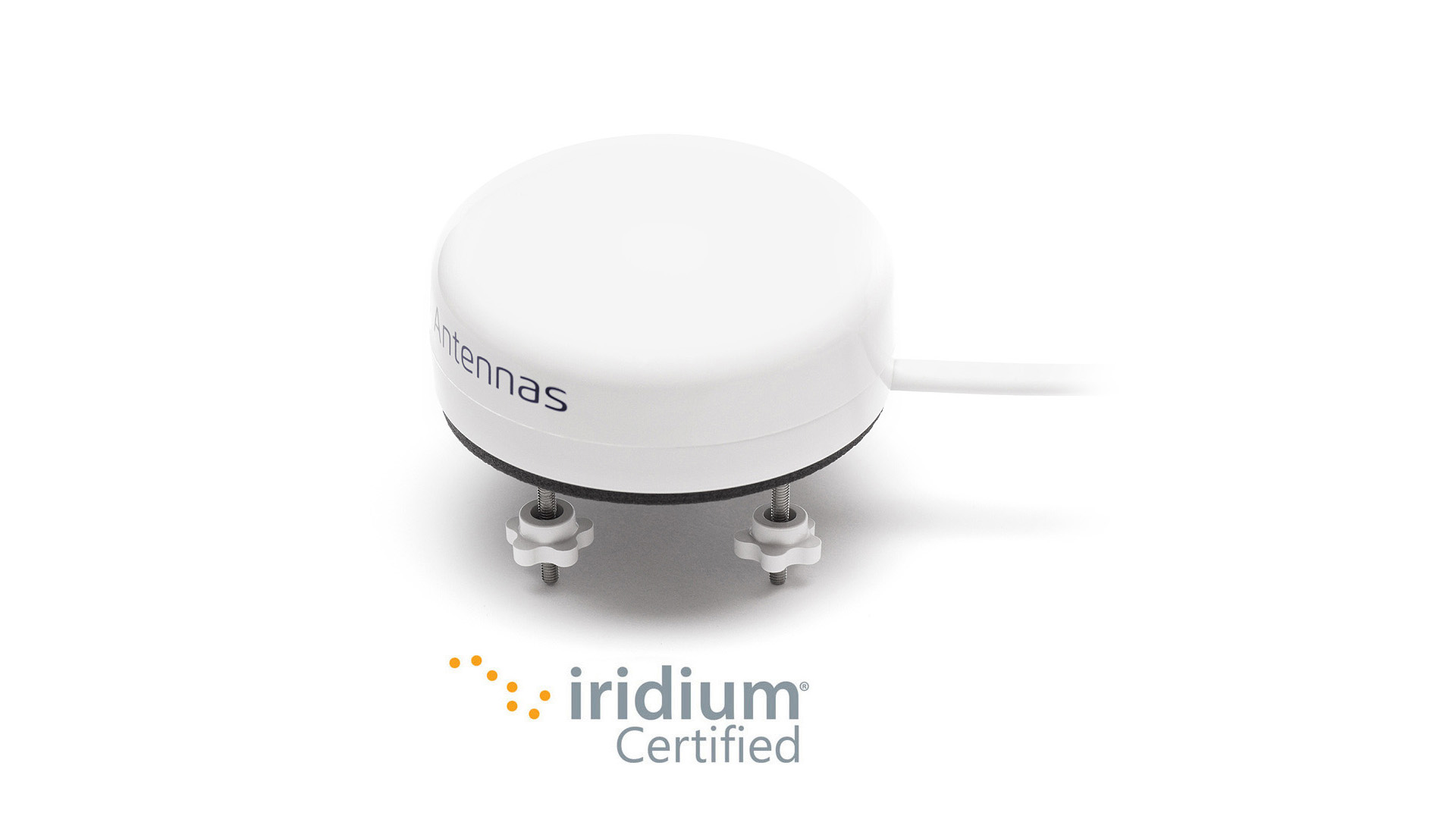

2J9126JBW-B12JW-B10BW

The Most Weather Resistant High-Performance Antenna for Marine Environments

The Iridium High Performance Customizable Marine Antenna (2J9126JBW-B12JW-B10BW) offers a permanent solution for marine satellite communications.  Designed to access the full Iridium Satellite Constellation, this antenna brings true global M2M/IoT voice and data connectivity with superior signal strength, speed and quality.

Suggested applications include:

    - Marine/Sea Vessels (commercial and leisure)
    - Satellite Communication
    - Critical / Emergency Communication

    With a peak gain of ~4.5 dBI and ~76% efficiency, this antenna outperforms any competitor. The hemispherical radiation pattern brings full spectrum of signal quality within the 1621 MHz band.

    This antenna is right hand circularly polarized (RHCP) rejecting multi-path interference and optimizing signal strength making it the ideal choice for marine environments.

    Installation / Environmental

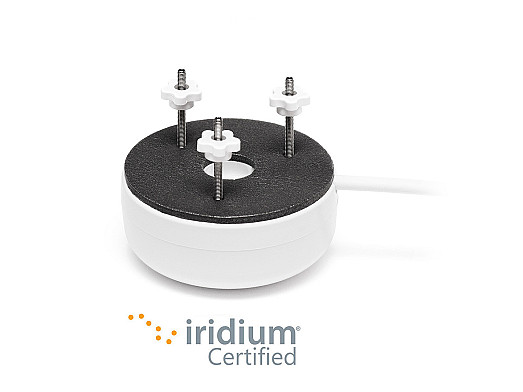

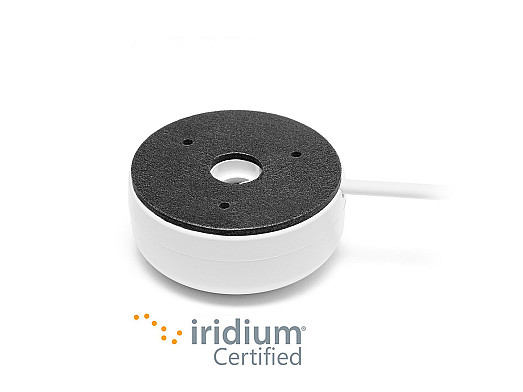

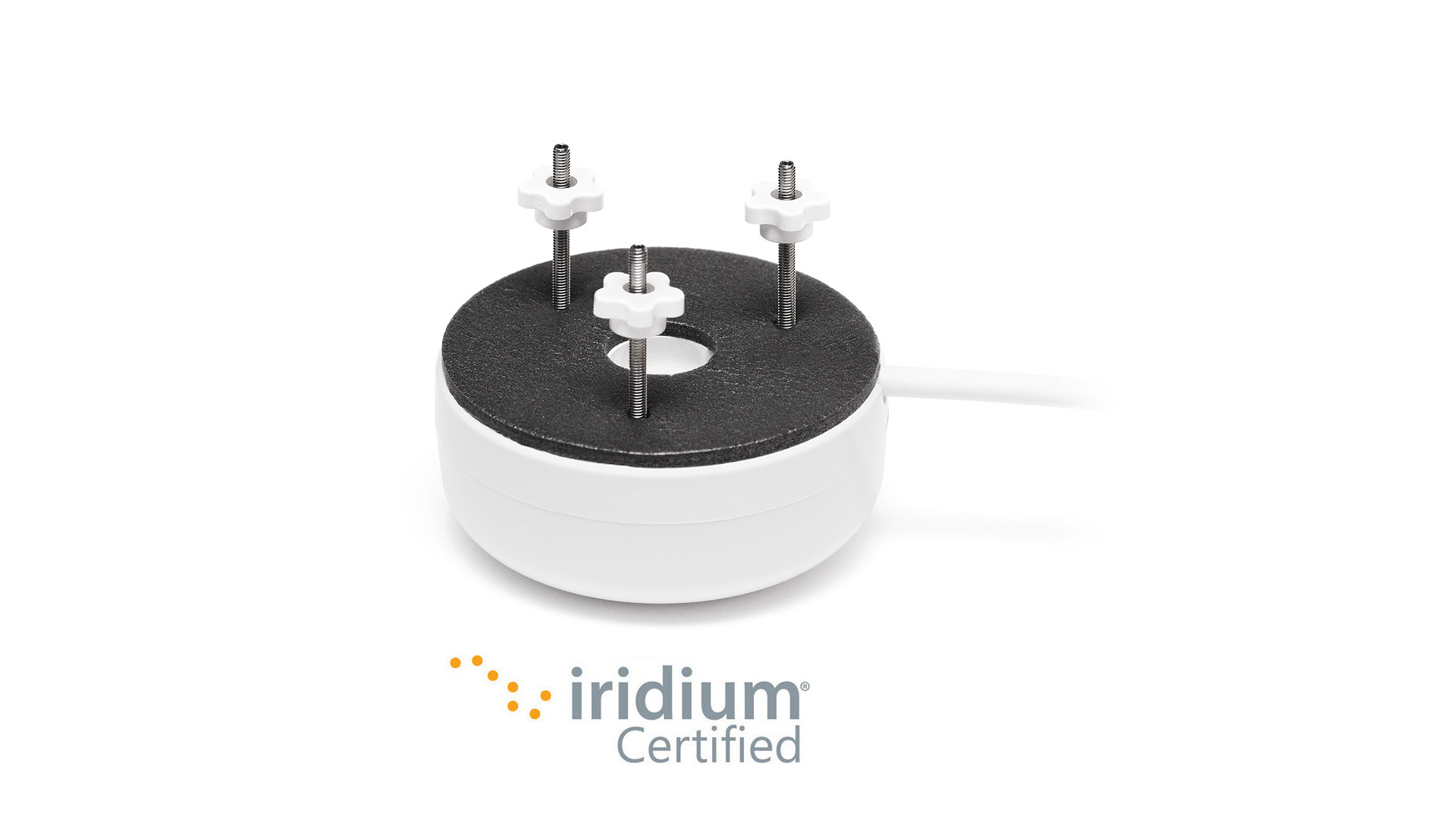

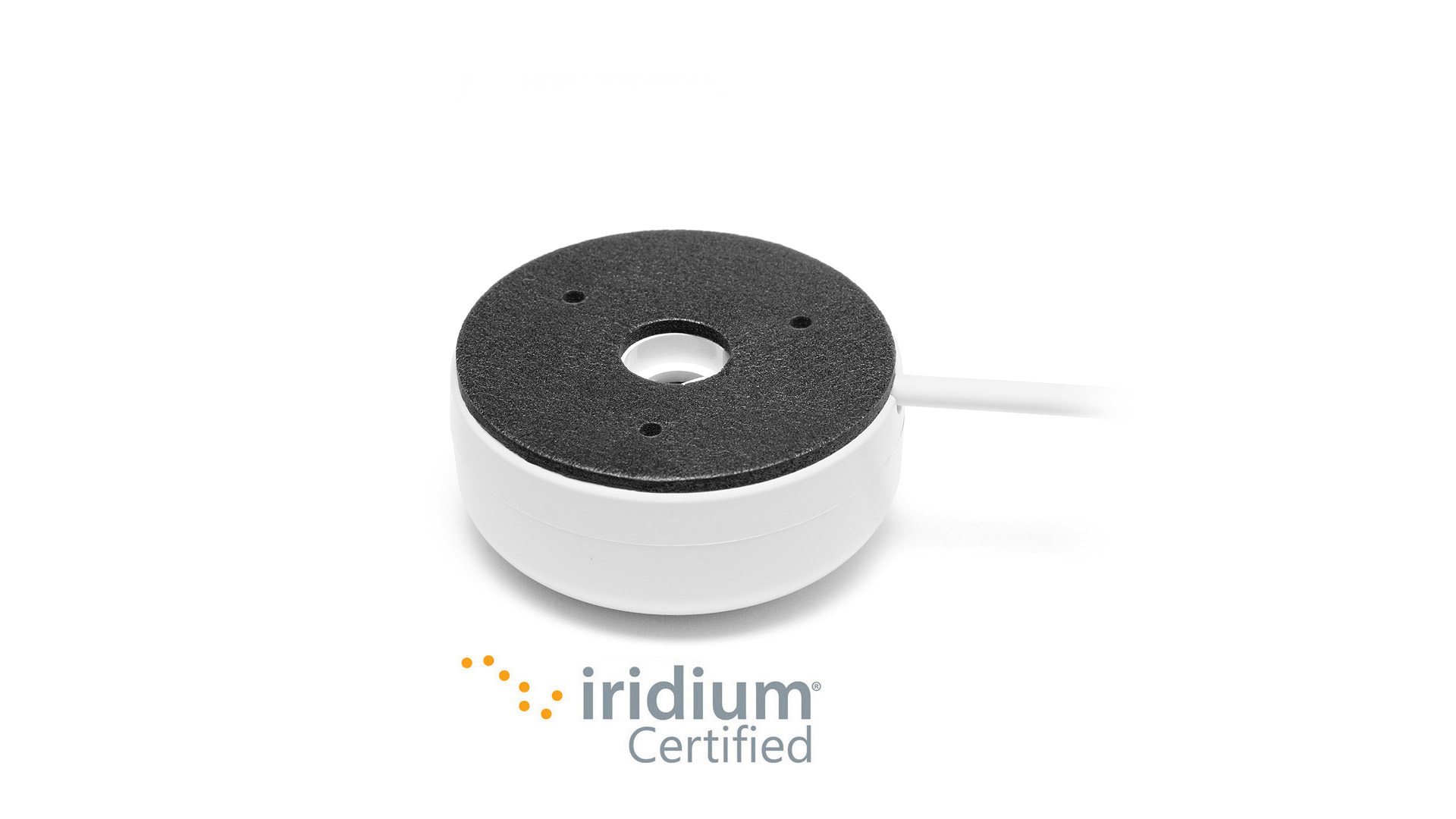

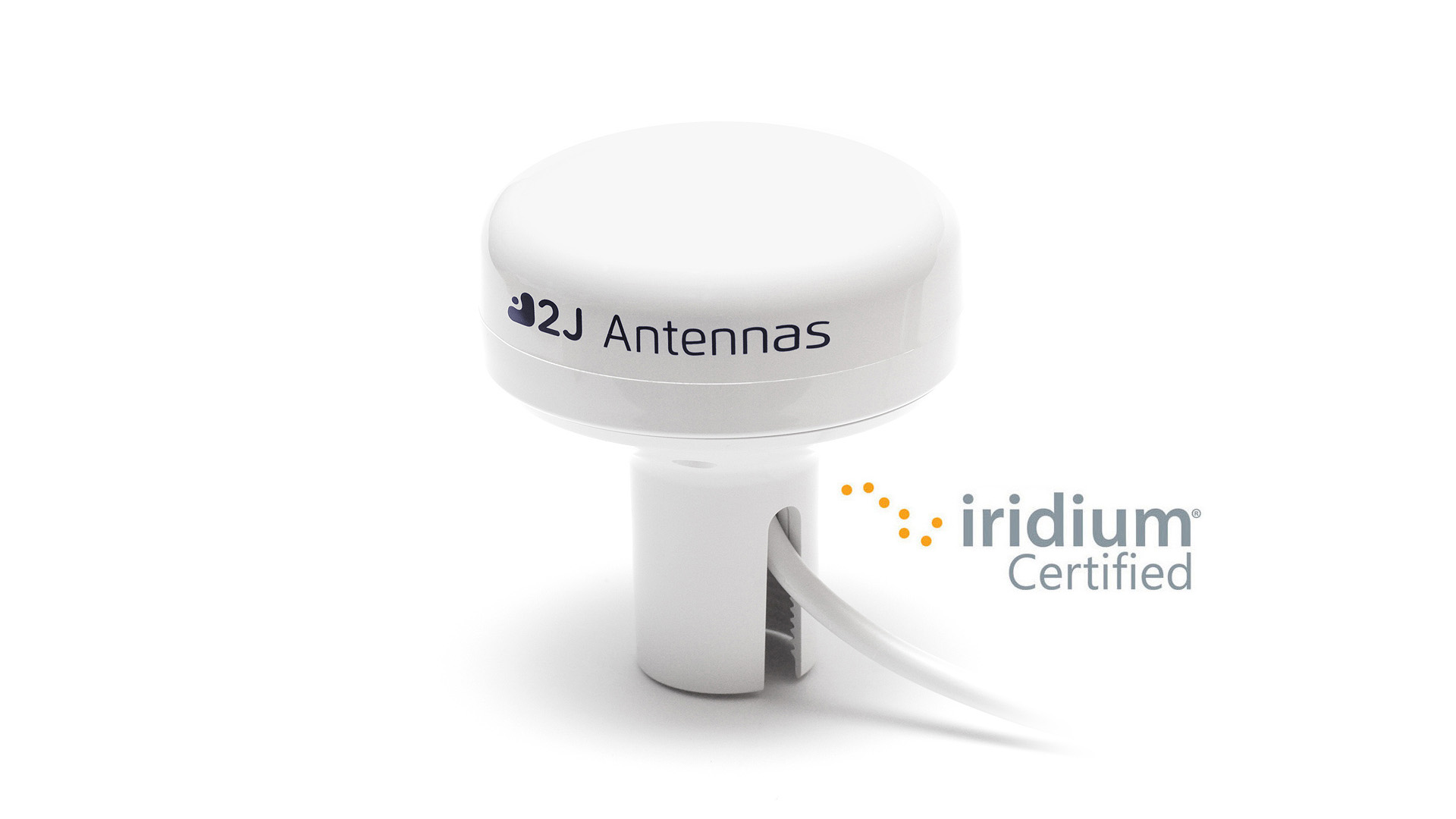

    The antenna housing and base are manufactured with IP67 certified ABS, a waterproof material known for its resistance to impact, chemical, moisture and present high durability properties that allow reliable operations in temperatures ranging between -40C to +85C. Designed with a configurable mount and ground plane independence makes this antenna ideal for permanent marine installation in the most extreme outdoor applications without restrictions.

    For this antenna there is a large selection of coaxial cables available upon request and our team of experts is available to assist in customization options by offering a wide range of options.

    This antenna has been tested rigorously to assure absolute antenna function in the most extreme marine conditions to achieve 100% customer satisfaction. 2J Antennas supports the health of our environment; all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
