Antenna and electrical specifications

connection 1

868/915 MHz ISM

Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 863-870, 902-928
VSWR ~2.6:1, ~3.5:1
Efficiency (%) ~40.8, ~40.7
Peak Gain (dBi) ~1.3, ~1.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.4:1
50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current (mA) 9 Typ
Power Consumption (mW) 24.3 Typ

Key Features

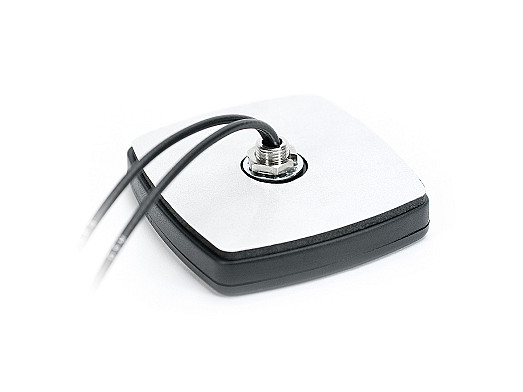

2-in-1 Combination Antenna
Dual Band 868/915 MHz ISM Antenna
Ground Plane Independent
1.6 dBi 868/915 MHz ISM Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Customizable Cable and Connector
