Key Features

  • High Gain
  • GPS/QZSS/Galileo
  • Thru-Hole Mount

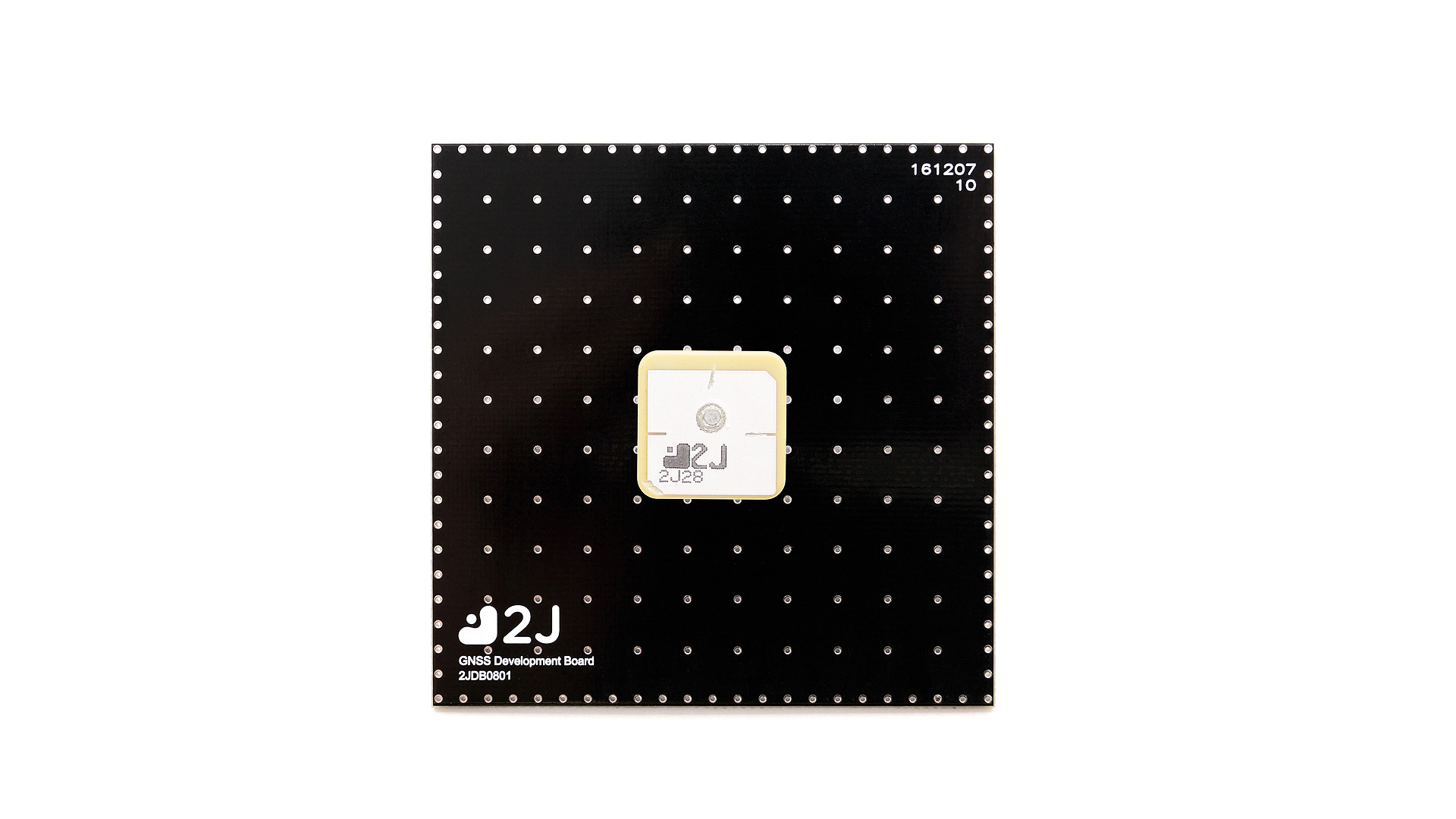

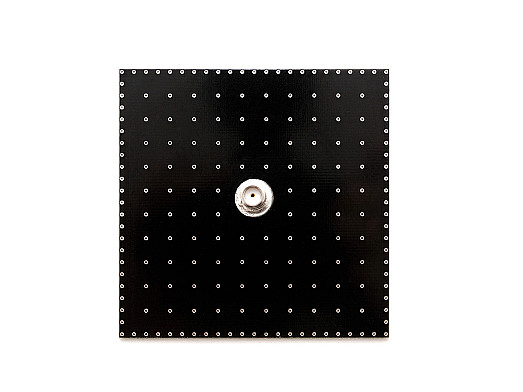

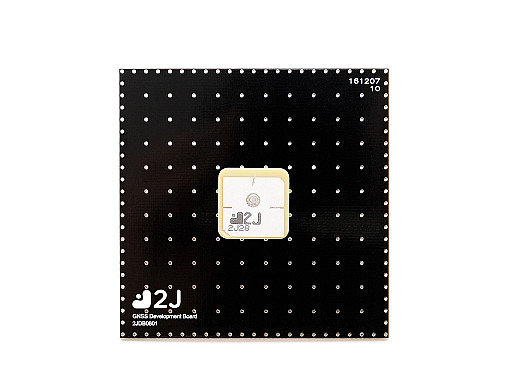

  • Development Kit for GNSS

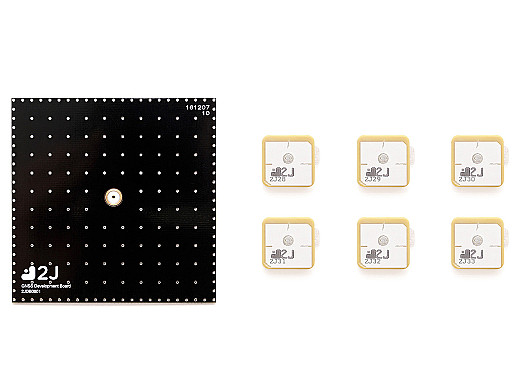

  • Set of 6 patches to try on devices
  • Patches 18 x 18 x 4 mm

Applications

Antenna and electrical specifications

connection 1

GPS - Ceramic Passive Antenna

Standards GPS/QZSS/Galileo
Frequency (MHz) 1575.42 - Ceramic patch 2JCP1840101a (2J 28)
1580.42 - Ceramic patch 2JCP1840102a (2J 29)
1585.42 - Ceramic patch 2JCP1840103a (2J 30)
1590.42 - Ceramic patch 2JCP1840104a (2J 31)
1595.42 - Ceramic patch 2JCP1840105a (2J 32)
1600.42 - Ceramic patch 2JCP1840106a (2J 33)
Passive Gain (dBi) ~3.6
Impendance (Ohm) 50
Radiation Pattern Hemispherical
Axial Ratio (dB) 3 max
Polarization RHCP
