Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.0:1, ~1.8:1, ~1.3:1
Efficiency (%) ~50.9, ~38.6, ~42.0
Peak Gain (dBi) ~1.2, ~1.2, ~2.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.2:1, ~1.9:1
Efficiency (%) ~38.9, ~20.8
Peak Gain (dBi) ~1.7, ~1.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.3:1, ~1.4:1
Efficiency (%) ~35.1, ~22.0
Peak Gain (dBi) ~1.5, ~1.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Noise Figure (dB) 1.5 Typ
Current Consumption (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
ESD Protection (kV) 2

Key Features

4-in-1 Combination Antenna
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
2.4 dBi 4G LTE Peak Gain
1.7 dBi WIFI Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Anti-Rotation Mounting
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna description

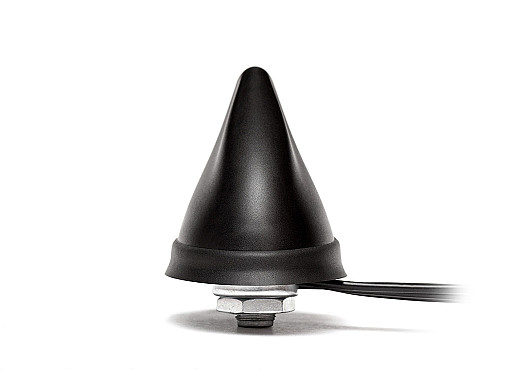

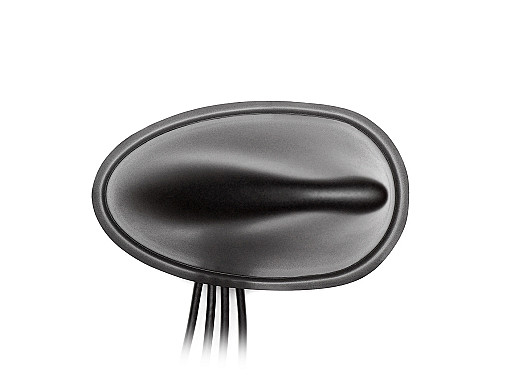

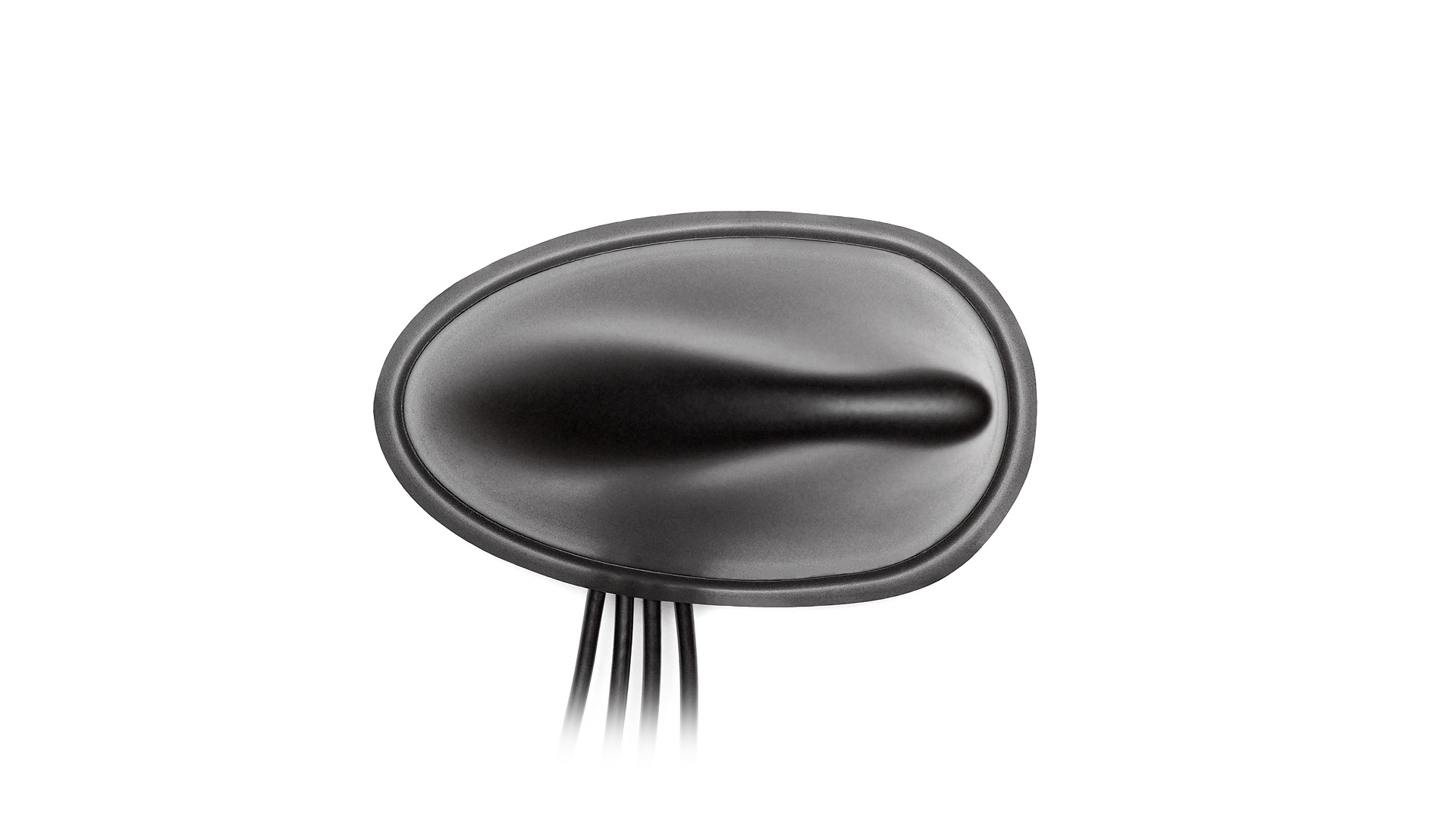

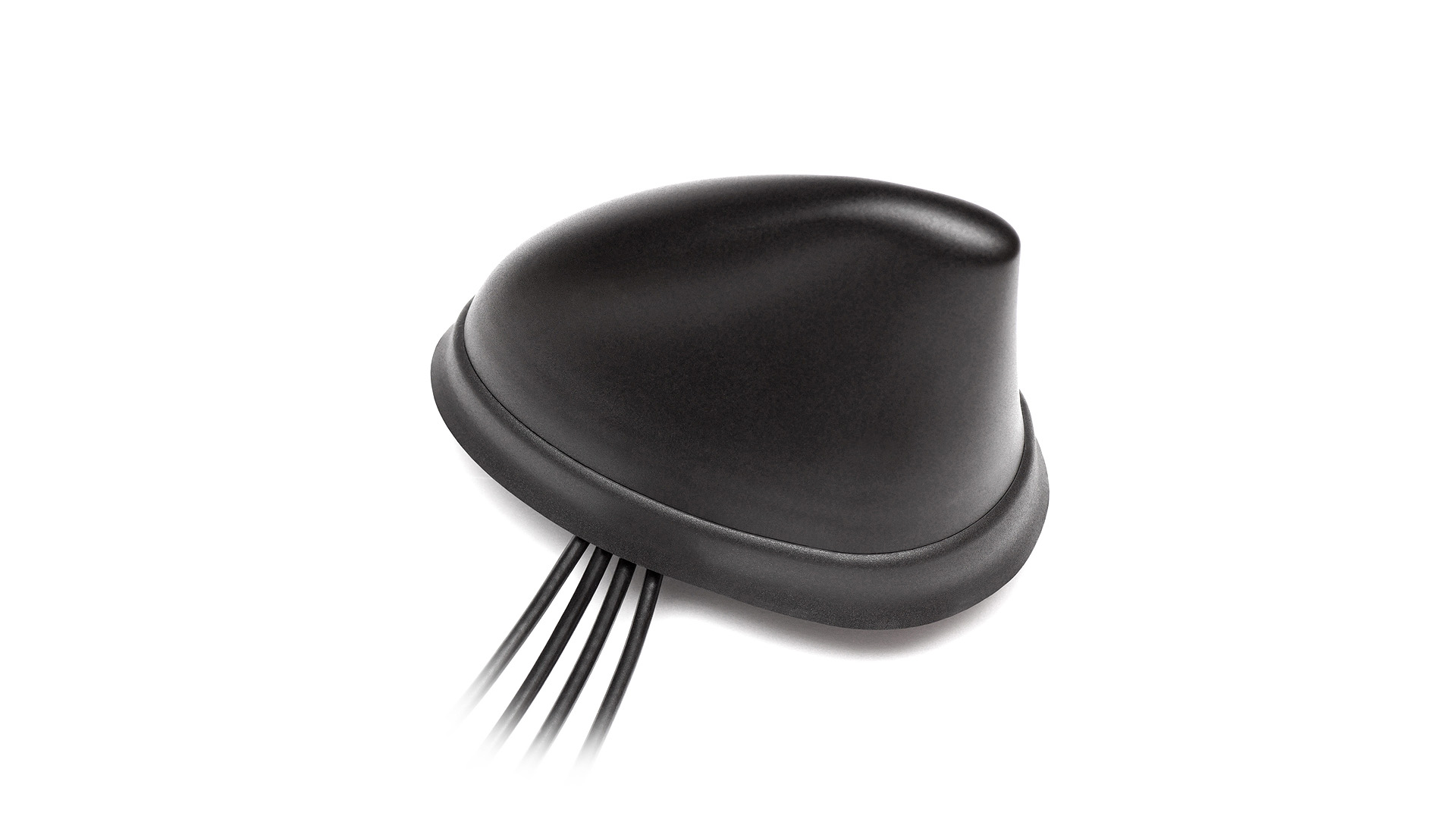

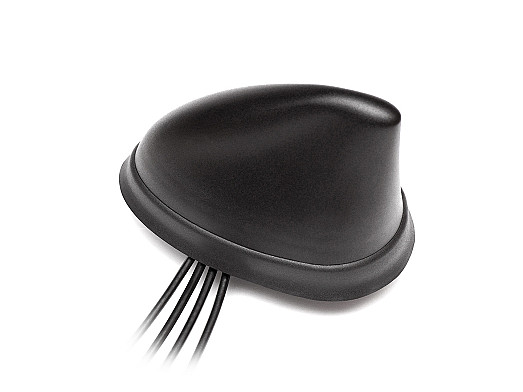

2J8750BGFb “The Mako Series”



4-in-1 Cellular/LTE, 2× 2.4/5.0 GHz ISM MIMO and GNSS ‘Shark Fin’ Antenna



The Next Generation 4-in-1 Antenna Reaching Global Connectivity With Excellence

The Cellular/LTE, 2× 2.4/5.0 GHz ISM MIMO and GNSS Screw Mount Antenna (2J8750BGFb) is a 4-in-1 ‘Shark Fin’, high-performance antenna ideal for powerful global connection on the move. The 2J8750BGFb outperforms any competitor by offering 4G, LTE, 2G, 3G, 2× WiFi, Bluetooth-BT, ZigBee, GPS, QZSS, Galileo and GLONASS standards. The 2J8750BGFb is highly reliable while maintaining constant global connectivity across a multitude of terrains. This makes it ideal for tracking/mapping devices, automobile navigation, commercial transportation, M2M and worldwide voice/data communications.

The Cellular/LTE (Cable 1) is designed within 4G LTE, 3G and 2G standards. Designed with an omni-directional radiation pattern and operates within 698MHz-960MHz, 1710MHz-2170MHz and 2500MHz-2700MHz frequencies. The 2J8750BGFb is tuned and calibrated to improve signal strength and allow for uninterrupted connectivity, better signal quality, and reliability while providing increased long- and short-range cellular data and video bandwidth throughput.

The 2.4/5.0 GHz ISM (Cable 2 and 3) Antennas are ideal for WiFi, Bluetooth-BT, ZigBee and ISM standards. The 2J8750BGFb WIFI antennas operates within 2410MHz-2490MHz and 4920MHz-5925MHz frequencies. Designed for reliable M2M connection ideal for low power WiFi, Bluetooth-BT, smart home and commercial devices.

The GPS/GLONASS Antenna (Cable 4) is designed for reliable navigational connectivity within GPS, QZSS, Galileo and GLONASS standards. With a hemispherical radiation pattern, the 2J8750BGFb navigation antenna operates within 1575.42MHz and 1598MHz-1606MHz frequencies. This high-quality antenna offers access to multiple satellites improving accuracy, redundancy and availability uninterrupted ideal for global automotive navigation/geolocation while moving through busy urban areas where obstructions pose a threat to connectivity and signal degradation.

Installation / Environmental

For external applications, the production material used is ABS UV stable, protecting the antenna from temperatures between -40C and +80C. With a shark fin design and anti-rotation mechanism, this screw mount antenna is easy to install with maximum durability. All three cables on the 2J8750BGFb antenna have a SMA-Male standard connector, 300cm standard cable length and are fully customizable by offering additional connector types, cable lengths and cable types. 2J8750BGFb is RoHS compliant with complete IP67, IP69 and IK09 certification.



Typical applications

- Automotive connectivity
- Multimedia
- Navigation and telematics systems
- V2V and V2X applications
- Fleet management
- HD video and audio streaming
- Emergency communication







Compatibility Standards

LTE Cables
- CAT 1 2 3 4 5 6 7 8 9 10 11 12
- NB-IoT, LTE-NB1, CAT-M1, CAT-M2, WCDMA, UMTS, HSPA,
- EDGE GRPS, GSM, CDMA

2.4/5.0 Cables
- WiFi, Bluetooth, BLE, ISM
- DSRC, V2V, V2X
- Sigfox, LoRa, ZigBee, RPMA, LPWAN

GPS/GLO Cable
- GPS, GLONASS
- Galileo, QZSS, L1, E1



Applications

Mobile Networks Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Cellular Networks Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Machine Control Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Wearables Asset Tracking and Security Location Based Services Civil Applications Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Automotive Telecommunication Data Processing Broadband Communications Remote Monitoring and Control Wireless Security System Energy Monitoring Smart Metering Smart Lighting Air Quality and Pollution Monitoring Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Telemetry / Telematics Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything Retail Services Marine Home Applications Public Wi-Fi Short-Range Personal Area Networks RFID devices V2X - Vehicle to Everything Aviation Applications Satellite Realtime Navigation MIMO Device Connectivity
