Antenna and electrical specifications

connection 1


Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.4:1, ~1.4:1, ~1.5:1
Efficiency (%) ~54.7, ~56.8, ~48.8
Peak Gain (dBi) ~2.2, ~3.0, ~0.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2


Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.4:1, ~1.4:1, ~1.5:1
Efficiency (%) ~54.7, ~56.8, ~48.8
Peak Gain (dBi) ~2.2, ~3.0, ~0.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

2-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
3.0 dBi 4G LTE Peak Gain
High Performance
Antenna Bracket included
Waterproof Antenna
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

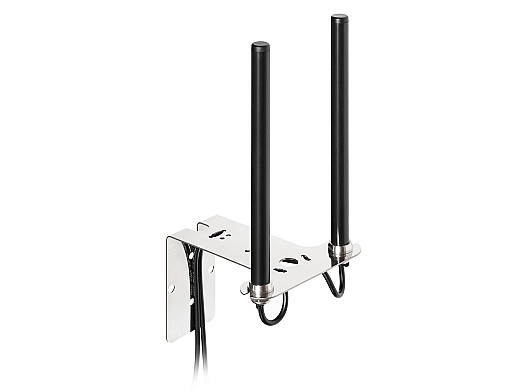

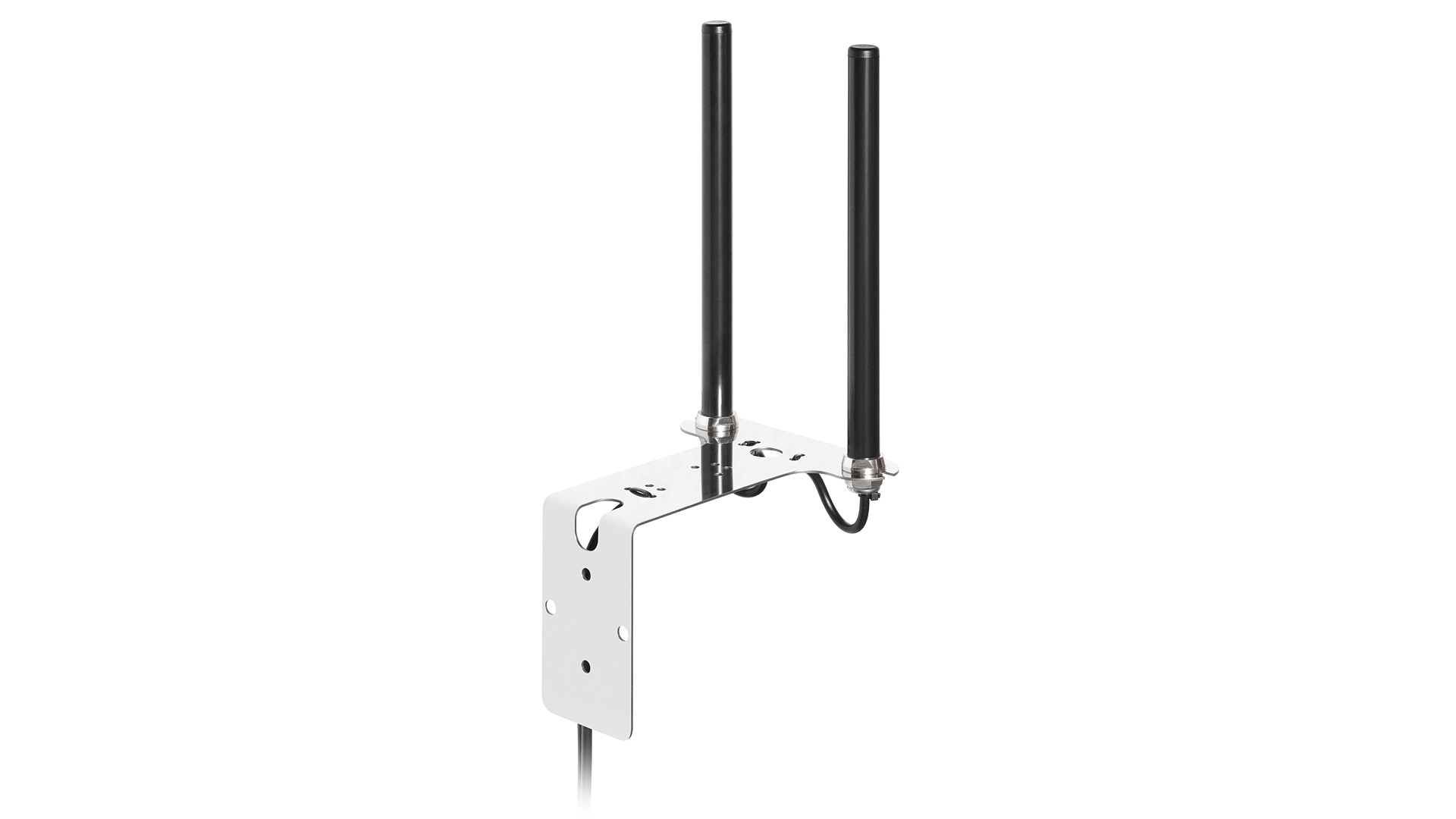

Unleash the Power of Cellular/LTE with this Sleek & Sturdy Wall-Mount Antenna

The 2J2124Ba-B17H is a high-performance, wall-mount antenna designed for Cellular/LTE applications across the 2G, 3G, and 4G networks. The antenna features a wide frequency range, covering 698-960 MHz, 1710-2170 MHz, and 2500-2700 MHz, ensuring compatibility with multiple cellular bands. The antenna is ground plane independent, allowing for versatile deployment options in various environments.

The antenna operates with a 50 Ohm impedance and linear polarization, while delivering an omni-directional radiation pattern for optimal signal coverage. With a maximum input power of 25 watts, this antenna can handle a wide range of cellular communication requirements.

Suggested applications include:

  • Wireless communication systems: mobile communication base stations, cellular repeaters, or distributed antenna systems (DAS) to enhance network coverage and capacity.
  • Internet of Things (IoT) devices: IoT devices requiring robust cellular connectivity can benefit from this antenna, including remote monitoring and control systems, smart agriculture, smart city infrastructure, and asset tracking.
  • Public safety and emergency response: police, fire, and ambulance services.
  • Remote and rural connectivity: The antenna can help extend cellular coverage to remote and rural areas, improving connectivity for residents and businesses in those regions.
  • Transportation and fleet management: transportation hubs, such as airports, train stations, and bus terminals, as well as for fleet management applications, ensuring consistent and reliable communication for vehicles and assets.
  • Industrial and enterprise settings: industrial facilities, warehouses, and office buildings to improve cellular connectivity and support various communication and automation systems.
  • Building automation systems: automation systems that rely on cellular connectivity, including HVAC controls, energy management, and security systems.

Installation / Environmental

Customizable cable and connector options are available, allowing users to tailor the antenna to their specific needs. The standard cable length is 300 cm, with other lengths available upon request. The standard cable type is LL195, with other cable options also available. The antenna is compatible with most RF connectors, with SMA-Male as the standard connector type.

The 2J2124Ba-B17H antenna measures 325 × 135.5 × 155 mm (220 × Ø 16 mm) and can operate in a temperature range of -40 to +85 degrees Celsius. The antenna is RoHS compliant.

This robust antenna is housed in an ASA radome with a black finish, providing IP67 certification for protection against dust and water ingress, making it suitable for both indoor and outdoor installations. The antenna base is made of brass, while the bracket is constructed of stainless steel, ensuring durability and longevity in harsh conditions.

Overall, the 2J2124Ba-B17H antenna provides reliable and efficient cellular connectivity for a wide range of applications, making it an ideal choice for network operators and device manufacturers requiring high-quality, wall-mount antenna solutions.
