| Parameters |

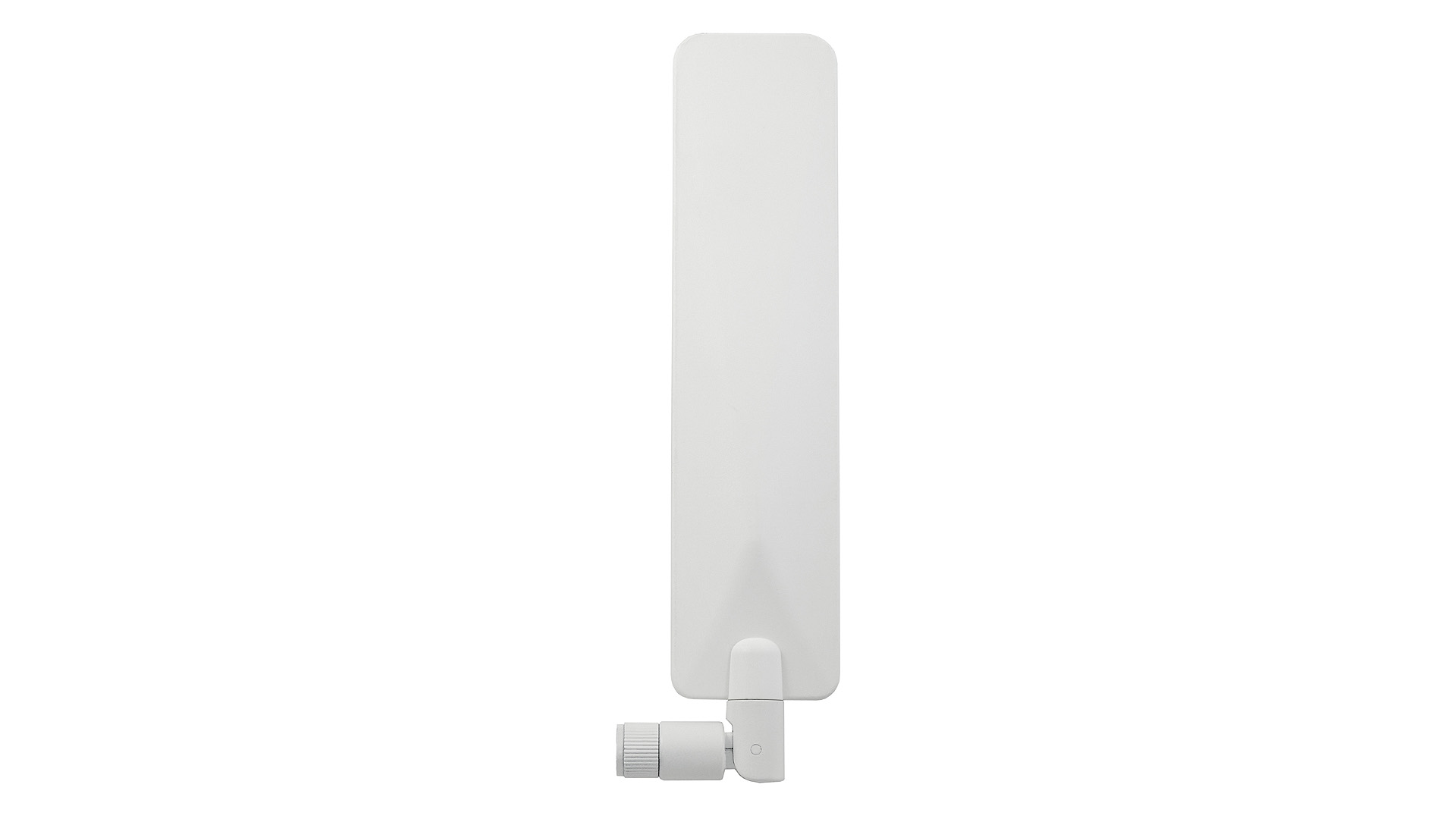

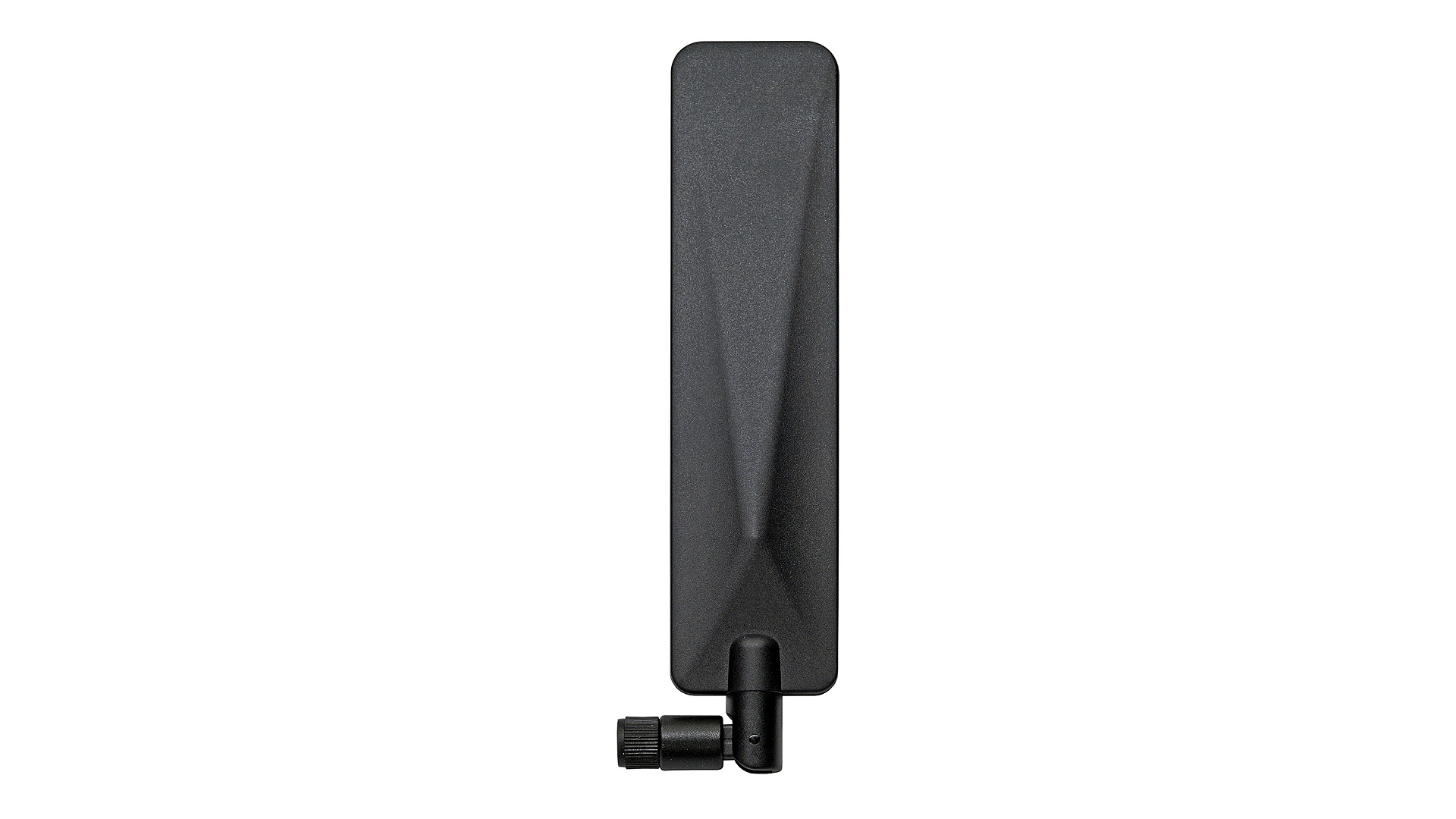

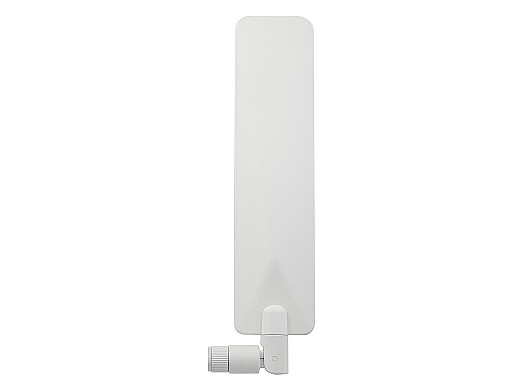

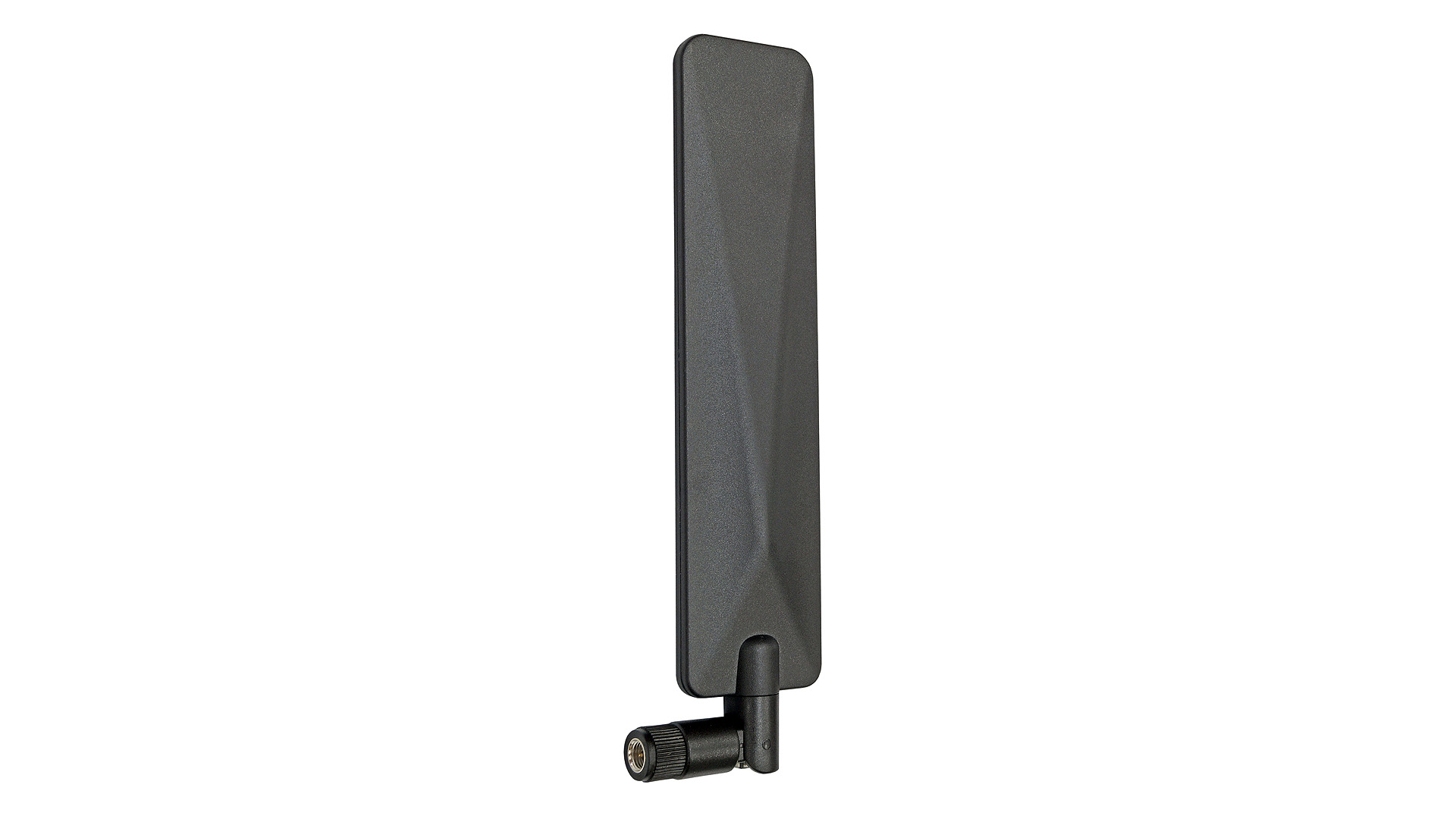

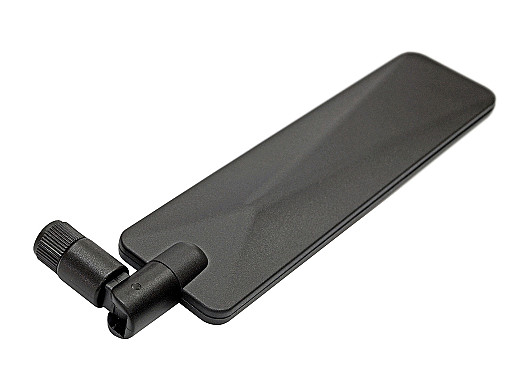

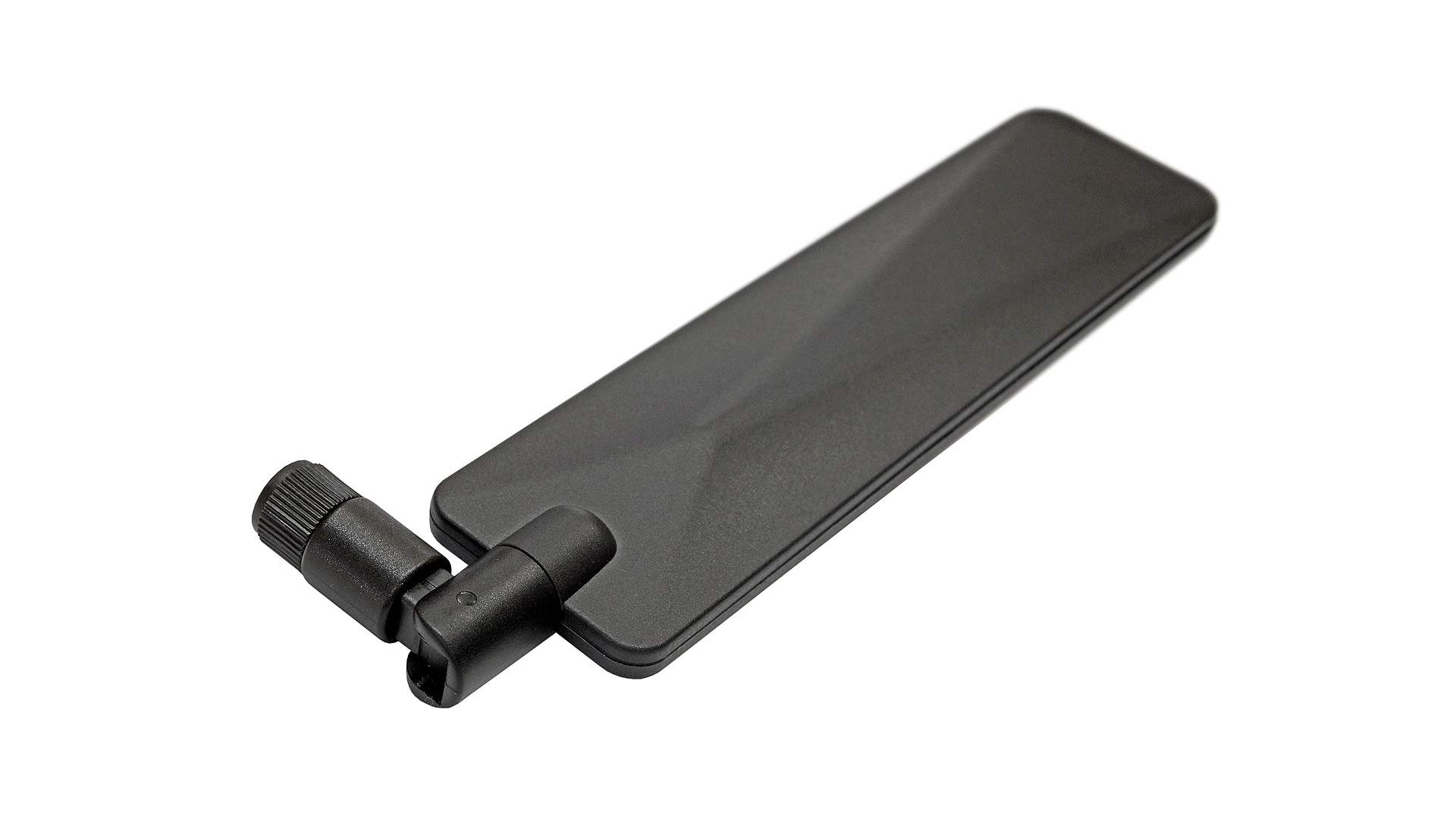

5GNR Antenna |
| Frequency (MHz) |
617-960 |
1427-2690 |
3300-5000 |
5150-5925 |
5925-7125 |
| Band (MHz) |
600, 700, 800, 850, 900 |
1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700, 4500 |
5200, 5500, 5800 |
6175, 6525, 6775 |
| 5GNR Bands |
n5, n8 ,12, n13, n14, n18, n20, n26, n28, n29, n67, n71, n81, n82, n83, n85, n89, n100, n105, n106 |
n1, n2, n3, n7, n, 24, n25, n30, n34, n38, n39, n40, n41, n50, n51, n53, n54, n65, n66, n70, n74, n75, n76, n80, n84, n86, n91, n92, n93, n94, n95, n97, n98, n99, n101, n109, n254, n255, n256 |
n48, n77, n78, n79, n90 |
n46, n47 |
n96, n102, n104 |
| 4GLTE Bands |
B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 |
B22, B42, B43, B48, B49, B52 |
B46, B47, B252, B255 |
|
| 3GCELL Bands |
B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 |
|
|
| 2GCELL Bands |
710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS |
|
|
|
| CDMACELL Bands |
BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
|
|
|
