Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.5:1
Efficiency (%) ~50.7, ~52.6, ~50.6
Peak Gain (dBi) ~1.3, ~4.8, ~5.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.4:1
Efficiency (%) ~50.7, ~52.7, ~58.4
Peak Gain (dBi) ~0.9, ~4.4, ~5.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impedance (Ohm) 50
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6

Key Features

3-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
5.5 dBi 4G LTE Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

2J7041MGFa

Heavy Duty 3-in-1 Combination Antenna with Exceptional High Performance

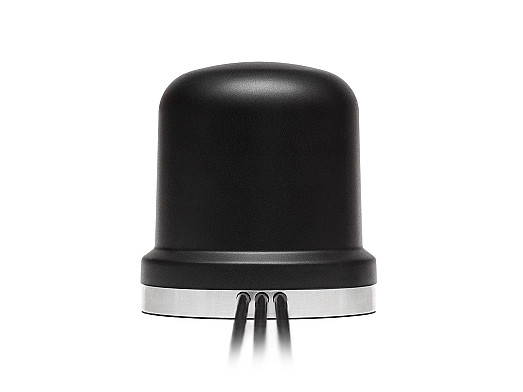

2J7041MGFa is a high gain, high performance, heavy duty, wide band 3-in-1 antenna designed for Cellular, LTE and GNSS applications. This multi-function antenna comes with a super strong magnetic mount and is ideal for automotive, industrial equipment and transportation applications where permanent screw mounting is not an option.

The dual Cellular / LTE cable (#1 & #2) is dedicated to voice and data devices that operate within 4G LTE, FirstNet, LPWA, NB-IoT, Cat-X-Mx-NBx, 3G and 2G standards. This antenna offers high gains with high efficiency across 698 MHz – 2700 MHz frequency bands and is backwards compatible with existing LTE networks. By adding dual cellular capabilities, the antenna can consistently search and pair the strongest signal to assure uninterrupted connectivity regardless of the location and angle.

Single cable (#3) GNSS antenna is designed with navigational precision for automotive and transportation applications that operate within GPS, QZSS, Galileo and Glonass standards. With hemispherical radiation pattern, RHCP and saw filter, this antenna offers a high active gain with excellent efficiency across 1575.42 MHz and 1598-1606 MHz frequencies.

For detailed antenna specifications, please see our comprehensive data sheet.



Typical applications

- Telematics
- Cellular Mobile and Internet
- Industrial Machinery and Automation
- Automobile / Transportation
- Critical Communication Services
- Consumer Electronics and Smart Home / Office
- Outdoor building and roofs





Installation / Environmental

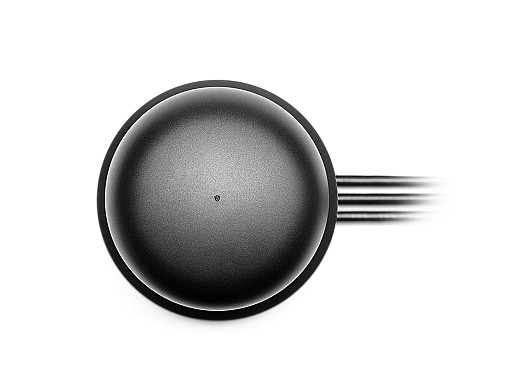

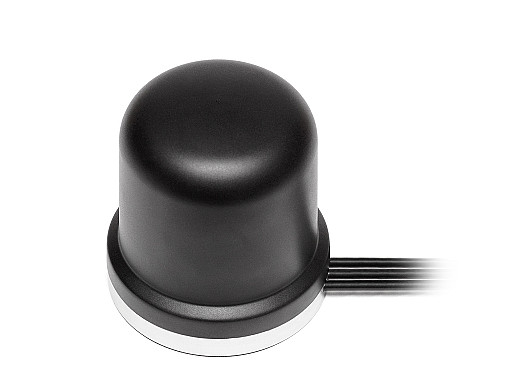

The dome shaped antenna housing measures Ø 96 × 102 mm and is made from industrial grade ASA material with an aluminum alloy base. With full IP67, IP69 and IK09 certification, this antenna is fully waterproof and resistant to dust, high temperatures and impact ideal for outdoor applications.

The powerful magnetic mount is strong enough for long term installations but also ideal for temporary installations on metal surfaces for short term applications on the go. The antenna base includes a thin, soft rubber layer to protect metal surfaces from scratches during installation or removal. This antenna combination is also available with screw, pole and lightweight plastic screw mounting options.

All cables are high quality low loss (LL195/LL100) cables and connected via SMA-Male connectors.  This antenna has been tuned to standard 300 cm cable length for optimal performance however we offer a large selection of alternative cables and. Our 2J Antennas engineers are available 24/7 to assist with any customization or antenna selection needs.

To support the health of our environment, all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
