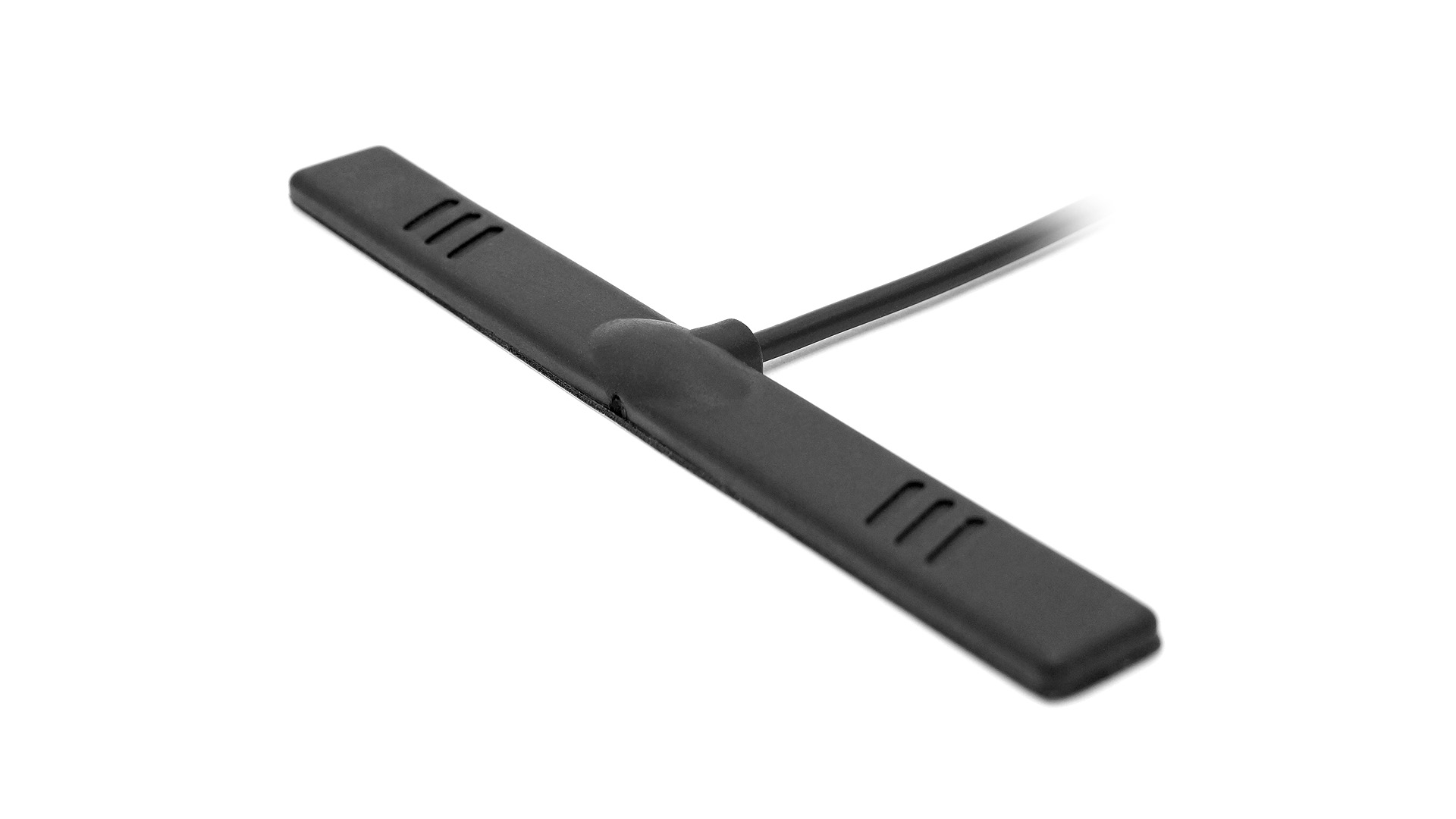

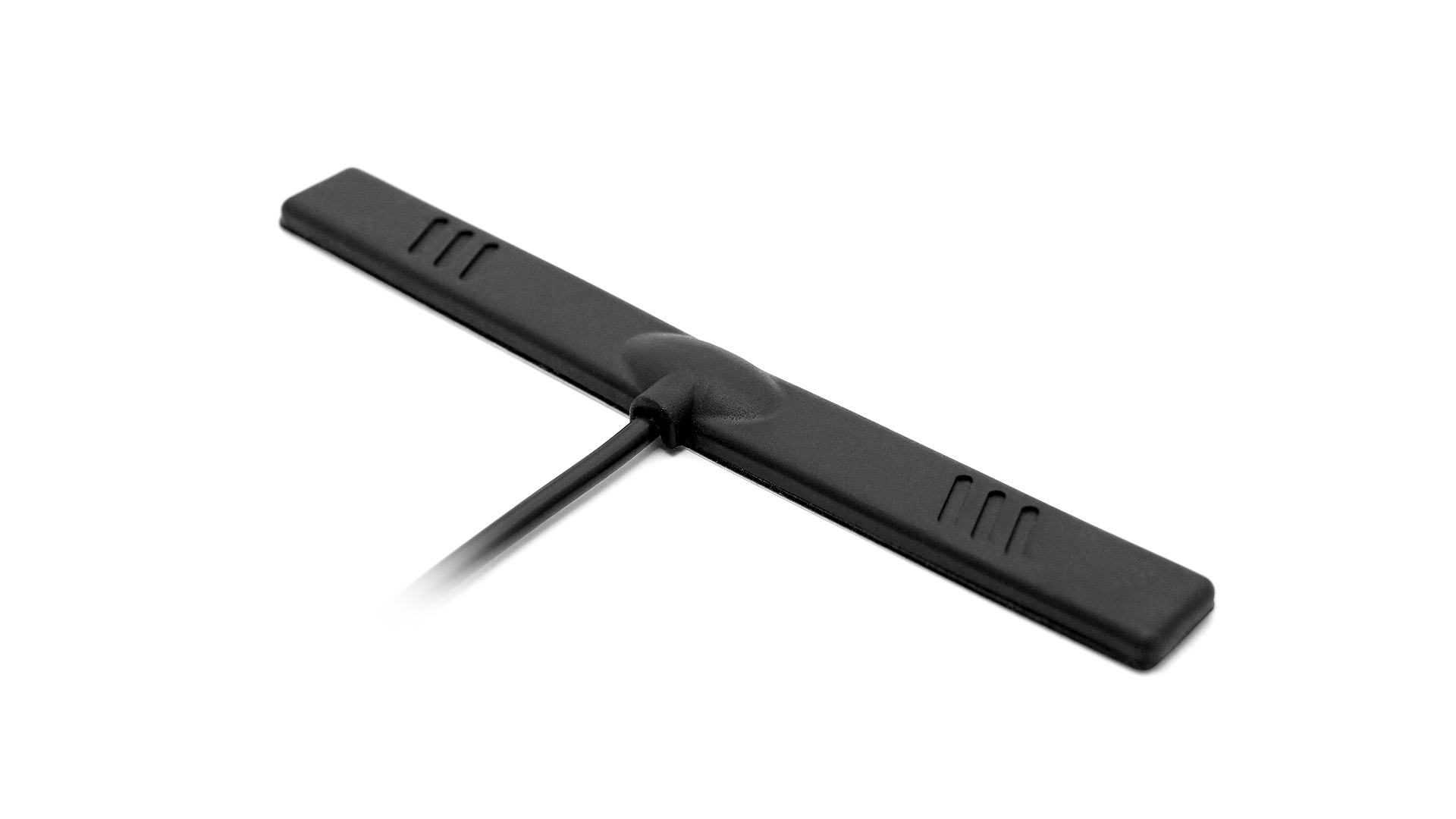

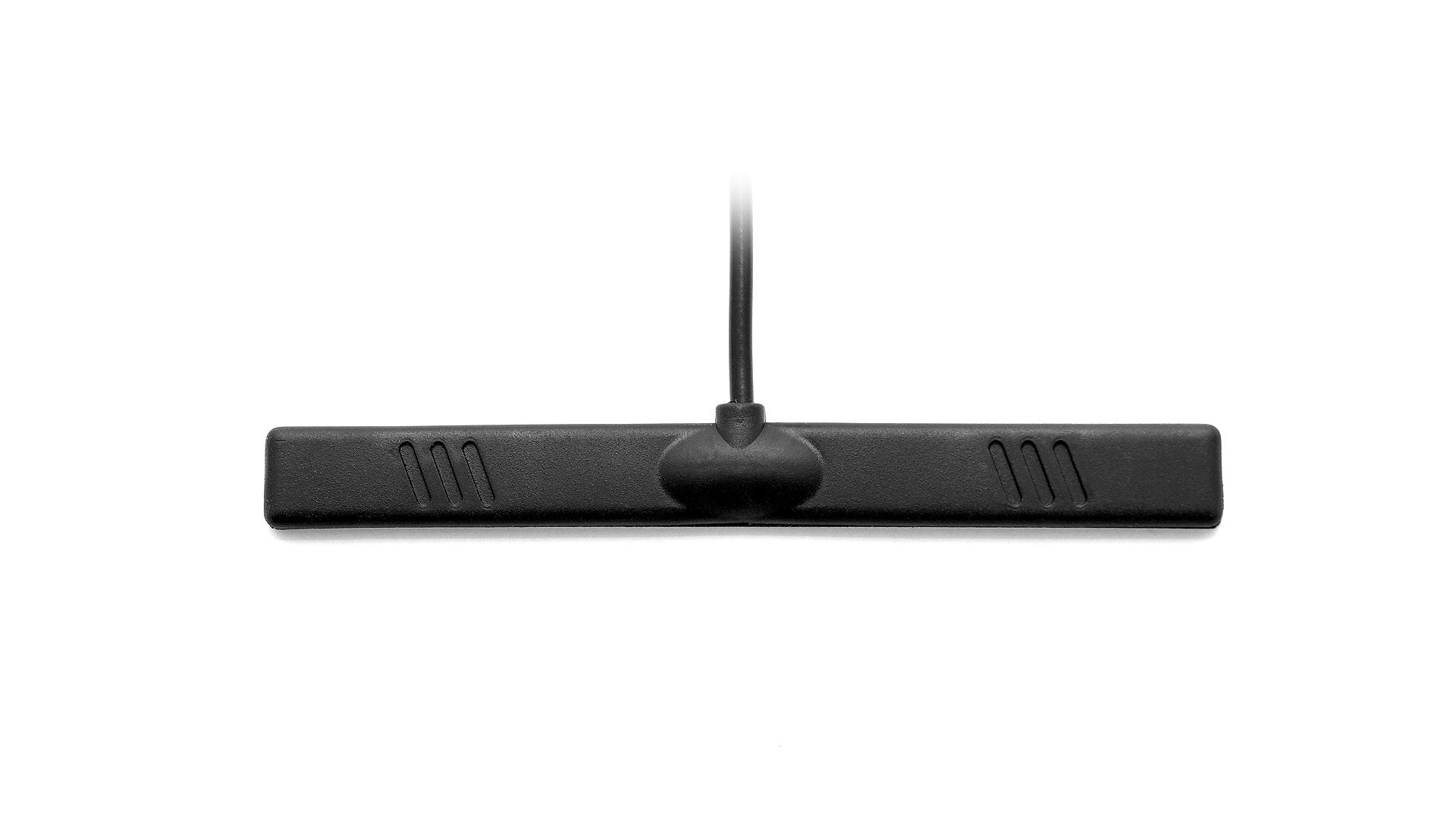

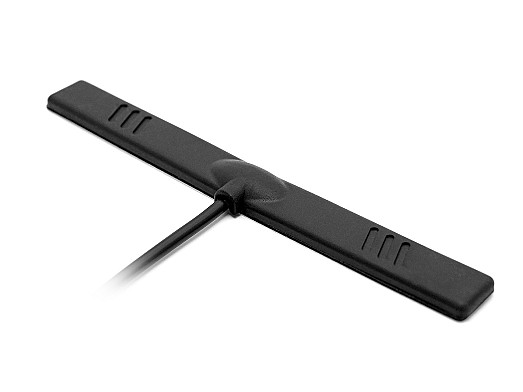

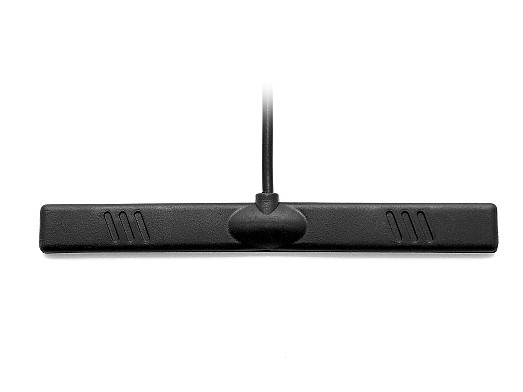

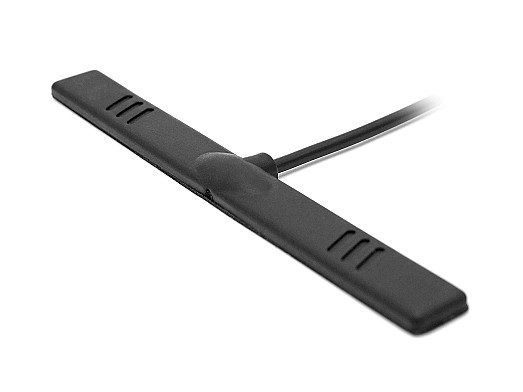

2J5215P-433 Antenna

433 MHz ISM Flexible Housing High Performance Customizable Antenna

General specification
Frequency 433 MHz ISM
Mounting Adhesive mount
Dimensions (mm) 117.4 x 12.5 x 6.5
Operating temperature -40 °C to +85 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • High Performance
  • Adhesive Mount
  • Ground Plane Independent
  • Customizable Cable and Connector
  • Flexible Housing
  • Antenna and electrical specifications

    connection 1

    433 MHz ISM

    Standards ISM, LoRa
    Frequency 433-435
    VSWR ~1.8:1
    Efficiency (%) ~42.6
    Peak Gain (dBi) ~1.5
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 50
