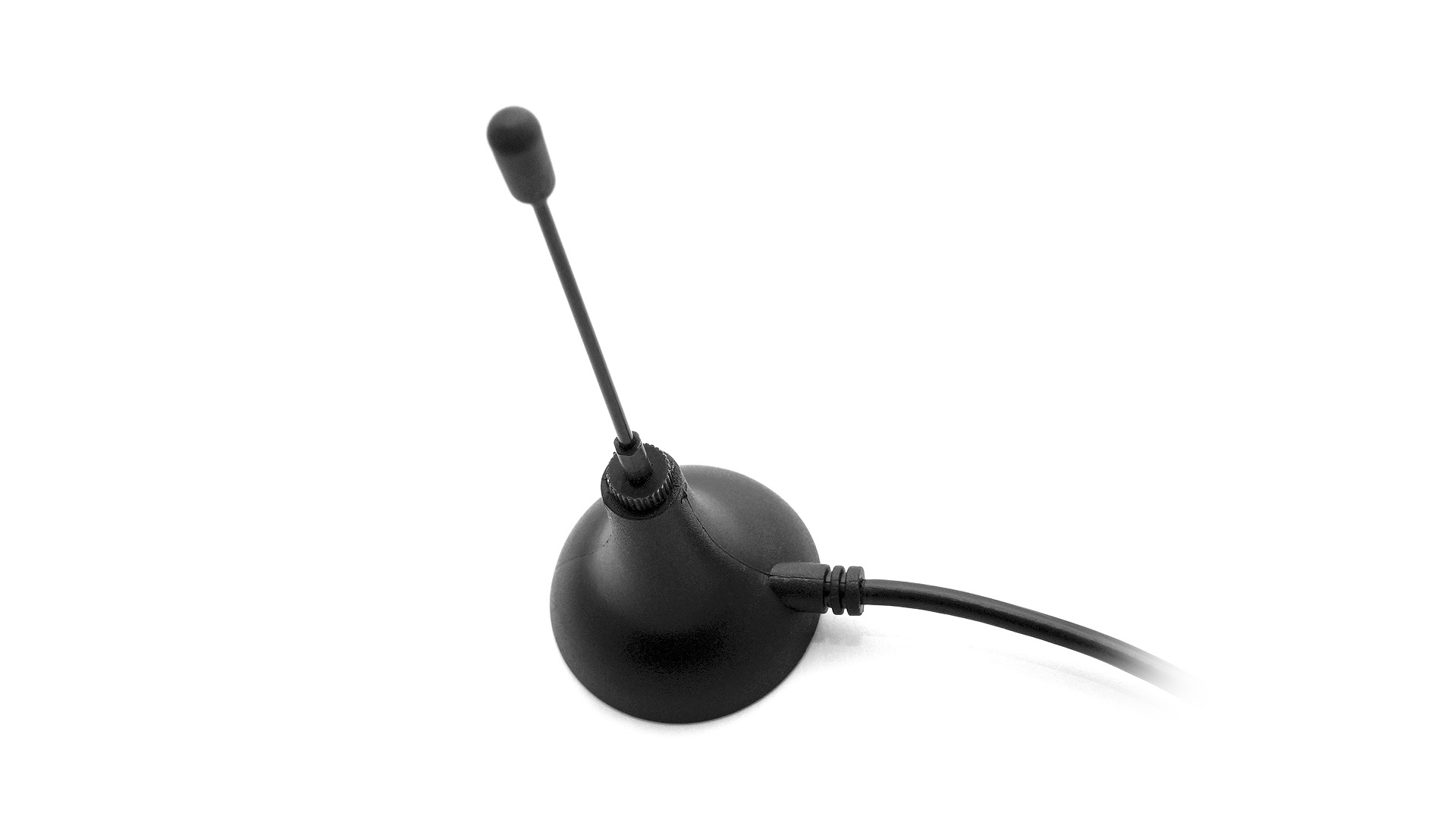

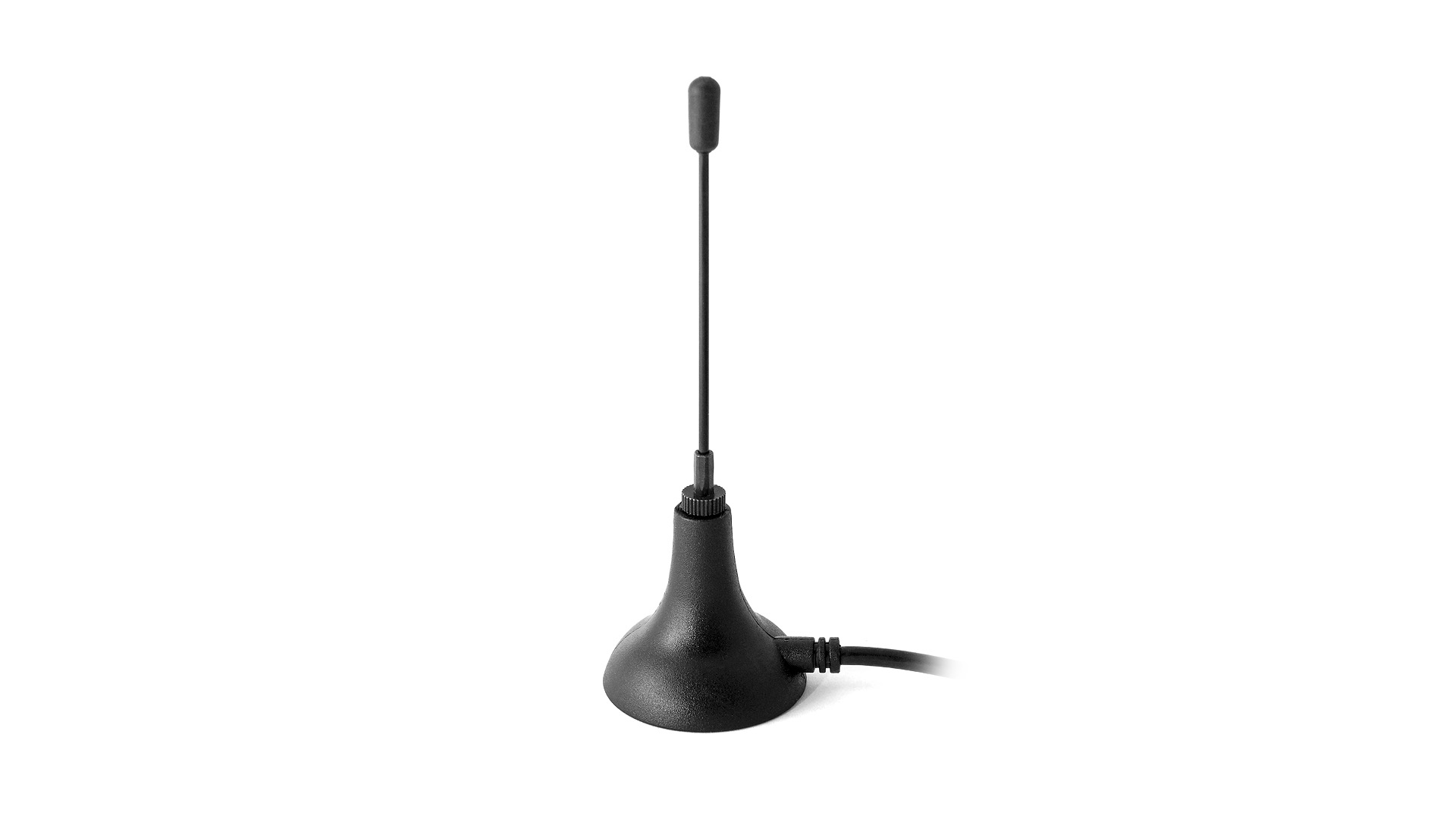

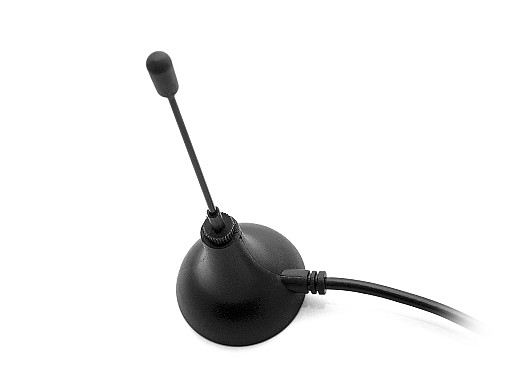

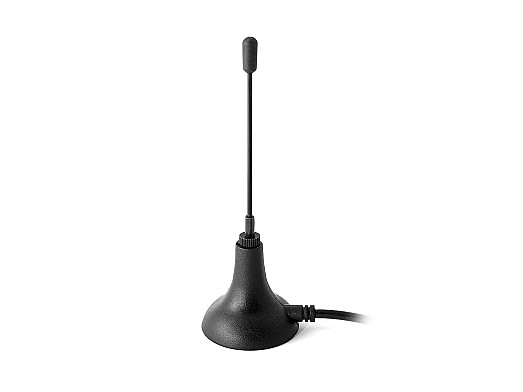

2J3915M-868 Antenna

868 MHz ISM High Performance Customizable Antenna

General specification
Frequency 868 MHz ISM
Mounting Magnetic Mount
Dimensions (mm) Ø 30.9 × 91
Operating temperature -40 °C to +85 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • High Performance
  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Magnetic Mount
  • Antenna and electrical specifications

    connection 1

    868 MHz ISM

    Standards ZigBee, ISM, SIGFOX, LoRa
    Frequency 863-870
    VSWR ~1.3:1
    Efficiency (%) ~64.5
    Peak Gain (dBi) ~2.6
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 50
