Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Adhesive Mount
  • Ground Plane Independent
  • Customizable Cable and Connector
  • certificates: IP67, IP69
  • Applications

    Antenna and electrical specifications

    connection 1

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-12.4, ~-14.0, ~-13.0, ~-16.2
    VSWR ~2.1:1, ~1.6:1, ~1.7:1, ~1.5:1
    Efficiency (%) ~52.0, ~44.7, ~30.7, ~27.0
    Peak Gain (dBi) ~3.3, ~2.0, ~0.5, ~0.6
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 25
    connection 2

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1606
    VSWR <=1.4:1
    Impendance (Ohm) 50
    Polarisation RHCP
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 – 3.6
    Current (mA) 9 Typ
    Power Consumption (mW) 24.3 Typ

    5GNR Antenna Bands list





    Parameters 5GNR Antenna
    Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
    Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
    1900, 2000, 2100, 2300,
    2500, 2600
    3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
    5GNR Bands n5, n8 ,12, n20, n28, n71,
    n81, n82, n83,
    n1, n2, n3, n7, n25, n34,
    n38, n39, n40, n41, n50,
    n51, n66, n70, n74, n75,
    n76, n80, n84, n86
    n77, n78, n79
    4GLTE Bands B5, B6, B8, B12, B13, B14,
    B17, B18, B19, B20, B26,
    B27, B28, B29, B44, B67,
    B68, B71, B85
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B23, B24,
    B25, B30, B32, B33, B34,
    B35, B36, B37, B38, B39,
    B40, B41, B45, B50, B51,
    B65, B66, B69, B70, B74,
    B75, B76
    B22, B42, B43, B48,
    B49, B52
    B46, B47, B252, B255
    3GCELL Bands B5, B6, B8, B12, B13, B14,
    B19, B20, B26
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B25, B32,
    B33, B34, B35, B36, B37,
    B38, B39, B40
    B22
    2GCELL Bands 710, 750, 810T, 850, 900P,
    900E, 900R
    1800DCS, 1900PCS
    CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
    BC10, BC12, BC18, BC19
    BC1, BC4, BC6, BC8,
    BC13, BC14, BC15, BC16,
    BC20, BC21




    2J4884PGF

    Best in Class 2-in-1 Waterproof Compact Antenna Outperforming the Competition

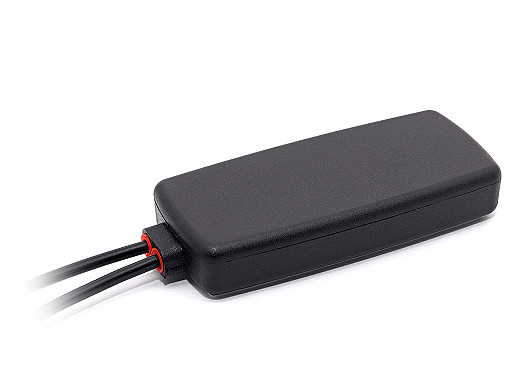

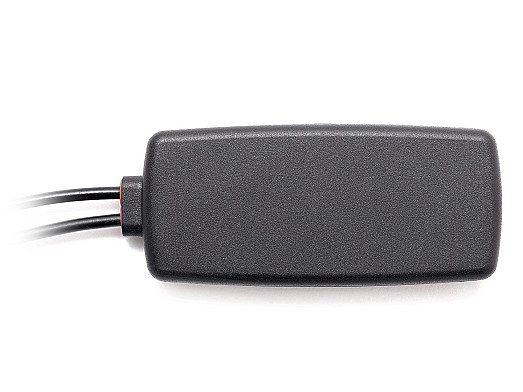

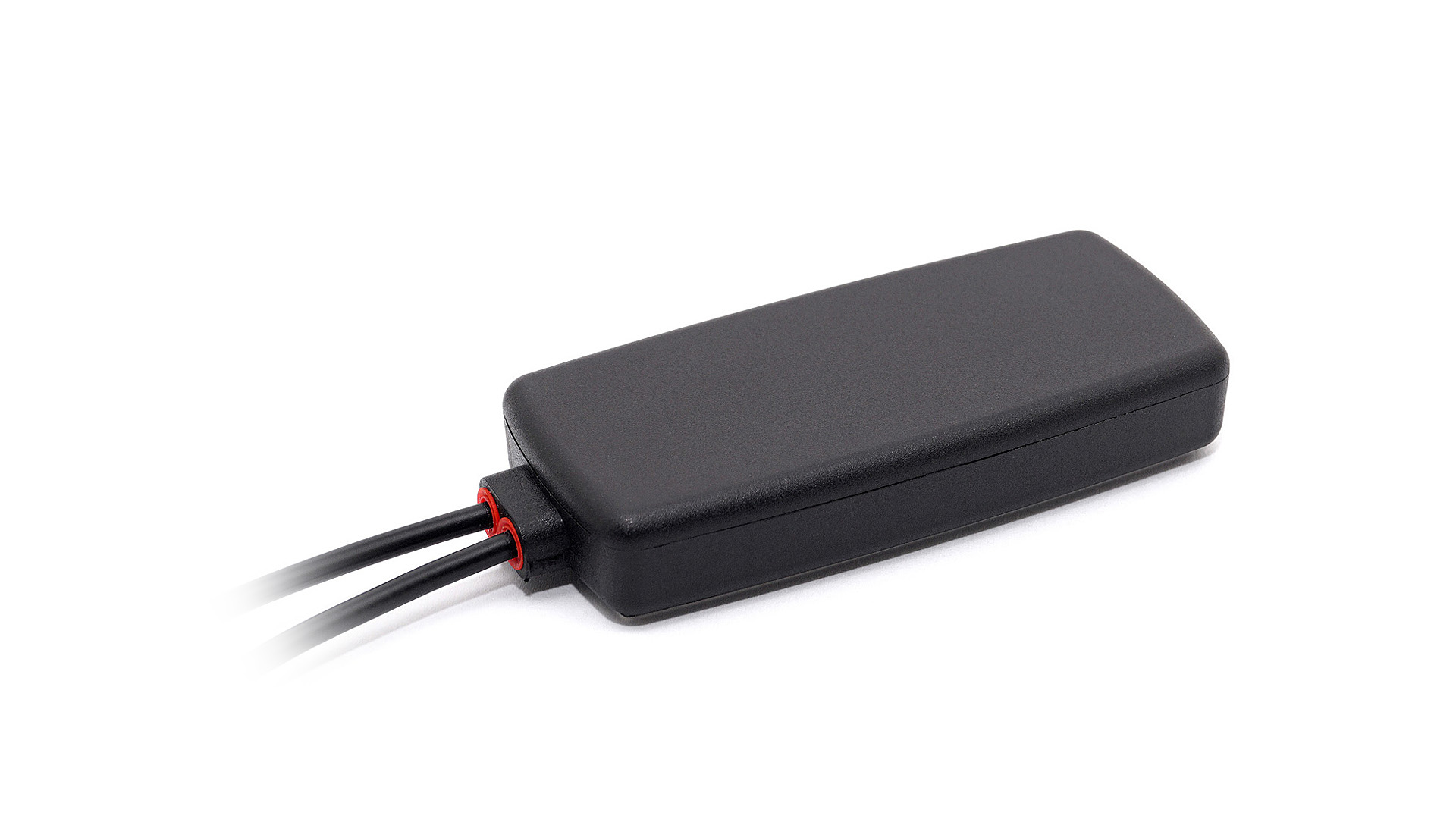

    2J Antennas is introducing the ultra-compact, fully waterproof 5GNR GPS/GNSS Adhesive Mount external antenna(2J4884PGF). This 2-in-1 antenna combines enhanced mobile broadband (eMBB), high performance, ultra-reliable low-latency communication (URLLC) and navigation capabilities for the next generation MIMO devices, base station technology, carrier aggregation (CA) and global positioning systems (GPS).



    Cable 1: 5GNR

    Cable 1 is dedicated to 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards while maintaining superior mobile connectivity within 617-960, 1427-2690, 3300-5000 and 5150-5925 MHz frequencies. With omni-directional radiation pattern and linear polarization, the 2J4884PGF offers peak gains ranging from ~0.6 dBi for the higher frequency spectrum to ~3.3 dBi for the lower frequency spectrum while maintaining a stable efficiency up to 52% for 617-960 MHz frequency.



    Cable 2: GPS/GLONASS

    Cable 2 is designed for precision navigational devices that operate within GPS, QZSS, Galileo and GLONASS standards. Designed with hemispherical radiation pattern and right-hand circular polarization allows cable 2 to radiate on all planes and maximize connectivity by avoiding conflict with propagating signals, penetrating obstructions, reducing dead spots, boosting throughput and improve resistance to signal degradation caused by inclement weather conditions. Designed with electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1606 MHz) from passing from the antenna to the receiver. Cable 2 can maintain an active gain of 28 dB @ 2.7 V and a noise figure parameter of 1.5 dB within the receiver system.

    Suggested Applications:

    Cable 1

    - Terminals, Base Stations and Routers
    - High Traffic MIMO Device Connectivity
    - Industrial, Commercial and Residential IoT/Smart Home/Office
    - Electrical and Environmental Monitoring
    - RFID Asset Tracking
    - HD Video over LTE

    Cable 2

    - Large Scale Transportation Monitoring and Tracking Systems
    - Automotive and Commercial Vehicle Tracking and Telematics
    -Geo-Special Asset Tracking
    -First Responder and Emergency Services
    -GPS-Enabled IoT Applications



    All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.

    Installation / Environmental

    Manufactured with high-quality ABS UV stable material (a low cost but highly durable material) and IP67/ IP69 compliant design with additional sealer protection against external moisture and humidity providing maximum protection in extreme outdoor applications The ground plane independent, small form factor, bar shape dimensions of 83 x 35 x 13.3 mm and high-grade adhesive mounting allow for easy installation on any non–metal surfaces. Cable 1 and Cable 2 come with standard SMA-Male connector and 300 cm long LL100 (Low Loss coaxial) cable known for good return loss, insertion loss and amplitude stability.  We offer a wide range of alternative connectors and cables for any customization needs and our highly skilled team is available to guide our customers through any special requirements. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
