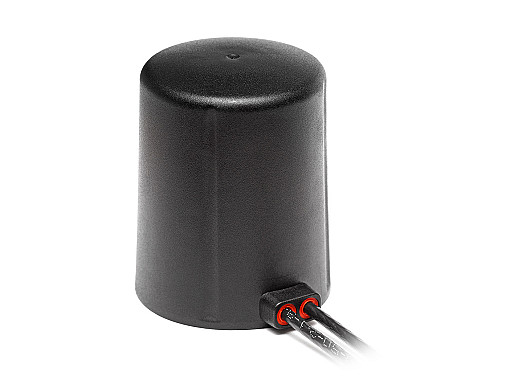

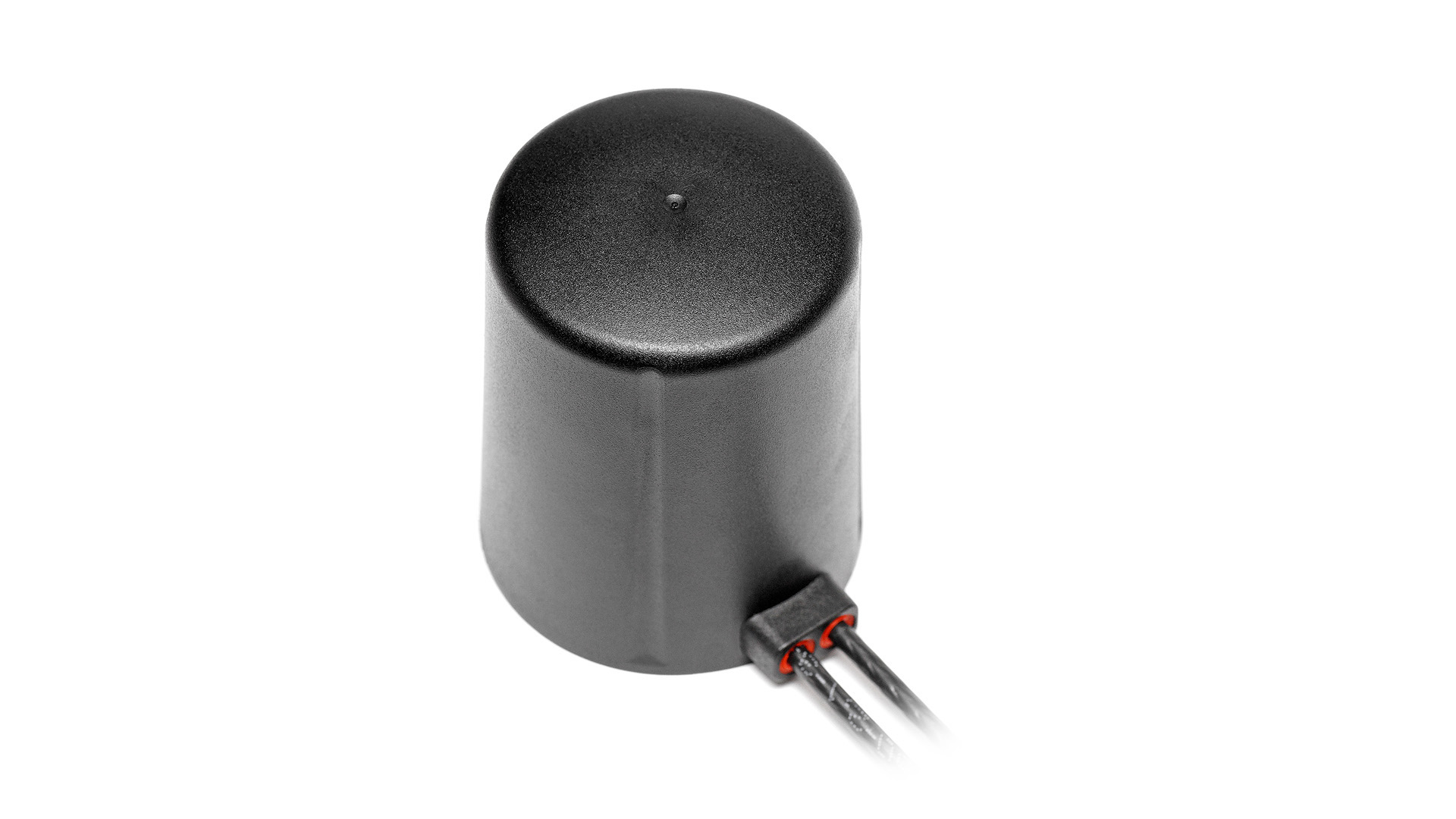

2J7724Ma Antenna

Shaker 2 x 4G LTE/3G/2G MIMO Shaker High Performance MM Antenna

General specification
Frequency
2× 4GLTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
Mounting Magnetic Mount
Dimensions (mm) Ø 54 x 68.2
Operating temperature -40 °C to +85 °C
Note Specification subject to change
Certificates IP67, IP69, IK09
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Magnetic Mount
  • 2 × 4G LTE MIMO antenna
  • Certificates: IP67, IP69, IK09
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.7:1, ~1.5:1, ~1.4:1
    Efficiency (%) ~39, ~52, ~50
    Peak Gain (dBi) ~-0.1, ~2.9, ~3.5
    50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.7:1, ~1.5:1, ~1.5:1
    Efficiency (%) ~38, ~52, ~53
    Peak Gain (dBi) ~-0.1, ~3.1, ~2.7
    50
    Polarisation Linear
    Max. Input Power (W) 25
