Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G/UHF

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G/UHF
Frequency 410-496, 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-4.8, ~-14.3, ~-8.2, ~-6.8, ~-10.6
VSWR ~3.8:1, ~1.7:1, ~2.5:1, ~4.1:1, ~2.1:1
Efficiency (%) ~20.6, ~40.8, ~60.0, ~40.8, ~30.9
Peak Gain (dBi) ~-4.5, ~0.5, ~2.1, ~1.5, ~2.5
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

Key Features

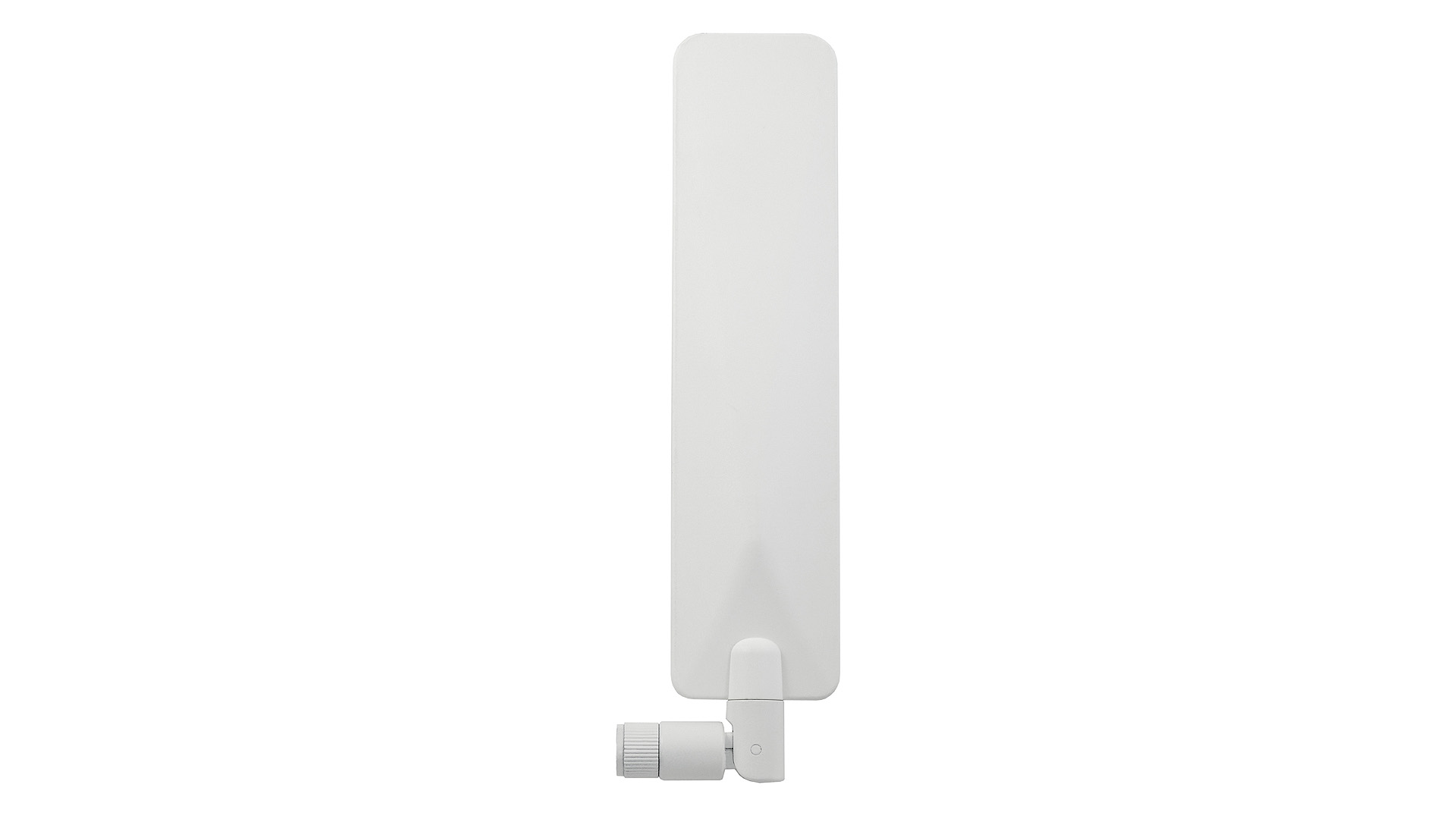

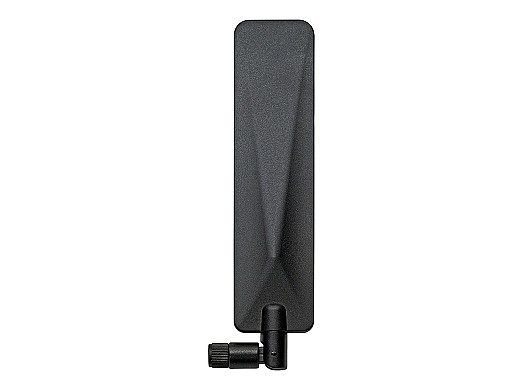

Dipole Antenna
Ground Plane Independent
Ultra Wide band Antenna
410-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
2.5 dBi 5G NR Peak Gain
High Performance

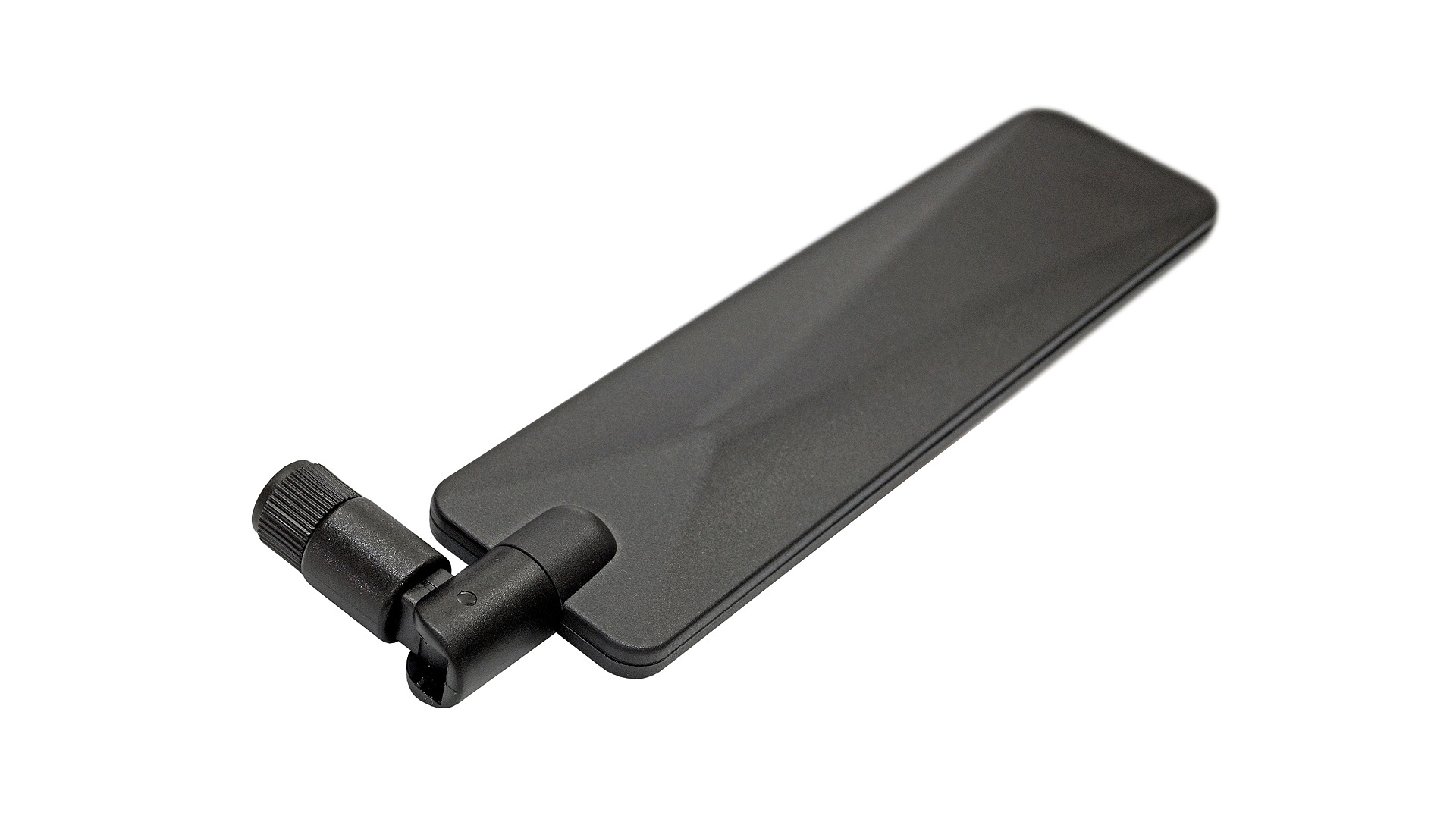

Hinged Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 410-496 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 460 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands   n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B31, B72, B73, B87, B88 B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands   B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 410T, 450, 480 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC5, BC11 BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21
