Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.3, ~-10.8, ~-9.4, ~-6.7
VSWR ~3.6:1, ~2.0:1, ~2.3:1, ~2.9:1
Efficiency (%) ~45.7, ~58.8, ~49.2, ~31.9
Peak Gain (dBi) ~0.4, ~4.5, ~5.3, ~4.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.5, ~-11.4, ~-11.3, ~-9.5
VSWR ~3.5:1, ~1.8:1, ~1.9:1, ~2.1:1
Efficiency (%) ~45.3, ~58.3, ~48.8, ~42.2
Peak Gain (dBi) ~0.5, ~4.1, ~4.9, ~4.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35

Key Features

2-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
5.3 dBi 5G NR Peak Gain
High Performance
Heavy Duty antenna
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

The Next-Gen Most Robust 5GNR MIMO Solution for Worldwide Connectivity

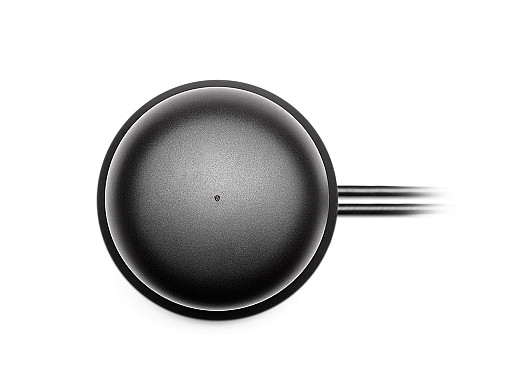

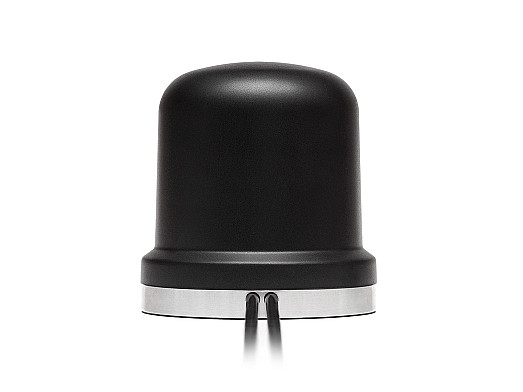

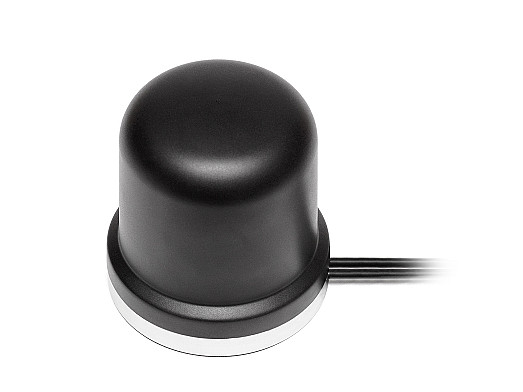

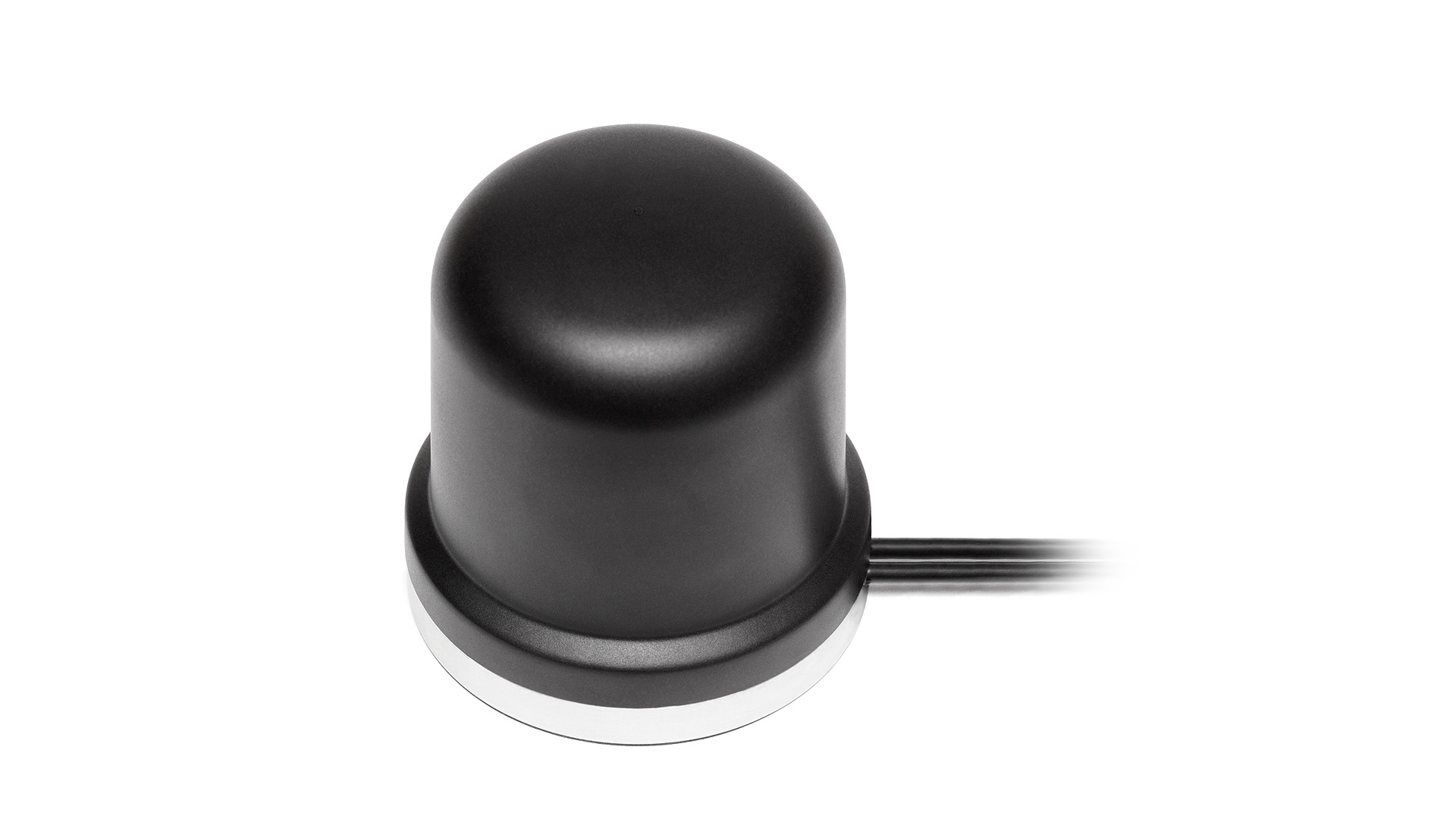

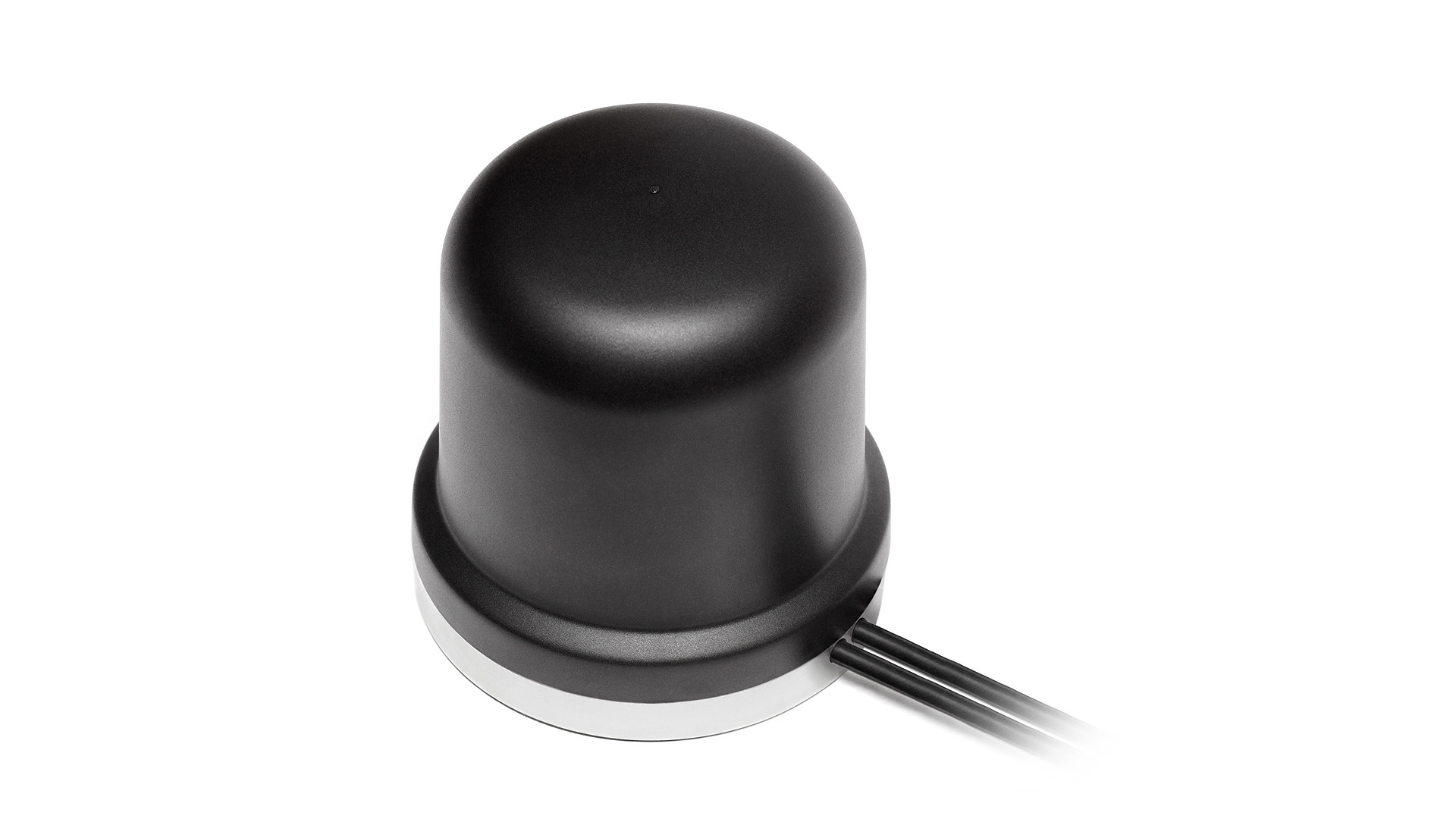

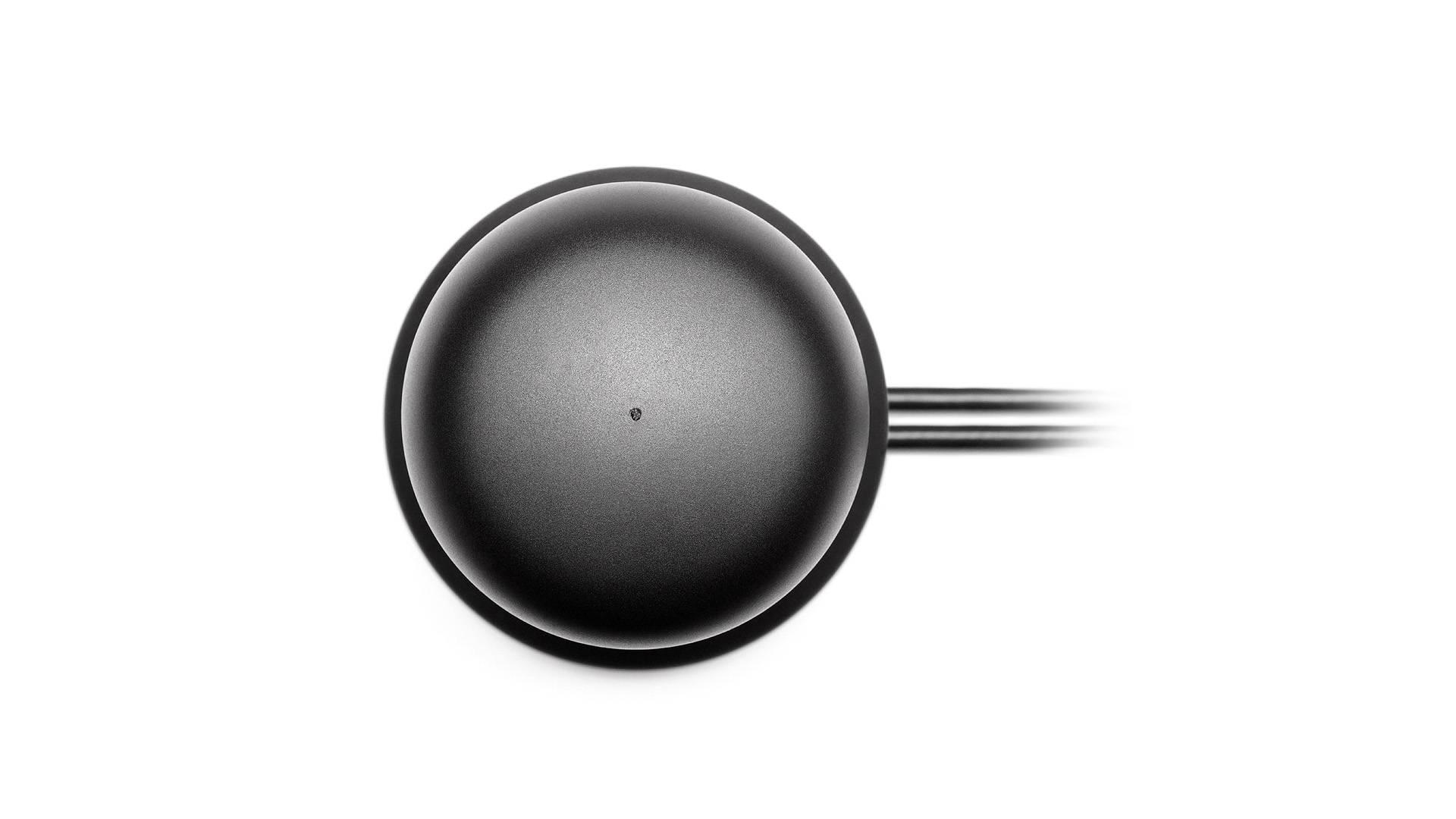

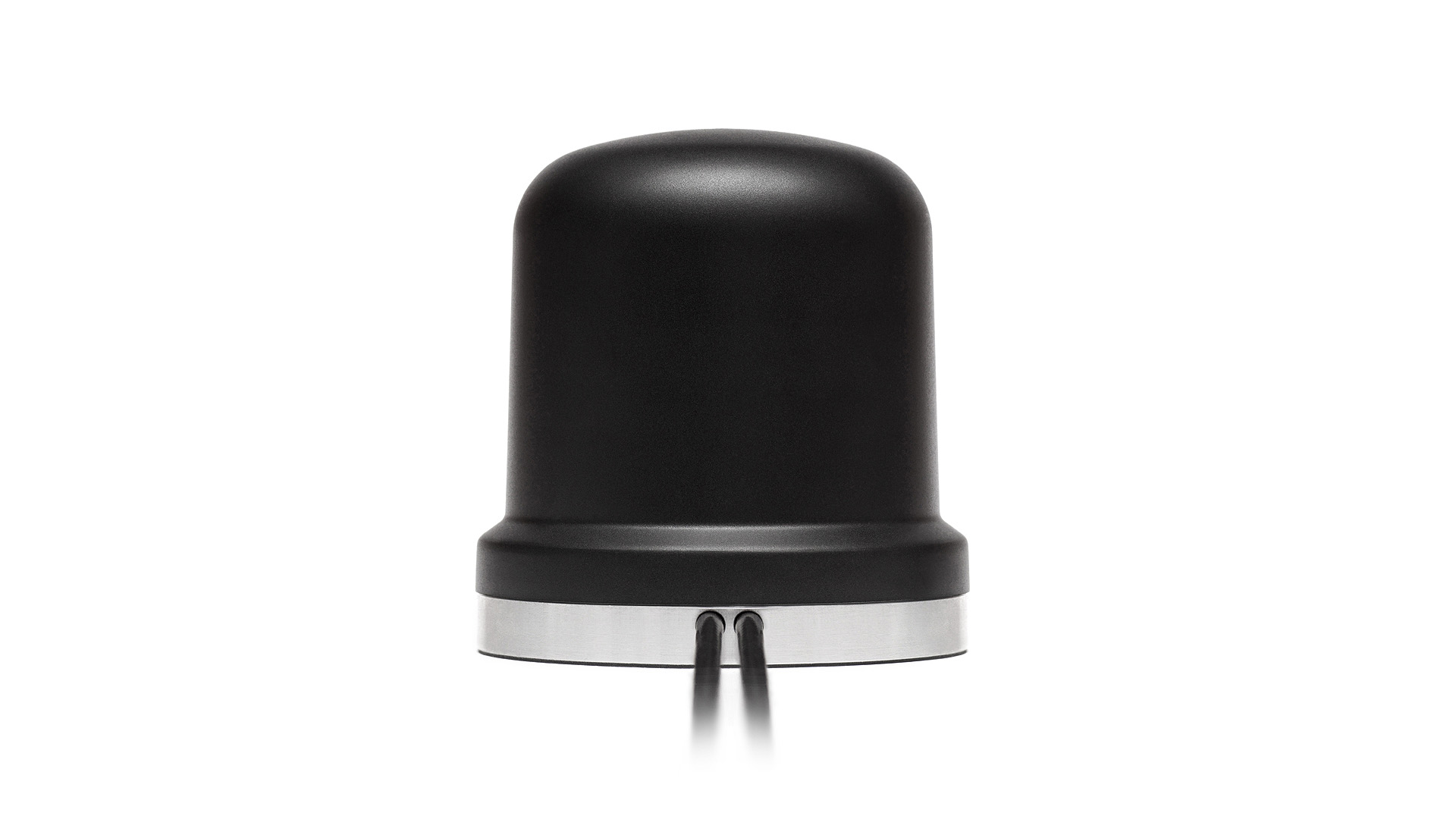

The ultra-wideband magnetic mount antenna combines 2 x 5GNR MIMO, is fully backward compatible, and delivers faster and more responsive mobile broadband experiences. The omni-directional 2J7083Ma enhances mobile broadband (eMBB) with high performance and ultra-reliable low-latency communication (URLLC) with 360-degree clear signal strength and maximizes throughput making it ideal for next-generation MIMO devices, base station technology, and carrier aggregation (CA). This antenna is designed to improve signal strength allowing uninterrupted connectivity, better signal quality, and reliability while providing increased data throughput. These features make it an ideal candidate for the next generation of mobile services which involve high safety applications such as critical communications, police, ambulance, fire services, and other crucial connectivity.

This high-performance and compact solution offers up to 5.3 dBi 5GNR peak gain while maintaining an efficiency of up to 58.8 %. This antenna delivers powerful worldwide connectivity by allowing devices to remain connected while moving through different coverage areas.

Cables 1 and 2: 5GNR MIMO

Cables 1 and 2 are designed for 5GNR devices that operate within all  5GNR, 4G LTE, FirstNet, CBRS, LPWA, low-power wide-area (LPWA), CAT-X, CAT-Mx, CAT-NBx, Narrow Band-IoT, 3G and 2G standards (617 – 5925 MHz). All cables are designed with an omni-directional radiation pattern and linear polarization for maximum signal strength and throughput.

Suggested applications include:

  • Terminals, base stations and routers
  • Critical communications (public safety, law enforcement, medical transportation, fire departments)
  • High traffic MIMO device connectivity
  • Industrial, commercial and residential
  • IoT / smart home / smart city
  • ATM machines
  • IoT smart vending
  • Electrical metering

Installation / Environmental

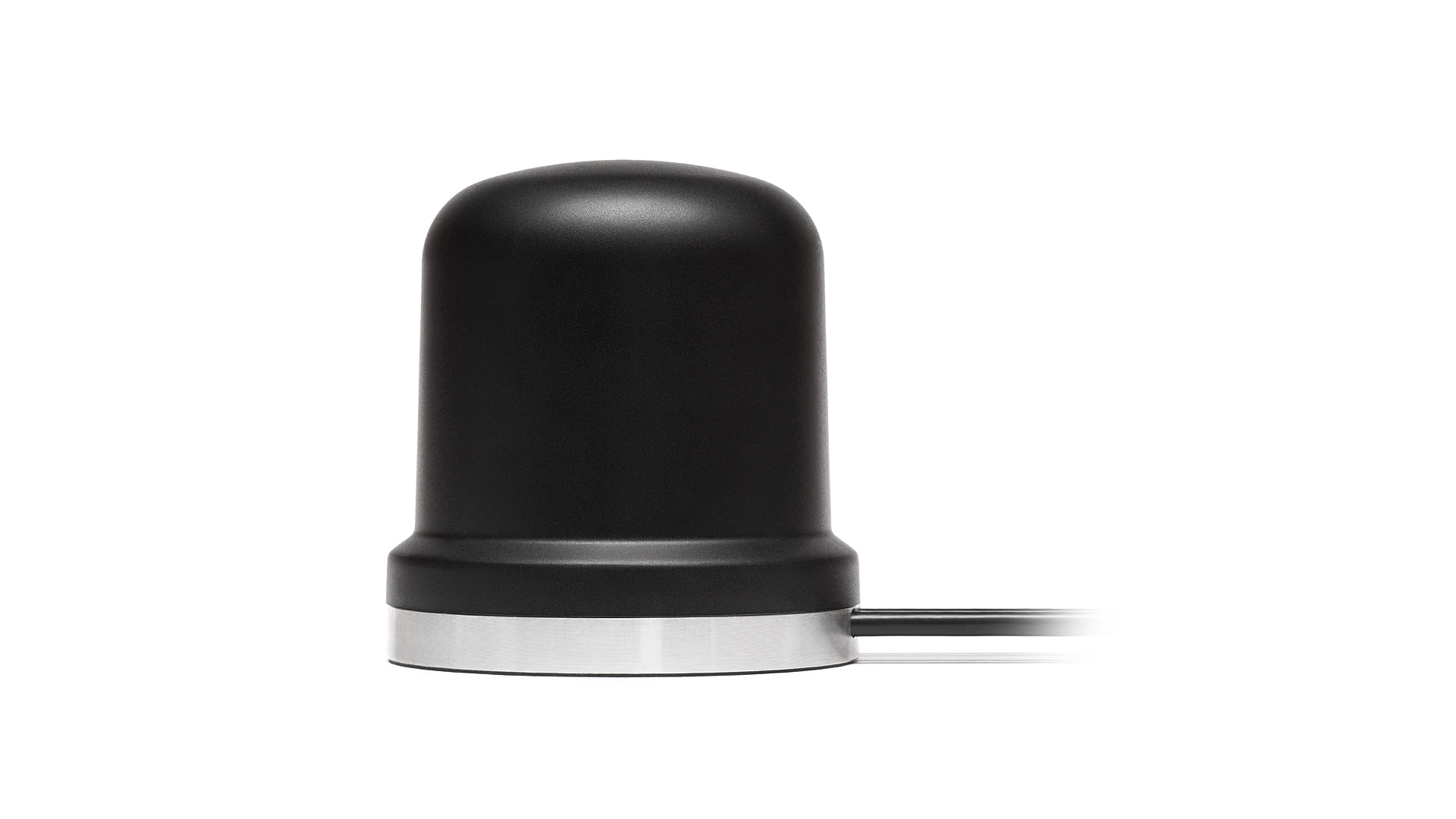

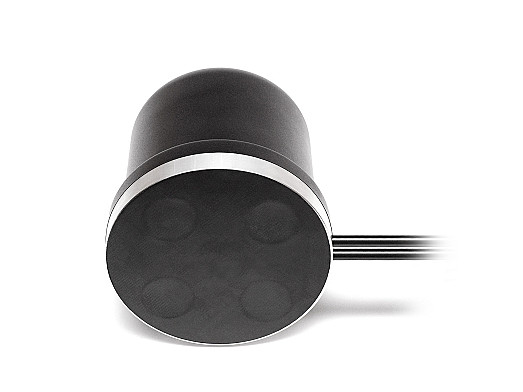

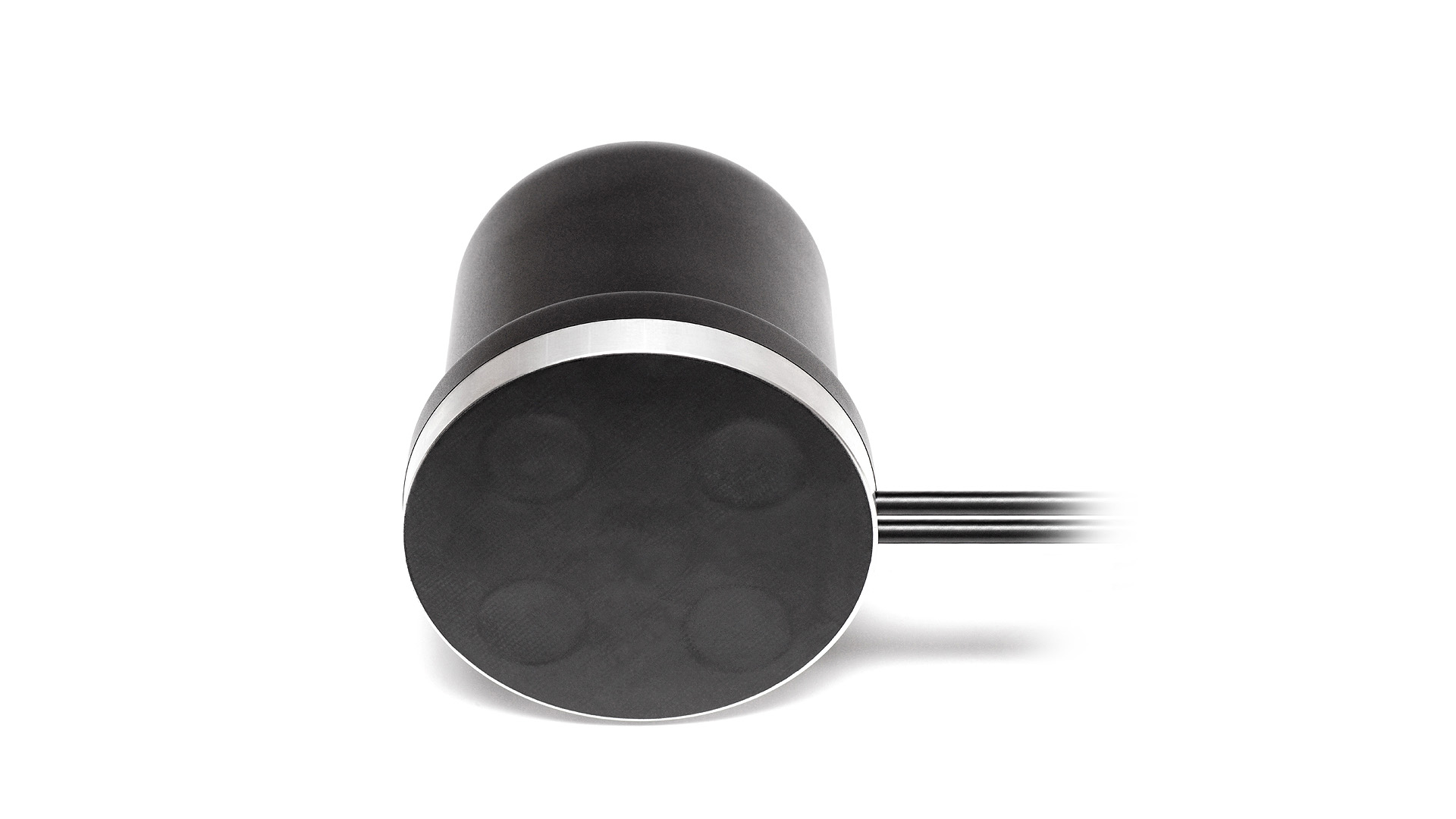

The easy-to-install heavy-duty antenna offers durability and efficiency. The magnetic mount feature facilitates quick on-and-off installations on any metal surfaces such as vehicles, metal buildings, and steel towers. This ground plane independent antenna measures only 96 x 102 mm. The cables are low loss LL195 cables that measure 300 cm in length and are fed through SMA-Male connectors for a secure connection. These cables are highly preferred for high-frequency applications up to 6 GHz.

The fully IP67 and IP69 rated antenna is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This antenna is manufactured with both REACH and RoHS compliance along with IK09 ratings for enhanced anti-vandal security.
