Antenna and electrical specifications

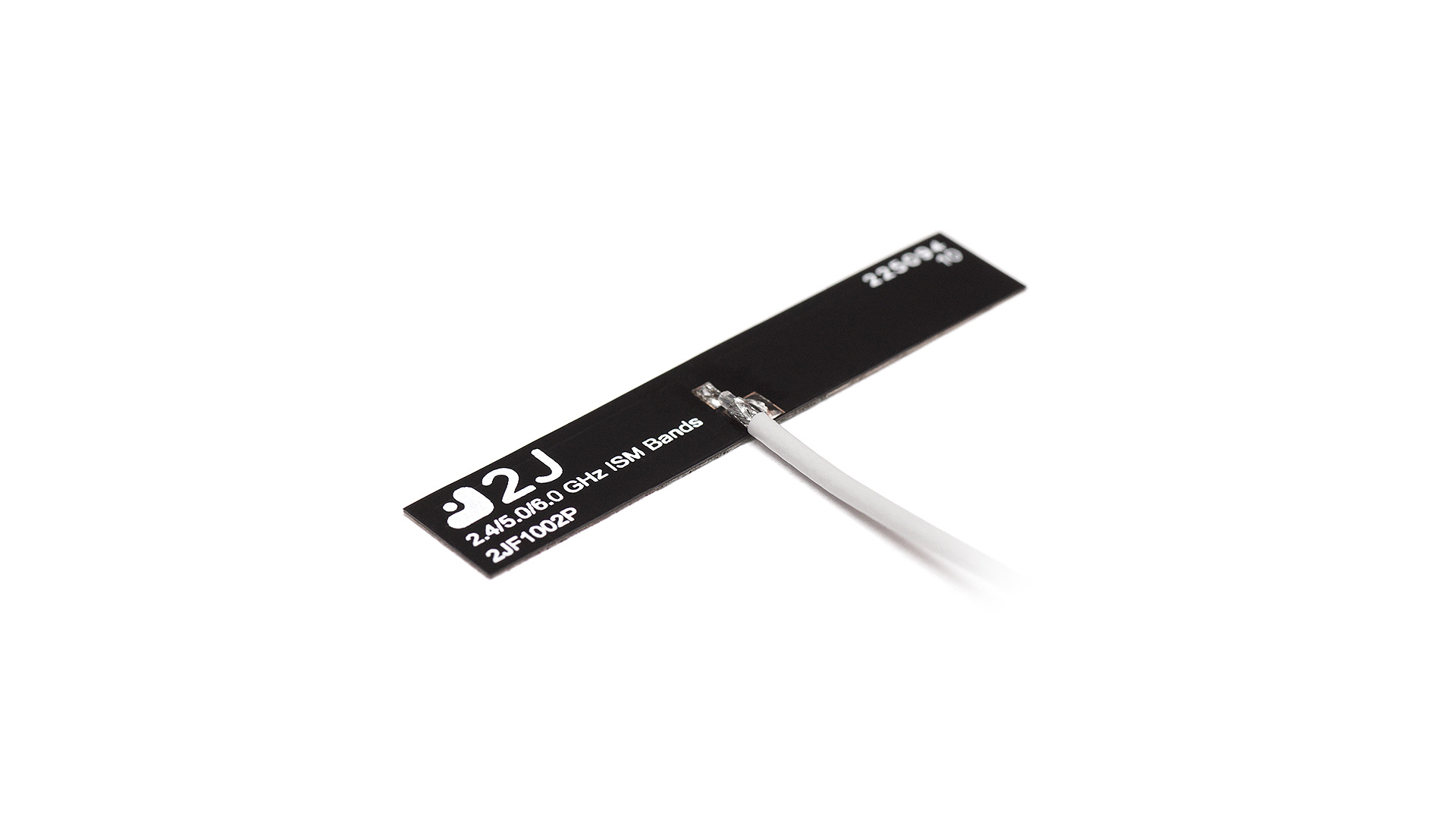

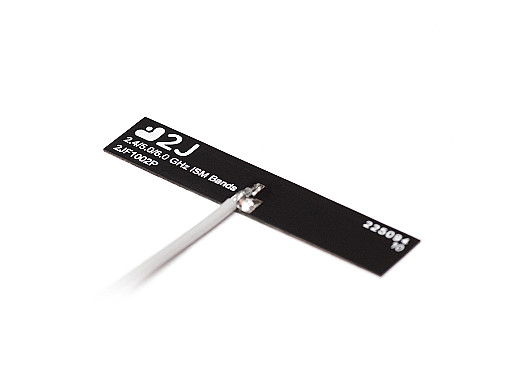

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7
Standards | WiFi, BT, ZigBee, ISM, SigFox, LoRa |
---|---|
Frequency | 2410-2490, 4920-5925, 5925-7125 |
VSWR | ~1.2:1, ~2.3:1, ~2.4:1 |
Efficiency (%) | ~91.1, ~65.7, ~60.0 |
Peak Gain (dBi) | ~4.2, ~6.1, ~6.4 |
Impedance (Ohm) | 50 |
Polarisation | Linear |
Max. Input Power (W) | 25 |
