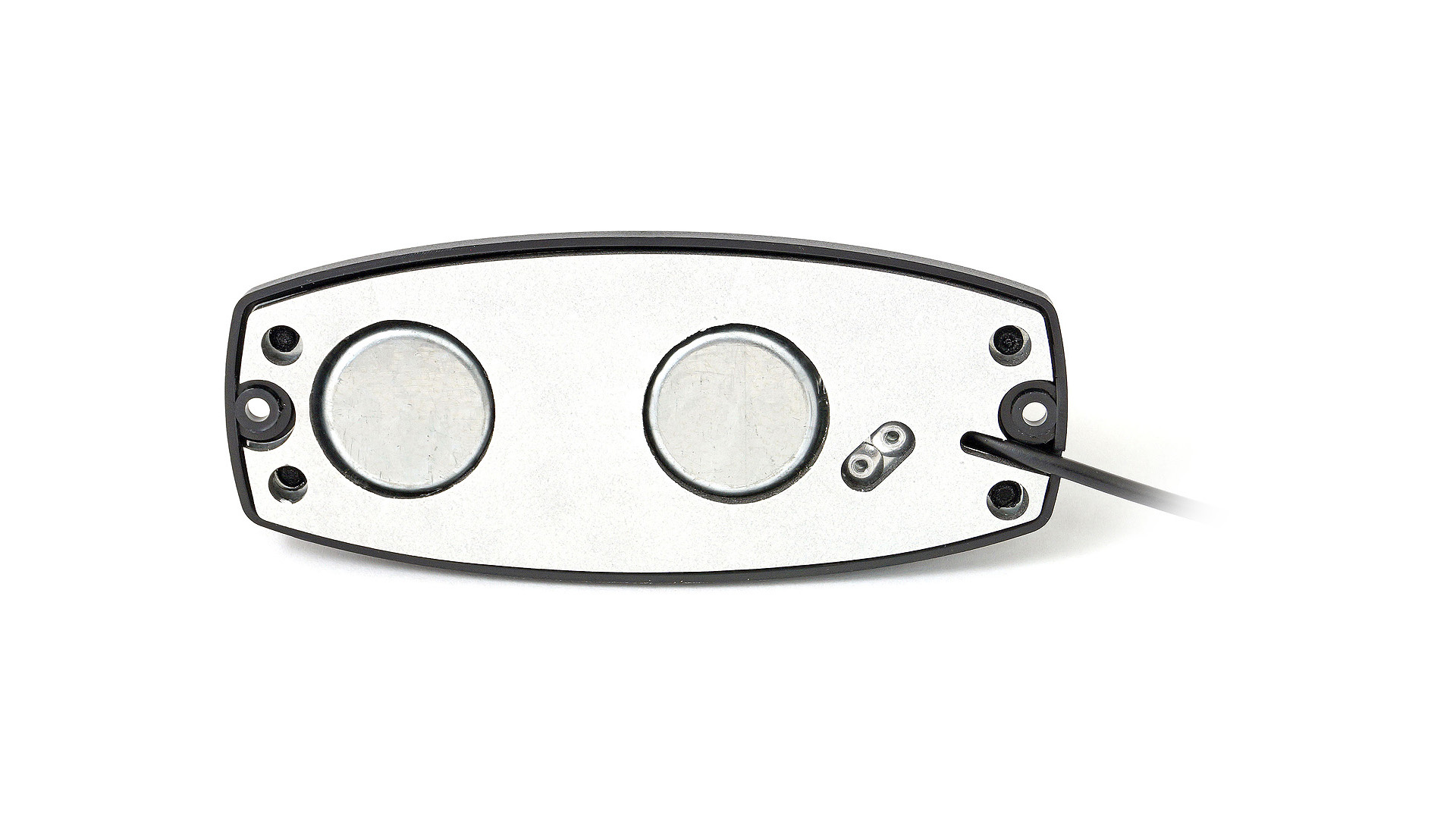

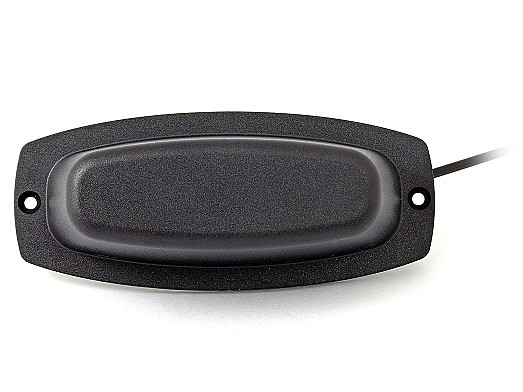

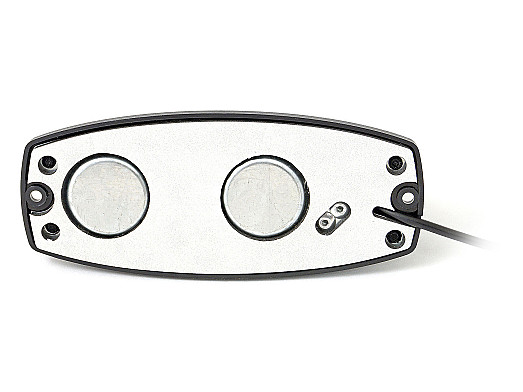

2J6804MP Antenna

Cellular Adhesive/Magnetic Mount Customizable Antenna

General specification
Mounting Magnetic/Adhesive Mount, Adhesive Mount, Magnetic Mount
Dimensions (mm) 117 x 49.5 x 38
Operating temperature -40 °C to +85 °C
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Magnetic/Adhesive Mount
  • Customizable Cable and Connector
  • Applications

    Antenna and electrical specifications

    connection 1


    Standards 2G and 3G
    Frequency 824-960, 1710-2170
    VSWR ~1.4:1, ~1.5:1
    Efficiency (%) ~39, ~36
    Peak Gain (dBi) ~0.9, ~0.7
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 50
