Antenna and electrical specifications

connection 1

433 MHz ISM

Standards ISM, LoRa
Frequency 433-435
VSWR ~1.6:1
Efficiency (%) ~50
Peak Gain (dBi) ~-1.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Monopole Antenna
Ground Plane Dependent
-1.1 dBi 433 MHz ISM Peak Gain
Small Form Factor

Applications

Antenna Description

Smart stick Antenna optimized for ISM applications & smart systems

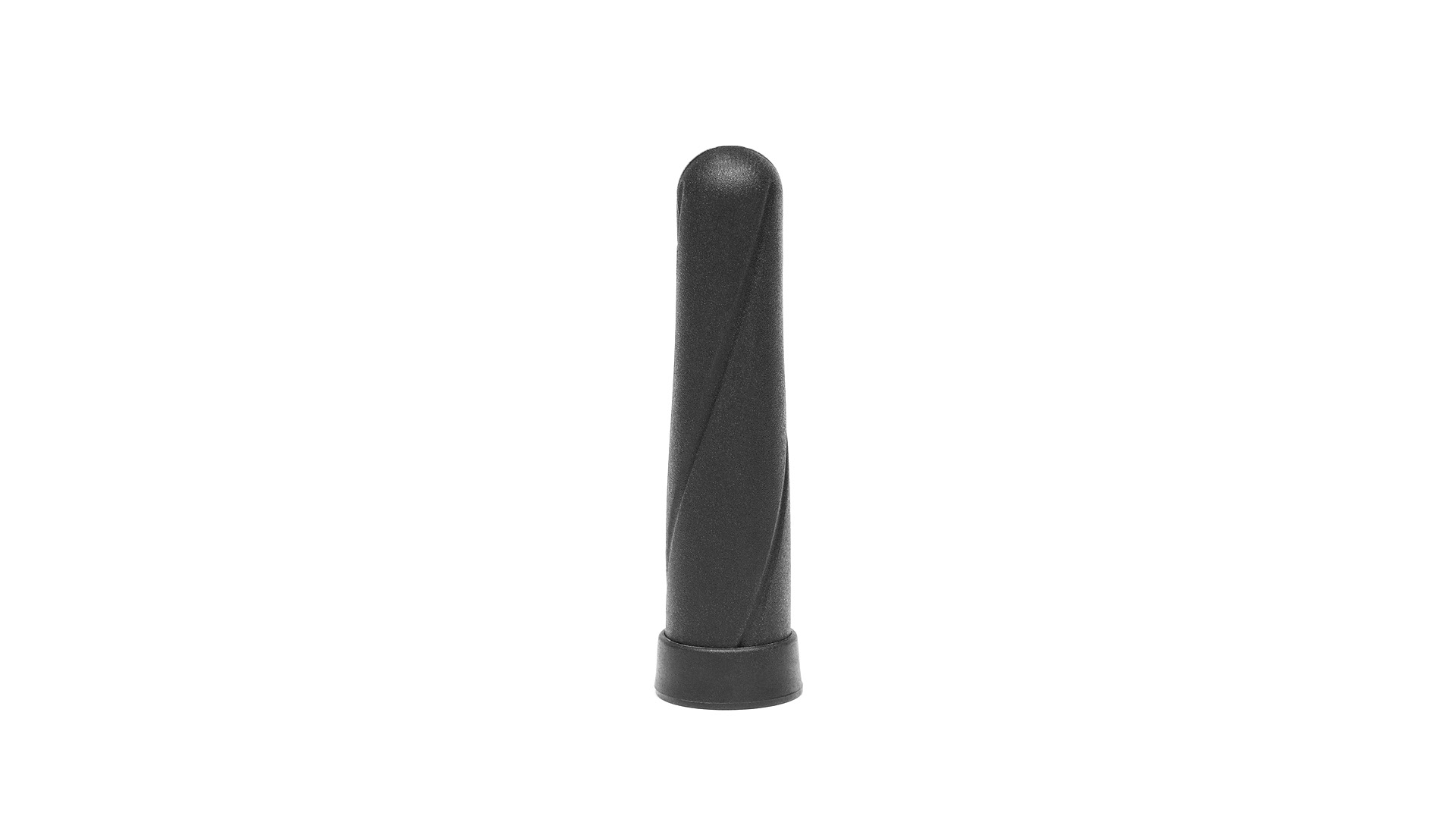

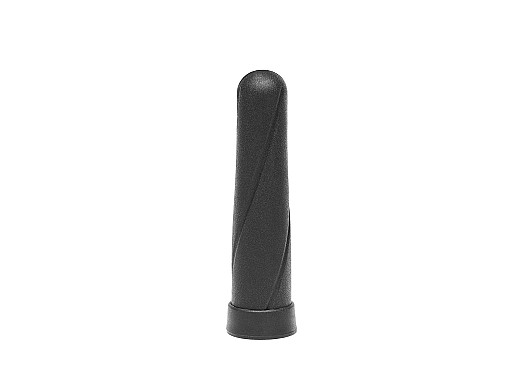

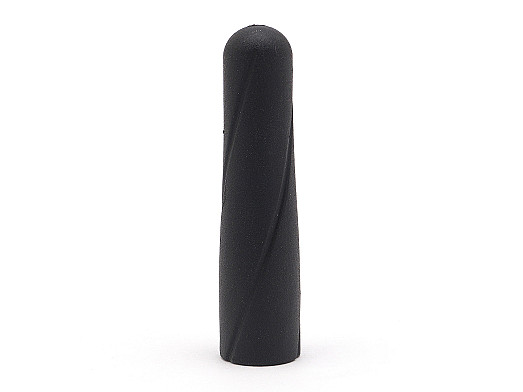

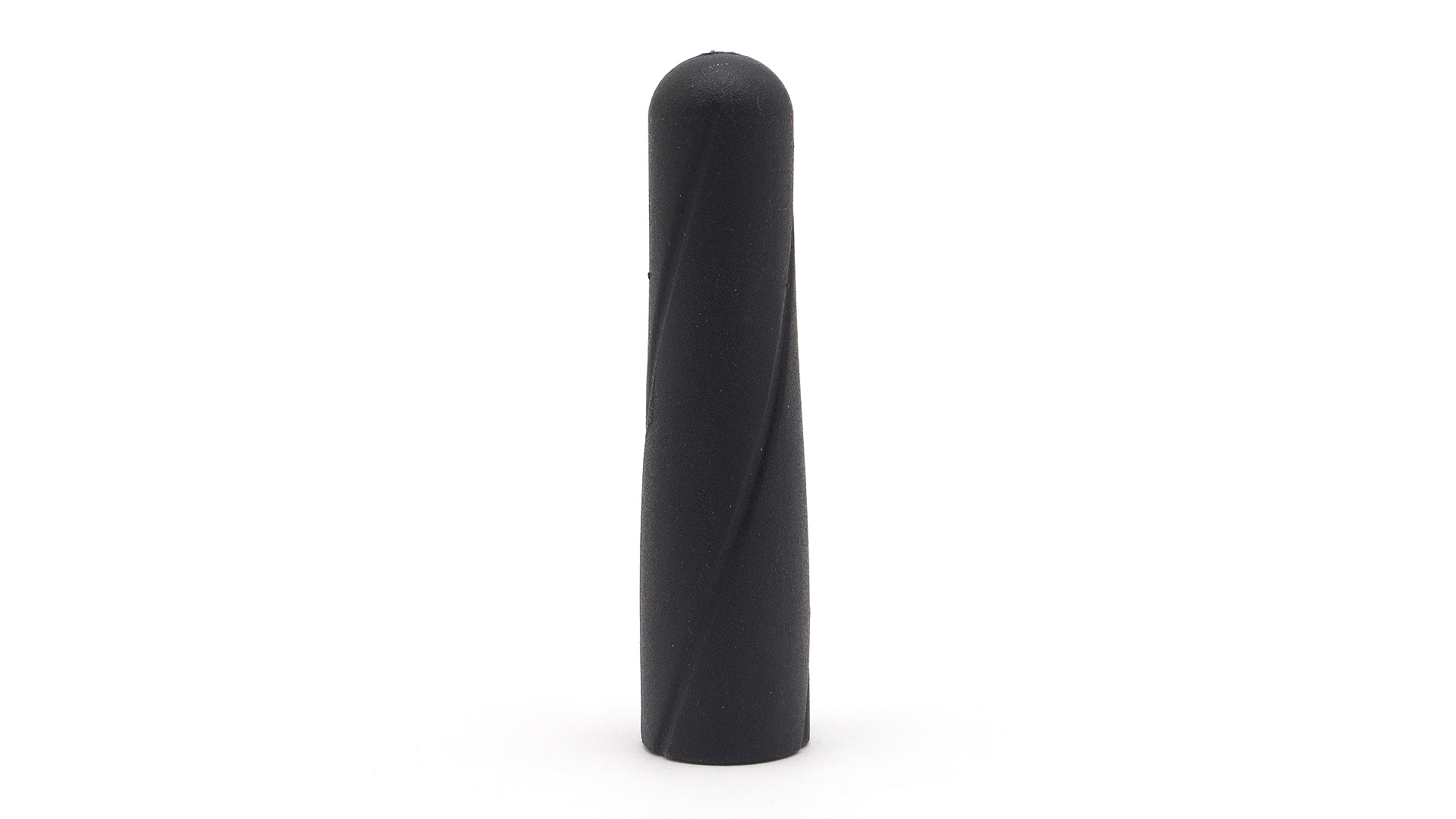

This 2J0710-C708N connector mount, compact, low profile, ground plane dependent antenna has been optimized specifically for the ISM frequency bands of 433MHz to 435MHz. This smart antenna is an ideal solution to IoT device manufacturers as well as the users. This antenna is an ideal solution for remote monitoring, smart metering, home automation, medical devices and the M2M automation. ISM 433MHz is a license free band which is widely used so it is better to understand the FCC policy before using it for your application.

Suggested Applications

  • Mesh networks
  • Indoor/outdoor asset monitoring
  • Security systems
  • Remote control systems
  • Heavy-duty equipment/vehicle communication in harsh environments
  • IoT applications
  • Remote Monitoring
  • Smart Metering
  • Home Automation
  • Medical Devices
  • M2M automation

The 2J0710-C708N connector mount with -1.1 dBi 433 MHz ISM Peak gain is a smart ISM antenna proposed for wireless smart systems. This antenna is designed for ISM, SigFox and LoRa standards and caters to devices that operate on the popular 433 MHz frequency. With an omni-directional radiation pattern, this antenna offers excellent 360° coverage with powerful signal strength through walls and buildings making it ideal for applications amidst obstructions. For low power devices like tracking and monitoring this antenna provides a powerful point-to-point connectivity.  This high-performance antenna offers ~50% efficiency. The antenna is linearly polarized, which extends the range of device connectivity with improved reliability

Installation / Environmental

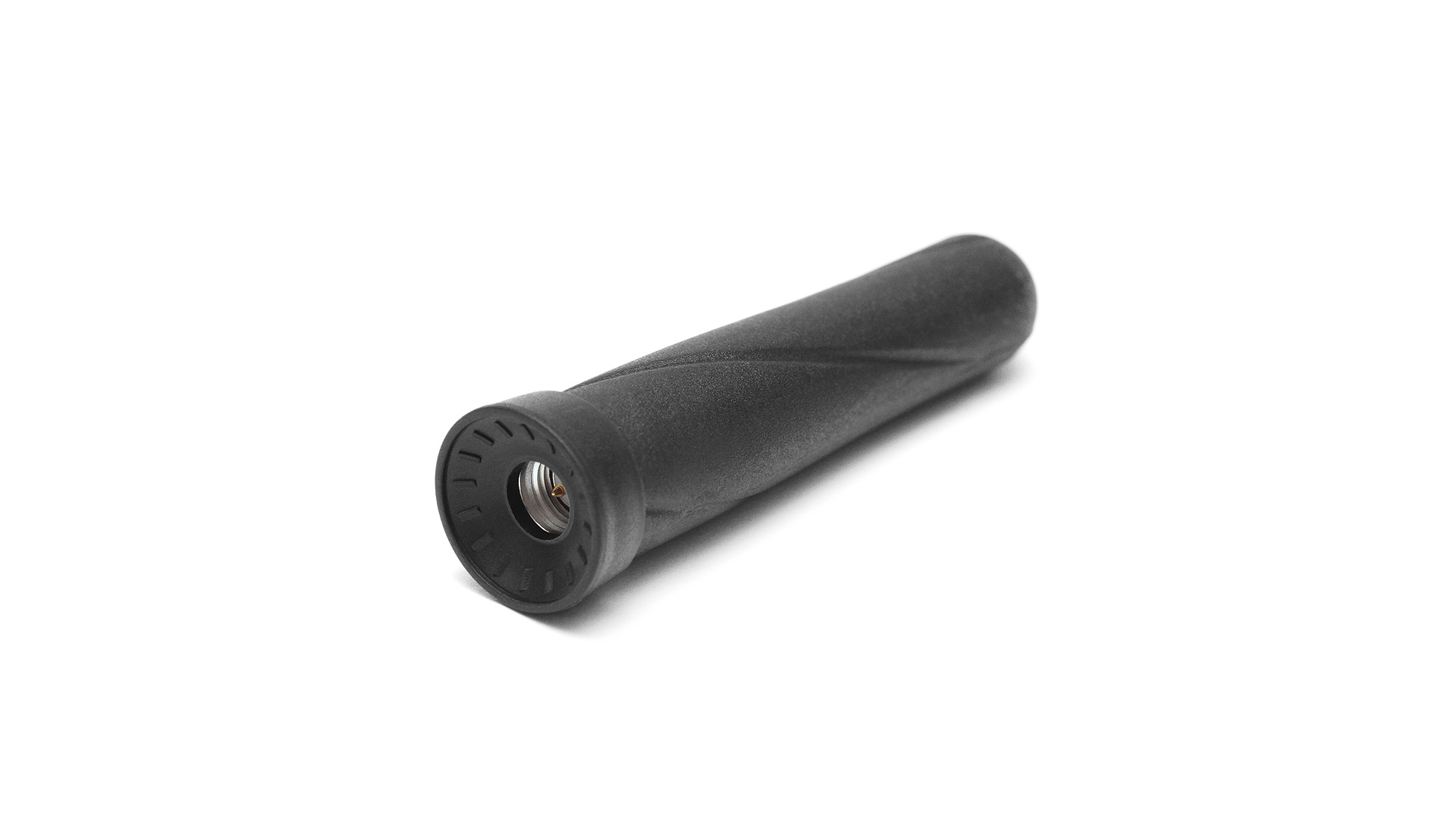

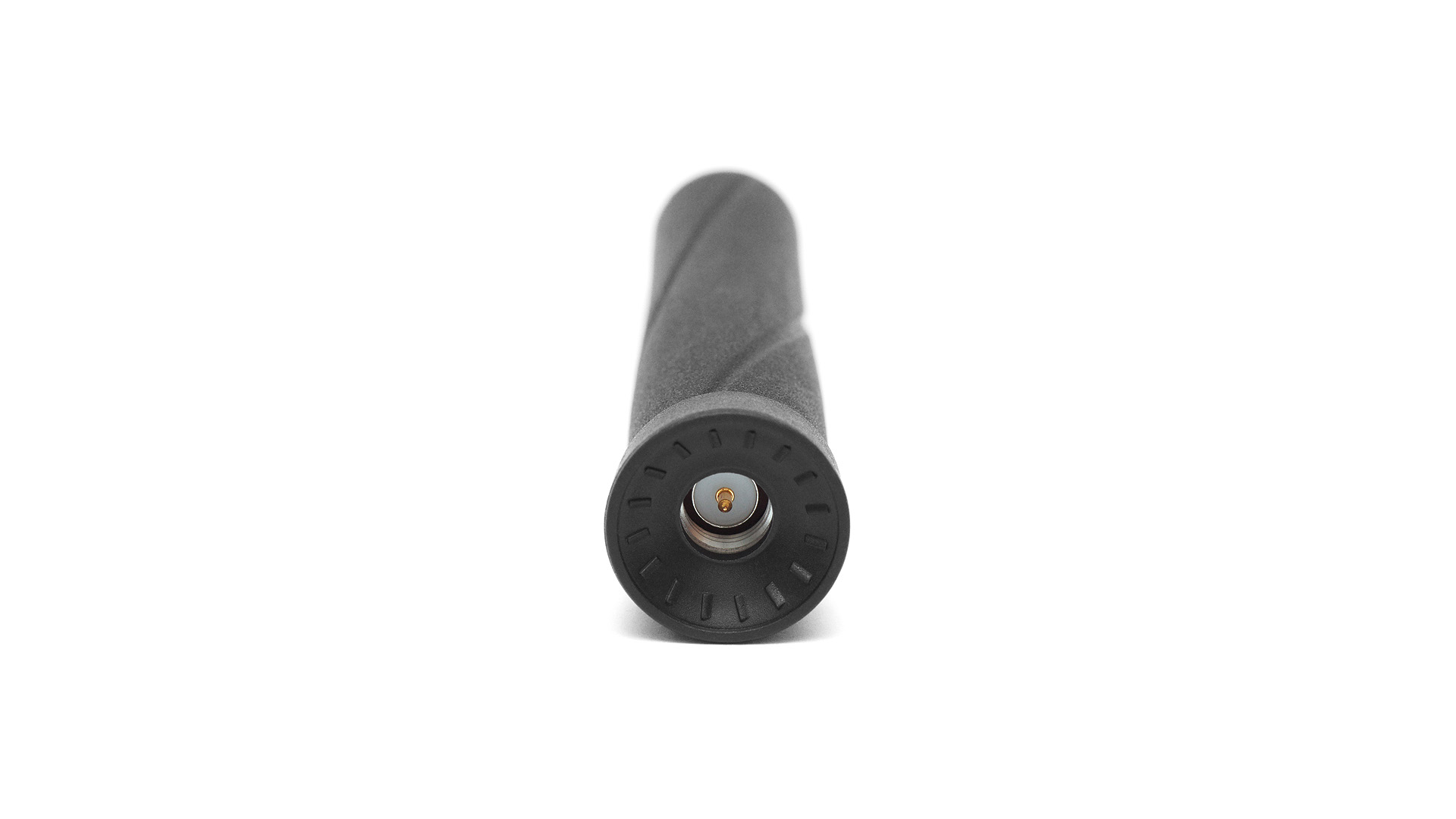

It is a ground plane dependent antenna and the installation is very easy by simply mounting the antenna on a suitable ground. The 2J0710-C708N is manufactured without any hazardous materials and is both REACH and RoHS compliant. This antenna is manufactured with high-grade TPE UV stable that is anti-corrosive material and is resistant to physical impacts making it extremely durable in temperatures ranging between -40C and +85C  ideal for harsh outdoor applications. The 2J0710-C708N comes with a standard SMA-Male connector. This antenna is fully customizable as we also offer a large selection of customized connector types, cable lengths, and cable types.
