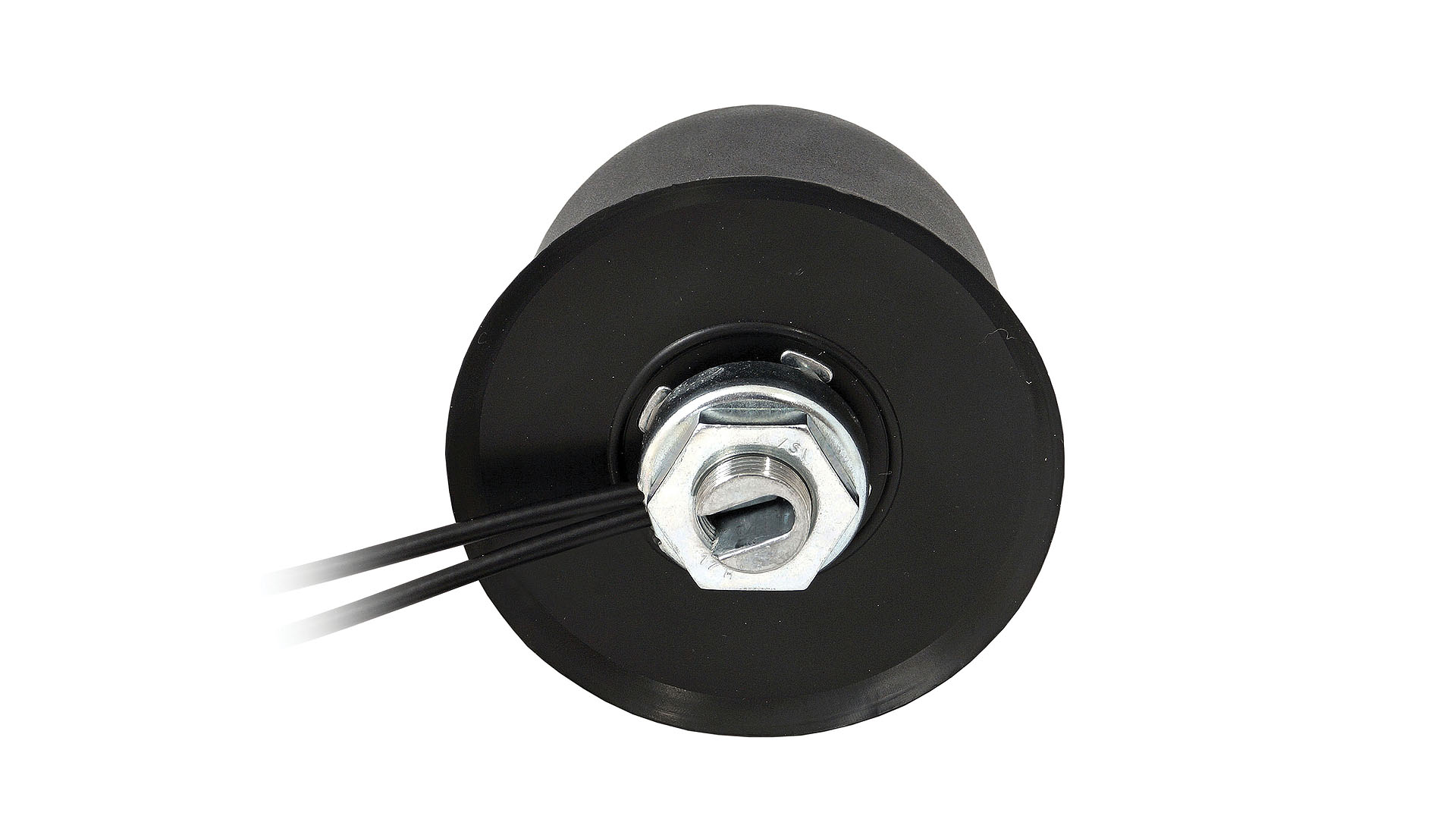

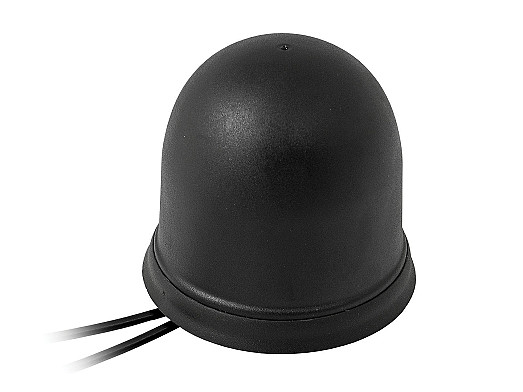

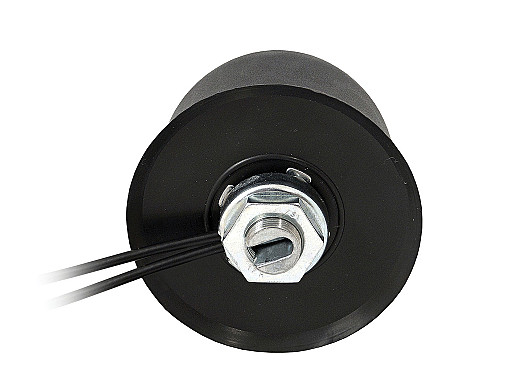

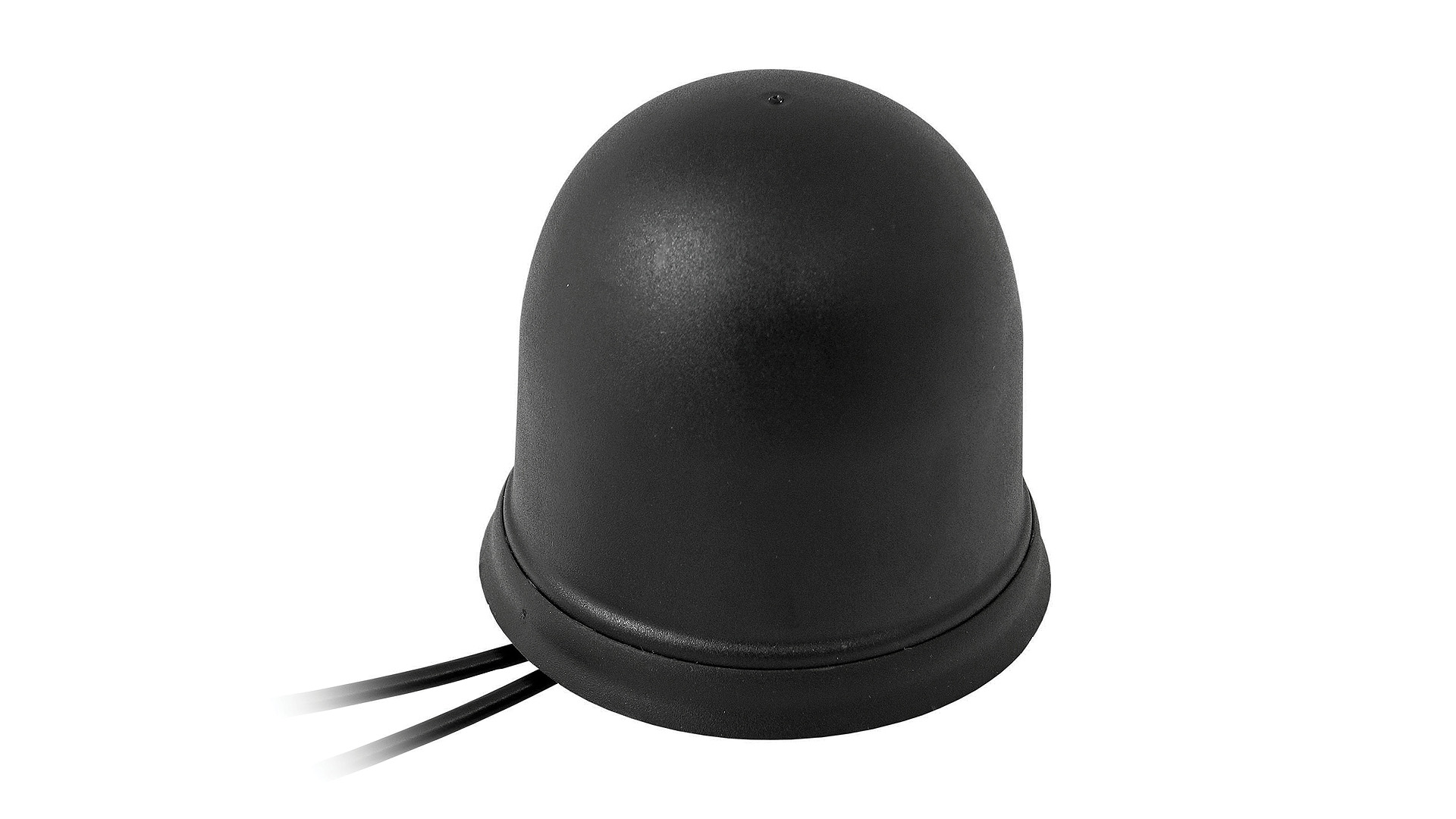

2J6A41BF Antenna

4G LTE/3G/2G, GPS/Galileo Pre-Filter GNSS Anti-Rotation Antenna

General specification
Frequency 4G LTE/3G/2G, GPS/Galileo
Mounting Screw mount
Dimensions (mm) Ø 77.3 x 65.5
Operating temperature -40 °C to +85 °C
Certificates IP67, IK09, IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Screw Mount
  • Anti-Rotation Mechanism
  • Certificates: IP67, IK09, IP69K
  • GPS/QZSS/Galileo
  • Pre-Filter GNSS
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 698-960, 1710-2170, 2500-2700
    VSWR ~2.2:1, ~1.5:1, ~2.4:1
    Efficiency (%) ~56, ~51, ~39
    Peak Gain (dBi) ~2, ~4, ~3.5
    50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    GPS

    Standards GPS/QZSS/Galileo
    Frequency 1575.42
    VSWR <=1.5:1
    Impedance (Ohm) 50
    Polarisation RHCP
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 – 3.6
    Current (mA) 9 Typ
    Power Consumption (mW) 24.3 Typ
    Saw Filter Type Pre-Filter
    ESD Protection (kV) 2 kV
