Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.1, ~-15.2, ~-13.5, ~-7.5
VSWR ~4.8:1, ~1.7:1, ~1.7:1, ~2.6:1
Efficiency (%) ~30.7, ~45.1, ~35.9, ~22.8
Peak Gain (dBi) ~-1.9, ~2.4, ~3.4, ~-0.7
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 2

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.2, ~-12.0, ~-10.3, ~-5.0
VSWR ~4.8:1, ~1.9:1, ~2.1:1, ~3.7:1
Efficiency (%) ~30.2, ~46.1, ~33.9, ~20.4
Peak Gain (dBi) ~-1.8, ~2.4, ~2.6, ~-2.1
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Noise Figure (dB) 1.5 Typ
Current Consumption (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
ESD Protection (kV) 2

Key Features

3-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Dependent
3.4 dBi 5G NR Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

Revolutionizing Connectivity: 5GNR MIMO and GNSS Screw Mount Antenna for Enhanced Performance

The 2J6A84BGFa is a cutting-edge antenna designed for a wide range of applications, including 5G, 4G, 3G, and 2G networks as well as GPS/GLONASS. This versatile, high-performance antenna is perfect for users who demand high-quality reception and signal transmission in the modern wireless world.

The antenna is composed of three distinct cables, each catering to a specific frequency range.

Cables 1 and 2 support 5 GNR and cover frequency ranges of 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, and 5150-5925 MHz.

Cable 3 is designed for GPS/GLONASS/QZSS/Galileo systems, focusing on the 1575-1606 MHz frequency band.

Suggested applications include:

  • Automotive and Transportation: Vehicle tracking, fleet management, telematics, and in-vehicle communication systems
  • Smart Grid and Utilities: Enhanced communication capabilities for smart metering, distribution automation, and remote monitoring of utility assets.
  • Industrial IoT (IIoT): Wireless connectivity for manufacturing automation, remote equipment monitoring, and predictive maintenance.
  • Remote Monitoring and Control: Reliable communication for monitoring and controlling assets in remote locations, such as oil and gas pipelines, solar farms, and water treatment plants.
  • Smart Cities: Enhanced communication infrastructure for public safety, traffic management, waste management, and other urban applications.
  • Agriculture: Precision farming, livestock tracking, and remote monitoring of agricultural equipment.
  • Emergency Services: Improved communication and location capabilities for police, fire, and ambulance services.
  • Drones and Robotics: Accurate navigation and communication for UAVs, autonomous vehicles, and other robotic applications.

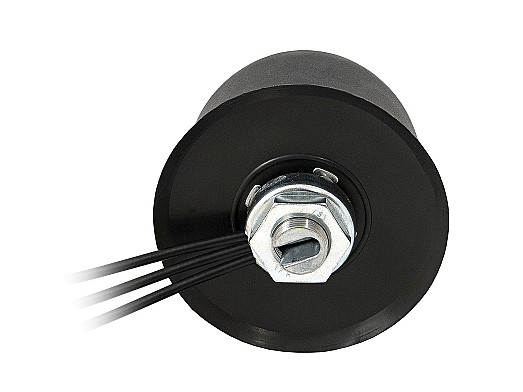

The 2J6A84BGFa antenna is ground plane dependent and features a pre-filtered GNSS design to improve signal reception. This antenna features a durable screw mount and a 3mm foam sticker on its underside, which prevents rotation and ensures a stable installation. The customizable cable and connector options, along with its compact dimensions of Ø 77.3 × 65.5 mm, make it easy to integrate into various environments.

Performance and Specifications

This high-performance antenna boasts an impressive efficiency rate and peak gain across various frequency bands. The antenna operates with a linear polarization and an omni-directional radiation pattern, ensuring excellent signal reception and transmission in all directions. With a maximum input power of 35W, the 2J6A84BGFa is built to handle demanding wireless applications.

Installation / Environmental

Built to withstand harsh environmental conditions, the 2J6A84BGFa antenna holds IP67, IK09, and IP69K certifications. Its radome is made of ASA material and features a black color, while the antenna base is constructed from Zamak, ensuring durability and resilience. The antenna is RoHS compliant and can operate within a temperature range of -40 to +85 degrees Celsius. All connectors and cables are fully customizable.

The 2J6A84BGFa antenna is an excellent choice for users who demand high-performance and reliable wireless connectivity across various applications. With its customizable design, robust construction, and compatibility with a wide range of frequency bands, this antenna is the perfect solution for today's ever-evolving wireless communication needs.
