Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz) 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-8.1, ~-13.7, ~-9.7, ~-10.0
VSWR ~2.6:1, ~1.6:1, ~2.0:1, ~2.5:1
Efficiency (%) ~35.3, ~52.2, ~50.2, ~52.1
Peak Gain (dBi) ~1.3, ~1.5, ~2.8, ~2.6
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

Key Features

Dipole Antenna
Ground Plane Independent
Wide band Antenna
617-2690 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
2.8 dBi 5G NR Peak Gain
N-Male Right Angle connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

2J2183-C60N

The Most Trusted Antenna Technology With Exceptional Reliability

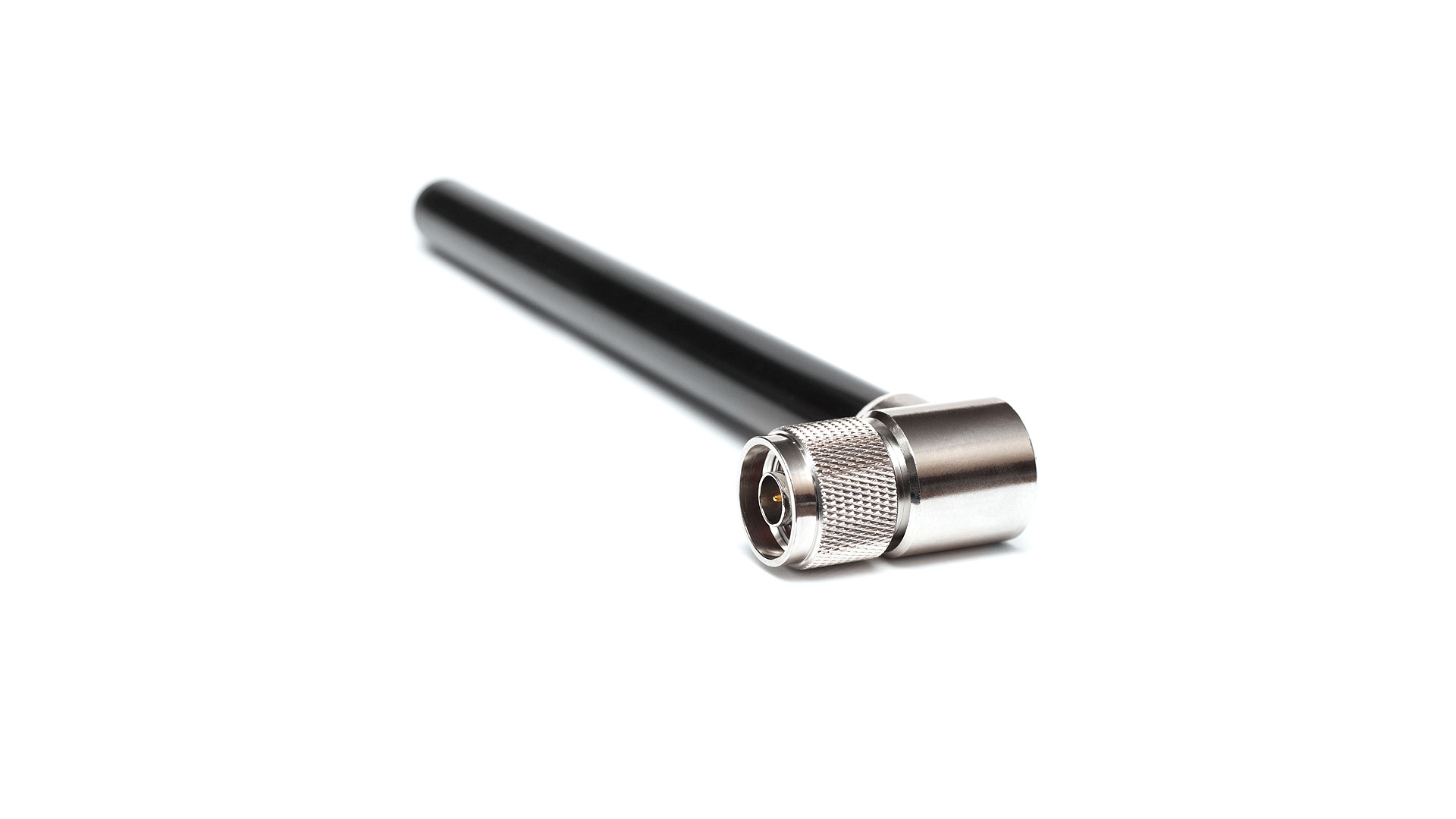

2J Antennas brings 5G NR technology to its dipole product portfolio by offering the 5G NR/ 4G LTE/ 3G/ 2G N-Male Right Angle Connector Mount Dipole Antenna (2J2183-C60N). Dipole antennas are the most widely used antennas because of their proven technology in receiving balanced signals and reducing conflicting signals without compromise to reception quality. This wideband antenna is fully 4G LTE backwards compatible with existing networks and is tuned for devices that operate on 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X -Mx, CAT-NBx, NB-IoT, 3G and 2G standards.

Suggested applications include:

  • Terminals, Base Stations and Routers
  • High Traffic MIMO Device Connectivity
  • Industrial, Commercial and Residential IoT
  • Industrial, Commercial and Residential Smart Home / Office
  • ATM Machines
  • IoT Dispensers
  • Vending Machines
  • Electrical Metering

The 2J2183-C60N has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency of ~52% and 5G NR peak gains of ~2.8 dBi.



Installation and Durability

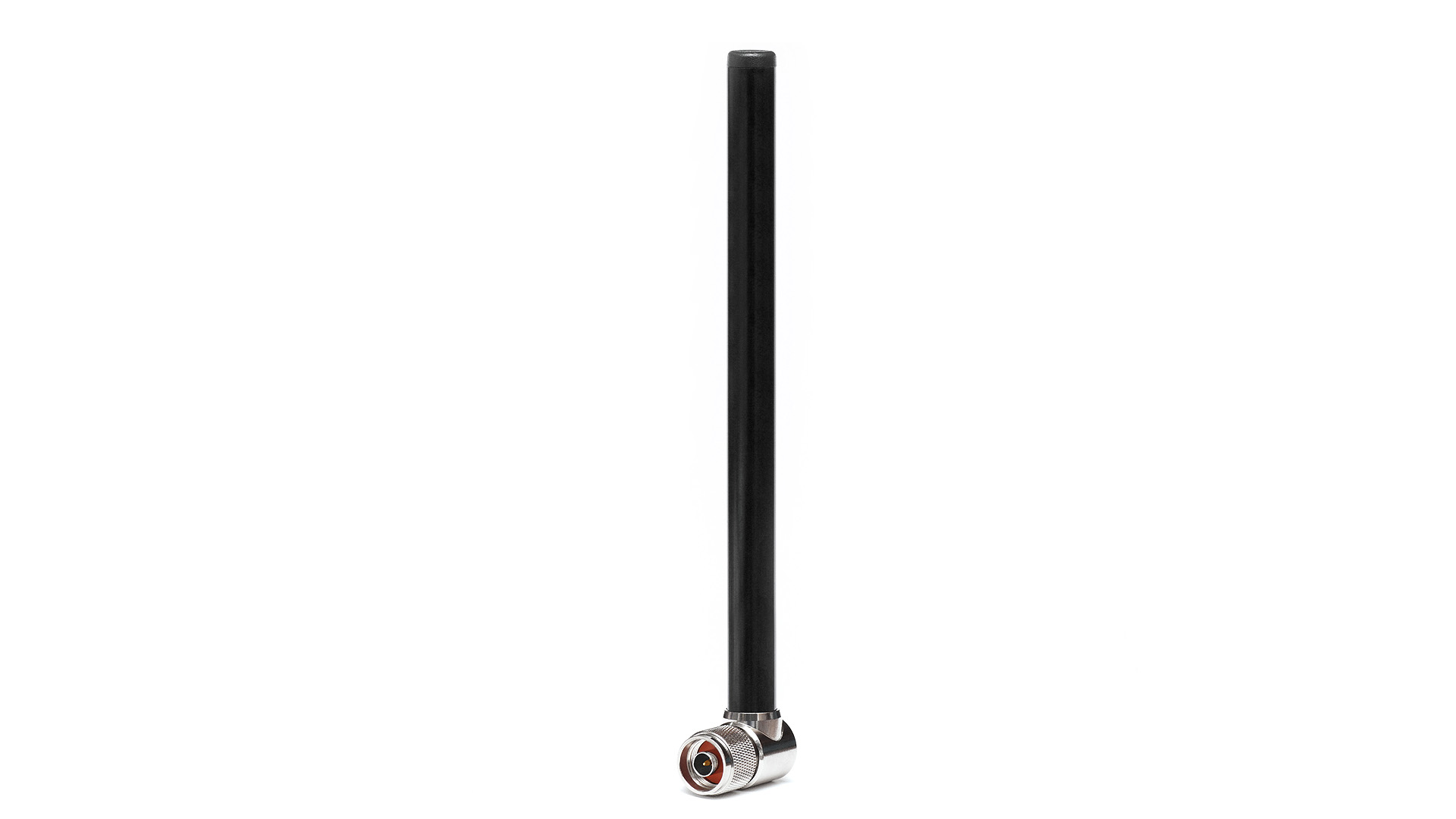

The 2J2183-C60N measures 238 × 40.5 × 22 mm in size and has a slim pole design. The housing is manufactured with durable ASA material (available in black or white) and can withstand operating temperatures ranging -40C to +85C. Installation is made simple with the N-Male Right Angle connector with minimal restrictions and without the need for grounding or free space.

It is important to match the right antenna with the right requirement and our expert engineers are available for installation support, any customization needs and antenna selection support.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
