Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-5.2, ~-8.4, ~-3.5, ~-2.4
VSWR ~3.5:1, ~2.5:1, ~5.5:1, ~7.8:1
Efficiency (%) ~43.1, ~57.0, ~27.5, ~20.1
Peak Gain (dBi) ~1.2, ~3.0, ~-1.3, ~-3.5
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35

Key Features

Monopole Antenna
Ground Plane Dependent
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
3.5 dBi 5G NR Peak Gain
High Performance
Small Form Factor
Hinged Connector
Fakra D-Bordeaux Female connector

Applications

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

Super Low Profile And Fully Backwards Compatible Monopole Antenna Designed For Reliable Performance And Superior Connection

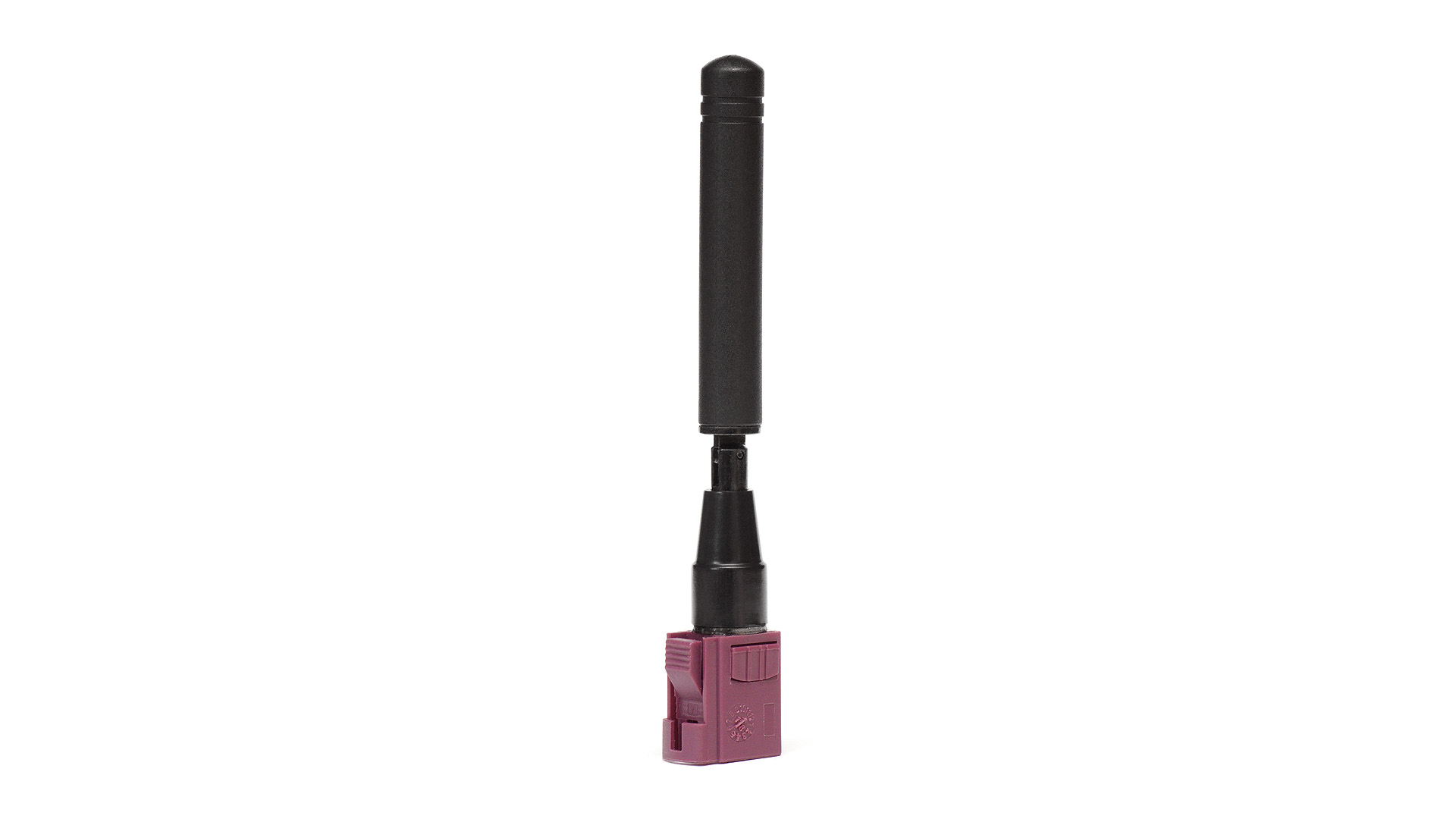

The 2JW1683-FKD is one of the smallest monopole antennas with a small form factor of only 90 × 14 × 10 mm. This antenna is designed for 5GNR applications with significant benefits of extreme mobile broadband (eMBB), massive bandwidth, and ultra-low latency Communication (URLLC). This compact form factor antenna is primarily designed to significantly reduce device size for integration within modules and devices that require high efficiency and peak gain.

This ultra-wideband antenna caters to a sub-6 GHz such as 5GNR / 4G LTE / FirstNet / CBRS / LPWA / CAT-X / CAT-Mx / CAT-NBx / NB-IoT standards and band in the range of 617-5925 MHz. With this sub-6 GHz technology transmission, the signals can penetrate into solid obstacles and deliver best-in-class throughput on all major cellular bands worldwide, perfect for access points, terminals, and routers. This antenna covers many 5G NR Sub-6 GHz bands including the Extended LTE band 71 and it is entirely backward compatible with 4G LTE / 3G / 2G cellular applications. With a high peak gain of up to 3.5dBi, it delivers the best-in-class throughput in the 5GNR band. The 2JW1683-FKD antenna is a fully omnidirectional antenna and is stable across all bands.

Suggested applications include:

  • Augmented reality wireless devices
  • Gateways and routers
  • Smart metering
  • Smart home/smart cities mobile platforms
  • Connecting enterprises
  • Artificial intelligence data collecting modules
  • Remote monitoring
  • Terminals and wireless access points

Installation / Environmental

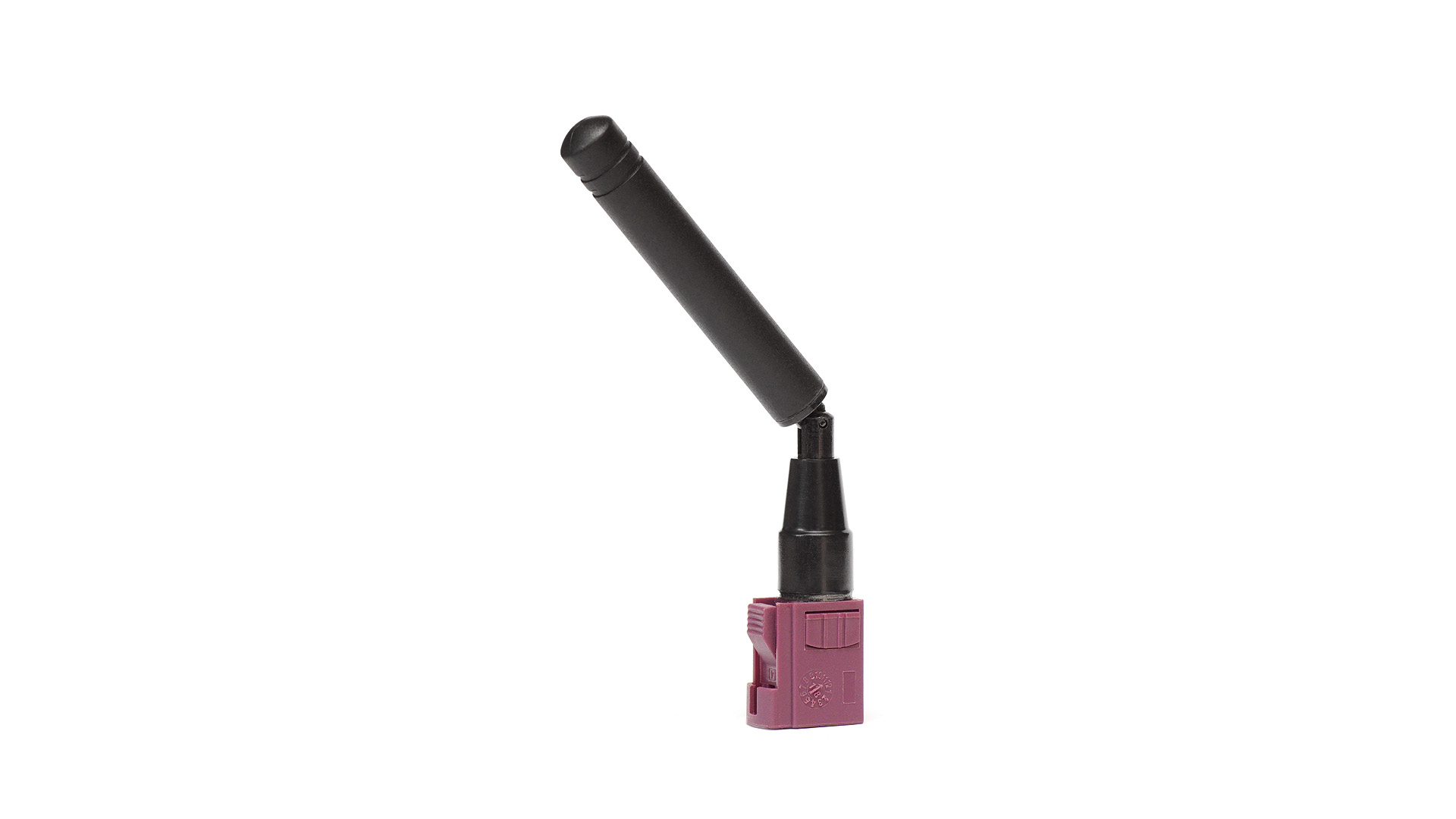

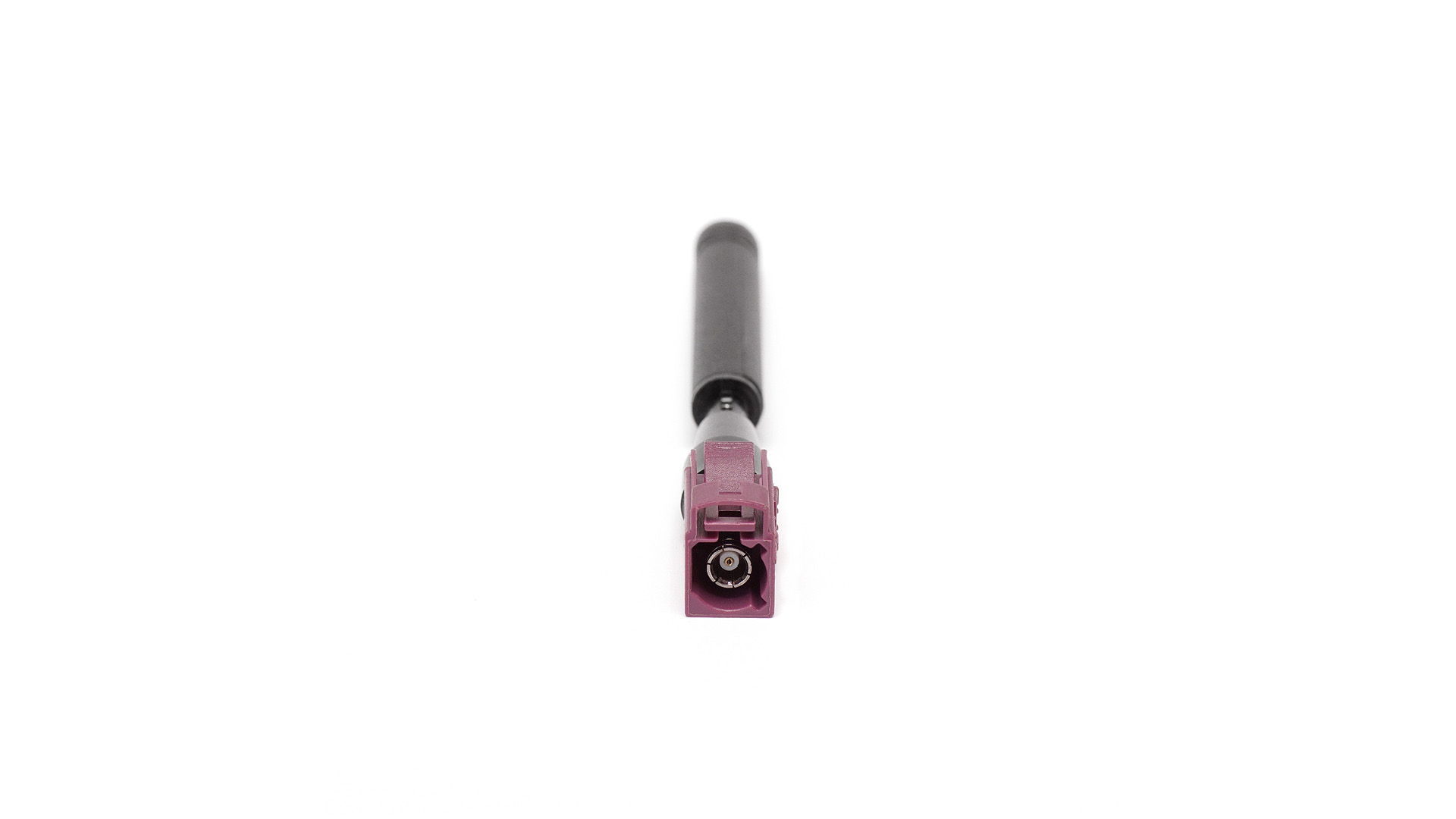

This solution features a standard hinged Fakra Code D Bordeaux Female swivel connector and it is an ideal solution for any device requiring reliable performance in a slim form factor. This connector is designed to be rotatable with a 45° to 90° tilt position range and is the leading choice for automotive applications due to its resistance to vibration and secure and effortless latch and click mechanism. The hinge mechanism allows the antenna to be rotated into the desired orientation which helps to avoid other antennas or objects. This mechanism also helps improve isolation when used in MIMO systems or when other antennas are also present on the same device. This antenna comes with a polyoxymethylene (POM) base, which is 100% recyclable and is designed for high stiffness with a low coefficient of friction, excellent wear resistance, and dimensional stability. With low profile dimensions of 90 x 14 x 10 mm, this ground plane-dependent antenna has a super small profile form factor. This antenna is designed without any hazardous materials making it fully REACH and RoHS compliant.
