Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.9:1, ~1.6:1, ~1.7:1
Efficiency (%) ~57, ~57, ~47
Peak Gain (dBi) ~2.1, ~4.2, ~3.1
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.9:1, ~1.6:1, ~1.4:1
Efficiency (%) ~63, ~54, ~57
Peak Gain (dBi) ~3.0, ~3.2, ~4.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137.5
Out of Band Rejection (dB) 32

Key Features

3-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
4.2 dBi 4G LTE Peak Gain
High Performance
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Anti-Rotation Mounting
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Heavy-Duty 3-in-1 Combination Antenna with Exceptional High Performance

2J Antennas is expanding their “Medusa” series by adding a high-performance 3-in-1 combination antenna (2J7041BGFa) for Cellular/LTE MIMO and GNSS global navigation. This multi-function, high-performance, heavy-duty antenna solution is ideal for automotive, industrial equipment, and transportation applications where permanent or temporary screw mounting is required.

The dual Cellular / LTE (cables 1 and 2) is dedicated to voice and data devices that operate within 4G LTE, FirstNet, LPWA, NB-IoT, Cat-X-Mx-NBx, 3G, and 2G standards. This antenna offers high gains with high efficiency across 698 MHz – 2700 MHz frequency bands and is backward compatible with existing LTE networks. By adding dual cellular capabilities, the antenna can consistently search and pair the strongest signal to assure uninterrupted connectivity regardless of the location and angle.

Single cable (cable 3) GNSS antenna is designed with navigational precision for automotive and transportation applications that operate within GPS, QZSS, Galileo, and Glonass standards. With a hemispherical radiation pattern, RHCP, and saw filter, this antenna offers a high active gain with excellent efficiency across 1575.42 MHz and 1598-1610 MHz frequencies.

For detailed antenna specifications, please see our comprehensive datasheet.

Suggested applications include:

  • Telematics
  • Cellular Mobile and Internet
  • Industrial Machinery and Automation
  • Automobile/ Transportation
  • Critical Communication Services
  • Consumer Electronics and Smart Home/Office
  • Outdoor buildings and Roofs

Installation / Environmental

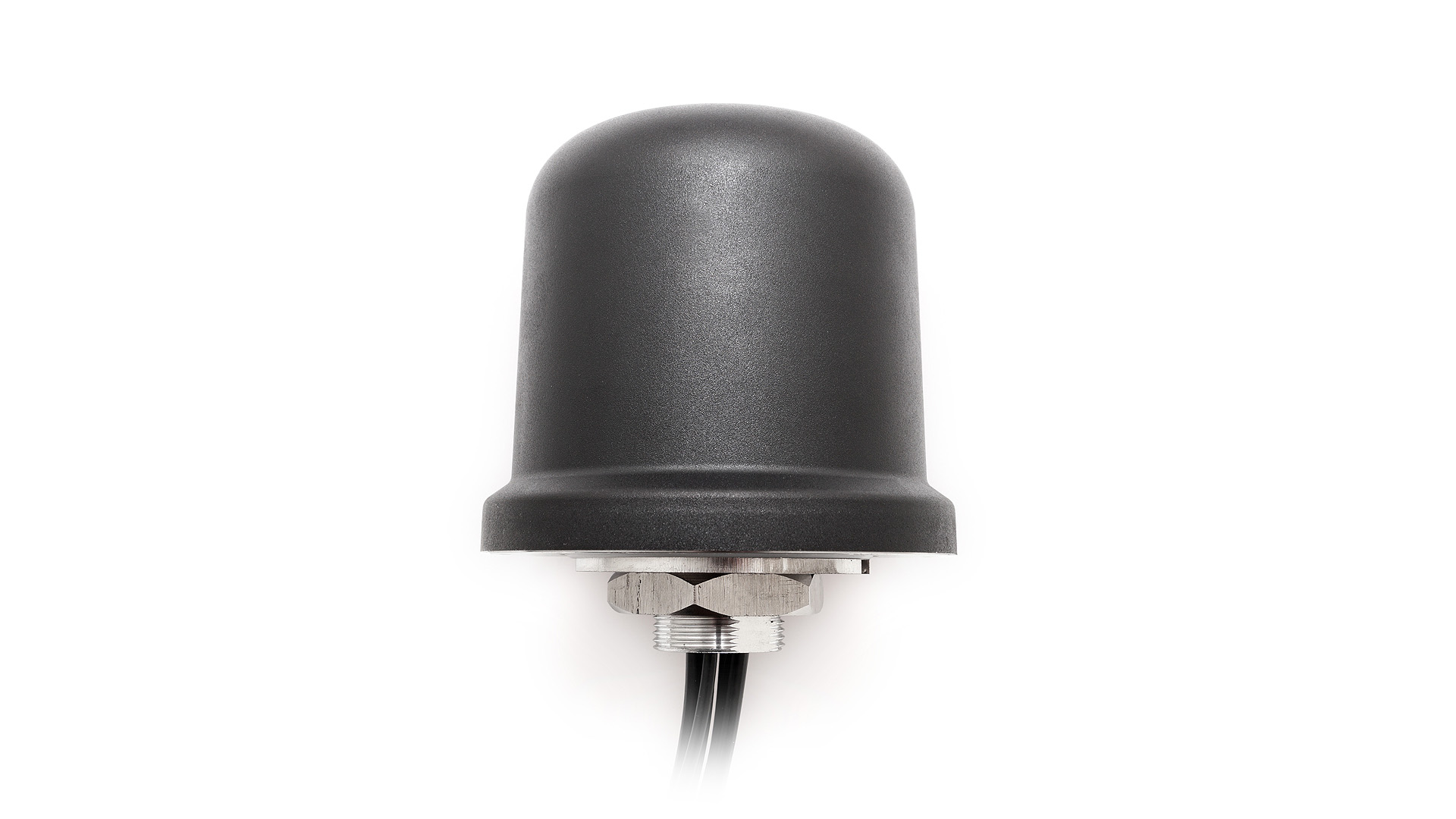

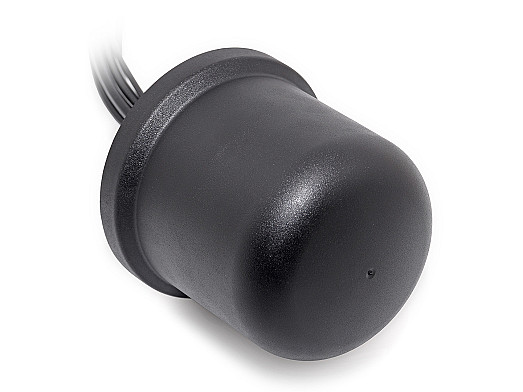

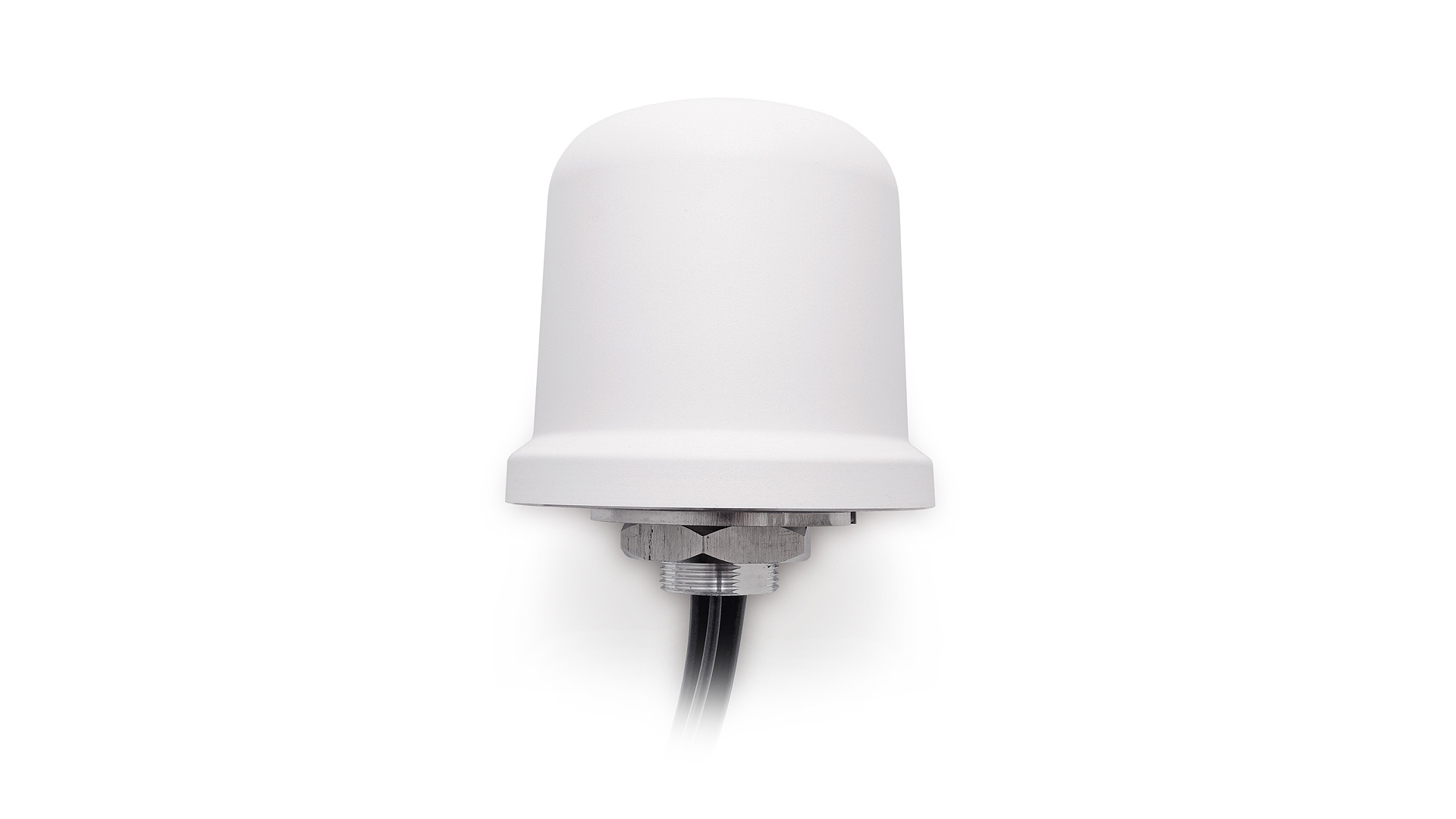

The elegantly designed dome-shaped housing measures Ø 96 × 90 mm and is made from industrial-grade ASA UV stable material with an aluminum alloy base. With full IP67, IP69, and IK09 certification, this antenna is fully waterproof and resistant to dust, high temperatures, and impact ideal for outdoor applications.

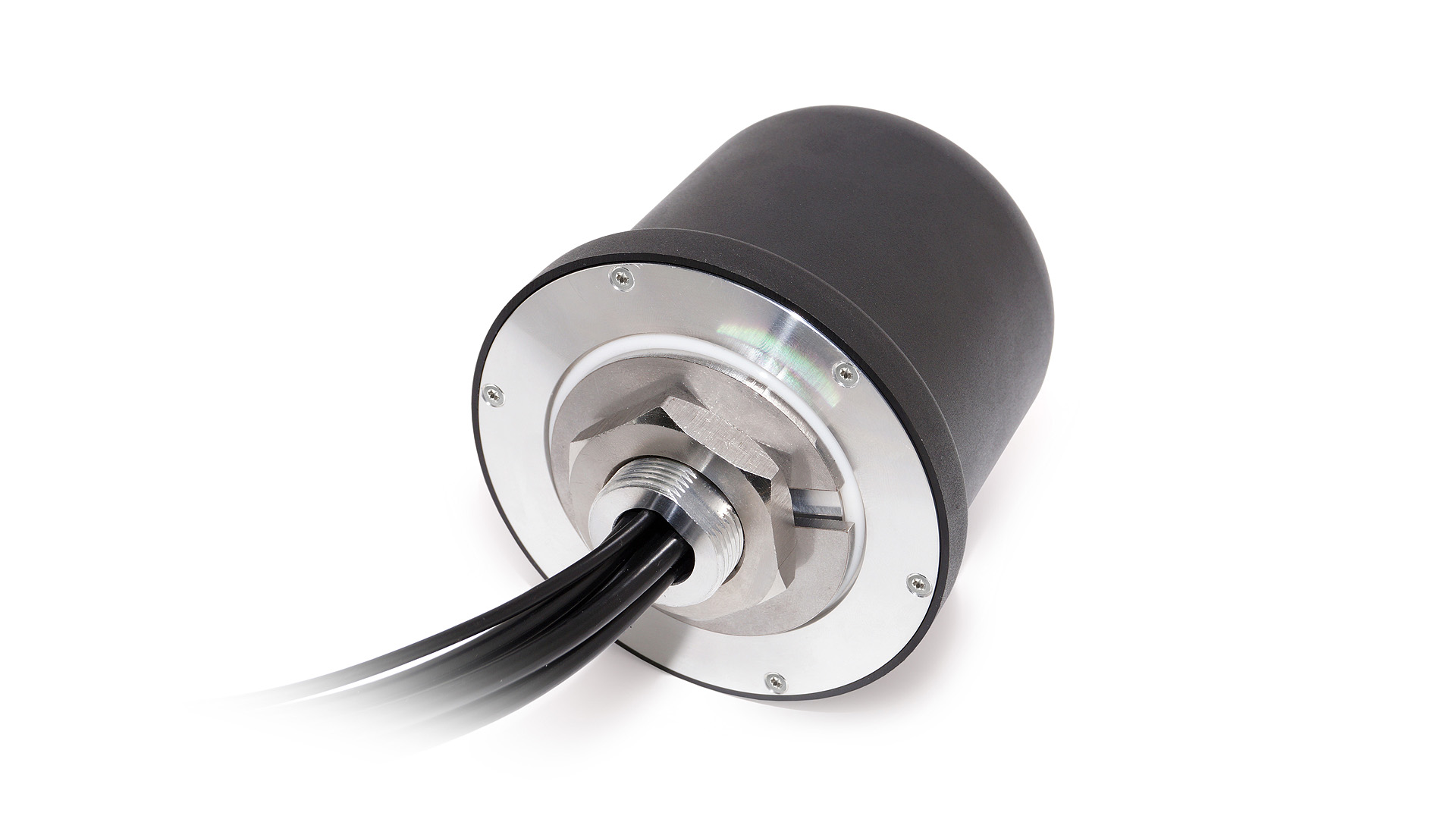

The screw mount is ideal for long-term installations but also ideal for temporary installations on any surface for short-term applications. This antenna combination is also available with magnetic, pole, and lightweight plastic screw mounting options.

All cables are high-quality low loss (LMR195/LMR100) cables and are connected via SMA-Male connectors.  This antenna has been tuned to a standard 300 cm cable length for optimal performance however we offer a large selection of alternative cables.

To support the health of our environment, all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance. Our 2J Antennas engineers are available 24/7 to assist with any customization or antenna selection needs.
