2JF0604P Antenna

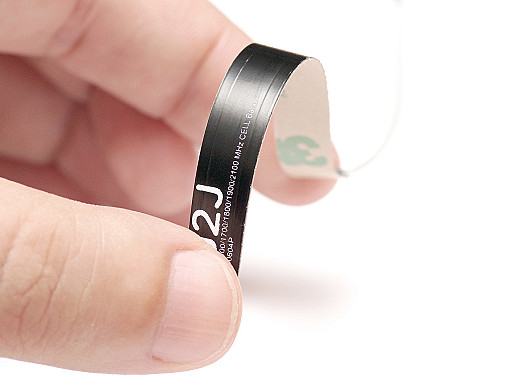

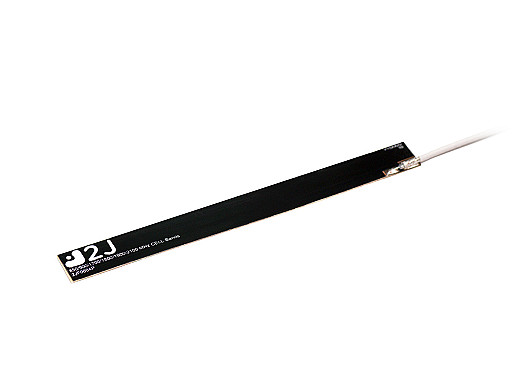

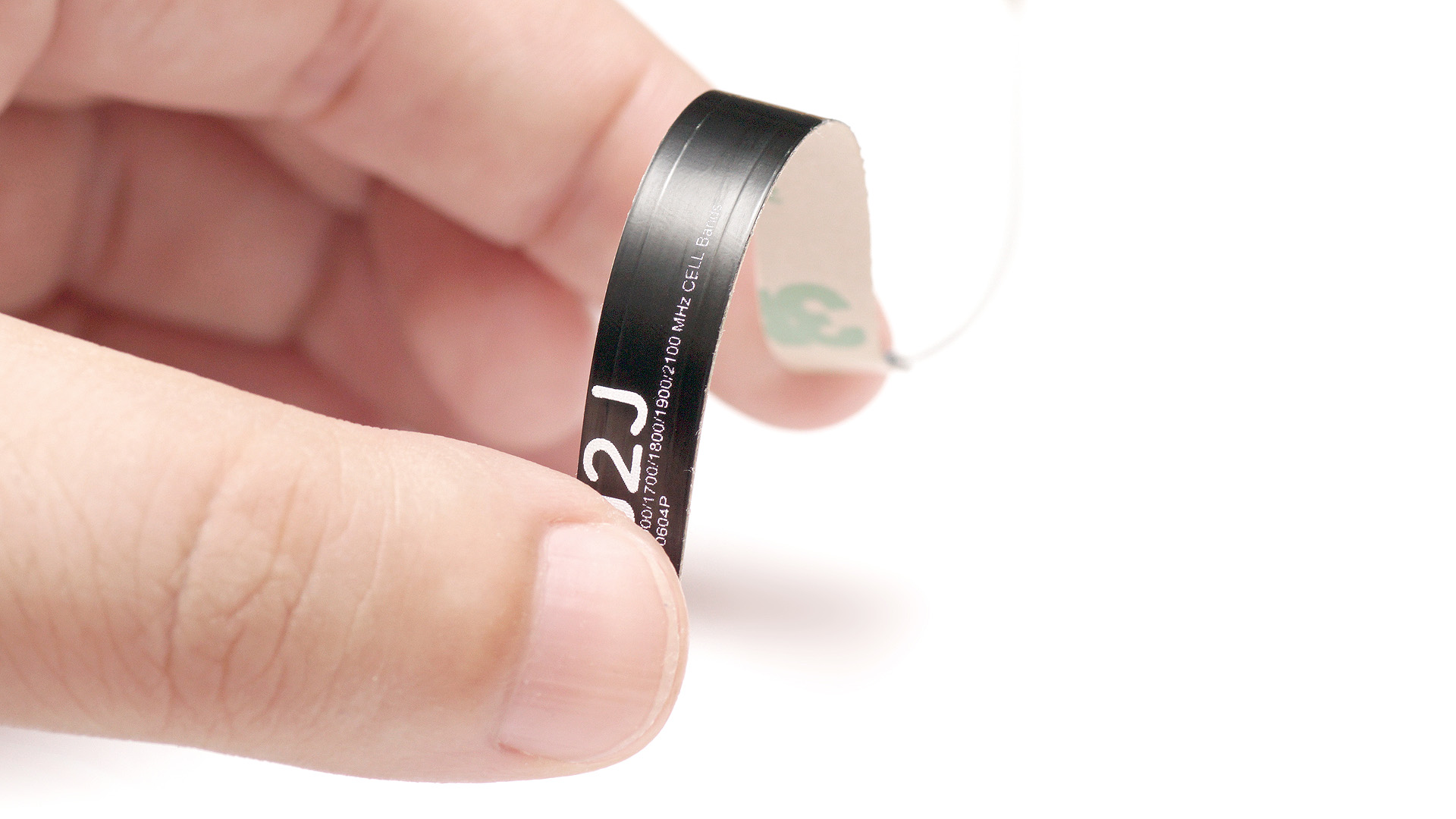

CELLULAR Flexible ultra-thin PCB Adhesive Antenna

General specification
Frequency CELLULAR
Mounting Adhesive Flexible mount
Dimensions (mm) 74.9 x 8.1 x 0.1
Operating temperature -40 °C to +85 °C
Note Flexi Embedded Antenna
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Ground Plane Independent
  • Customizable Cable and Connector
  • Self-Adhesive
  • Flexi Embedded Antenna
  • Antenna and electrical specifications

    connection 1

    CELLULAR

    Standards 2G and 3G
    Frequency 824-960, 1710-2170
    VSWR ~2.4:1, ~1.6:1
    Efficiency (%) ~40.2, ~67.8
    Peak Gain (dBi) ~0.7, ~0.7
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
