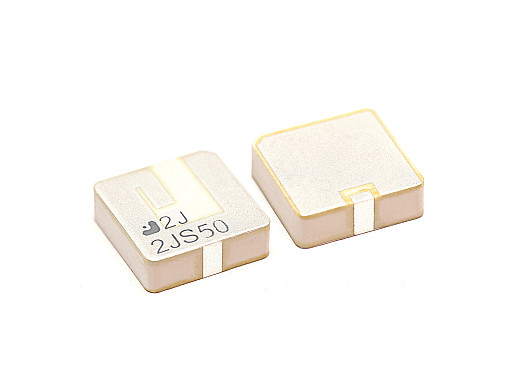

2JS50 Antenna

5.0 GHz ISM Surface Mount Hemispherical Antenna

General specification
Frequency
5.0GHz/WiFi/ISM
Mounting Surface Mount Ceramic
Dimensions (mm) 13 x 13 x 4
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • Surface Mount
  • Easy to Integrate
  • Compact Size
  • Ceramic Material
  • Ground Plane Dependent
  • Antenna and electrical specifications

    connection 1

    5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 4920-5925
    VSWR ~2.5:1
    Efficiency (%) ~65.9
    Peak Gain (dBi) ~5.1
    Impedance (Ohm) 50
    Typical Shear Force 50Kgf

    Antenna description

    2JS50

    5.0 GHz ISM Surface Mount Hemispherical Antenna

    Offering the highest quality wireless connection with the power of 5.0 GHz

    The 5.0 GHz ISM Surface Mount Antenna (2JS50) offers interoperable short-range wireless communications for WiFi, BT, ZigBee and ISM standards. With excellent directional hemispherical radiation pattern, the 2JS50 is designed to operate within 4920 MHz – 5925 MHz frequencies and reach up to 5.1dBi offering maximum gain. The 2JS50 is the perfect solution for the fast-growing number of devices using short-range machine to machine connection in residential and commercial smart networks including consumer electronics, business wireless networks, smart homes, telecommunications, utility metering, industry, science, medical (ISM) and any other wireless 5.0 GHz compatible devices.

    Installation / Environmental

    This power efficient, ground plane dependent and compact 2JS50 antenna offers easy integration within minimum area size of 70x70mm. The attractive and sleek designed ceramic housing offers protection in extreme environmental conditions ranging from -40C to +80C. The 2JS50 antenna is RoHS compliant and delivered on tape and reel for efficient automated manufacturing.



    Typical applications

    - Commercial / Residential wireless networks
    - Consumer electronics
    - Smart homes
    - Smart metering
    - 5.0 GHz compatible devices
