Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.9:1, ~1.9:1, ~1.3:1
Efficiency (%) ~36, ~41, ~53
Peak Gain (dBi) ~0.2, ~3.8, ~6.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.8:1, ~2.1:1, ~1.4:1
Efficiency (%) ~35, ~42, ~53
Peak Gain (dBi) ~-0.1, ~3.2, ~5.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.9:1, ~1.6:1
Efficiency (%) ~58, ~64
Peak Gain (dBi) ~5.6, ~5.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

868 MHz ISM

Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 863-870
VSWR ~2.3:1
Efficiency (%) ~37
Peak Gain (dBi) ~0.51
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 5

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.5:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3 V, 24 @ 5 V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 15 - 25
Power Consumption (mW) 40.5 - 137.5
Out of Band Rejection (dB) 32

Key Features

5-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
6.0 dBi 4G LTE Peak Gain
5.6 dBi WIFI Peak Gain
High Performance
0.5 dBi 868 MHz ISM Peak Gain
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Anti-Rotation Mounting
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Antenna Solution That Keeps the World Connected With Precision, Quality, and Performance

We are introducing the most powerful high performance 5-in-1 Cellular 4G LTE/3G/2G MIMO, WiFi 2.4/5.0 GHz ISM, 868 MHz ISM and GNSS antenna on the market. We also offer this antenna with 915 MHz, please see 2J7068BGFa-915 in our catalog for comparison. This fully loaded antenna will bring superior connectivity to rural and urban areas without any restrictions to performance for a large range of consumer, industrial or commercial devices.



Cable 1-2: Cellular / LTE

The dual Cellular/LTE cable is tuned for 4G LTE, 3G and 2G standards and is ideal for MIMO, high data throughput terminals, smart cities, industrial automation, telematics, and wireless broadband communications. Dedicating two cellular/LTE cables allows devices to search for the strongest signal within 698 MHz – 2700 MHz while continuously maintaining a connection.



Cable 3: 2.4/5.0 GHz ISM

The single 2.4/5.0 GHz cable is tuned for WiFi, BT, ZigBee, and ISM standards. With frequency ranges of 2410 MHz - 2490 MHz and 4920 MHz – 5925 MHz, this powerful antenna operates with peak gains of ~5.6 dBi for the 2.4 GHz band and ~5.5 dBi for the 5.0 GHz band while maintaining a maximum efficiency of ~58-64%. High gain and superior efficiency makes this antenna ideal for short-range, low power wireless connectivity for consumer electronics.



Cable 4: 868 MHz ISM

The 868 MHz cable is used in Europe for applications such as fire monitoring systems, home and office low power devices and security systems. Tuned for 863 MHz – 870 MHz frequencies, this antenna is designed to cater to ZigBee, ISM, SigFox and LoRa standards. With a peak gain of ~0.51 dBi and ~37% efficiency, this antenna outperforms any competitor with reliable and strong signal connectivity.

Cable 5: GPS/GLONASS

The active GNSS cable is designed for geo positional navigation devices that operate on 1575.42 MHz to 1610 MHz frequencies within the GPS, QZSS, Galileo and GLONASS standards. Access to satellites operated by EU, Asia, Russia, and USA regions not only gives full global navigation but also improves quality with quick positioning, high precision, and reliability; especially in built-up areas where obstructions could pose a challenge. Integrated with a saw pre-filter makes the navigation more reliable where interference is a concern.

Suggested applications include:

- Cellular and Telematics
- Smartphones
- Navigation
- RFID/ Inventory Tracking
- Safety and Security Monitoring
- Transportation and Automotive
- Consumer Electronics
- Computing
- Telecommunication
- Data Terminals
- Smart Home and Office
- Safety Critical Communications
- Industrial Automation



Installation / Environmental

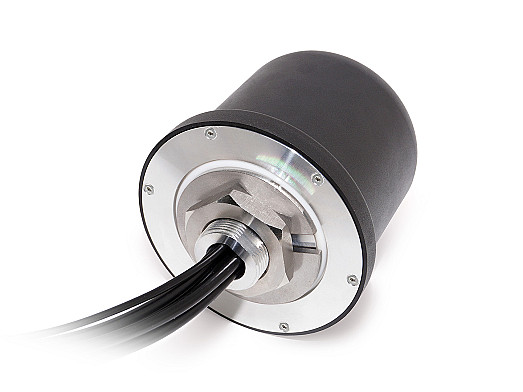

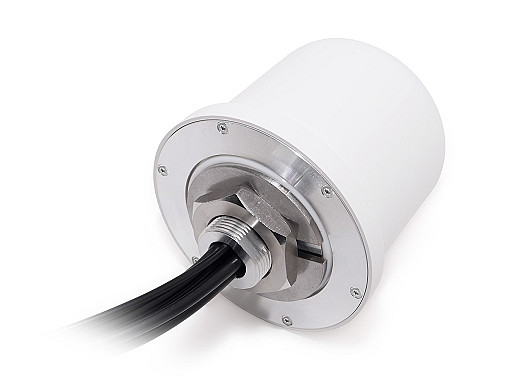

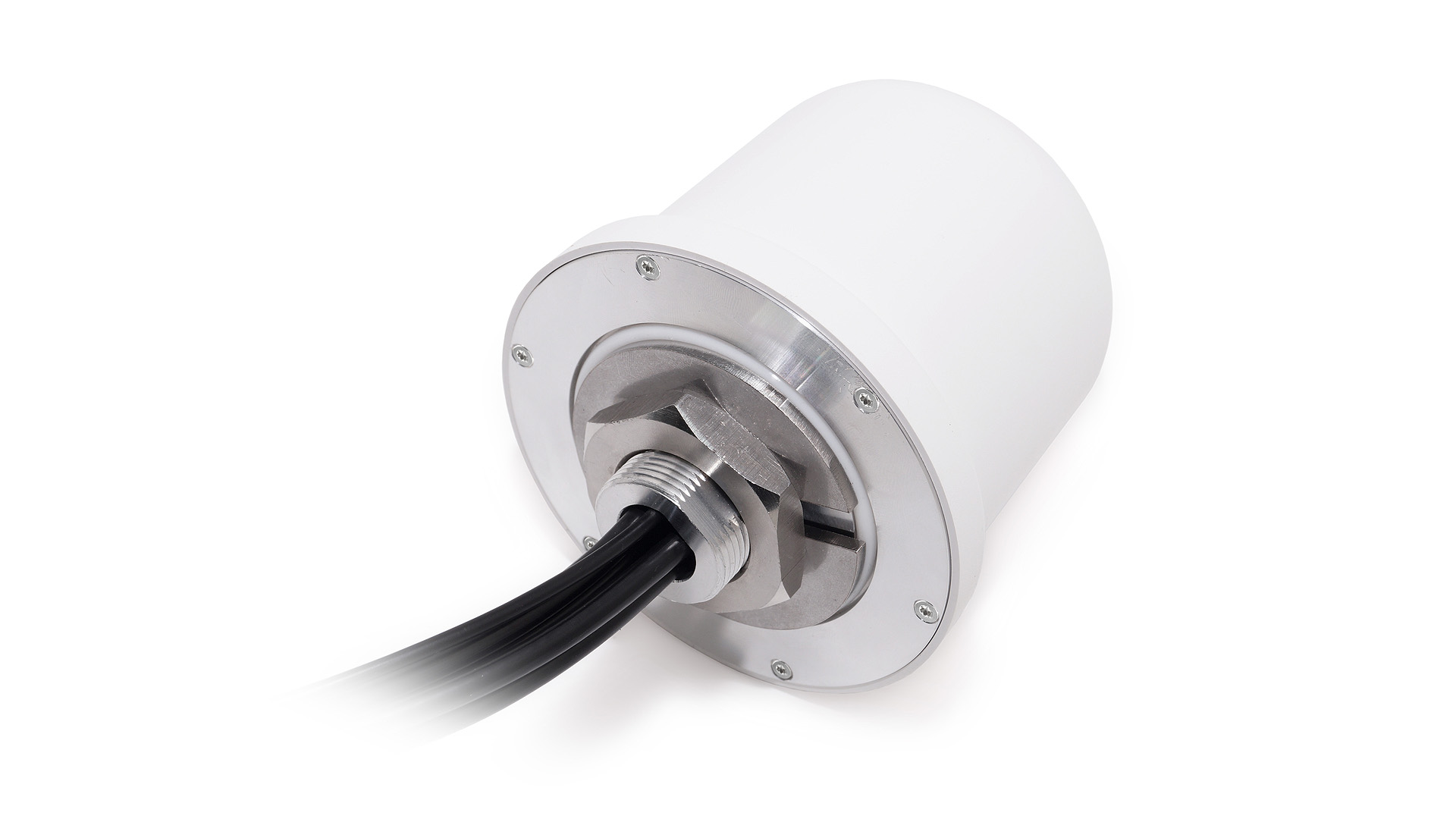

This heavy-duty antenna comes with an aesthetically designed dome shape housing measuring only Ø 96 x H 90 mm and is manufactured with high grade ASA UV stable material that is available in black or white. Fully IP67, IP69 and IK09 certified makes this antenna waterproof, resistant to impact and withstand high temperature / pressure water ideal for any type of environmental exposure.

All five cables feed through the screw mount located at the bottom of the aluminum alloy antenna base. Designed with an anti-rotation mechanism which allows for secure installation on any external surface without the need for grounding or free space.

Our standard antenna package includes SMA-male connectors with 300cm long LMR195 low loss cables for the Cellular/ISM, WiFi, 868 MHz and LMR100 for the GNSS connection. We offer a large range of alternative connectors and cables for any customization needs. Our highly skilled engineers are available 24/7 to assist our customers with antenna selection to ensure optimal performance for the application.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
