Antenna and electrical specifications

connection 1

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.3:1, ~1.7:1
Efficiency (%) ~38.4, ~25.6
Peak Gain (dBi) ~3.8, ~2.8
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 10
connection 2

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.6:1, ~1.6:1
Efficiency (%) ~36.5, ~27.7
Peak Gain (dBi) ~3.8, ~3.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 10

Key Features

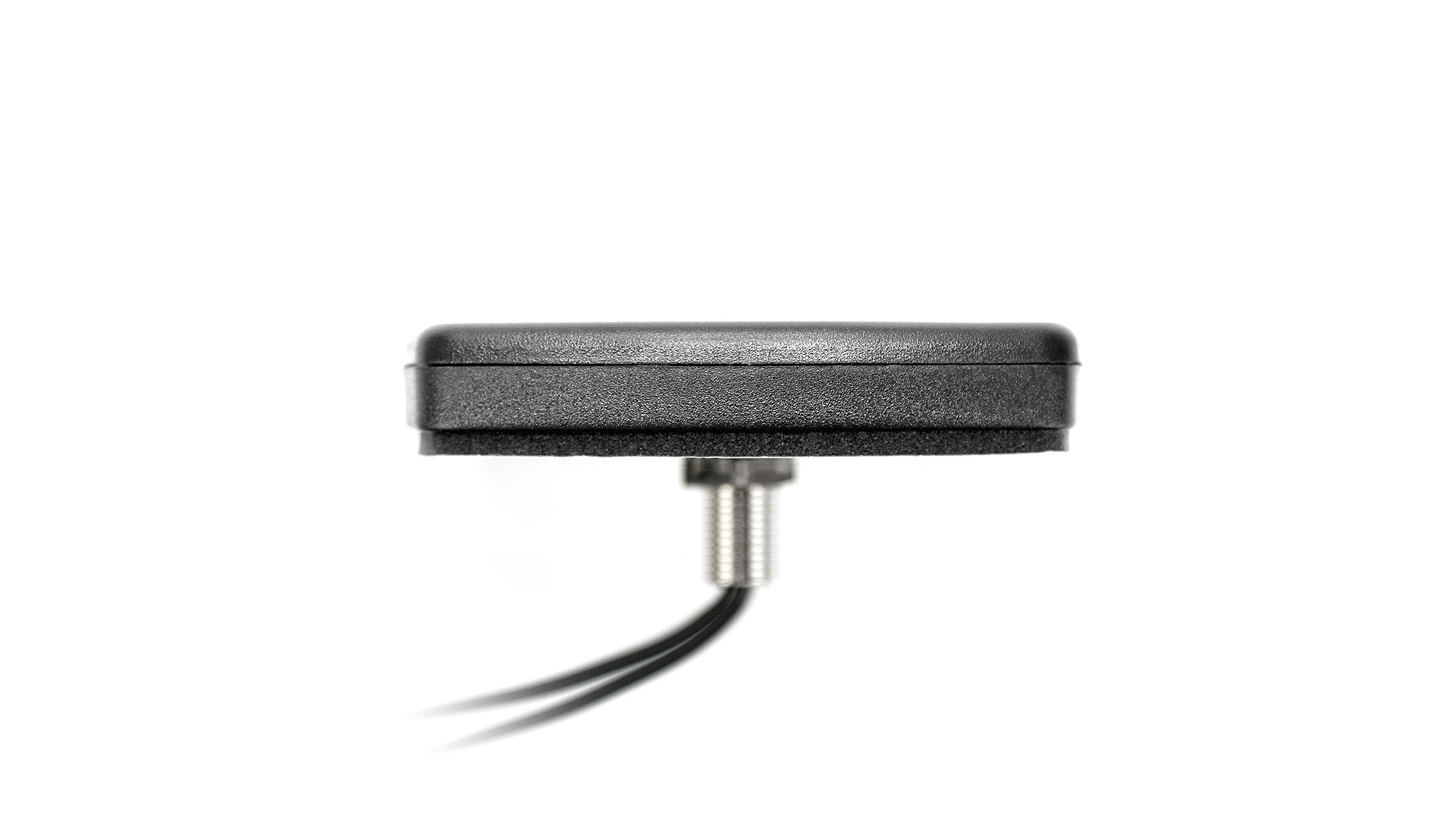

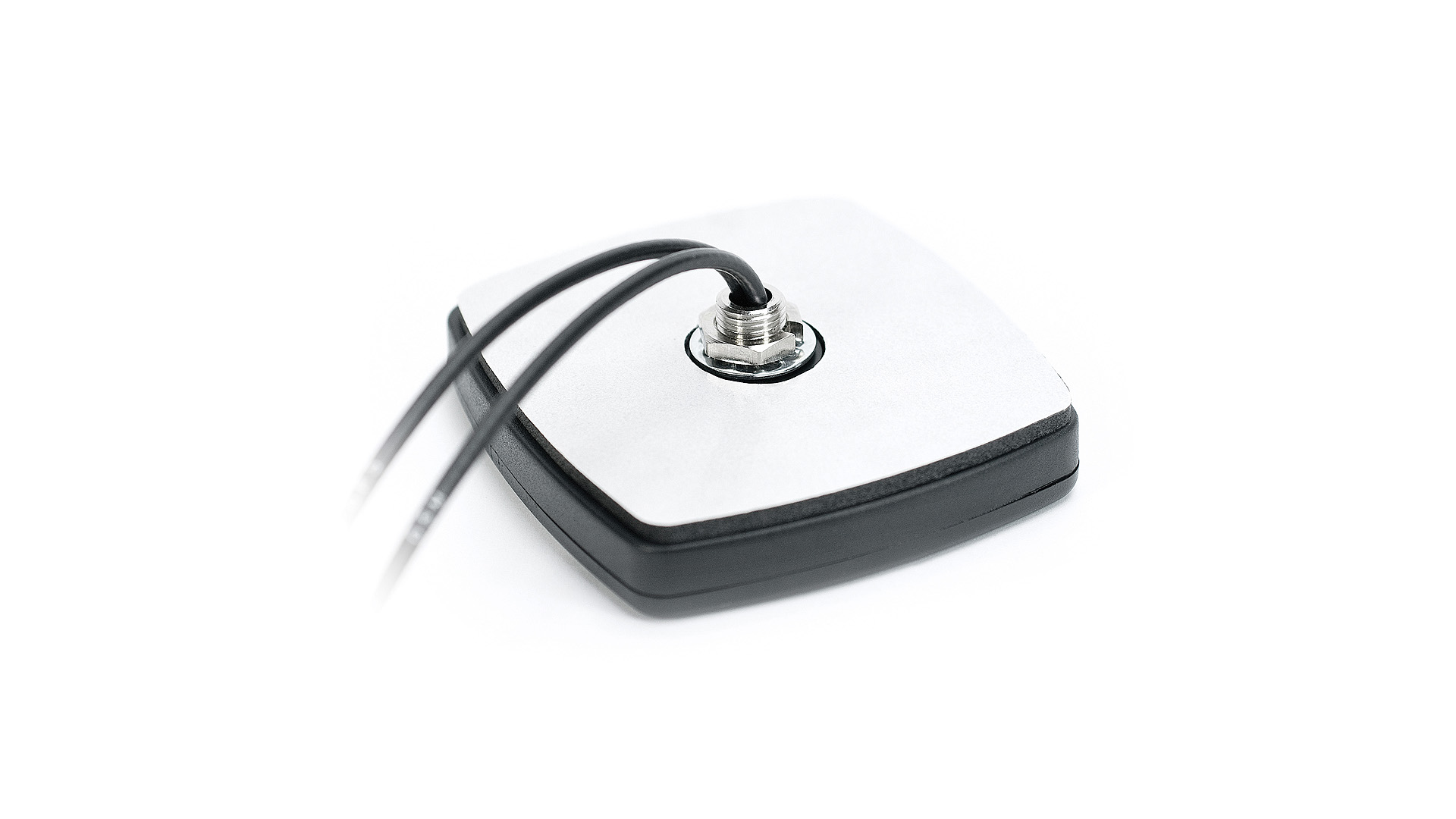

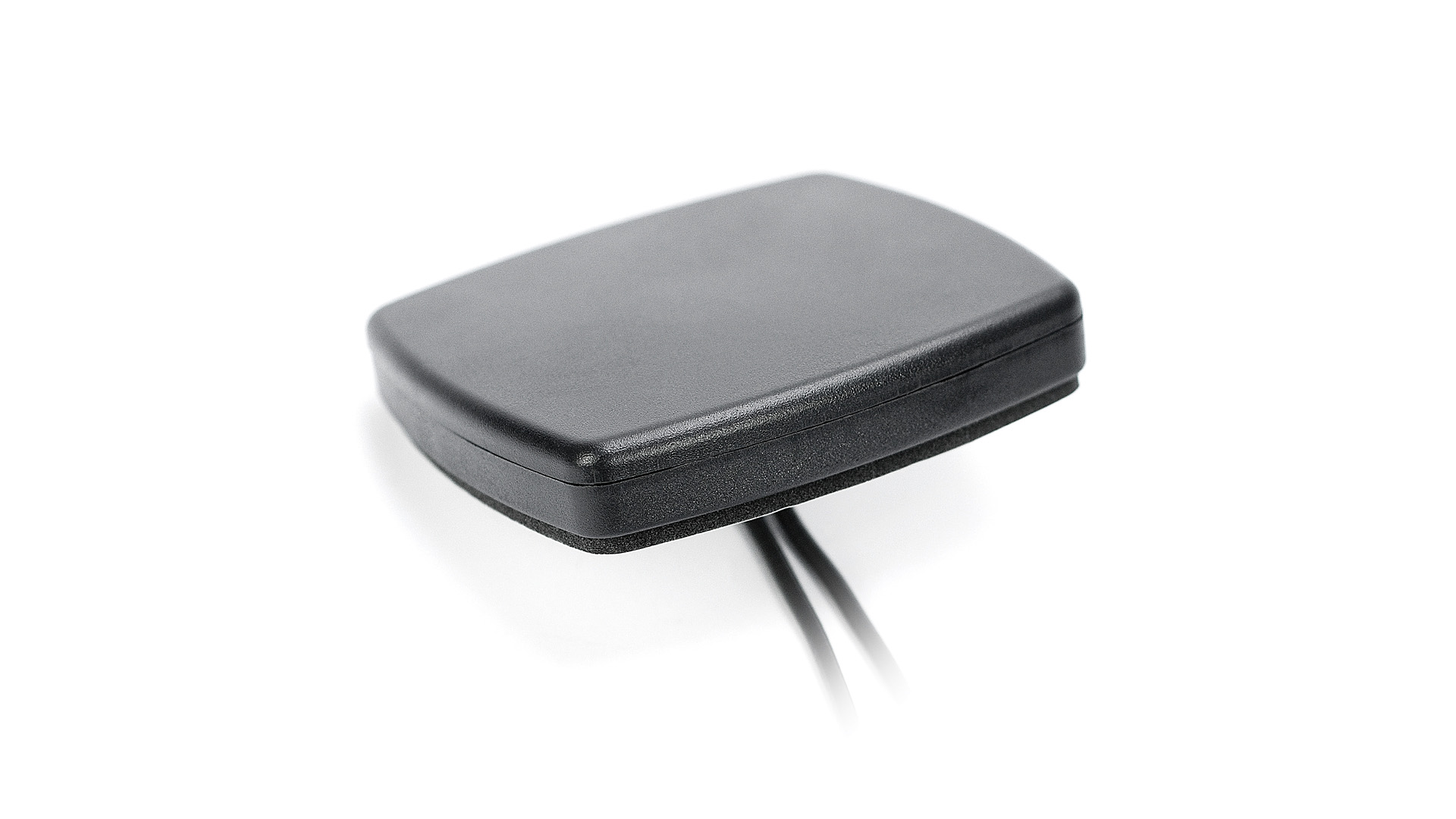

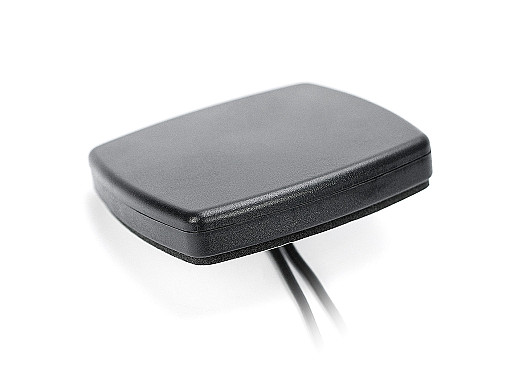

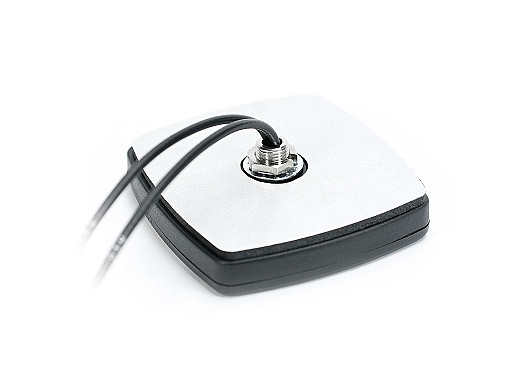

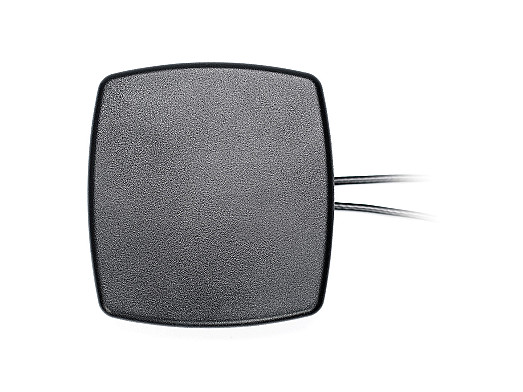

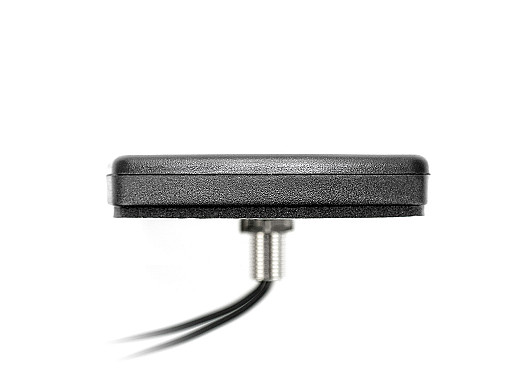

2-in-1 Combination Antenna
3.8 dBi WIFI Peak Gain
Customizable Cable and Connector
Ground Plane Independent
Low Profile

Related antennas

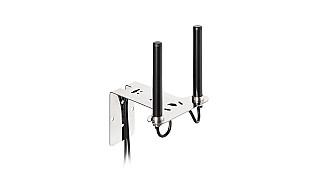

Related mounting brackets
