Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G/UHF

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G/UHF
Frequency 410-496, 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-4.8, ~-9.4, ~-10.5, ~-6.2, ~-11.7
VSWR ~3.8:1, ~2.4:1, ~2.2:1, ~3.4:1, ~1.9:1
Efficiency (%) ~20.6, ~44.3, ~56.8, ~42.1, ~45.6
Peak Gain (dBi) ~-3.8, ~0.1, ~3.1, ~2.1, ~4.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

Key Features

Ultra Wide band Antenna
Flexi Internal Antenna
410-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
4.2 dBi 5G NR Peak Gain
High Performance
Self-Adhesive
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 410-496 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 460 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands   n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B31, B72, B73, B87, B88 B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands   B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 410T, 450, 480 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC5, BC11 BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

2JF0780P

Bringing Superior Performance and Simple Device Integration to 5GNR Technologies

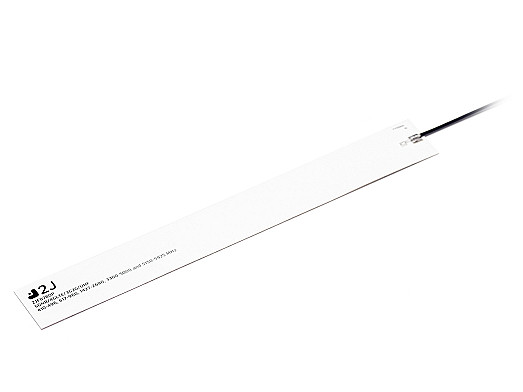

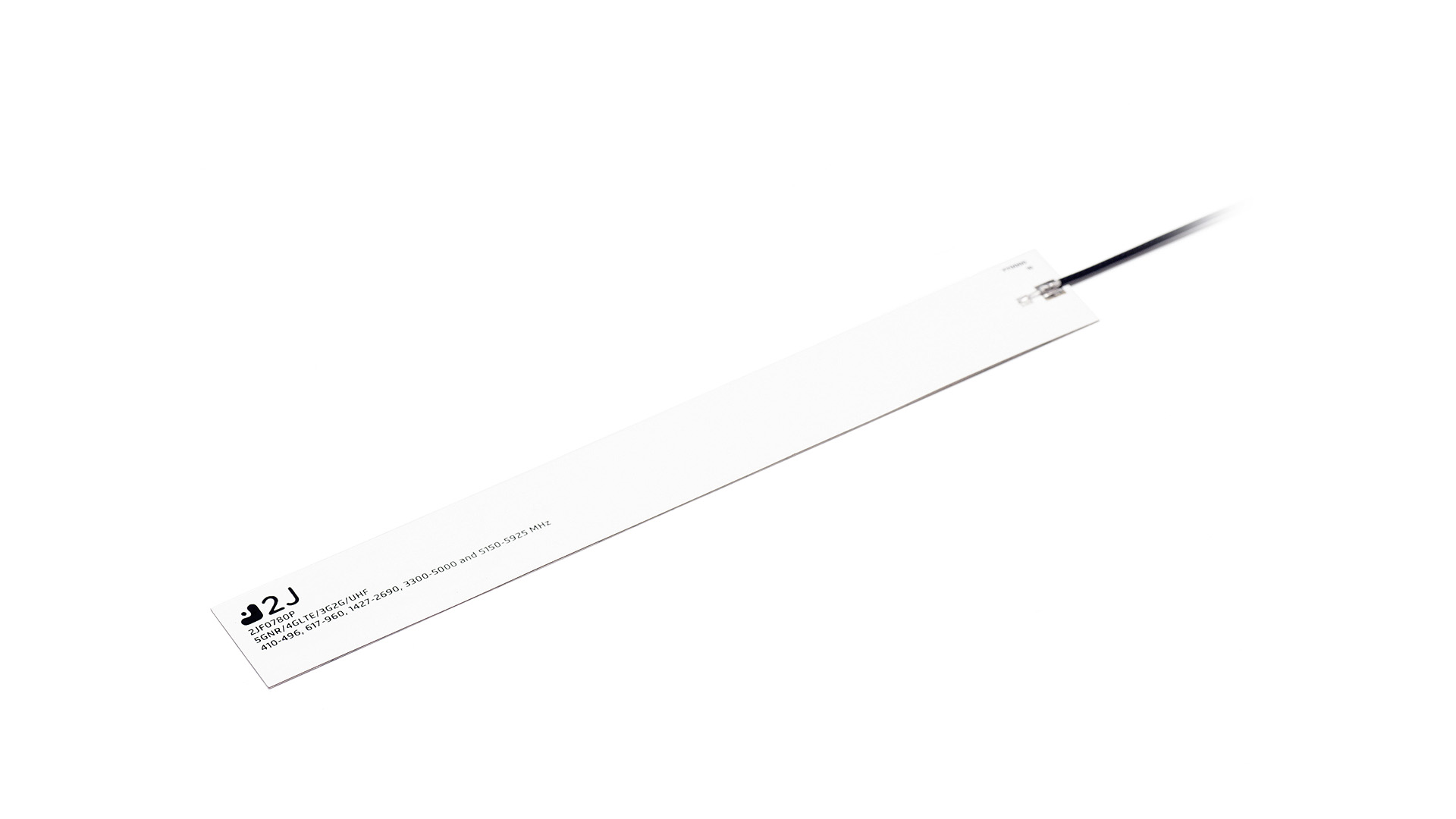

To complement our family of 5GNR antenna solutions, 2J Antennas is excited to introduce our 5GNR flexible polymer self-adhesive antenna designed to provide optimal performance and simplified device integration catered to all global standards. Combining the new 5GNR technology with UHF (ultra high frequency) makes this omni-directional antenna the first choice for mobile devices, two-way radios, cellular and portable wireless devices that operate within 5GNR, 4G, 3G and 2G technologies.

Suggested applications include:

- Industrial / Commercial and Residential IoT
- Consumer Electronics / Wearables
- Public Safety Broadband Devices
- Cellular / Mobile Devices
- Transportation / Automotive

The 2JF0780P is optimized for full-range signal strength and exceptional signal quality within 410MHz - 5925MHz frequencies. This compact antenna offers superior data transmission at low latencies, higher bit rate and advanced multiplexing techniques that result in maximum throughput while maintaining stable peak gains and efficiency across all bands.

Installation and Durability

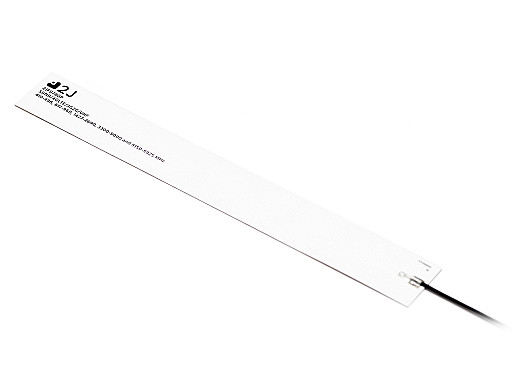

The 2JF0780P is a ground plane independent antenna designed with ultra-thin dimensions of 155 x 19.5 x 0.2mm and with strong adhesive mounting allowing for easy installation to the inside of plastic housings where space is restricted, including curved surfaces.

This antenna is manufactured out of high-grade flexible polymer and is also available in rigid fiberglass that can withstand extreme temperatures ranging between -40C and +85C, making it ideal for extreme indoor or outdoor device applications. The easy peel-and-stick low-cost solution is making it ideal for high volume device manufacturers of consumer, industrial and commercial device applications.

For optimal antenna performance, we recommend maximizing the position, orientation, cable routing and the tuning of matching components during the antenna integration process for optimal antenna performance.

The 2JF0780P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length. Our team of experts is available to assist in customizing options by offering a wide range of alternative connectors and cables for absolute customer satisfaction. We proudly offer antenna integration services, including full antenna parameter reports for impedance and OTA (over the air) measurements. 2J Antennas supports the health of our environment and production staff by manufacturing all our products without hazardous materials while maintaining full REACH and RoHS compliance.
