Antenna and electrical specifications

connection 1

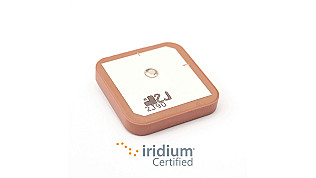

IRIDIUM - Ceramic Passive Antenna

Standards IRIDIUM
Frequency (MHz) 1616-1627 - Ceramic patch 2JCP2542601a (2J 90)
1621-1632 - Ceramic patch 2JCP2542602a (2J 91)
1626-1637 - Ceramic patch 2JCP2542603a (2J 92)
1631-1642 - Ceramic patch 2JCP2542604a (2J 93)
1636-1647 - Ceramic patch 2JCP2542605a (2J 94)
1641-1652 - Ceramic patch 2JCP2542606a (2J 95)
Passive Gain (dBi) ~5.1
Impedance (Ohm) 50
Radiation Pattern Hemispherical
Axial Ratio (dB) 3 max
Polarization RHCP

Key Features

Ground Plane Independent
High Gain
Thru-Hole Mount
Set of 6 patches to try on devices
Patches 25 x 25 x 4 mm
Development Kit for IRIDIUM
