Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.1:1, ~1.5:1, ~1.5:1
Efficiency (%) ~52, ~62, ~50
Peak Gain (dBi) ~0.7, ~3.4, ~4.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.2:1, ~1.8:1
Efficiency (%) ~60.5, ~38.4
Peak Gain (dBi) ~5.0, ~3.9
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

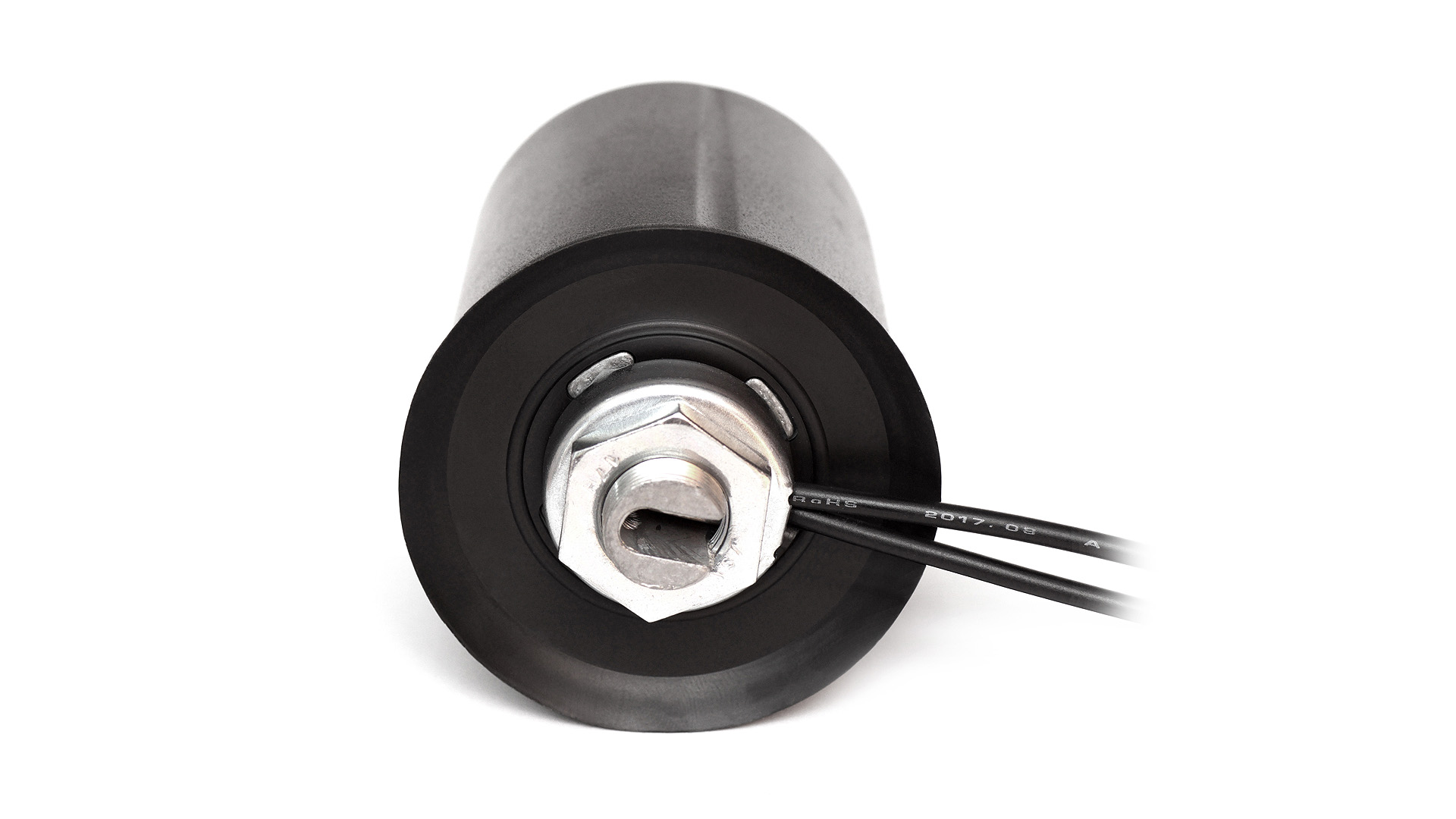

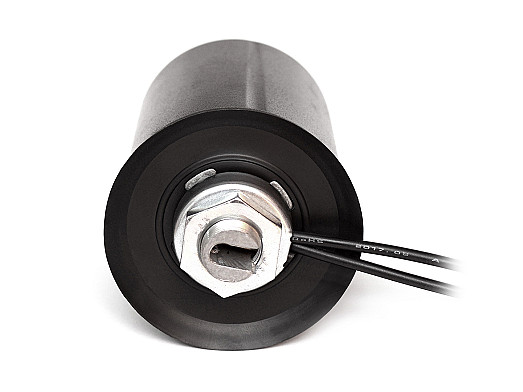

Screw Mount
High Performance
Customizable Cable and Connector
Ground Plane Dependent
Anti-Rotation Mounting
Certificates: IP67, IP69, IK09
