2J2183-C315N 5GNR/4GLTE/3G/2G N-Male Connector Mount Dipole Antenna

Mounting	Connector Mount
Connector type	N-Male connector
Dimensions (mm)	234 × Ø 20 (Ø 16)
Operating temperature	-40 °C to +85 °C
Standard colors

Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies	5G, 4G, 3G and 2G
Standards	5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz)	617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB)	~-8.1, ~-13.7, ~-9.7, ~-10.0
VSWR	~2.6:1, ~1.6:1, ~2.0:1, ~2.5:1
Efficiency (%)	~35.3, ~52.2, ~50.2, ~52.1
Peak Gain (dBi)	~1.3, ~1.5, ~2.8, ~2.6
Impedance (Ohm)	50
Polarisation	Linear
Radiation Pattern	Omni-Directional
Max. Input Power (W)	25

Key Features

Dipole Antenna

Ground Plane Independent

Wide band Antenna

617-2690 MHz Sub 6GHz Bands

Full 4GLTE backward compatibility

2.8 dBi 5G NR Peak Gain

N-Male connector

5GNR Antenna Bands list

Parameters	5GNR Antenna
Frequency (MHz)	617-960	1427-2690	3300-5000	5150-5925
Band (MHz)	600, 700, 850, 900	1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600	3300, 3500, 3600, 3700, 4500	5200, 5500, 5800
5GNR Bands	n5, n8 ,12, n20, n28, n71, n81, n82, n83,	n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86	n77, n78, n79
4GLTE Bands	B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85	B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76	B22, B42, B43, B48, B49, B52	B46, B47, B252, B255
3GCELL Bands	B5, B6, B8, B12, B13, B14, B19, B20, B26	B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40	B22
2GCELL Bands	710, 750, 810T, 850, 900P, 900E, 900R	1800DCS, 1900PCS
CDMACELL Bands	BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19	BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21

Antenna Description

2J2183-C315N

The Most Trusted Antenna Technology With Exceptional Reliability

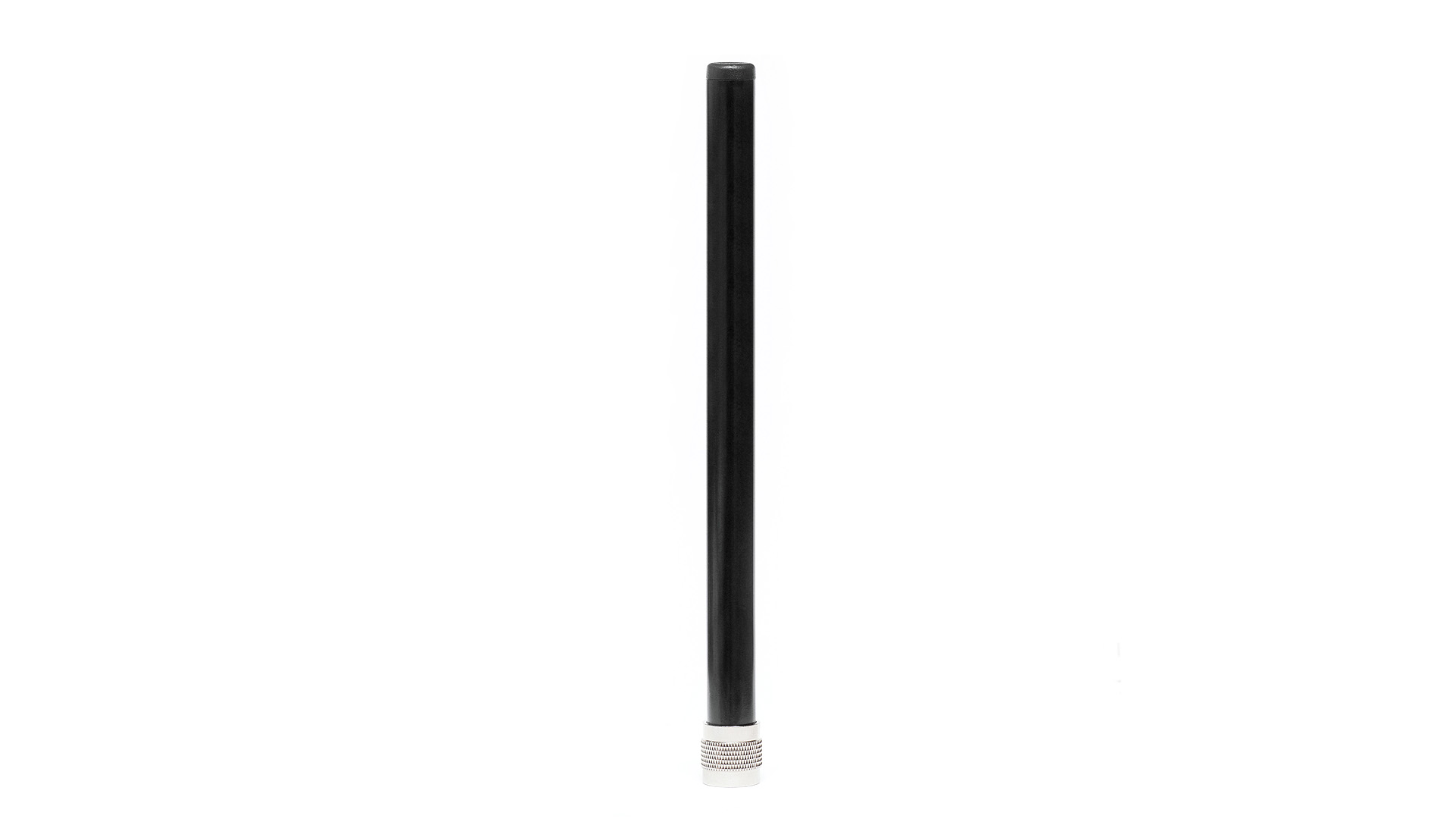

2J Antennas brings 5G NR technology to its dipole product portfolio by offering the 5G NR/ 4G LTE/ 3G/ 2G N-Male Connector Mount Dipole Antenna (2J2183-C315N). Dipole antennas are the most widely used antennas because of their proven technology in receiving balanced signals and reducing conflicting signals without compromise to reception quality. This wideband antenna is fully 4G LTE backwards compatible with existing networks and is tuned for devices that operate on 5G NR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X -Mx, CAT-NBx, NB-IoT, 3G and 2G standards.

Suggested applications include:

Terminals, Base Stations and Routers
High Traffic MIMO Device Connectivity
Industrial, Commercial and Residential IoT
Industrial, Commercial and Residential Smart Home / Office
ATM Machines
IoT Dispensers
Vending Machines
Electrical Metering

The 2J2183-C315N has an omni-directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency of ~52% and 5G NR peak gains of ~2.8 dBi.

Installation and Durability

The 2J2183-C315N measures 234 × Ø 20 (Ø 16) mm in size and has a slim pole design. The housing is manufactured with durable ASA material (available in black or white) and can withstand operating temperatures ranging -40C to +85C. Installation is made simple with the N-Male-connector with minimal restrictions and without the need for grounding or free space.

It is important to match the right antenna with the right requirement and our expert engineers are available for installation support, any customization needs and antenna selection support.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.
