Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.2:1, ~2.1:1, ~2.1:1
Efficiency (%) ~27.0, ~28.8, ~25.0
Peak Gain (dBi) ~-0.1, ~2.5, ~2.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.9:1, ~2.2:1, ~1.8:1
Efficiency (%) ~43.8, ~24.9, ~30.8
Peak Gain (dBi) ~2.5, ~2.0, ~3.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Noise Figure (dB) 1.5 Typ
Current Consumption (mA) 9 Typ
Power Consumption (mW) 24.3 Typ
ESD Protection (kV) 2

Key Features

3-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
3.2 dBi 4G LTE Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Customizable Cable and Connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

The Perfect All-In-One Solution for Global Connectivity

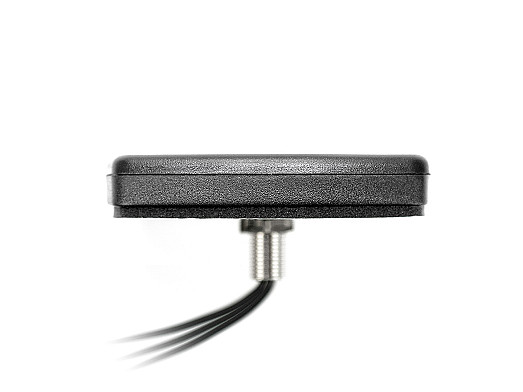

The wideband, Cellular/LTE MIMO, GNSS Adhesive Mount 2J6041BGFa is a 3-in-1 high-performance antenna. This antenna provides maximum versatility without compromising on its efficiency. This ground plane independent, compact low profile antenna solution meets customer expectations by offering 4G LTE, 3G, 2G, GPS, Galileo, and GLONASS standards. The cables and connectors are fully customizable.

This external MIMO antenna is ideal for automotive navigation and worldwide connectivity. The 2J6041BGFa has been specifically designed to provide high efficiency and is the most competitive solution on the market. This ultra low-profile 14.7mm thick antenna is perfect for transportation, telematics, and remote monitoring applications.

Suggested Applications

  • Worldwide voice/data communications
  • Utility Navigation
  • Global connectivity
  • Automotive navigation
  • Transportation industries
  • Tracking devices
  • Remote Monitoring
  • Telematics
  • Fleet safety management
  • Satellite Communication system

The Cellular/LTE MIMO antenna (Cable 1 and cable 2) is ideal for 4G LTE, 3G and 2G standards. With an omni-directional radiation pattern, the 2J6041BGFa operates within 698MHz–960MHz, 1710MHz–2170MHz and 2500MHz-2700MHz frequencies. Designed to improve signal strength, signal quality, allowing uninterrupted connectivity and reliability while maintaining efficiency, the 2J6041BGFa provides increased data throughput with better signal quality and gain with an efficiency rate of up to 43.8% across all bands.

The GPS/GLONASS Antenna (Cable 3) is designed for reliable navigational connectivity within GPS, QZSS, Galileo, and GLONASS standards. With an omni-directional radiation pattern, the 2J6041BGFa operates within 1575.42MHz and 1598MHz-1606MHz frequencies. This high-performance antenna offers access to seamless satellite connections, which improves wireless connectivity. The 2J6041BGFa is ultra-performant for geolocation-dependent devices delivering very high-efficiency uninterrupted data transfers at maximum speed.

The 2J6041BGFa is a unique antenna in the market as it combines 3-in-1 Cellular LTE/3G/2G MIMO and GPS/GLONASS/GALILEO with high efficiency in a compact format.

Installation / Environmental

2J6041BGFa antenna is an outdoor/indoor antenna equipped with three ports. The production material used is ABS, protecting the antenna from temperatures between -40C and +85C. All cables on 2J6041BGFa antenna have an SMA-Male standard connector, a 300cm standard cable length, and are fully customizable by offering additional connector types, cable lengths, and cable types. This antenna is ground plane independent making it suitable for installation anywhere on any surface. It does not require any metallic surface for its installation. The screw mount allows for easy installation and removal. It is a robust, reliable, and durable antenna even in extreme environments. The 2J6041BGFa is IP67 certified and RoHS compliant.
