Key Features

  • Self-Adhesive
  • Ultra Wide band Antenna
  • High Performance
  • Ground Plane Independent
  • Fiberglass Material
  • Customizable Cable and Connector
  • Rigid Embedded Antenna
  • Antenna and electrical specifications

    connection 1

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-14.8, ~-12.2, ~-8.1, ~-7.3
    VSWR ~1.5:1, ~1.8:1, ~4.0:1, ~3.2:1
    Efficiency (%) ~52.9, ~65.7, ~38.3, ~33.5
    Peak Gain (dBi) ~1.6, ~4.0, ~1.6, ~3.4
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 25

    5GNR Antenna Bands list

    Parameters 5GNR Antenna
    Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
    Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
    1900, 2000, 2100, 2300,
    2500, 2600
    3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
    5GNR Bands n5, n8 ,12, n20, n28, n71,
    n81, n82, n83,
    n1, n2, n3, n7, n25, n34,
    n38, n39, n40, n41, n50,
    n51, n66, n70, n74, n75,
    n76, n80, n84, n86
    n77, n78, n79
    4GLTE Bands B5, B6, B8, B12, B13, B14,
    B17, B18, B19, B20, B26,
    B27, B28, B29, B44, B67,
    B68, B71, B85
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B23, B24,
    B25, B30, B32, B33, B34,
    B35, B36, B37, B38, B39,
    B40, B41, B45, B50, B51,
    B65, B66, B69, B70, B74,
    B75, B76
    B22, B42, B43, B48,
    B49, B52
    B46, B47, B252, B255
    3GCELL Bands B5, B6, B8, B12, B13, B14,
    B19, B20, B26
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B25, B32,
    B33, B34, B35, B36, B37,
    B38, B39, B40
    B22
    2GCELL Bands 710, 750, 810T, 850, 900P,
    900E, 900R
    1800DCS, 1900PCS
    CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
    BC10, BC12, BC18, BC19
    BC1, BC4, BC6, BC8,
    BC13, BC14, BC15, BC16,
    BC20, BC21




    Antenna Description

    2JP1083P

    Bringing Superior Performance and Simple Device Integration to 5GNR Technologies

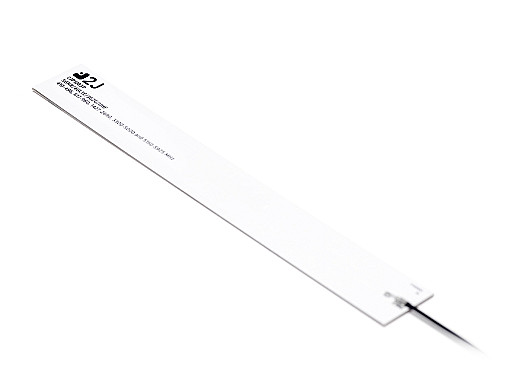

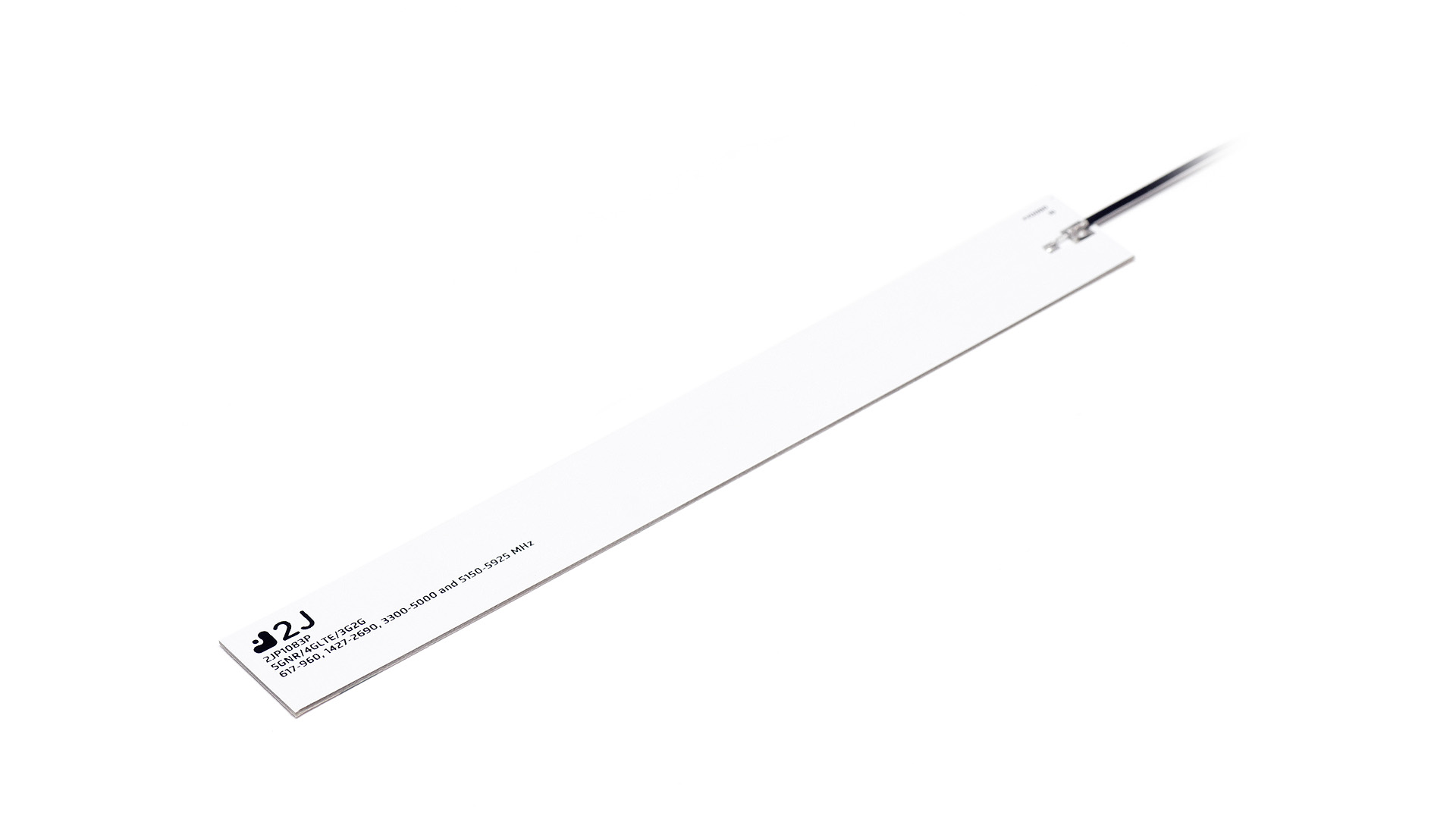

    The next-generation 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G rigid fiberglass antenna (2JP1083P) operates within 617MHz - 5925MHz frequencies for Sub6GHz spectrum via omni-directional radiation pattern. This antenna is fully compatible with existing LTE networks and integrated with Cat-X in addition to the new 5GNR technology enhancing mobile broadband and ultra-reliable low-latency communications, making it ideal for FirstNet core network devices that offer interoperable public safety communications required in the public safety devices.

    Suggested applications include:

    - Industrial / Commercial and Residential IoT
    - Consumer Electronics / Wearables
    - Public Safety Broadband Devices
    - Business / Home Automation Devices
    - Transportation / Automotive
    - Robotics / Automation
    - Drones and UAV’s

    This high-performance antenna is offered in a peel-and-stick configuration that provides a low cost, high efficiency, superior reliability, and low device power consumption making it the first choice for high volume device manufacturers.

    Installation and Durability

    With ultra-compact dimensions of 155 × 19.5 × 0.9mm, high-grade adhesive mounting and ground plane independence allow for a wide range of installation configurations inside of plastic housings where space is restricted, including sidewalls. Also available in alternative sizes to target the various verticals and devices found in quickly changing IoT industries.

    Designed with rigid fiberglass RF materials and also available in high-grade flexible polymer, this antenna gives resistance to chemicals in corrosive applications making it ideal for outdoor or indoor devices that operate within moist environments and temperatures ranging from -40C to +85C.

    For optimal performance, we recommend maximizing the position, orientation, cable routing and the tuning of matching components during the antenna integration process, please contact our Sales Department. The 2JP1083P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length.

    Our team of experts is available to assist in customization options by offering a wide range of alternative connectors and cables for absolute customer satisfaction. We offer antenna integration services including full antenna parameter reports for impedance and OTA (over the air) measurements.

    2J Antennas supports the health of our environment and production staff by manufacturing all our products without hazardous materials while maintaining full  REACH and RoHS compliance.
