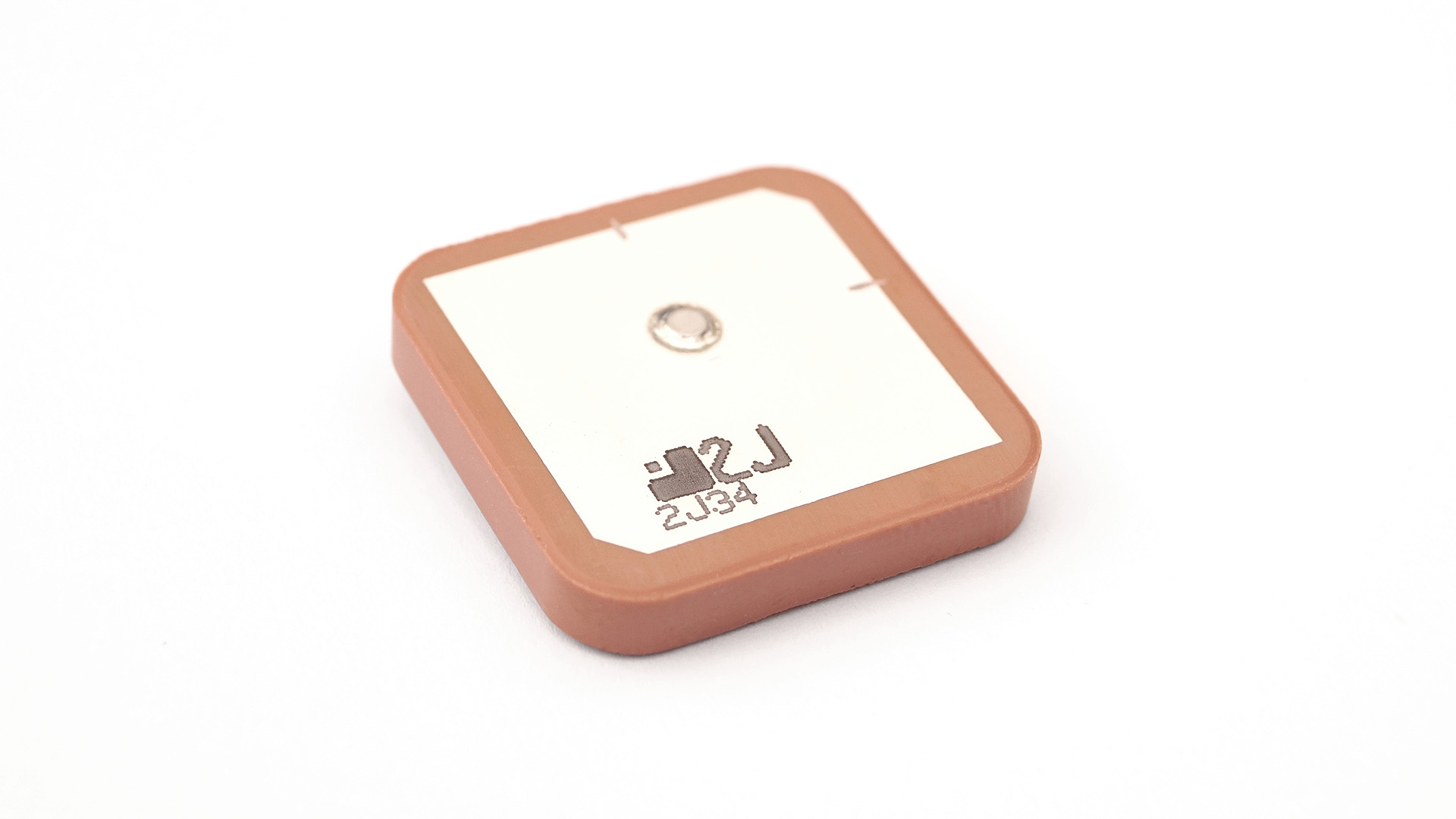

2JCP2540101a Antenna

GPS/Galileo 1575 MHz High Gain Ceramic Passive Antenna

General specification
Frequency
GPS/QZSS/Galileo/L1
Mounting Thru-Hole Mount Ceramic
Note Specification only for the 2JDK0201a-A28 Development Kit
Dimensions (mm) 25 x 25 x 4
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • High Gain
  • GPS/QZSS/Galileo
  • Ceramic Passive Antenna
  • Thru-Hole Mount
  • 25 × 25 × 4 mm
  • Ground Plane Dependent
  • Antenna and electrical specifications

    connection 1

    GPS - Ceramic Passive Antenna

    Standards GPS/QZSS/Galileo
    Frequency 1575.42
    Passive Gain (dBi) ~3.9
    Efficiency (%) ~69
    50
    Radiation Pattern Hemispherical
    Axial Ratio (dB) 3 max
    Polarization RHCP
