Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%) ~44.1, ~56.3, ~44.0, ~42.4
Peak Gain (dBi) ~1.4, ~3.6, ~3.4, ~3.8
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 35

Key Features

Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
3.8 dBi 5G NR Peak Gain
High Performance
Heavy Duty antenna
Lightweight Plastic Base
Configurable Mount options
Pole Mount plastic bracket included
Suitable for pole with max Ø43 mm
Adhesive Mounting sticker included
Anti-Rotation Mounting
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

The Next-Gen Robust Solution For 5GNR Applications

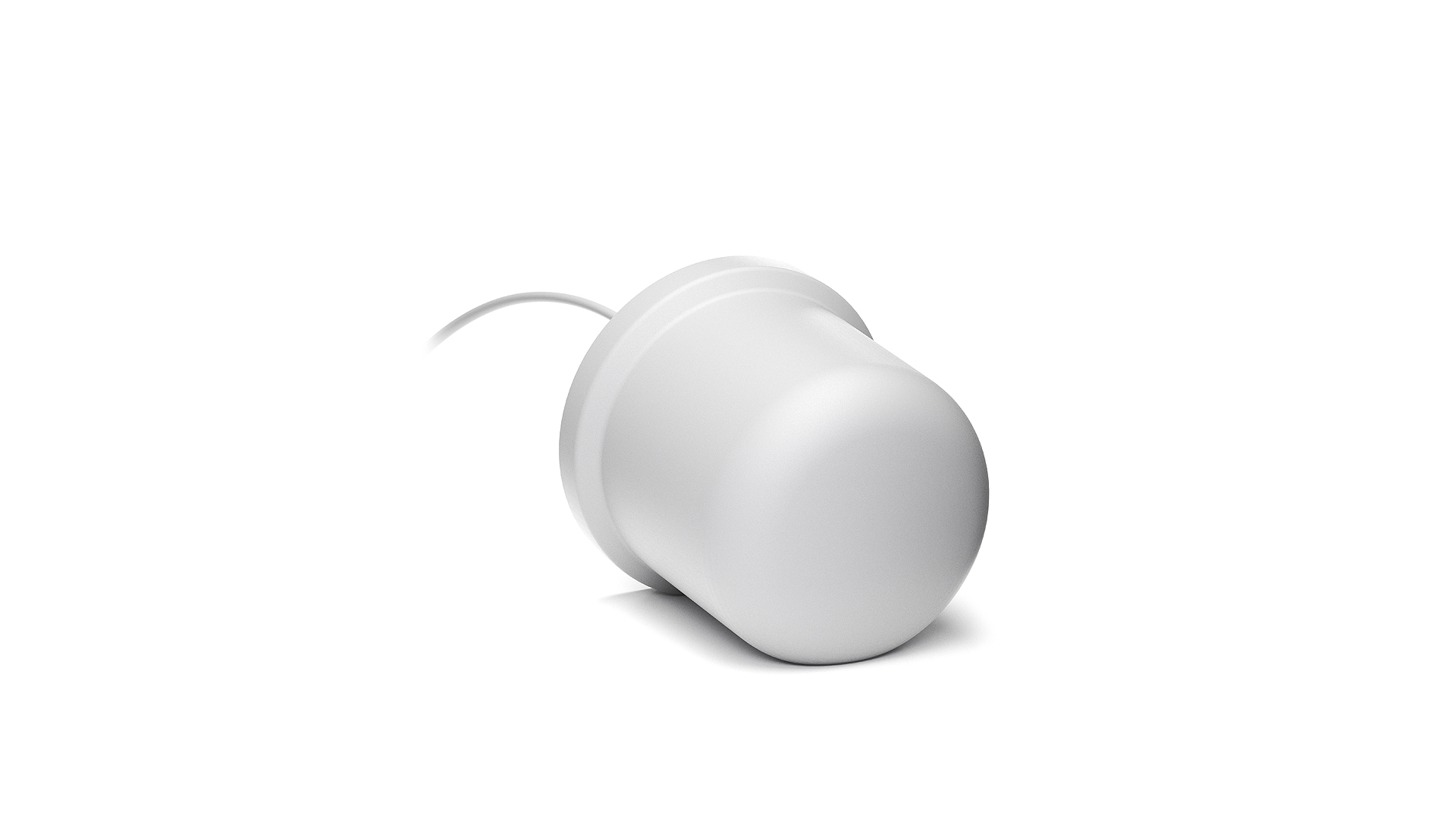

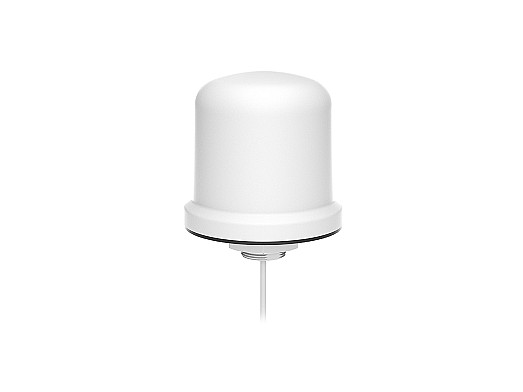

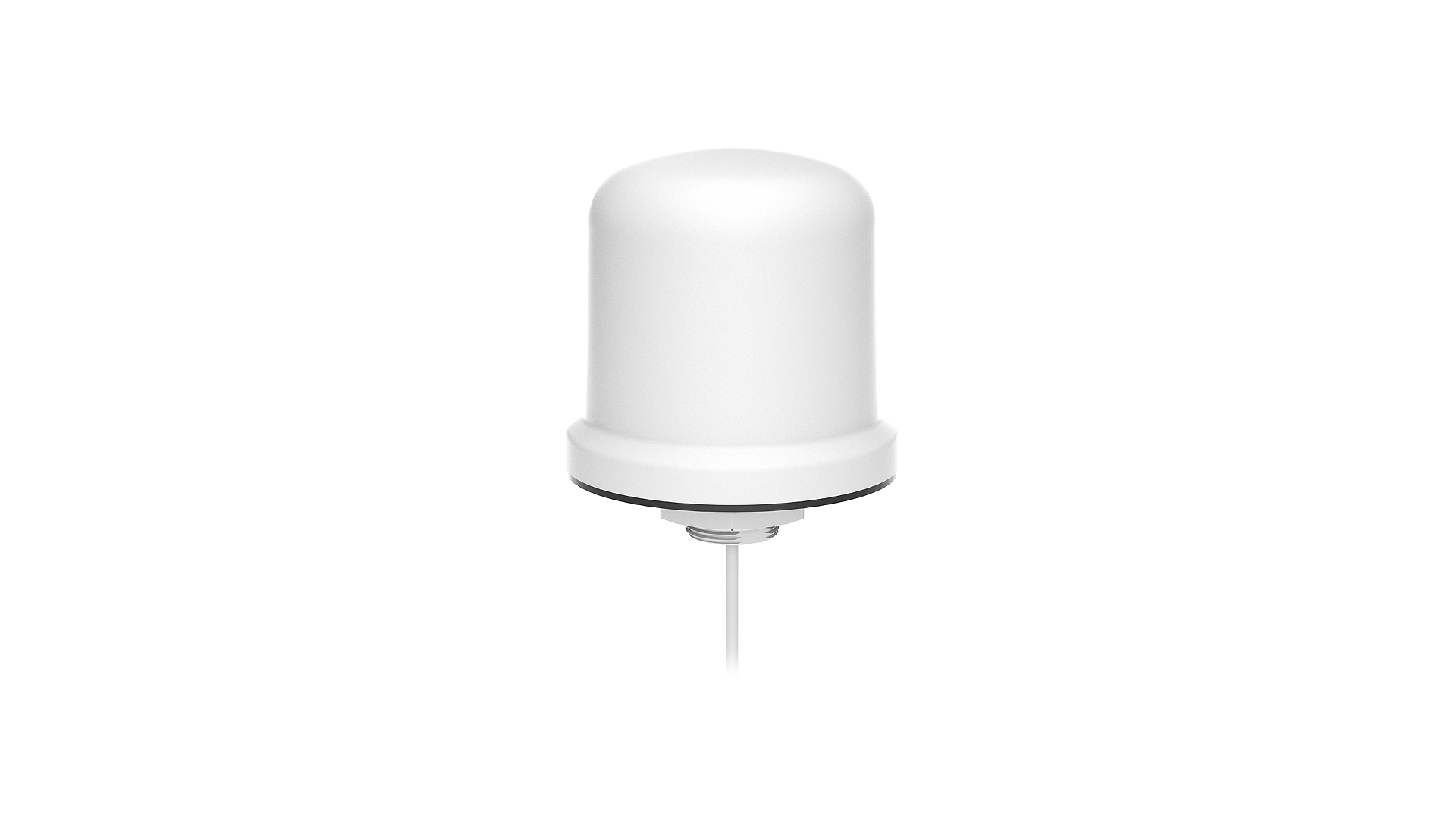

This single external cellular 5GNR antenna delivers faster and more responsive mobile broadband experiences. 2J7A83JB-B16J delivers powerful worldwide cellular connectivity and is compatible with 5GNR/4G LTE, 3G and 2G bands (617-5925 MHz frequency range). These features make it a superior candidate for the next generation of terrestrial mobile services including high-end public safety applications such as police, ambulance, fire services, transportation, critical communications, and other industries. The easy-to-install heavy-duty design and SMA-Male High-Performance antenna integrates durability and efficiency into a temporary or permanent solution.

2J7A83JB-B16J provides a peak gain of up to 3.8 dBi and achieves an efficiency of up to 56.3%.

Suggested Applications:

  • Terminals, Base Stations and Routers
  • Emergency Services
  • Industrial, Commercial and Residential IoT / Smart Home
  • Electrical and Environmental Monitoring
  • RFID Asset Tracking
  • Industrial Automation
  • Robotics
  • Real-Time Remote Control
  • V2V, V2X and Fleet Management
  • Rail Vehicles

Cables 1: 5GNR

Cables 1 is designed for 5GNR devices that operate within all 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G and 2G standards (617 – 5925 MHz). It comes with standard 300 cm long LL195 Standard cable, a popular choice for in high-frequency applications up to 6 GHz.

Installation / Environmental

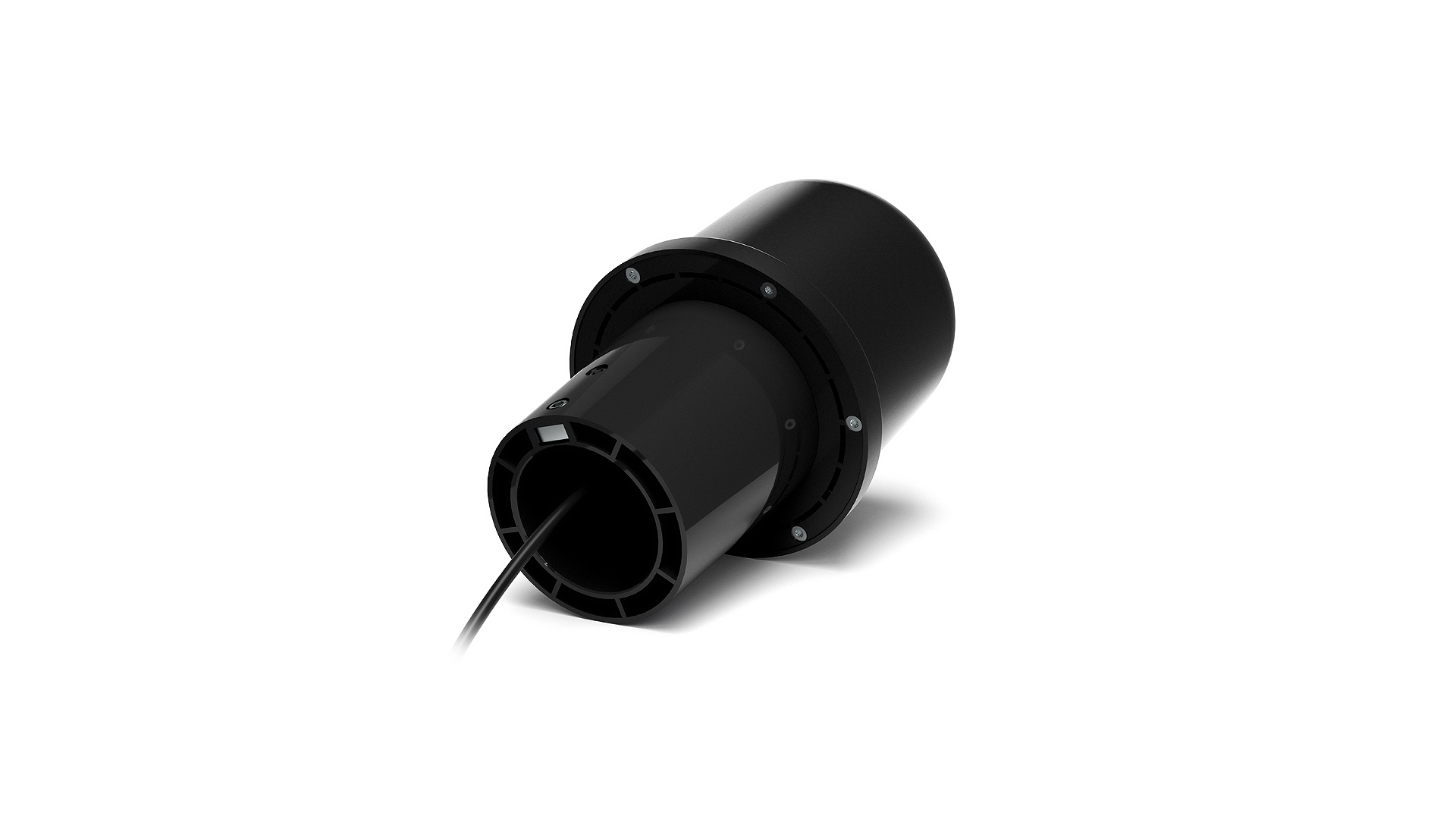

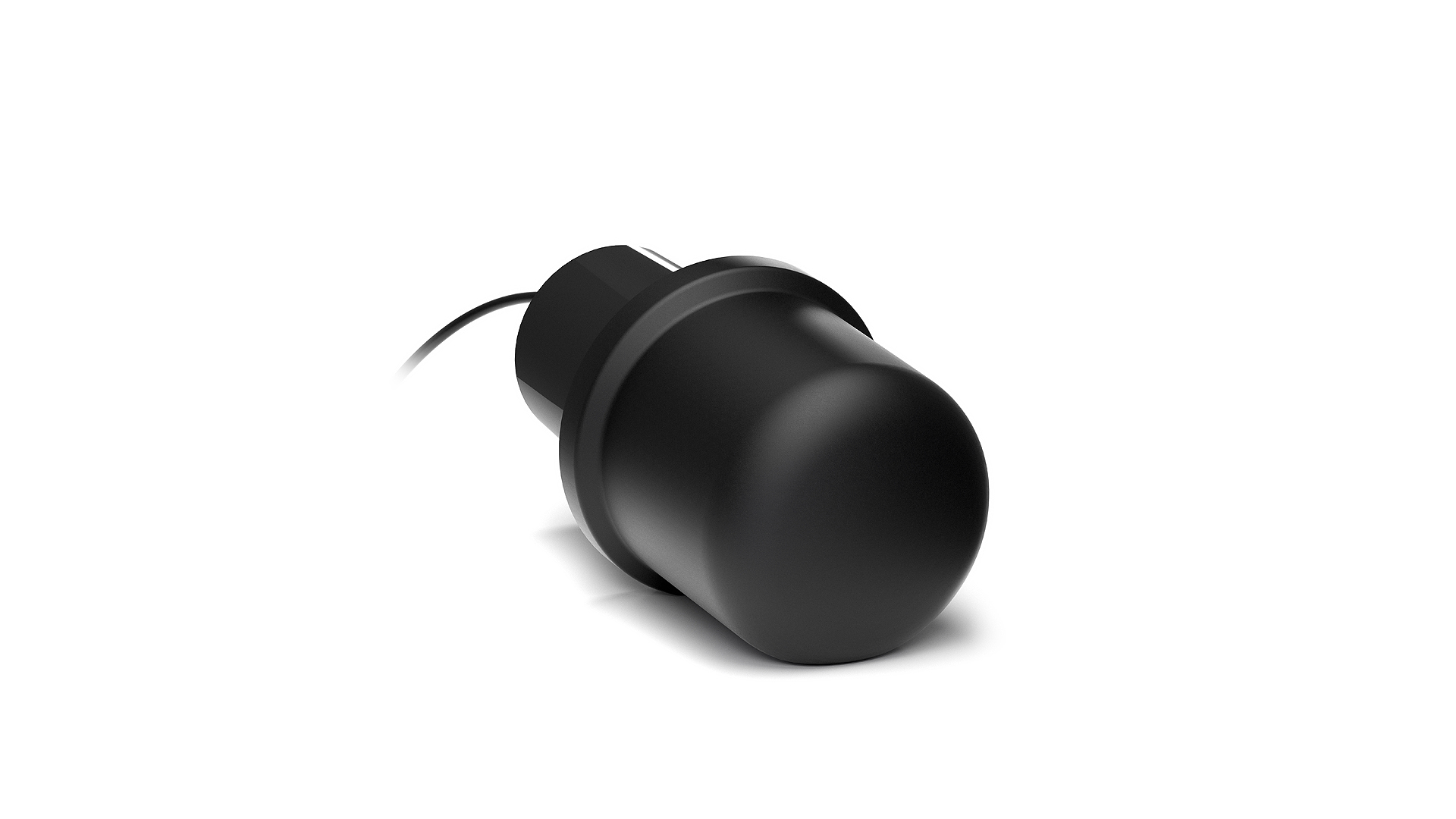

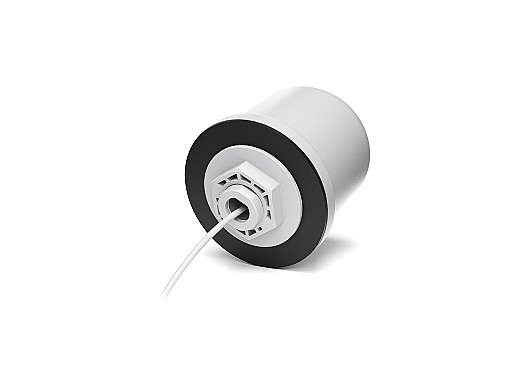

Measuring only Ø 96 x H 91 mm (screw mount) and Ø 96 x H 160 mm (pole mount), the 2J7A83JB-B16J is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and pole mount bracket allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. The screw mount includes an anti-rotation mechanism. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
