Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~4.2:1, ~2.2:1, ~1.6:1
Efficiency (%) ~50.3, ~65.5, ~61.7
Peak Gain (dBi) ~2.9, ~4.4, ~4.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 10

Key Features

Monopole Antenna
Ground Plane Dependent
Wide band Antenna
698-2700 MHz 4GLTE Bands
4.6 dBi 4G LTE Peak Gain
High Efficiency
Small Form Factor
Hinged Connector
Fakra D-Bordeaux Female connector

Applications

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

High-Efficiency Cellular Monopole Solution For Worldwide 4G LTE With Backward Compatibility

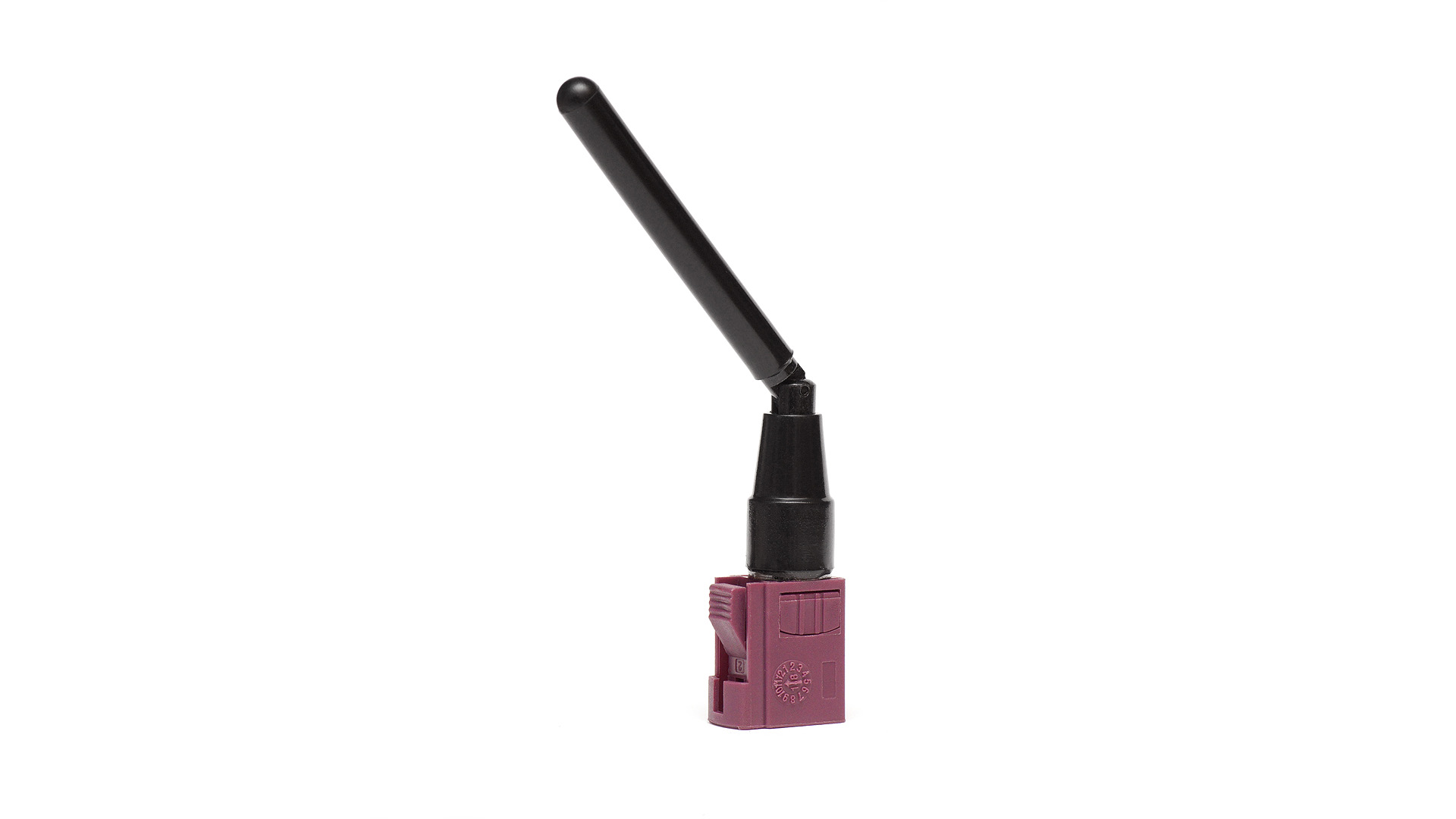

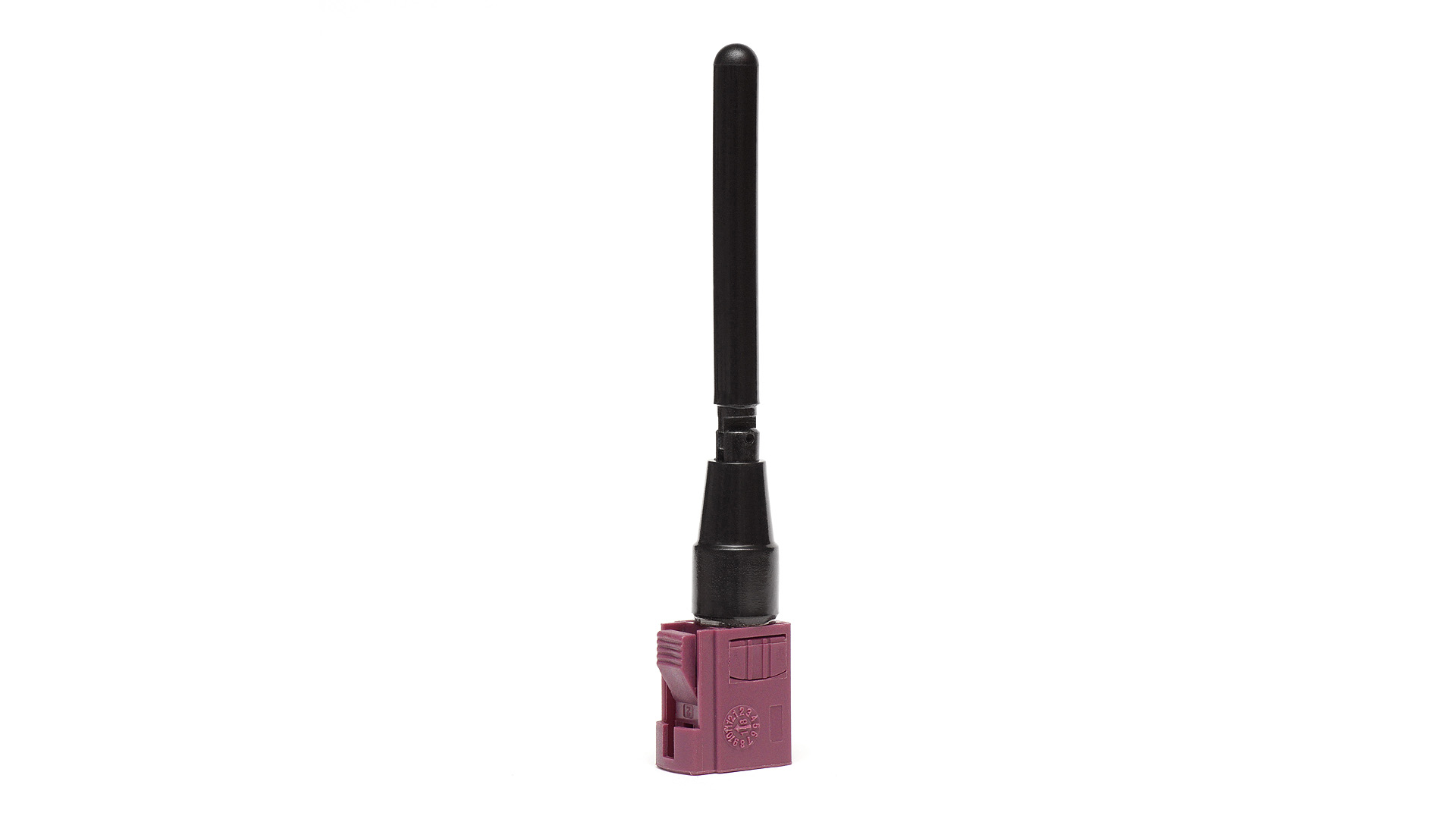

The 2JW1024-FKD is a wide band, high efficiency hinged fakra connector mount antenna solution for worldwide 4G LTE, 3G, 2G compatibility, covering all cellular bands ranging from 698-960, 1710-2170, and 2500-2700 MHz. This low-profile, high-performance antenna enables two-way cellular communication while on the move and is highly recommended for industrial and transportation applications.

2JW1024 has high efficiency of up to 65.5% across all operating bands and offers 4.6 dBi 4G LTE peak gain. This cellular/LTE antenna has high efficiency and omnidirectional radiation making it suitable for a wide range of applications. It gives the antenna consistent and stable connectivity with high throughput data to access points, routers, small base stations, femtocells, repeaters, boosters, fleet management devices, and other telematics devices with cellular needs.

Suggested applications include:

  • Vehicle communication
  • Video and audio streaming
  • Fleet management
  • Kiosks and vending machines
  • Transportation
  • Security and monitoring systems

Installation / Environmental

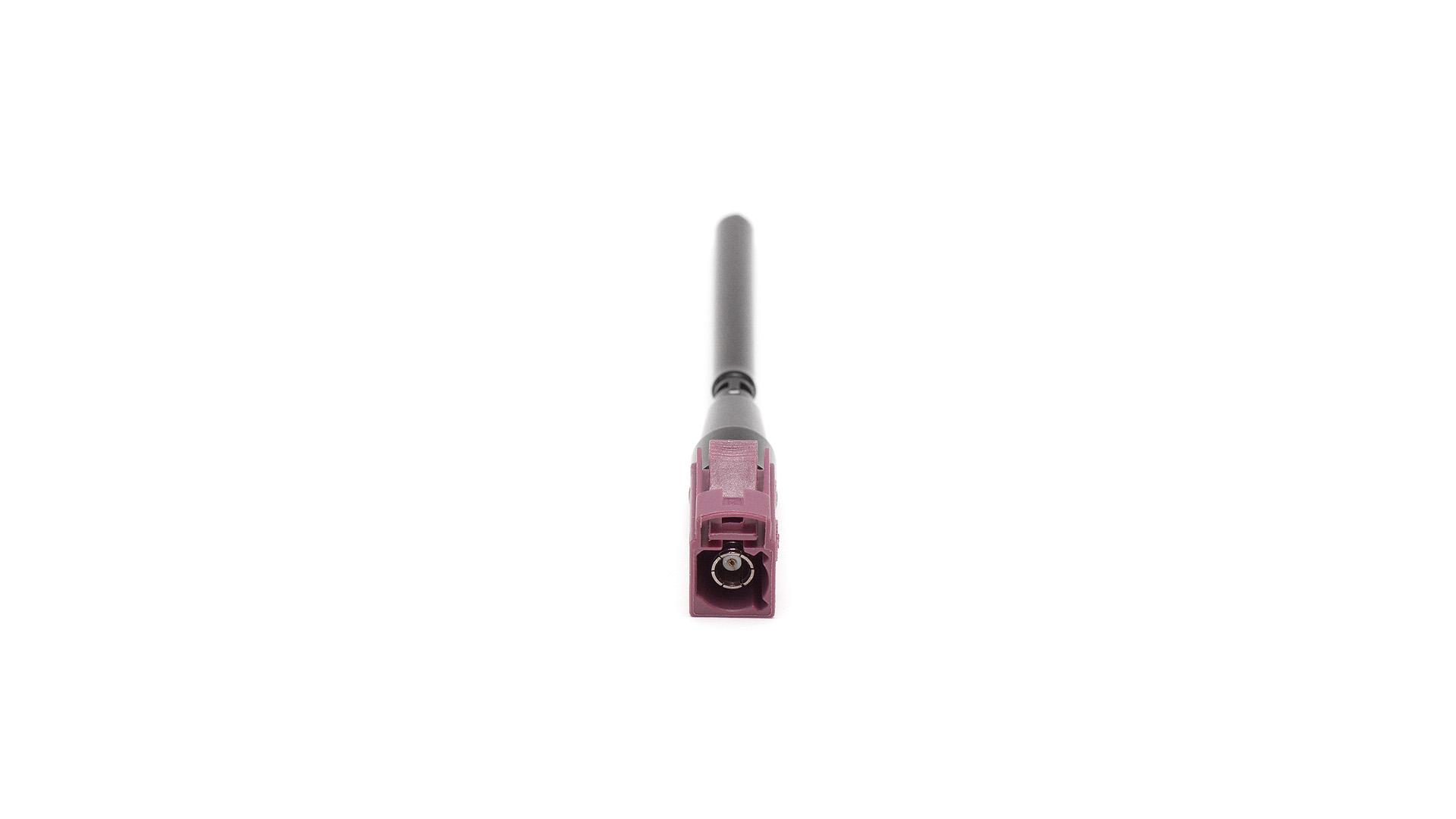

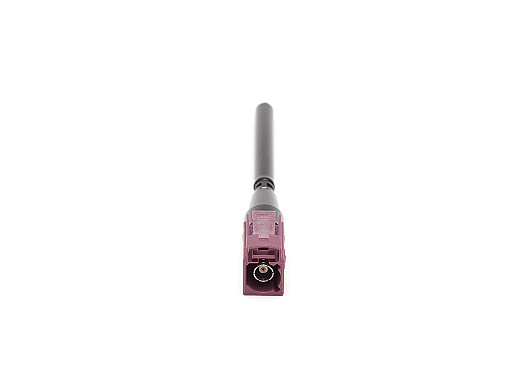

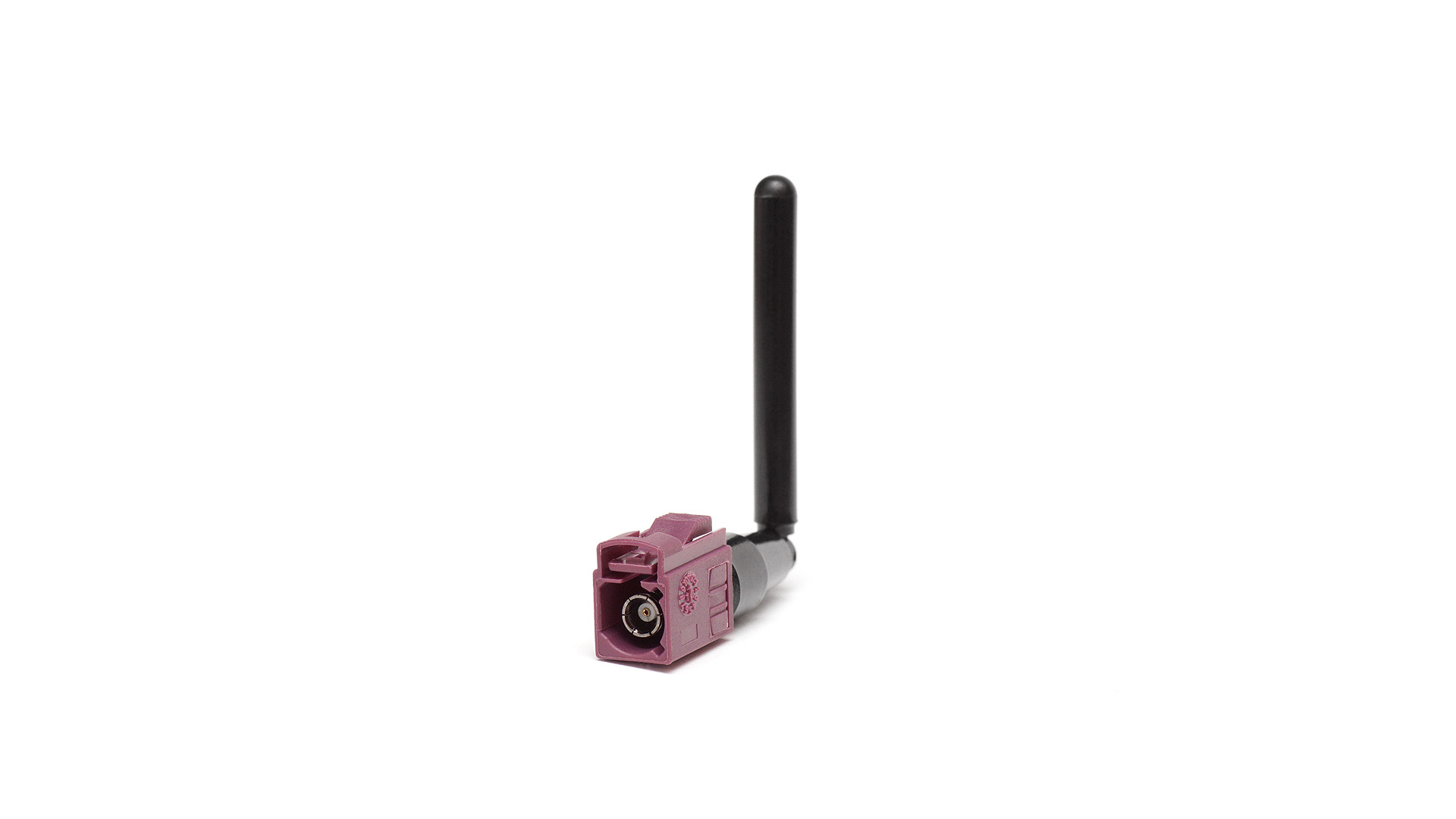

With a Fakra Code D Female swivel hinged connector as standard, this antenna is ideal for any device requiring reliable performance in a slim form factor. This connector is designed to be rotatable and with a 0° to 90° tilt position range. Fakra connectors are the leading choice for automotive applications due to their resistance to vibration and secure and effortless latch and click mechanism. This antenna comes with a polyoxymethylene (POM) base, which is 100% recyclable and is designed for high stiffness with a low coefficient of friction, excellent wear resistance, and dimensional stability. The hinge mechanism allows the antenna to be rotated into the desired orientation which helps to avoid other antennas or objects. This mechanism also helps improve isolation when used in MIMO systems or when other antennas are also present on the same device.With low profile dimensions of 81 × 14 × 10 mm, this ground plane-dependent antenna has a super small form factor. This antenna is designed without any hazardous materials making it fully REACH and RoHS compliant.
