Antenna and electrical specifications

connection 1

TETRA/UHF

Standards TETRA/UHF
Frequency 380-470
VSWR ~6.0:1
Efficiency (%) ~38
Peak Gain (dBi) ~-1.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Public safety TETRA Antenna
Dipole Antenna
Ground Plane Independent
-1.2 dBi TETRA Peak Gain
Narrowband Antenna
Tunable to Desired Center Frequency

Antenna Description

Tunable Power Antenna For  Optimized Public Safety Trunked Radio Communication Systems

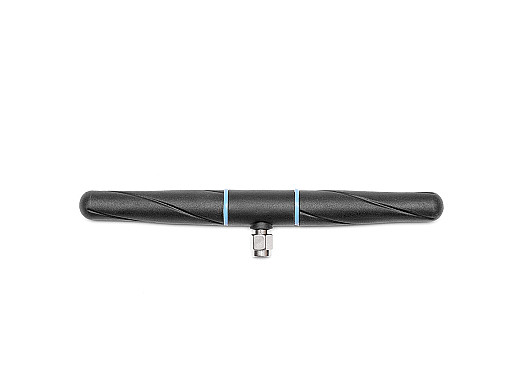

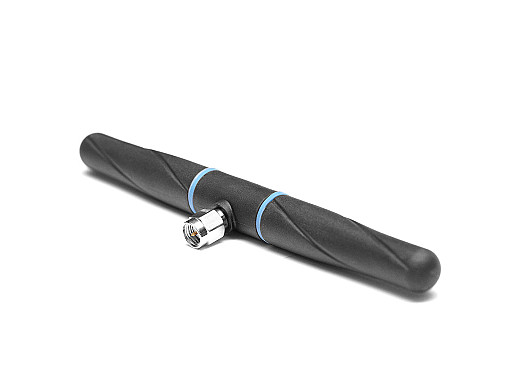

2JD0710-C728N is a low profile; high quality robust antenna that can be used for indoors and outdoor coverage with TETRA (Terrestrial Trunked Radio) and other UHF systems. As its ground plane independent, the antenna performance has been designed to take advantage of any metal surfaces it attaches to deliver best of class performance. The 2JD0710-C728N is a narrowband dipole antenna that gives stable radiation characteristics making it ideal for a large range of indoor multi channel UHF repeater networks. The antenna is available with connector mounting for easy installation. Highly efficient, it is ideal for low power applications as well as TETRA applications. This antenna is ideal for fixed mobile convergence.

Suggested Applications

  • Public Safety
  • Critical Communication
  • Law Enforcement
  • Remote Telemetry
  • Public Transportation
  • Military and commercial usage
  • Commercial and industrial applications

The 2JD0710-C728N connector mount is a high gain Omni directional dipole antenna developed for UHF TETRA systems. The 2JD0710-C728N operates within 380MHz–470MHz frequencies. It has an excellent radiation pattern and has been efficiently optimized to give ultimate performance for modern TETRA systems. This dipole design covers the entire Tetra band. This antenna is tunable to desired frequency making it an efficient solution for multiple applications. This antenna is linearly polarized with improved read range.

Installation / Environmental

It is ground plane dependent making it suitable for vehicles and areas with non-metallic surfaces where no ground plane is available. The installation is very easy by simply mounting the antenna with the connector. All cables on 2JD0710-C728N antenna have an SMA-Male standard connector 200cm RG174 cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. The 2JD0710-C728N is manufactured without any hazardous materials and is both REACH and RoHS compliant. It is fully customizable and environmentally sealed with TPE UV stable, protecting the antenna from temperatures between -40C and +85C.
