Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.5:1
Efficiency (%) ~50.7, ~52.6, ~50.6
Peak Gain (dBi) ~1.3, ~4.8, ~5.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.4:1
Efficiency (%) ~50.7, ~52.7, ~58.4
Peak Gain (dBi) ~0.9, ~4.4, ~5.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.9:1, ~1.5:1
Efficiency (%) ~40.1, ~45.2
Peak Gain (dBi) ~3.6, ~5.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.8:1, ~1.4:1
Efficiency (%) ~45.4, ~45.7
Peak Gain (dBi) ~4.3, ~5.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 5

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impedance (Ohm) 50
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6

Key Features

5-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
5.5 dBi 4G LTE Peak Gain
5.4 dBi WIFI Peak Gain
High Performance
High Efficiency
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

Introducing The Best in Class Multi-Function Antenna with the Strongest Magnetic Mount on the Market

2J Antennas is adding their newest 5-in-1 Heavy Duty Cellular/LTE MIMO, 2.4/5.0 GHz ISM MIMO and GNSS Antenna (2J7050MGFa) to their “Medusa” series. This multi-function antenna is the ideal solution for applications that require high performance, connectivity, precision, reliability, and usage flexibility all in one compact antenna housing. Designed with a Neodymium magnet, the strongest magnet in the world, this antenna is ideal for automotive applications, metal buildings or any other metal surface installations.

Cable 1 & 2 is dedicated to Cellular/ LTE voice and data communication for devices operating within 4G LTE, 3G and 2G standards. By adding dual cellular capabilities, the antenna can consistently search and pair the strongest signal to assure uninterrupted connectivity regardless of the location and angle. Backwards compatible with existing LTE cellular networks make this antenna a cost-effective solution for existing and future LPWN, IoT and MIMO applications. Efficiency on both cables ranges between ~50.6 to 58.4% with peak gains ranging between ~0.9 dBi to ~5.5 dBi across all designated bands.

Cable 3 & 4 is reserved for 2.4/5.0 GHz ISM applications for low-power, wide-area devices that operate within Wi-Fi, BT, ZigBee, and ISM standards. The dual 2.4/5.0 GHz allows for signals to pick between long- and short-range availability providing uninterrupted connectivity while avoiding overcrowding. Peak gain ranges are ~3.6/~4.3 dBi (efficiency ~40.1%/45.4%) for 2.4 GHz bands and ~5.2/~5.4 dBi (efficiency ~45.2%/~45.7%) for the 5.0 GHz bands across both cables.

Cable 5 is designed for GNSS navigation applications that require highly precise and stable positioning services for devices that operate within the GPS, QZSS, Galileo and Glonass standards. Designed with hemispherical radiation pattern, RHCP and pre-filter, this antenna offers an active gain of ~28 dB @2.7V and ~43 dB out of band rejection. This antenna is ideal for built-up areas where buildings may obscure the view to some GPS signals by locating fixed positions quickly and accurately.

Please view our data sheet for detailed product specifications.



Suggested applications include:

- Telematics
- Cellular Mobile and Internet
- Industrial Machinery and Automation
- Sea Vessels
- Automobile/ Transportation
- Tracking / Mapping
- Data Terminals
- Cordless Phones
- Bluetooth Devices
- Smart Cities
- Wearables
- Critical Communication Services
- Consumer Electronics and Smart Home/Office
- Outdoor building and Roofs



Installation / Environmental

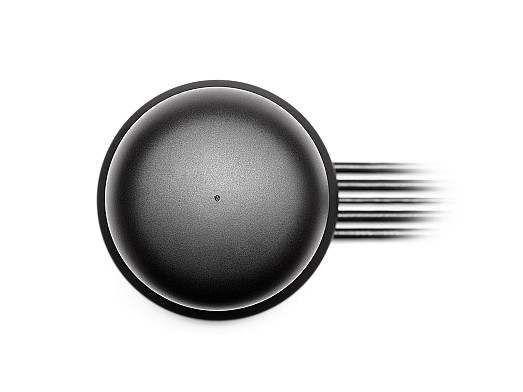

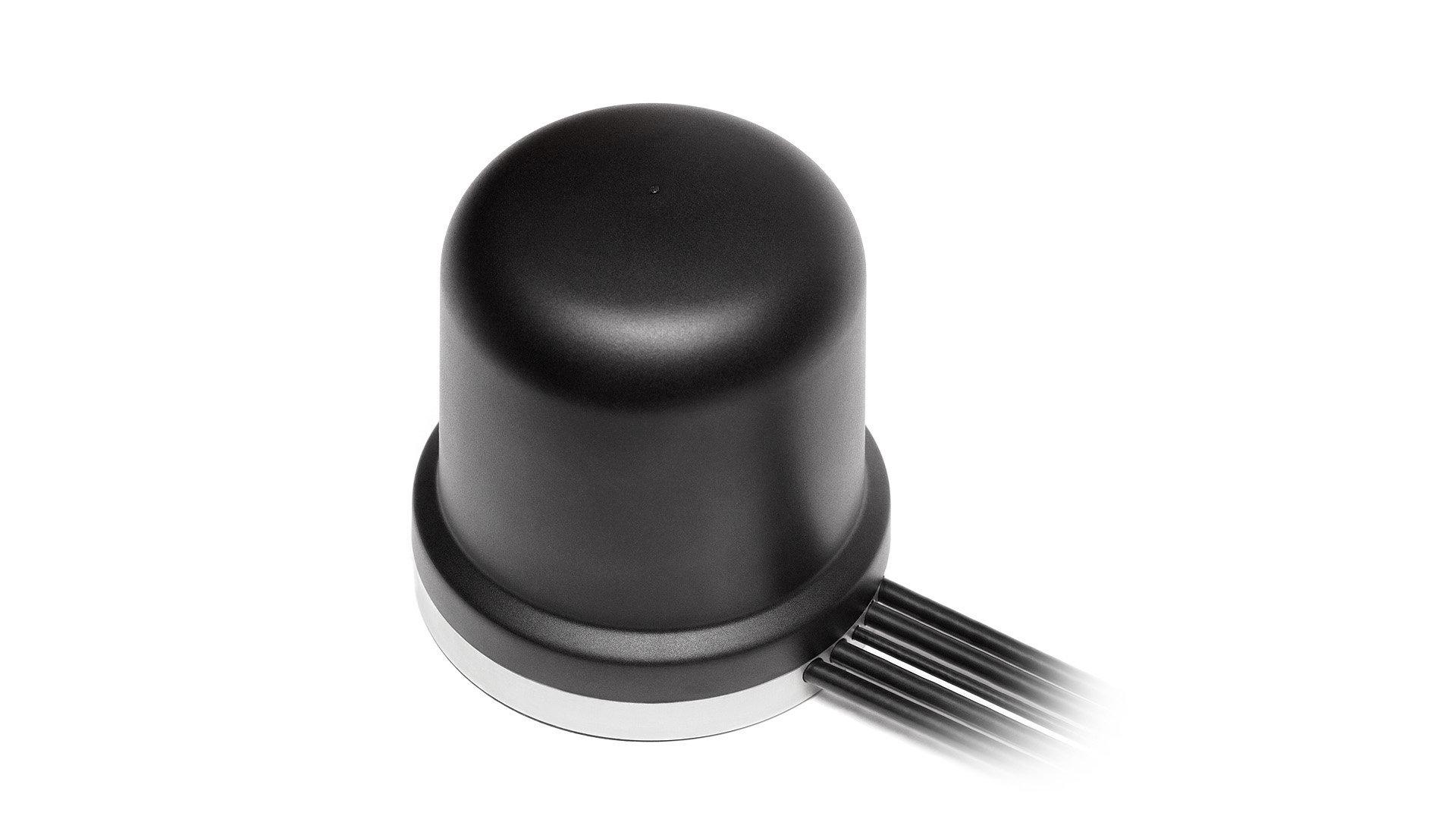

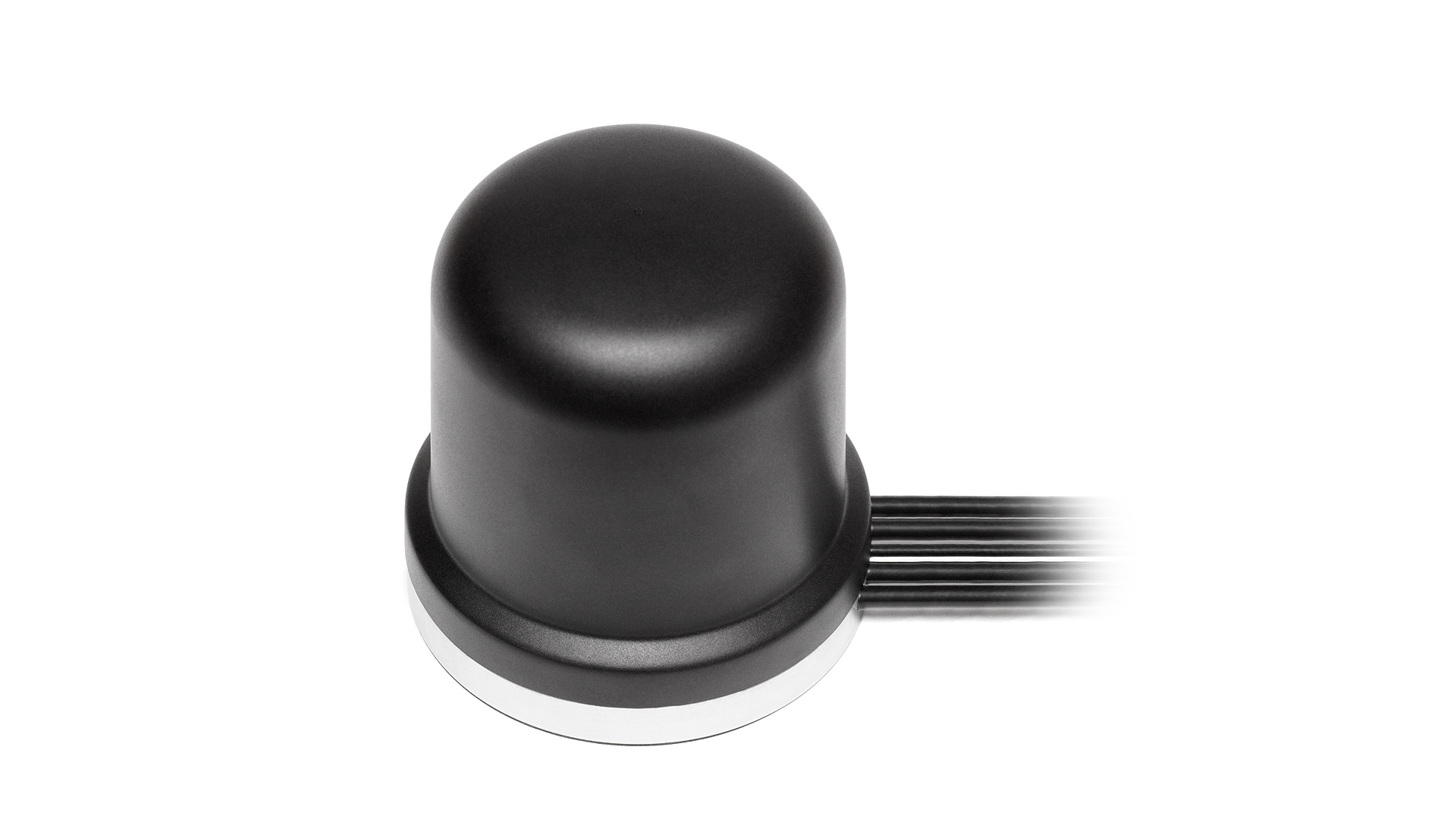

The antenna dome housing (Ø 96 × 102 mm) is manufactured with ASA material offering durability in heavy duty applications and the first choice for rugged outdoor environments. Fully IP67, IP69 and IK09 certified make this antenna waterproof and resistant to dust, high temperature and impact. The antenna base is manufactured with aluminum alloy and comes with a powerful magnetic mount strong enough for permanent installations.  A thin rubber layer on the bottom of the base is included to protect metal surfaces from scratches during installation or removal. 2J7050MGFa is also available with screw, pole and lightweight plastic screw mounting options.

All 5 cables are equipped with standard SMA-Male connector and 300 cm long LL195/LL100 high quality cables designed for low loss and high performance. It is important to select the right antennas for optimal performance and 2J Antennas’ highly trained experts are available to not only offer a wide range of custom connectors and cables but also help with antenna selection needs for a perfect product to customer match.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
