Antenna and electrical specifications

connection 1

FM (88-108 MHz)

Standards AM and FM
Frequency 88-108
Gain (dBi) 0
Impedance (Ohm) 75
Polarisation Linear
Radiation Pattern Omni-Directional

Key Features

Dipole Antenna
Ground Plane Independent
0 dBi FM Gain

Antenna Description

Lossless Dipole Antenna Designed for Optimum Transmission and Reception of FM Radio Signal

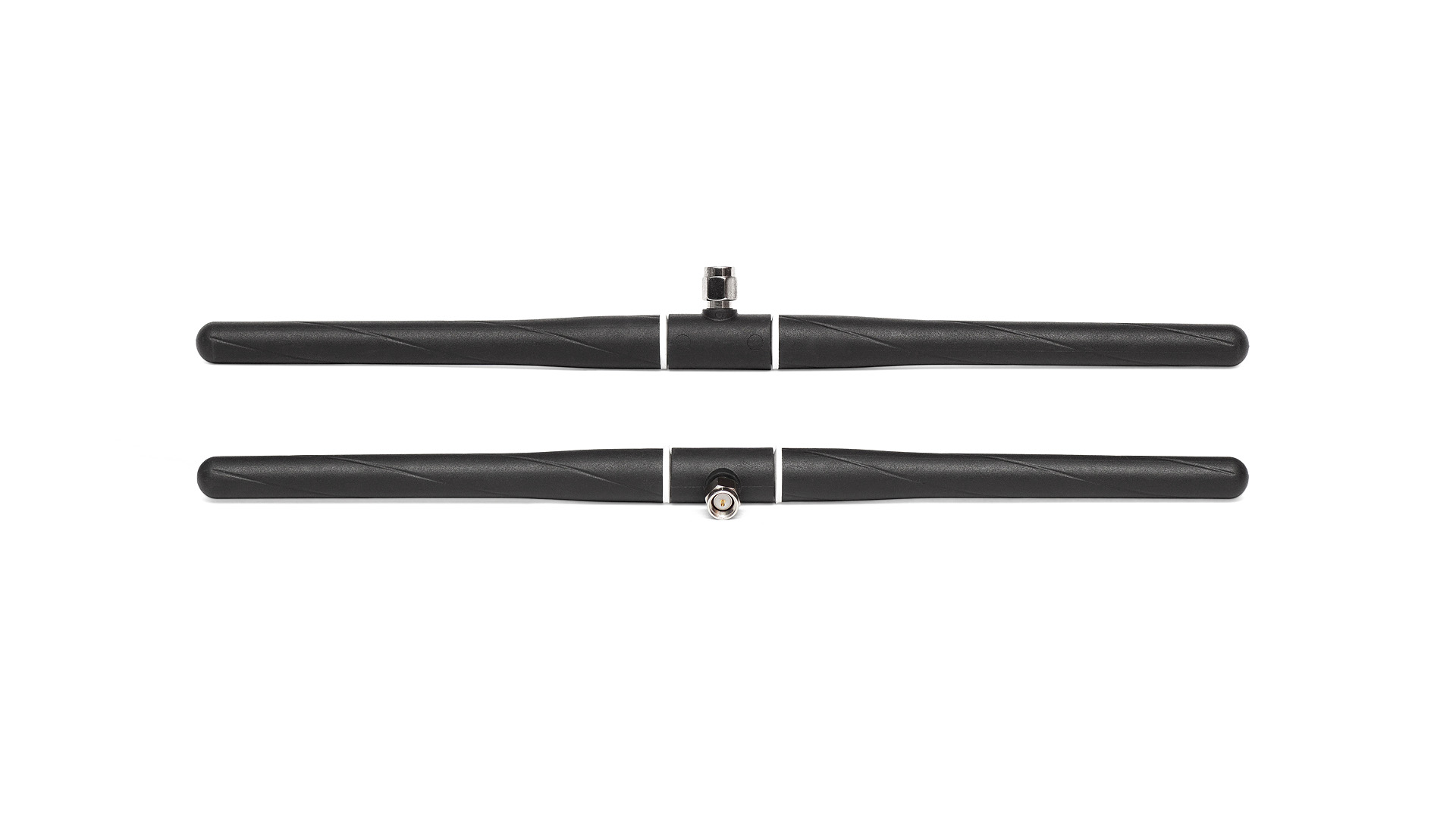

The 2JD0909-C728N is a next-generation, broadcast antenna designed to cover the whole FM band (88-108 MHz). This omni-directional dipole antenna receives a 360°-degree horizontal and vertical signal. With linear polarization, this antenna provides the best read range and allows for simultaneous device operation while maintaining superior quality.

This 0 dBi gain antenna radiates energy equally in all directions and has no preference for radiation in any direction. It can be used as both a transmitter and receiver. This high-performance antenna is an ideal and go-to antenna for both personal and professional use.

Suggested applications include:

  • Telematics
  • Public radio broadcast
  • AM/FM radio uses
  • Radio communication links

Manufactured with high-quality and robust TPE material housing this antenna resists temperatures ranging from -40°C to 85°C. The 2JD0909-C728N antenna is ground plane independent, measures only 13.6 × 258.5 mm and features a connector mount, making it easy to install. This antenna comes with a SMA-Male Standard connector. All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance. The cable and connectors are fully customizable.
