Key Features

  • Smallest in the Market
  • Self-Adhesive
  • Ultra Wide band Antenna
  • High Performance
  • Ground Plane Independent
  • Flexible Material
  • Embedded Antenna
  • Customizable Cable and Connector

Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-9.4, ~-10.5, ~-6.2, ~-11.7
VSWR ~2.4:1, ~2.2:1, ~3.4:1, ~1.9:1
Efficiency (%) ~45.3, ~56.8, ~42.1, ~45.6
Peak Gain (dBi) ~0.1, ~3.1, ~2.1, ~4.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

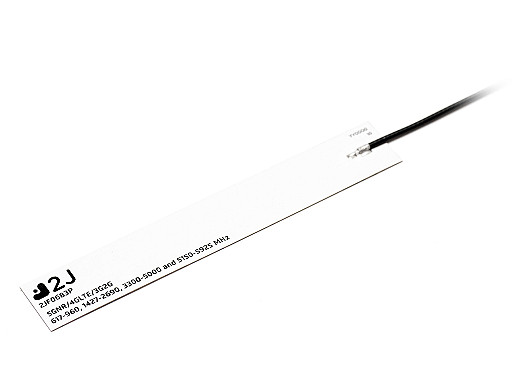

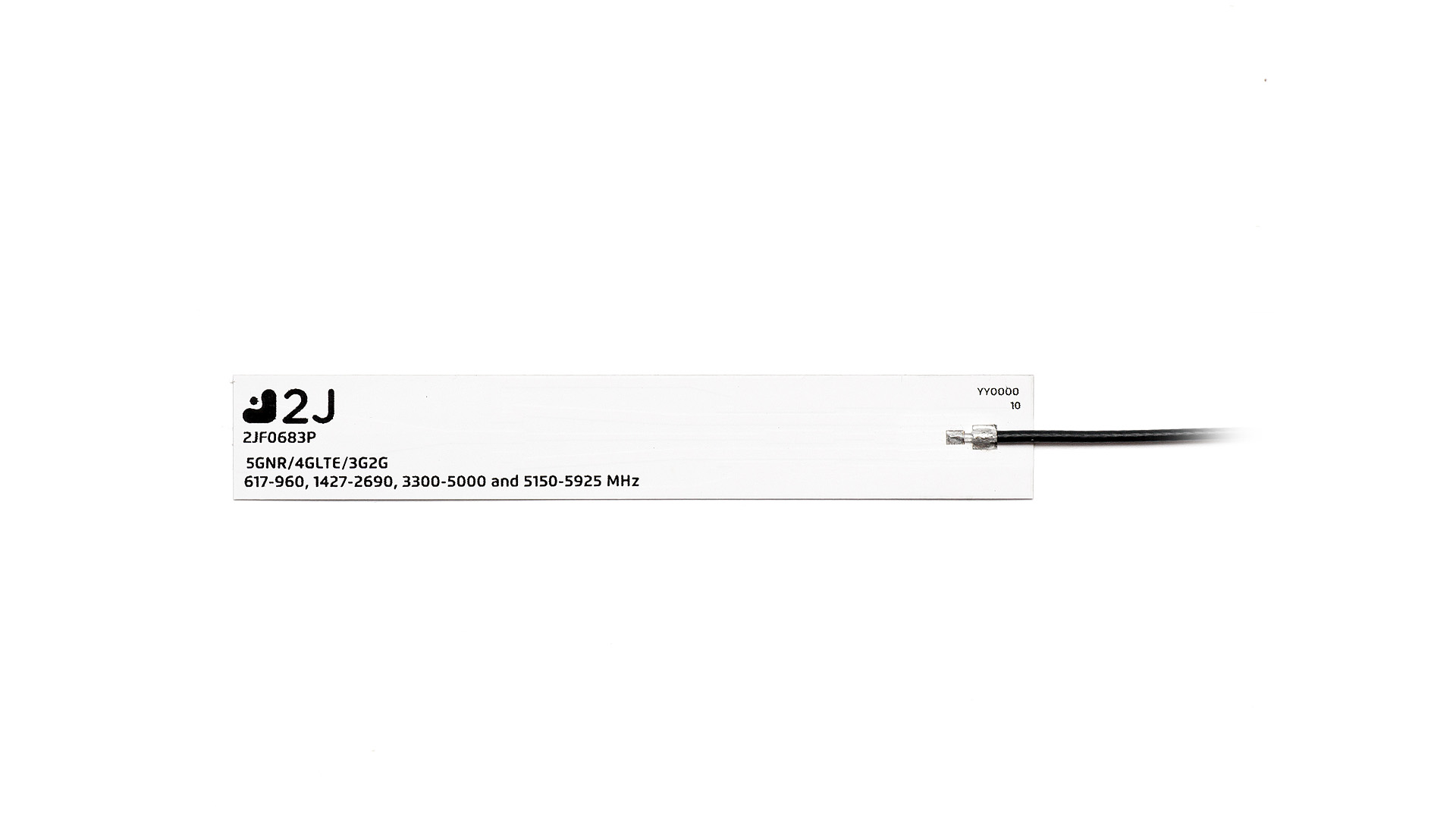

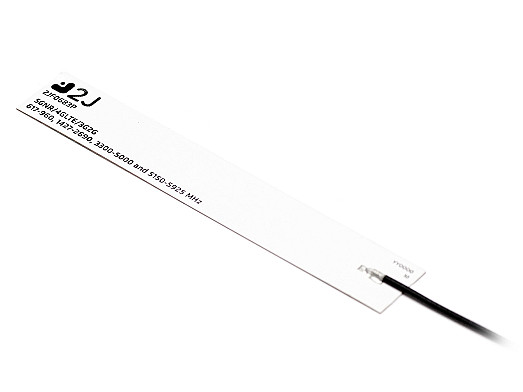

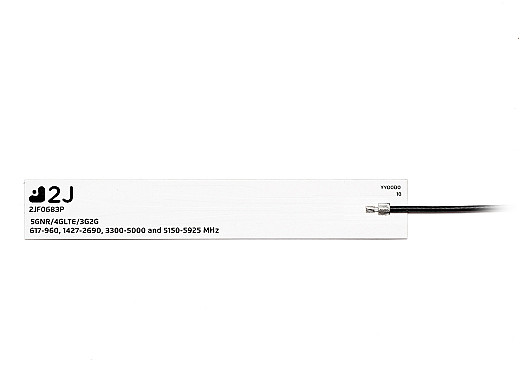

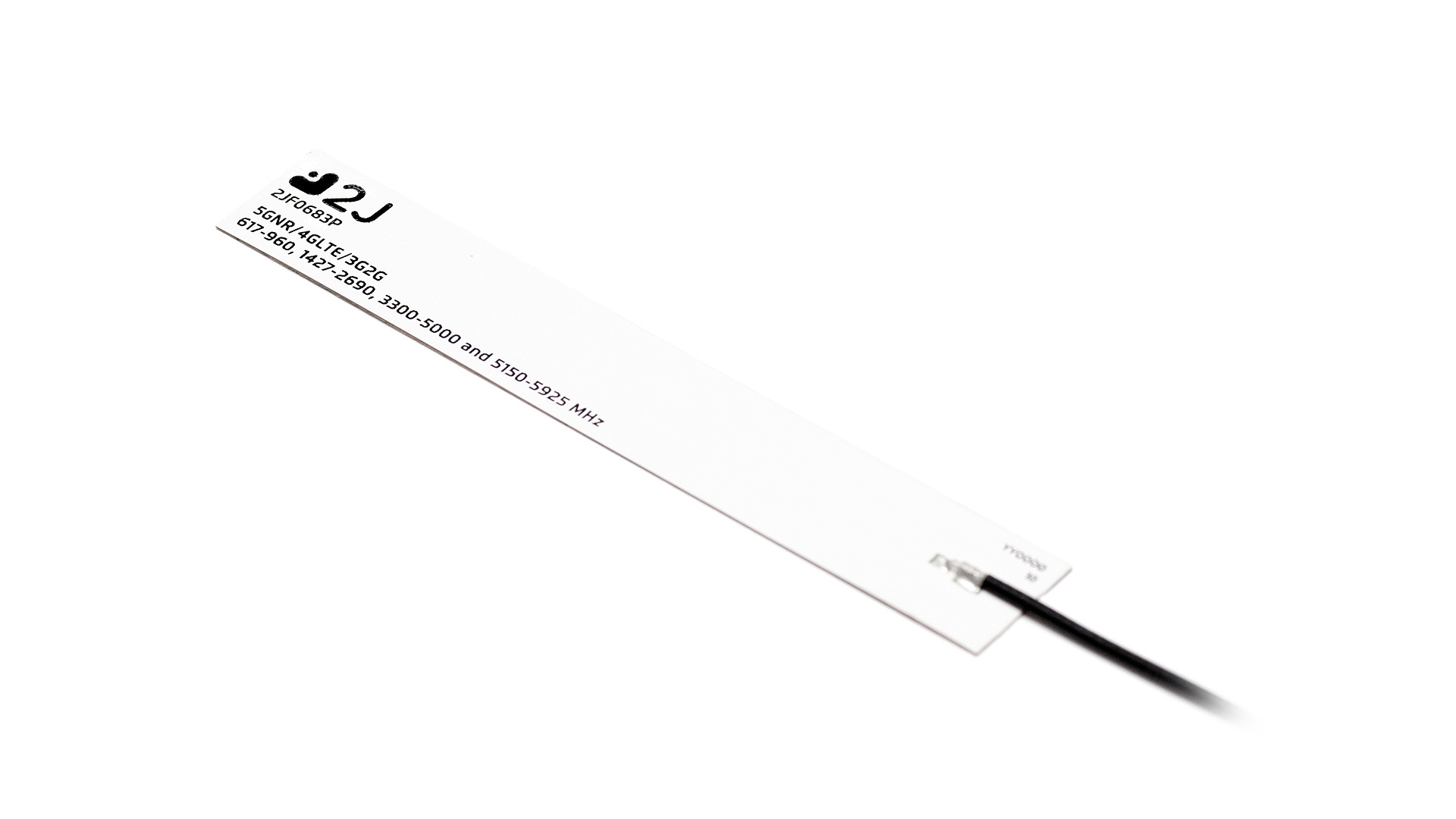

2JF0683P

Introducing the Smallest 5GNR Flexible Antenna on the Market

The ultra-thin mini 5GNR/4GLTE/3G/2G Flexible Polymer Self-Adhesive Antenna (2JF0683P) is designed to provide optimal performance and simplified device integration catered to all global standards. This ultra-compact internal antenna optimizes full-range signal strength and signal quality within 617MHz - 5925MHz frequencies.

Suggested applications include:

- Industrial / Commercial and Residential IoT
- Consumer Electronics / Wearables
- Public Safety Broadband Devices
- Business / Home Automation Devices
- Transportation / Automotive
- Robotics / Automation
- Drones and UAV’s

Installation and Durability

The 2JF0683P is a ground plane independent embedded antenna designed with ultra-thin dimensions of 90 x 14 x 0.2mm and strong adhesive mounting allowing for easy installation to the inside of plastic housings where space is restricted, including curved surfaces.

This antenna is manufactured with high-grade flexible polymer and is also available in rigid fiberglass materials. It can withstand extreme temperatures ranging between -40C and +85C making it ideal for extreme indoor or outdoor applications. The easy peel-and-stick low-cost solution is making it ideal for high volume device manufacturers of consumer, industrial and commercial device applications.

We recommend maximizing the position, orientation, cable routing, and the tuning of matching components during the antenna integration process for optimal antenna performance. Please contact our Sales Department.

The 2JF0683P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length. Our team of experts is available to assist in customization options by offering a wide range of alternative connectors and cables for absolute customer satisfaction. We proudly offer antenna integration services including full antenna parameter reports for impedance and OTA (over the air) measurements. 2J Antennas supports the health of our environment and production staff by manufacturing all our products without hazardous materials while maintaining full REACH and RoHS compliance.
