Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.9:1, ~2.2:1, ~1.3:1
Efficiency (%) ~52.3, ~45.0, ~46.3
Peak Gain (dBi) ~3.1, ~3.5, ~3.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
3.5 dBi 4G LTE Peak Gain
High Performance
Low Profile
Anti-Rotation Mounting
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

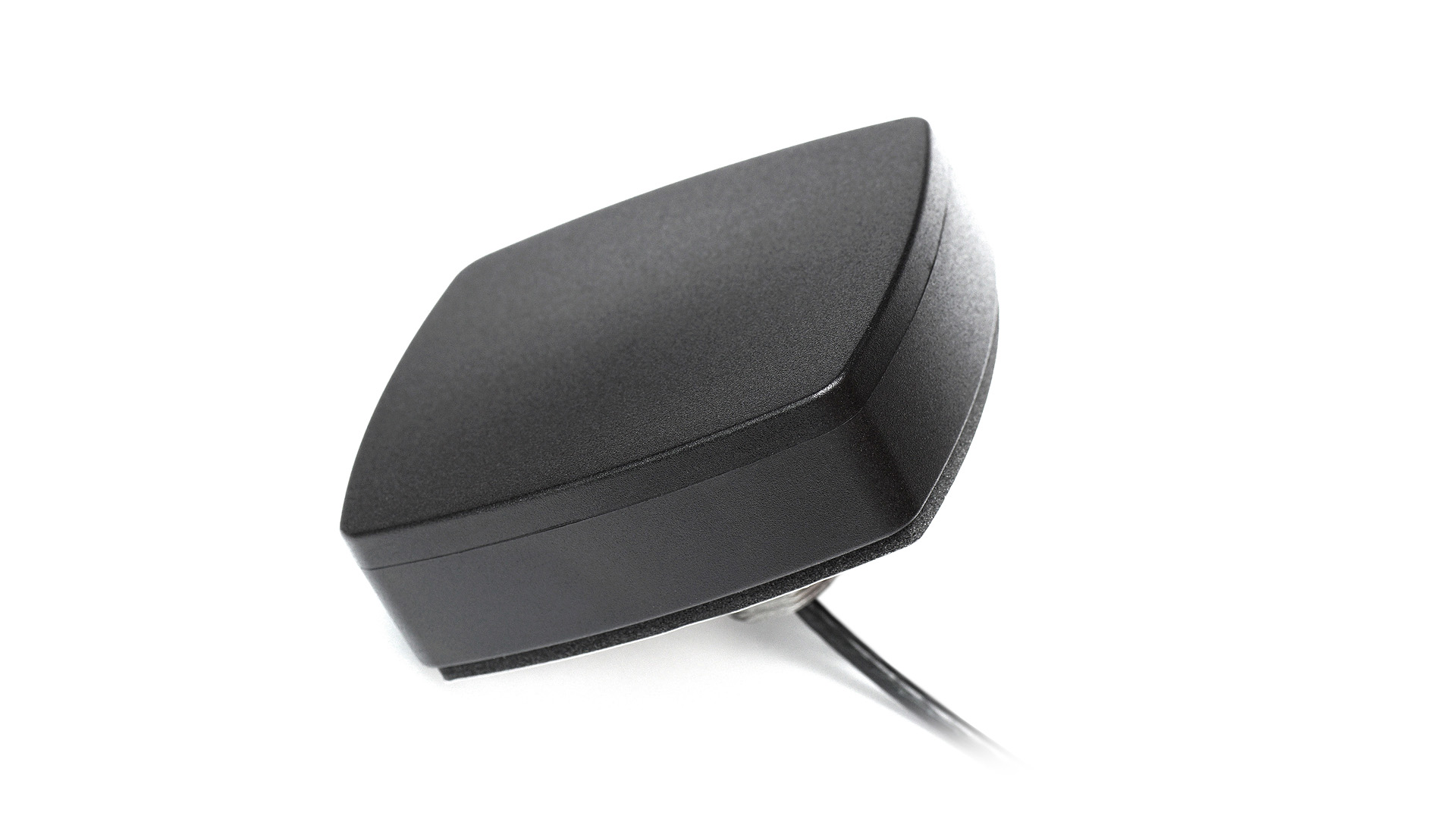

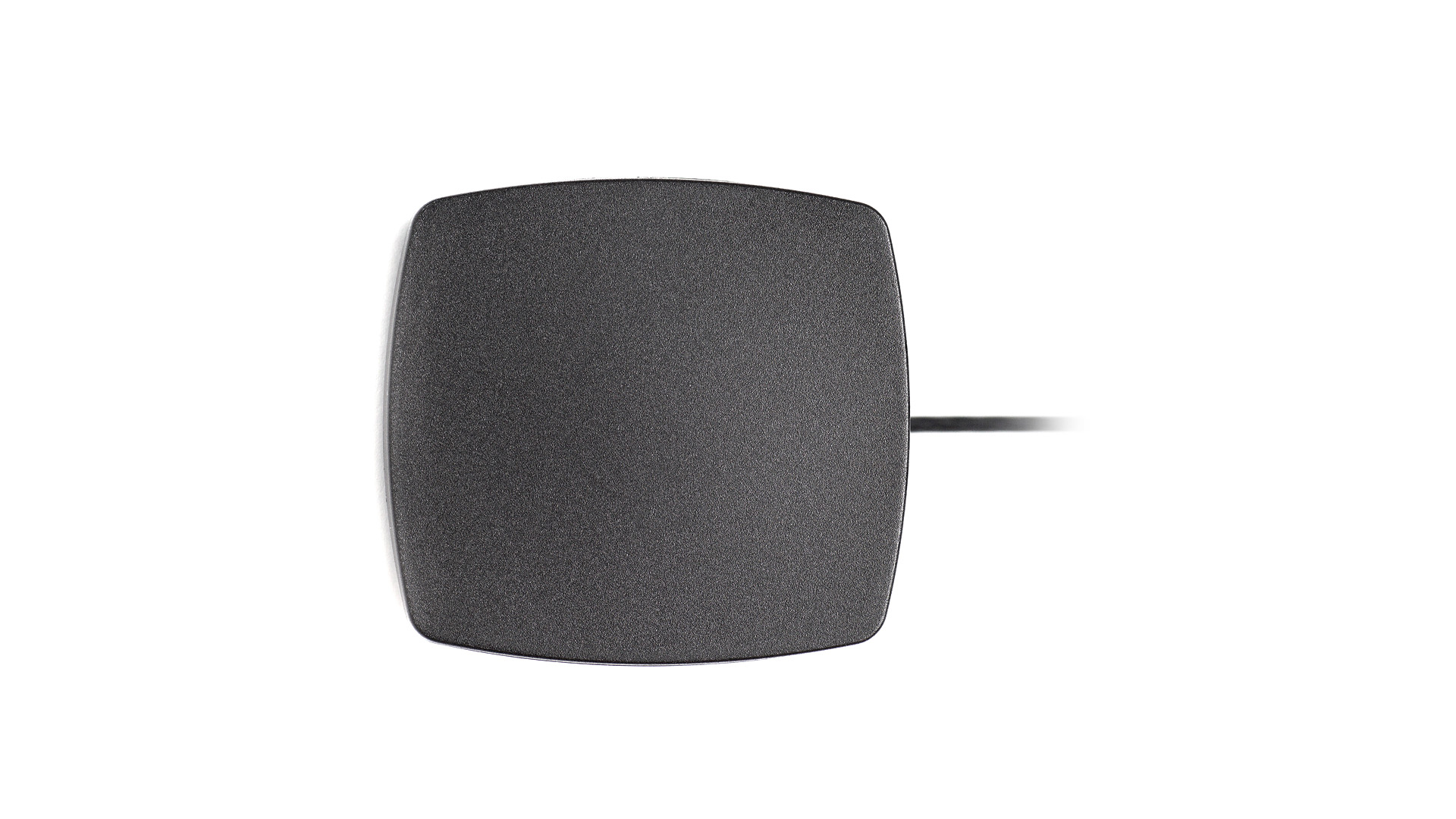

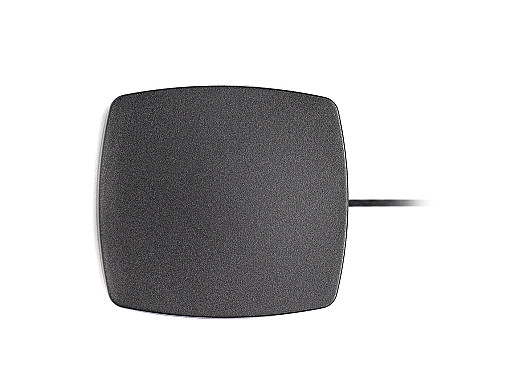

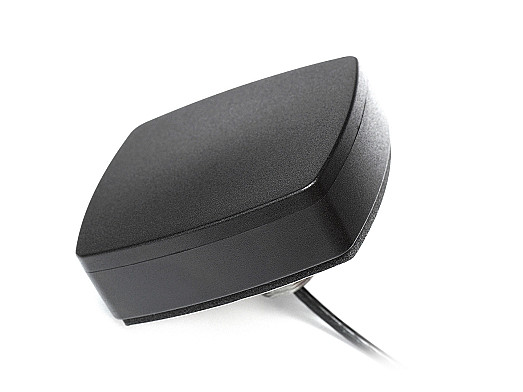

Antenna Description

2J6924B

High Performance Designed for Demanding Cellular Applications

2J Antennas is expanding their “Phoenix”  antenna portfolio and is adding the Cellular 4G LTE/3G/2G Screw Mount Antenna (2J6924B). It is compatible with 4G, LTE, FirstNet, LPWA, NB-IoT, Cat-X-Mx-NBx, 3G, 2G and ideal for signal enhancement in virtually any cellular application operating within 698-960 MHz, 1710-2170 MHz, and 2500-2700 MHz frequencies.

The 2J6924B can maintain 45-52.3% efficiency and 3.1 – 3.5 dBi peak gains across all bands. Designed with an omni-directional radiation pattern, this antenna provides consistent and stable connectivity with high data throughput to access points such as routers, small base stations, repeaters, boosters, fleet management devices and other telematics devices with cellular needs.

Suggested applications include:

- HD Voice and Data
- Cellular Communications
- Infotainment systems
- Self-driving cars
- Fleet management
- Gateways
- Public transportation
- Logistics



Installation and Durability

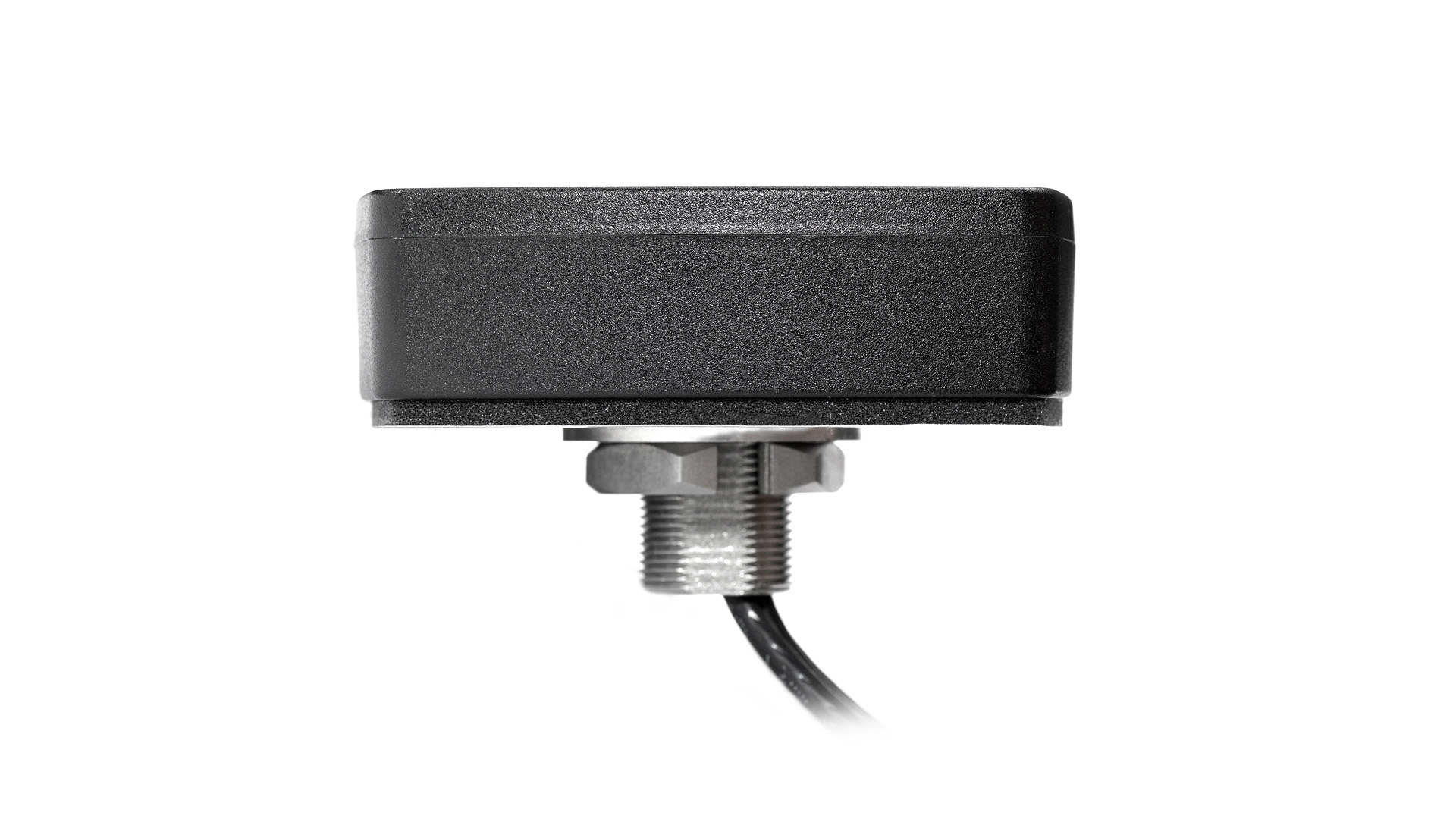

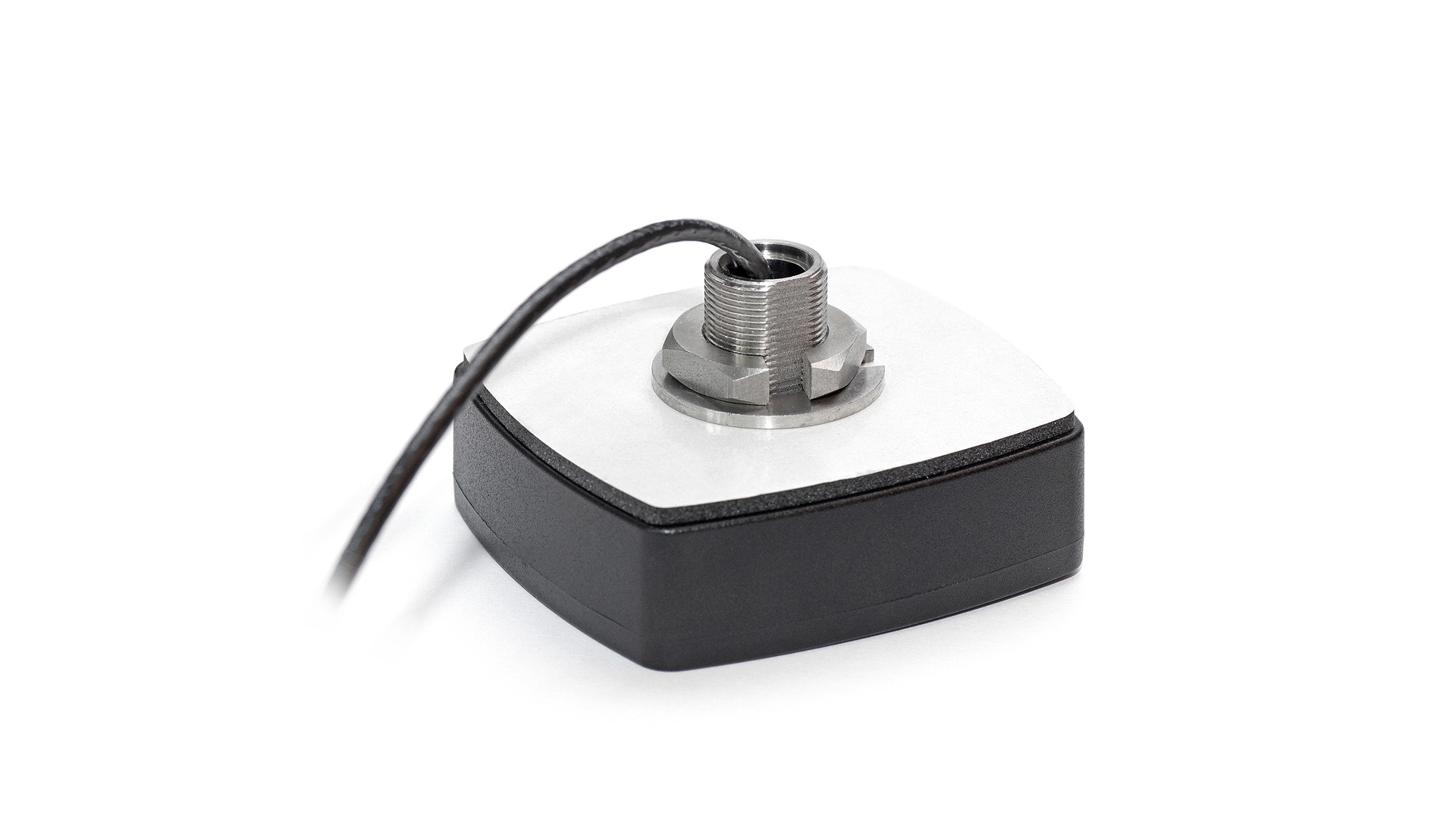

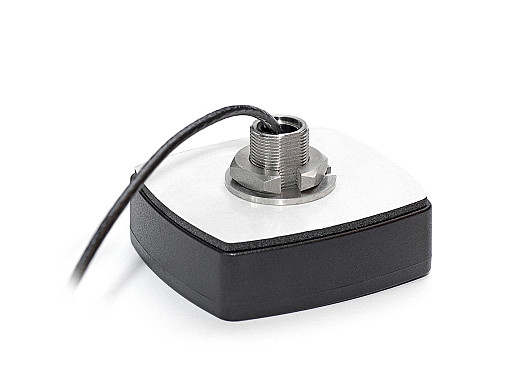

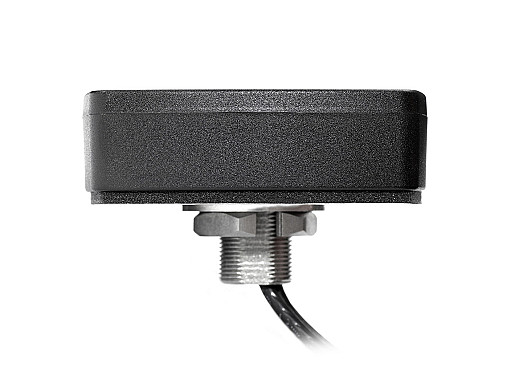

This ground plane independent antenna can be installed on any free space via the single screw mount and an anti-rotation mechanism keeping it secure to the surface area.  The housing is manufactured with IP67/IP69 rated ABS UV stable material resisting dust, sand, and water in addition offers durability for long term usage in outdoor or indoor applications.

The cable comes with a standard SMA-male connector with 300cm long D302 cable that is tuned for maximum antenna performance. However, we have a large variety of alternative connectors and cables that can be customized for any specific application needs. Please contact one of our experts for more information or assistance with any antenna selection needs.

To support the health of our environment and a sustainable future, all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
