Antenna and electrical specifications

connection 1

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~4.5
Efficiency (%) ~76
Impedance (Ohm) 50
Axial Ratio (dB) 3 max.
Radiation Pattern Hemispherical
Polarization RHCP
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Impedance (Ohm) 50
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 – 3.6
Current (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7V

Key Features

2-in-1 Combination Antenna
Ground Plane Independent
Iridium Certified Antenna
5.2 dBic IRIDIUM Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Low Profile
Adhesive Mounting sticker included
Customizable Cable and Connector

Antenna Description

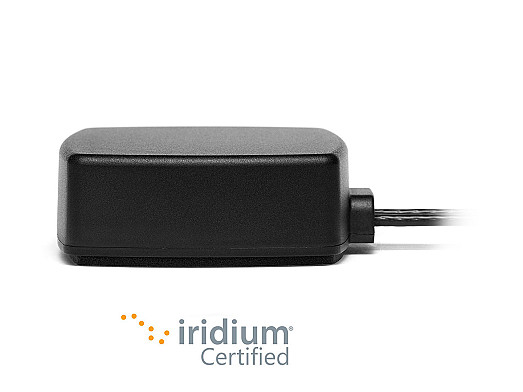

2J6933MPGFz

The 2-in-1 Iridium Certified Antenna is Connecting You to The World with Precision

The GPS/Glonass/Galileo and Iridium Magnetic Adhesive Mount (2J6933MPGFz) is a 2-in-1, high-performance antenna that maximizes versatile usability without compromising efficiency. The compact size 2J6933MPGFz outperforms any competitor by offering GPS, QZSS, Galileo, GLONASS and Iridium standards. The 2J6933MPGFz offers reliable, constant global connectivity with the highest precision ideal for tracking/mapping devices, industrial machinery, sea vessels and air/automobile navigation.

Cable 1

The GNSS Ceramic Active Antenna (Cable 1) is designed for reliable navigational connectivity within GPS/ QZSS/ Galileo and GLONASS standards. With a hemispherical radiation pattern and pre-filter GNSS, the 2J6933MPGFz operates within 1575.42MHz and 1598MHz-1606MHz frequencies. The GNSS Active Antenna offers access to multiple satellites improving accuracy, redundancy and availability at all times.

Cable 2

The Iridium Antenna (Cable 2) is designed for Iridium standards. With a hemispherical radiation pattern, the 2J6933MPGFz operates within 1616MHz-1627MHz frequencies. The Iridium antenna offers the most reliable global connectivity on the market including poles, oceans and airways. This antenna is ideal for worldwide voice and data communication from hand-held satellite phones and other transceiver units.

Installation/ Environment

For internal and external applications, the production material used is black/white ABS UV stable, protecting the antenna from temperatures between -40C and +85C. With a convenient peel-n-stick adhesive magnetic mount, this antenna can be simply installed to any metal surface (vehicle or metal building) without the need for additional grounding. The adhesive and magnetic mount is strong enough for long-term installations but also offers an easy option for temporary applications and relocation. We recommend installing this antenna with a clear line of sight and directed to the signal for the most reliable connectivity.

All two cables on the 2J6933MPGFz antenna have a SMA-Male standard connector and come with 300cm standard cable length. The 2J6933MPGFz is fully customizable by offering other connector types, cable lengths and cable types and is manufactured with RoHS compliance and complete IP67, IP69 and Iridium certification.
