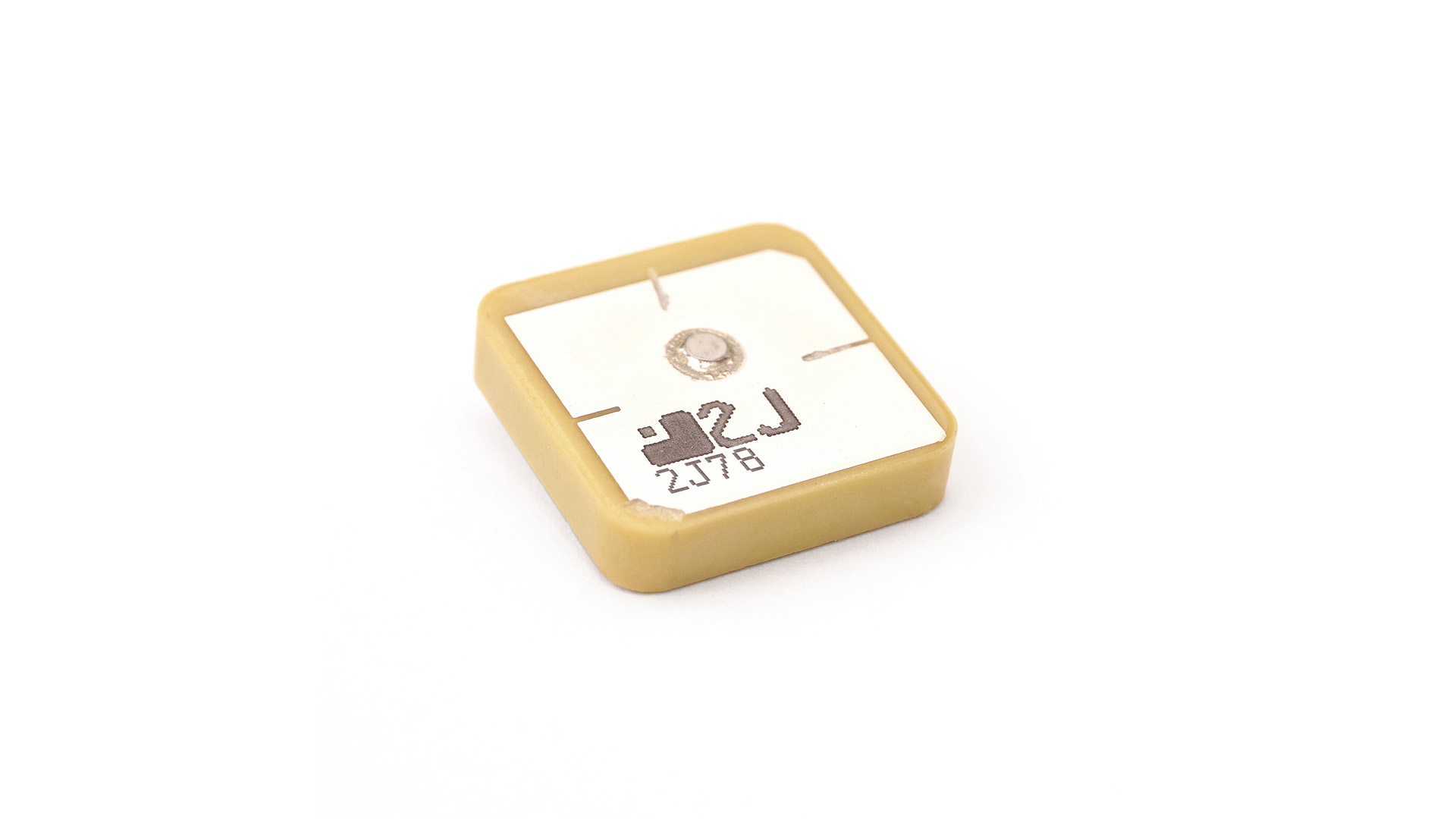

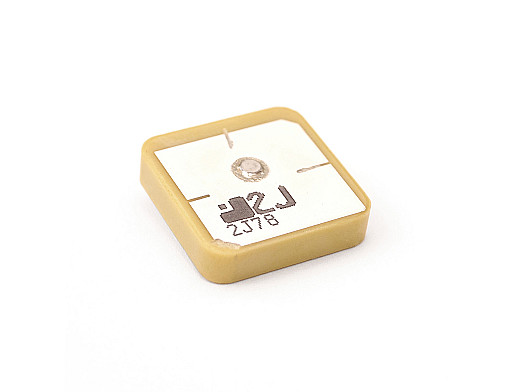

2JCP1840101Ga Antenna

GPS/GLONASS/Galileo 1575-1606 MHz High Gain Ceramic Antenna

General specification
Mounting Thru-Hole Mount Ceramic
Note Specification only for the 2JDK0101Ga-A28 Development Kit
Dimensions (mm) 18 x 18 x 4
Operating temperature -40 °C to +85 °C
Get Datasheet
Product added to cart

Key Features

  • High Gain
  • Ceramic Passive Antenna
  • Thru-Hole Mount
  • 18 × 18 × 4 mm
  • Ground Plane Dependent
  • Applications

    Antenna and electrical specifications

    connection 1

    GPS/GLONASS - Ceramic Passive Antenna

    Standards GPS/GLONASS/QZSS/Galileo
    Frequency 1575.42, 1598-1606
    Passive Gain (dBi) ~4.1, ~4.2
    Efficiency (%) ~73.9, ~73.7
    Radiation Pattern Hemispherical
